OPPO A16s

OPPO A16s

Android 11.0

Set up your OPPO A16s Android 11.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Slide two fingers downwards starting from the top of the screen.

Slide two fingers downwards starting from the top of the screen.

Slide two fingers downwards starting from the top of the screen.

Step 1 of 16

1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.

Press the settings icon.

Press the settings icon.

Press the settings icon.

Step 2 of 16

1. Find "Access point name"

Press the settings icon.

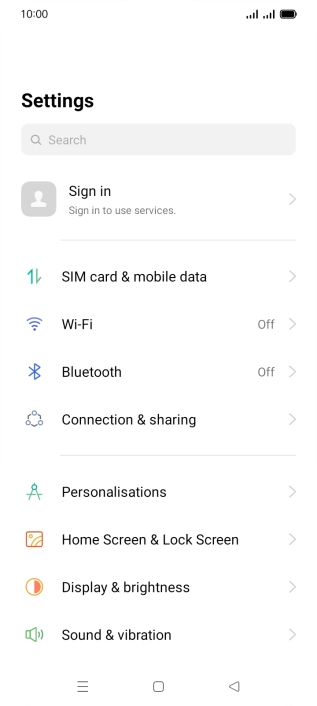

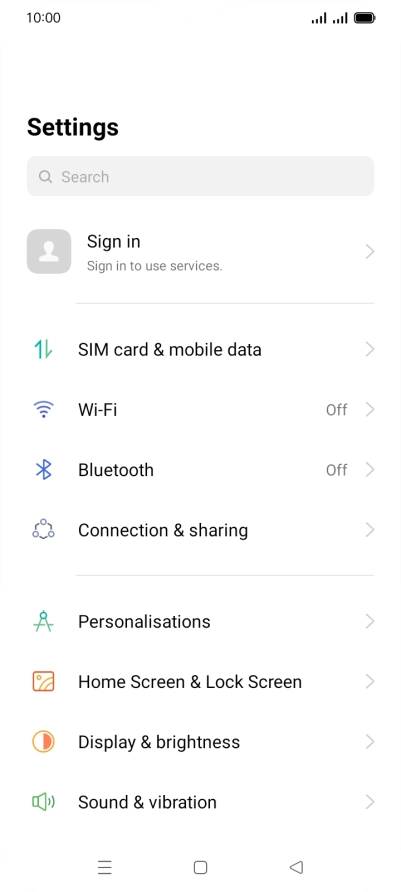

Press SIM card & mobile data.

Press SIM card & mobile data.

Press SIM card & mobile data.

Step 3 of 16

1. Find "Access point name"

Press SIM card & mobile data.

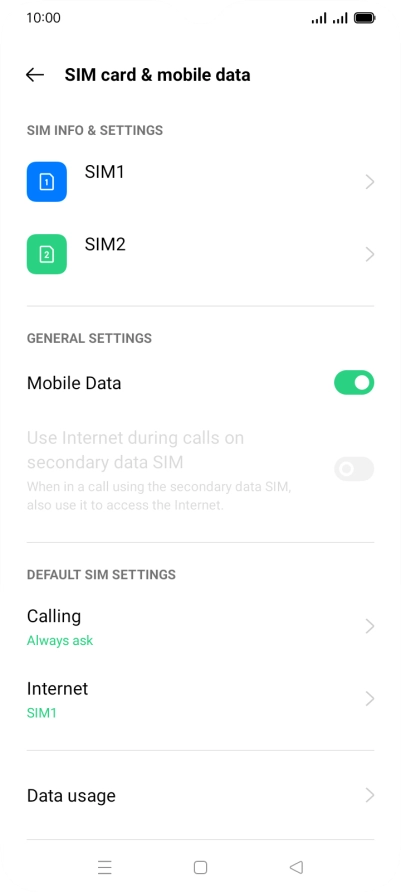

Press the name of the SIM.

Press the name of the SIM.

Press the name of the SIM.

Step 4 of 16

1. Find "Access point name"

Press the name of the SIM.

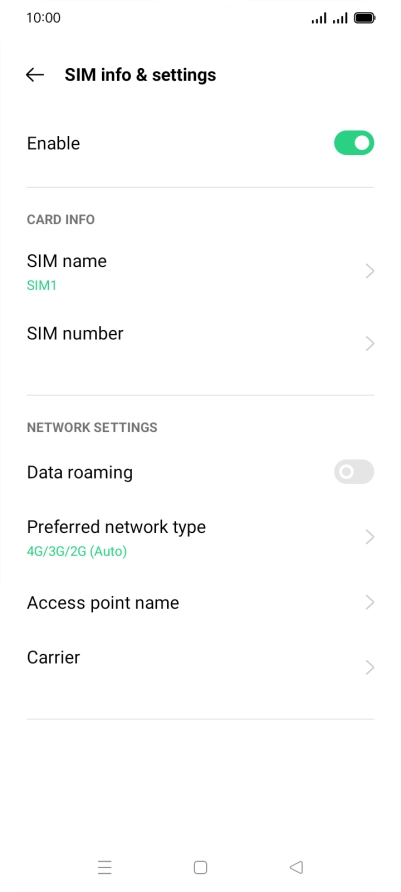

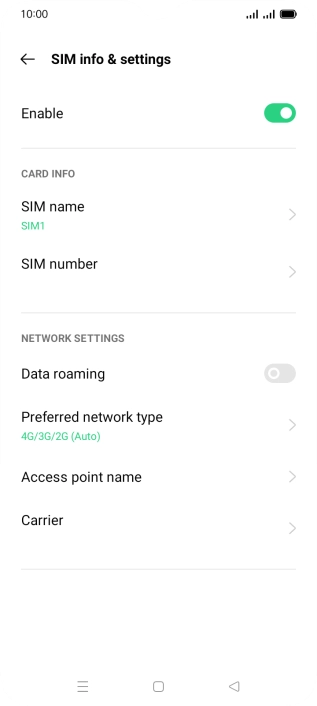

Press Access point name.

Press Access point name.

Press Access point name.

Step 5 of 16

1. Find "Access point name"

Press Access point name.

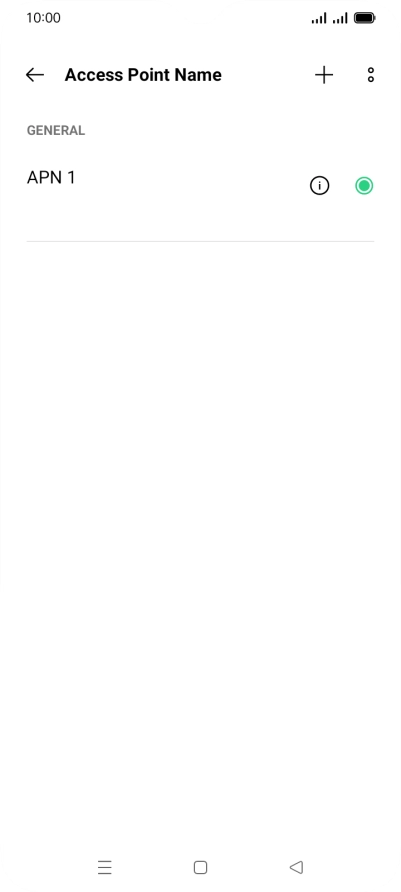

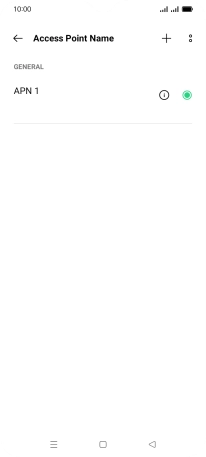

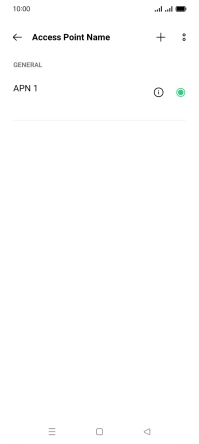

Press the new data connection icon.

Press the new data connection icon.

Press the new data connection icon.

Step 6 of 16

2. Create new data connection

Press the new data connection icon.

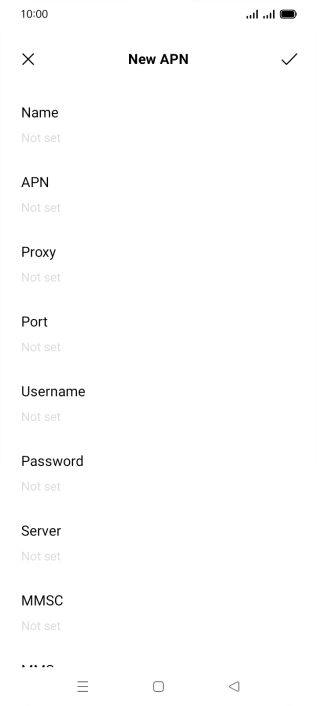

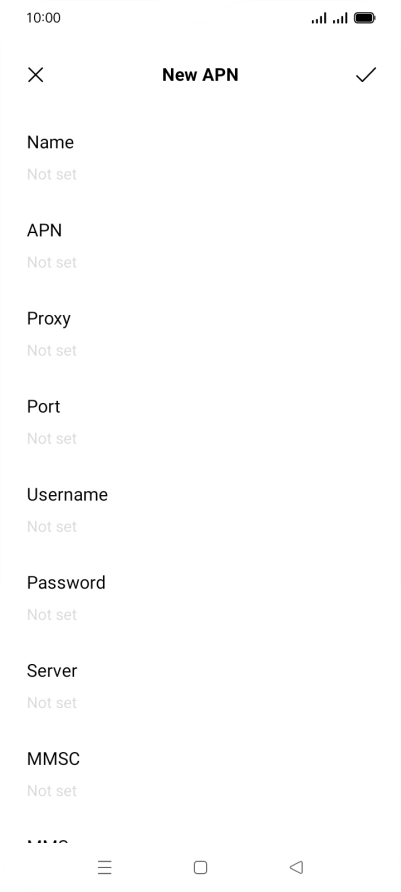

Press the field below

Vodafone Internet

Press the field below

Vodafone Internet

Press the field below

Vodafone Internet

Step 7 of 16

2. Create new data connection

Press the field below "Name" and key in Vodafone Internet.

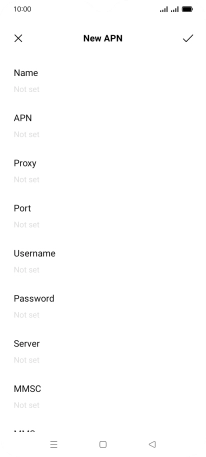

Press the field below

live.vodafone.com

Press the field below

live.vodafone.com

Press the field below

live.vodafone.com

Step 8 of 16

3. Enter APN

Press the field below "APN" and key in live.vodafone.com.

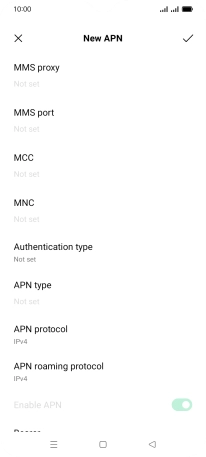

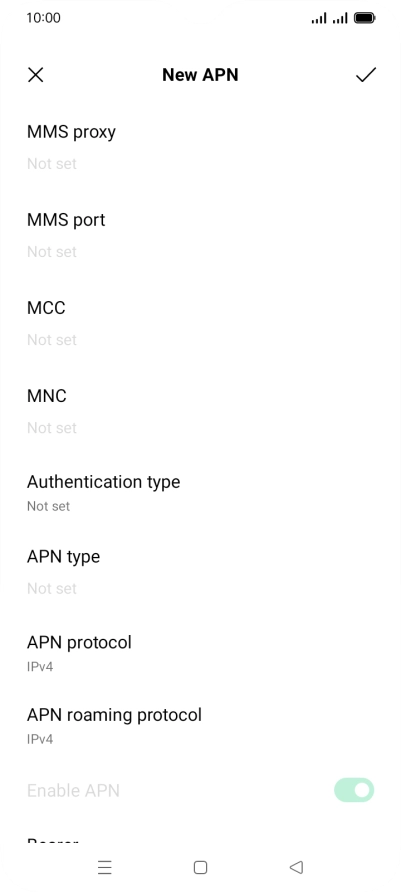

Press the field below

505

Press the field below

505

Press the field below

505

Step 9 of 16

4. Enter country code

Press the field below "MCC" and key in 505.

Press the field below

03

Press the field below

03

Press the field below

03

Step 10 of 16

5. Enter network code

Press the field below "MNC" and key in 03.

Press Authentication type.

Press Authentication type.

Press Authentication type.

Step 11 of 16

6. Select authentication type

Press Authentication type.

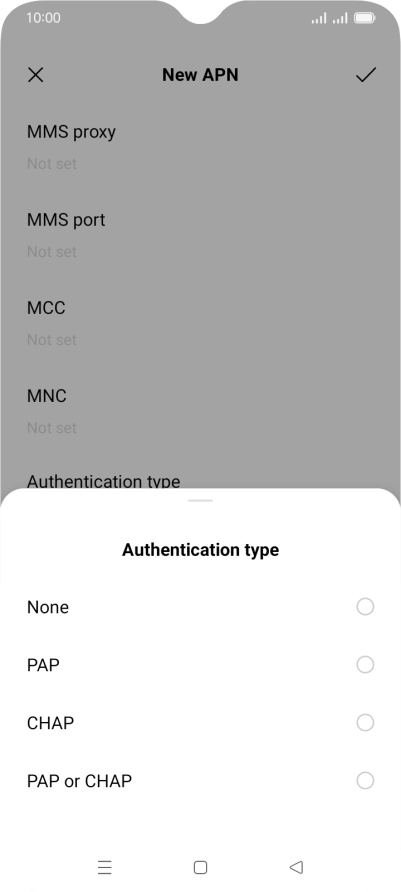

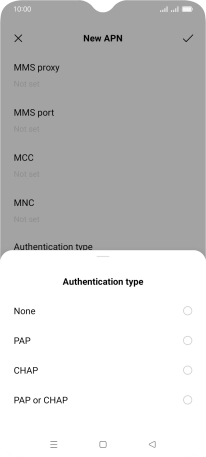

Press PAP.

Press PAP.

Step 12 of 16

6. Select authentication type

Press PAP.

Press the field below

default

Press the field below

default

Press the field below

default

Step 13 of 16

7. Enter APN type

Press the field below "APN type" and key in default.

Press the save icon.

Press the save icon.

Press the save icon.

Step 14 of 16

8. Save data connection

Press the save icon.

Press the field next to the data connection to activate it.

Press the field next to the data connection to activate it.

Press the field next to the data connection to activate it.

Step 15 of 16

8. Save data connection

Press the field next to the data connection to activate it.

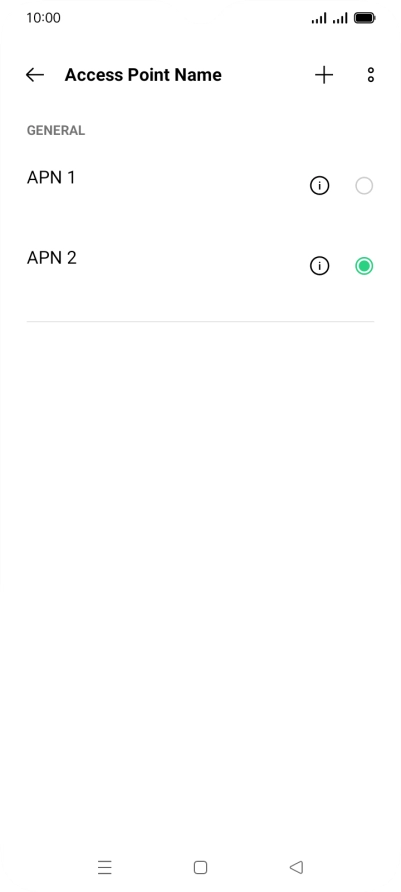

Press the Home key to return to the home screen.

Press the Home key to return to the home screen.

Press the Home key to return to the home screen.

Step 16 of 16

9. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.

Press the settings icon.

Press SIM card & mobile data.

Press the name of the SIM.

Press Access point name.

2. Create new data connection

Press the new data connection icon.

Press the field below "Name" and key in Vodafone Internet.

Vodafone Internet

3. Enter APN

Press the field below "APN" and key in live.vodafone.com.

live.vodafone.com

4. Enter country code

Press the field below "MCC" and key in 505.

505

5. Enter network code

Press the field below "MNC" and key in 03.

03

6. Select authentication type

Press Authentication type.

Press PAP.

7. Enter APN type

Press the field below "APN type" and key in default.

default

8. Save data connection

Press the save icon.

Press the field next to the data connection to activate it.

9. Return to the home screen

Press the Home key to return to the home screen.
