Set up your Nokia 3310 (2017) Proprietary OS for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 27

1. Find "Access points"

Press the Navigation key.

Step 2 of 27

1. Find "Access points"

Select Settings.

Step 3 of 27

1. Find "Access points"

Select Connectivity.

Step 4 of 27

1. Find "Access points"

Select Mobile data.

Step 5 of 27

1. Find "Access points"

Select Mobile data.

Step 6 of 27

1. Find "Access points"

Select Access points.

Step 7 of 27

2. Create new data connection

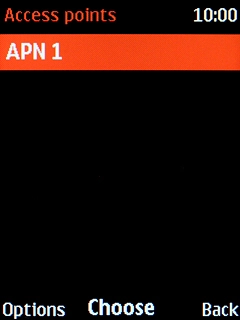

Press the Left selection key.

Step 8 of 27

2. Create new data connection

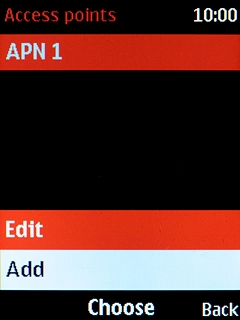

Select Add.

Vodafone MMS
Step 9 of 27

2. Create new data connection

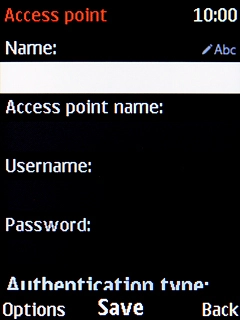

Highlight the field below "Name" and key in Vodafone MMS.

live.vodafone.com
Step 10 of 27

3. Enter APN

Highlight the field below "Access points name" and key in live.vodafone.com.

Step 11 of 27

4. Enter MMSC

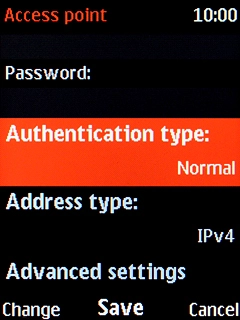

Select Advanced settings.

http://pxt.vodafone.net.au/pxtsend
Step 12 of 27

4. Enter MMSC

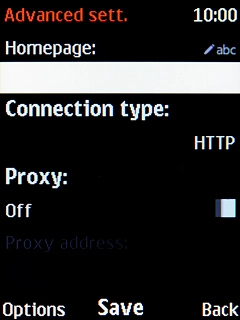

Highlight the field below "Homepage" and key in http://pxt.vodafone.net.au/pxtsend.

Step 13 of 27

5. Select connection type

Select Connection type.

Step 14 of 27

5. Select connection type

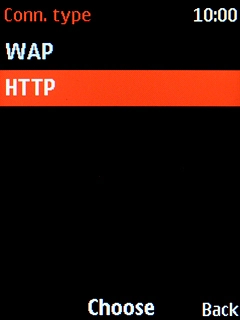

Select HTTP.

Step 15 of 27

6. Turn on use of proxy

Highlight Proxy and press Navigation key right or Navigation key left to turn on use of proxy.

10.202.002.060
Step 16 of 27

7. Enter IP address

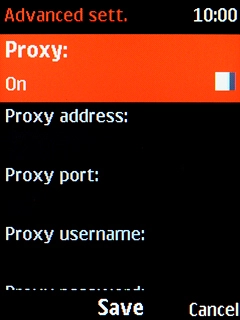

Highlight the field below "Proxy address" and key in 10.202.002.060.

8080
Step 17 of 27

8. Enter port number

Highlight the field below "Proxy port" and key in 8080.

Step 18 of 27

9. Save data connection

Press the Navigation key.

Step 19 of 27

10. Active data connection

Press Disconnect.

Step 20 of 27

10. Active data connection

Press the Navigation key.

Step 21 of 27

10. Active data connection

Select Messaging.

Step 22 of 27

10. Active data connection

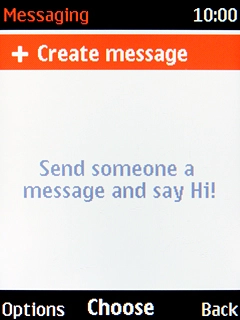

Press the Left selection key.

Step 23 of 27

10. Active data connection

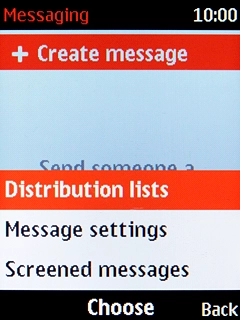

Select Message settings.

Step 24 of 27

10. Active data connection

Select MMS.

Step 25 of 27

10. Active data connection

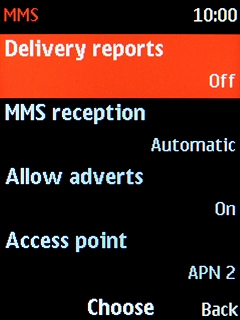

Select Access point.

Step 26 of 27

10. Active data connection

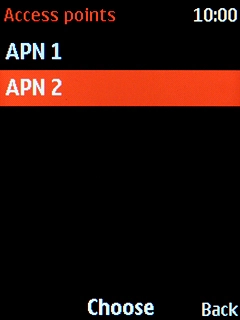

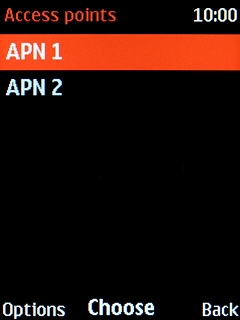

Select the required data connection.

Step 27 of 27

11. Return to the home screen

Press Disconnect to return to the home screen.

1. Find "Access points"

Press the Navigation key.
Select Settings.
Select Connectivity.
Select Mobile data.
Select Mobile data.
Select Access points.

2. Create new data connection

Press the Left selection key.
Select Add.
Highlight the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3. Enter APN

Highlight the field below "Access points name" and key in live.vodafone.com.
live.vodafone.com

4. Enter MMSC

Select Advanced settings.
Highlight the field below "Homepage" and key in http://pxt.vodafone.net.au/pxtsend.
http://pxt.vodafone.net.au/pxtsend

5. Select connection type

Select Connection type.
Select HTTP.

6. Turn on use of proxy

Highlight Proxy and press Navigation key right or Navigation key left to turn on use of proxy.

7. Enter IP address

Highlight the field below "Proxy address" and key in 10.202.002.060.
10.202.002.060

8. Enter port number

Highlight the field below "Proxy port" and key in 8080.
8080

9. Save data connection

Press the Navigation key.

10. Active data connection

Press Disconnect.
Press the Navigation key.
Select Messaging.
Press the Left selection key.
Select Message settings.
Select MMS.
Select Access point.
Select the required data connection.

11. Return to the home screen

Press Disconnect to return to the home screen.
