Set up your phone for internet - Nokia C3

Read help info

Follow these instructions to set up your phone for internet.

Step 1 of 29

Find "Personal settings"

Press the Navigation key.

Step 2 of 29

Find "Personal settings"

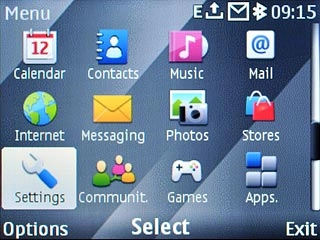

Scroll to Settings and press the Navigation key.

Step 3 of 29

Find "Personal settings"

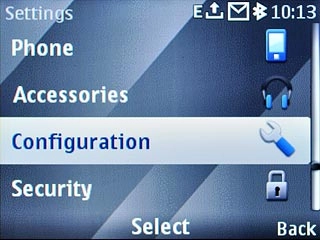

Scroll to Configuration and press the Navigation key.

Step 4 of 29

Find "Personal settings"

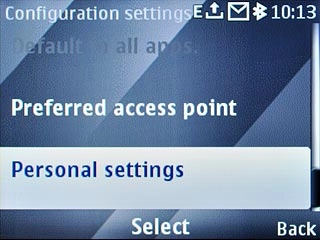

Scroll to Personal settings and press the Navigation key.

Step 5 of 29

Create new data connection

If no data connections have been created:
Press the Navigation key.

Step 6 of 29

Create new data connection

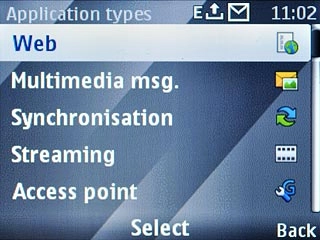

Scroll to Web and press the Navigation key.

Step 7 of 29

Create new data connection

If data connections have been created already:
Press Options.

Step 8 of 29

Create new data connection

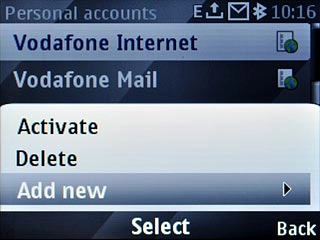

Scroll to Add new and press the Navigation key.

Step 9 of 29

Create new data connection

Scroll to Web and press the Navigation key.

Step 10 of 29

Enter data connection name

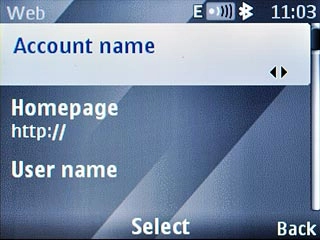

Scroll to Account name and press the Navigation key.

Step 11 of 29

Enter data connection name

Key in Vodafone Internet and press the Navigation key.

Step 12 of 29

Turn off default data connection

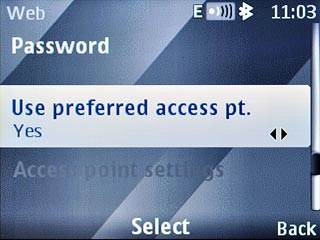

Scroll to Use preferred access pt. and press the Navigation key.

Step 13 of 29

Turn off default data connection

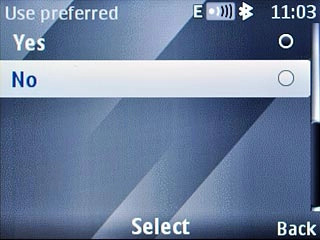

Scroll to No and press the Navigation key.

Step 14 of 29

Enable proxy

Scroll to Access point settings and press the Navigation key.

Step 15 of 29

Enable proxy

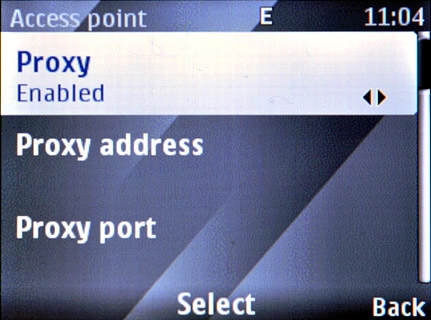

Scroll to Proxy and press the Navigation key.

Step 16 of 29

Enable proxy

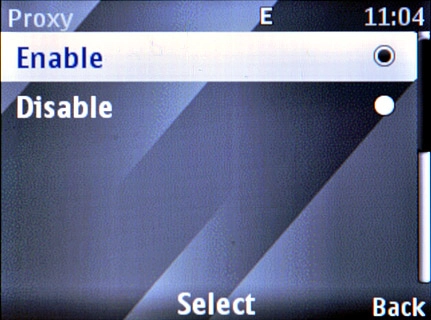

Scroll to Enable and press the Navigation key.

Step 17 of 29

Enter IP address

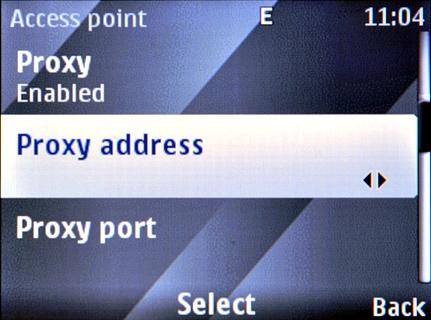

Scroll to Proxy address and press the Navigation key.

Step 18 of 29

Enter IP address

Key in 10.202.2.60 and press the Navigation key.

Step 19 of 29

Enter port

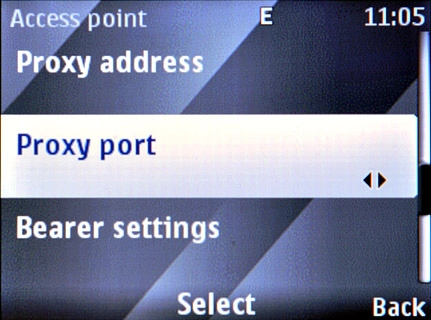

Scroll to Proxy port and press the Navigation key.

Step 20 of 29

Enter port

Key in 8080 and press the Navigation key.

Step 21 of 29

Edit bearer settings

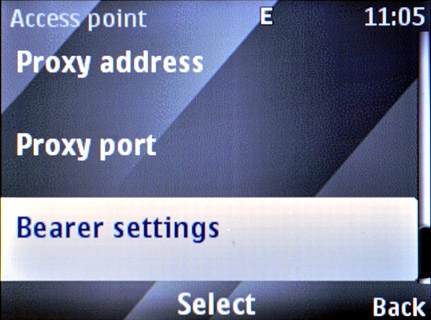

Scroll to Bearer settings and press the Navigation key.

Step 22 of 29

Enter APN

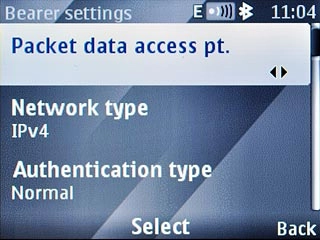

Scroll to Packet data access pt. and press the Navigation key.

Step 23 of 29

Enter APN

Key in live.vodafone.com and press the Navigation key.

Step 24 of 29

Select authentication type

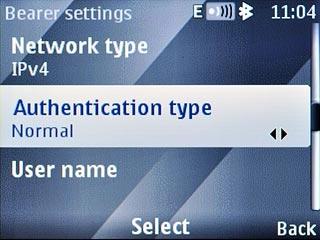

Scroll to Authentication type and press the Navigation key.

Step 25 of 29

Select authentication type

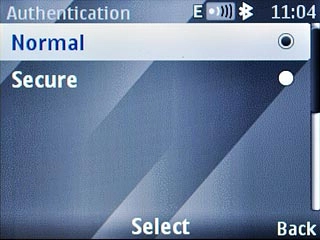

Scroll to Normal and press the Navigation key.

Step 26 of 29

Activate data connection

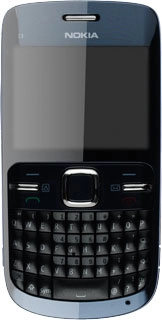

Press Back three times to save the settings.

Step 27 of 29

Activate data connection

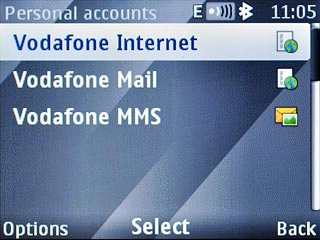

Scroll to Vodafone Internet and press Options.

Step 28 of 29

Activate data connection

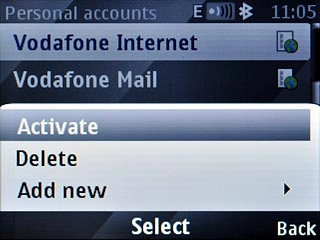

Scroll to Activate and press the Navigation key.

Step 29 of 29

Exit

Press Disconnect to return to standby mode.

Find "Personal settings"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal settings and press the Navigation key.

Create new data connection

If no data connections have been created:
Press the Navigation key.
Scroll to Web and press the Navigation key.
If data connections have been created already:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Web and press the Navigation key.

Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone Internet and press the Navigation key.

Turn off default data connection

Scroll to Use preferred access pt. and press the Navigation key.
Scroll to No and press the Navigation key.

Enable proxy

Scroll to Access point settings and press the Navigation key.
Scroll to Proxy and press the Navigation key.
Scroll to Enable and press the Navigation key.

Enter IP address

Scroll to Proxy address and press the Navigation key.
Key in 10.202.2.60 and press the Navigation key.

Enter port

Scroll to Proxy port and press the Navigation key.
Key in 8080 and press the Navigation key.

Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

Enter APN

Scroll to Packet data access pt. and press the Navigation key.
Key in live.vodafone.com and press the Navigation key.

Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

Activate data connection

Press Back three times to save the settings.
Scroll to Vodafone Internet and press Options.
Scroll to Activate and press the Navigation key.

Exit

Press Disconnect to return to standby mode.
