1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-a6e5f4a8-c023-4979-b305-6d88a03f03ff.png?width=206&height=412)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e2862964-0b75-48ec-93ed-bf86b51359d0.png?width=206&height=412)
Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-791d1e4b-8905-4699-95ea-4ccfb703245b.png?width=206&height=412)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-bff44bae-053c-449f-9dfe-ba765174c265.png?width=206&height=412)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-f52b7ecf-467e-4cf6-b248-fcfa1f33f1cf.png?width=206&height=412)
2. Create new data connection

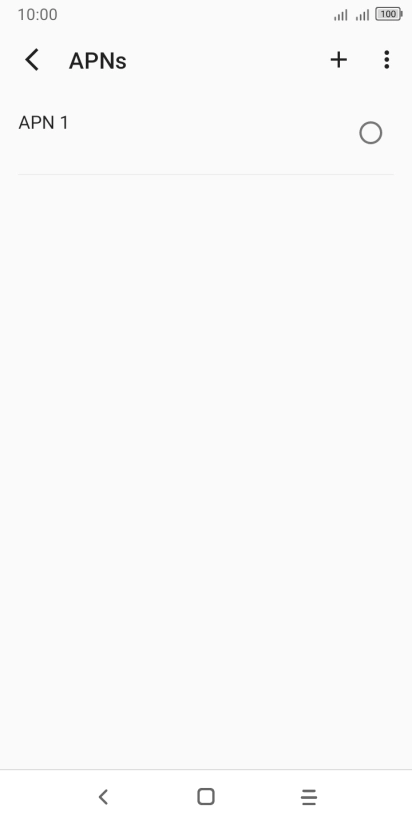

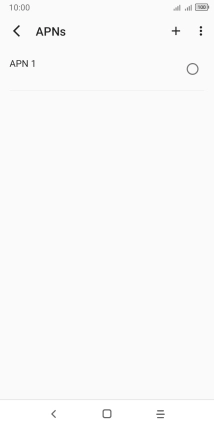

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-f7b60bfb-a425-4071-aa29-00e08239743e.png?width=206&height=412)

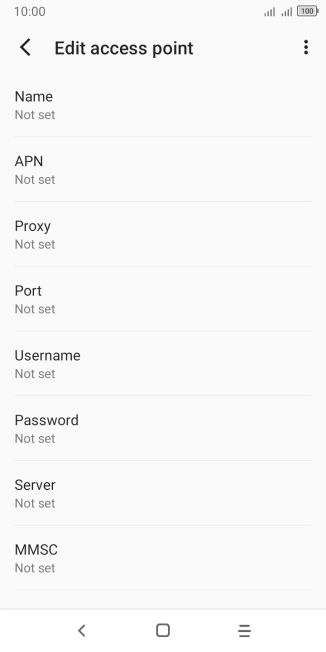

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

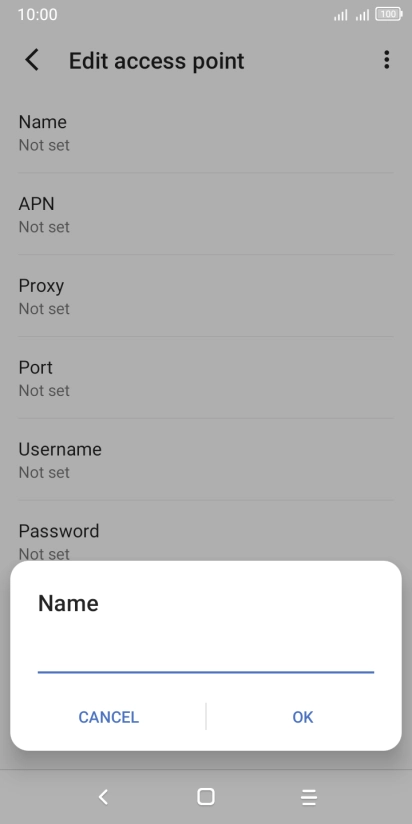

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-fef1ddcf-706d-4135-bf31-19df2d581e5e.png?width=206&height=412)
Vodafone MMS
3. Enter APN

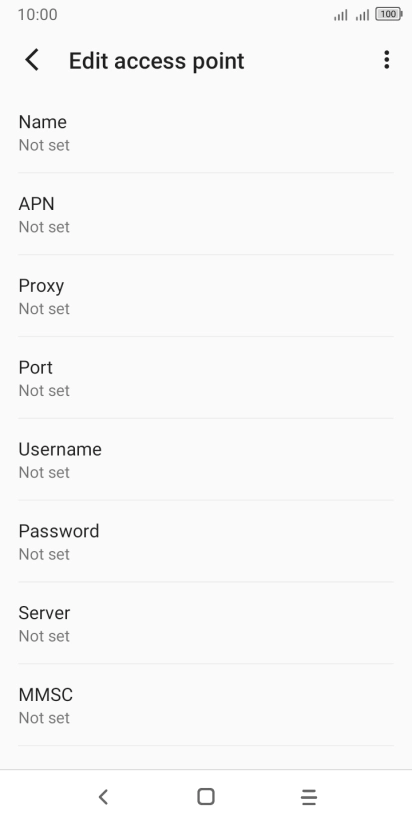

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-9bf35d5f-7055-4691-b415-0449c29d4905.png?width=206&height=412)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-000550b8-b395-4bfe-99c1-c6efbdb6a806.png?width=206&height=412)

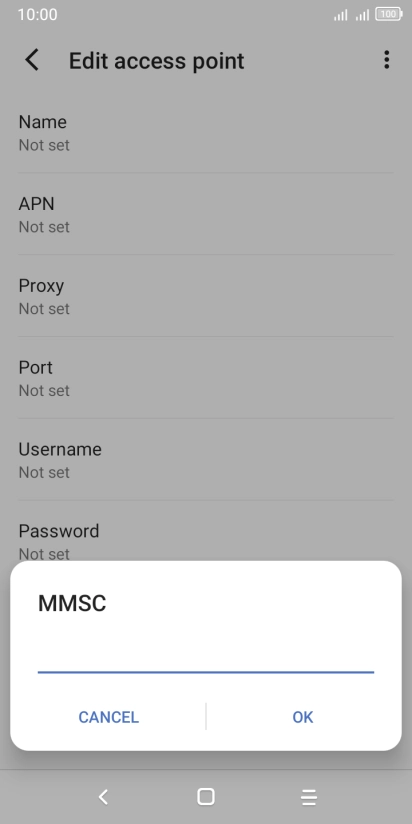

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-8f3100d6-3e20-4e4a-97e5-9d176875edea.png?width=206&height=412)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address

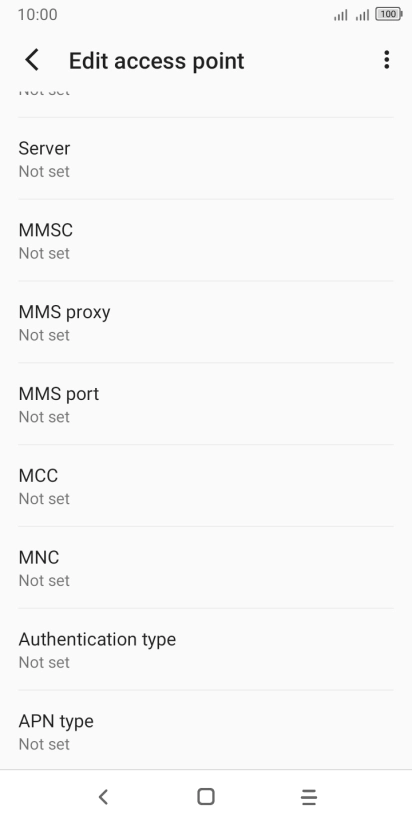

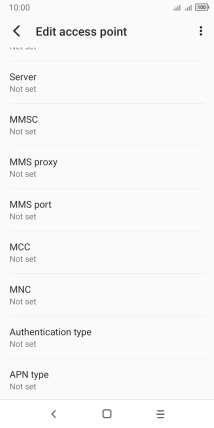

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

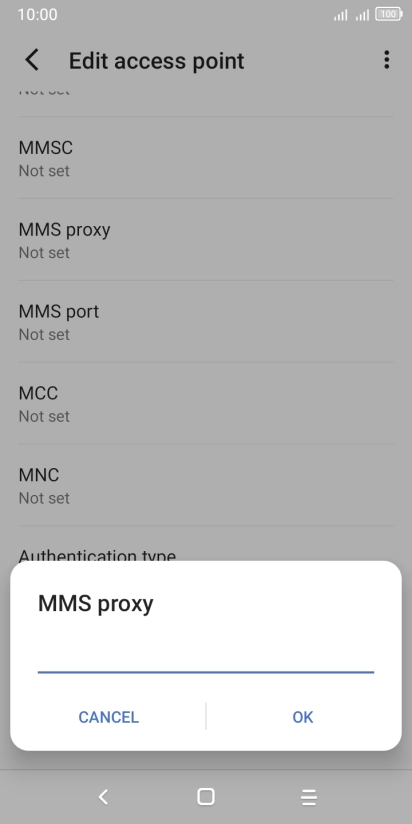

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-524dbb43-38e8-4a57-a25e-59d48eacf62e.png?width=206&height=412)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

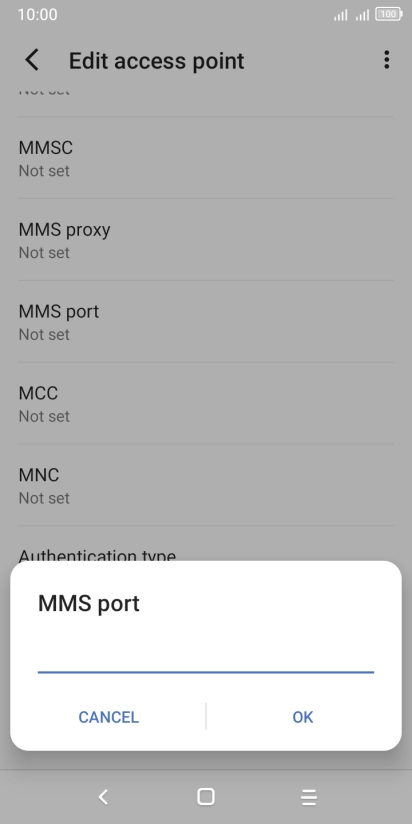

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-447aa097-1309-46b0-b0a9-c8c4e1d1d5be.png?width=206&height=412)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

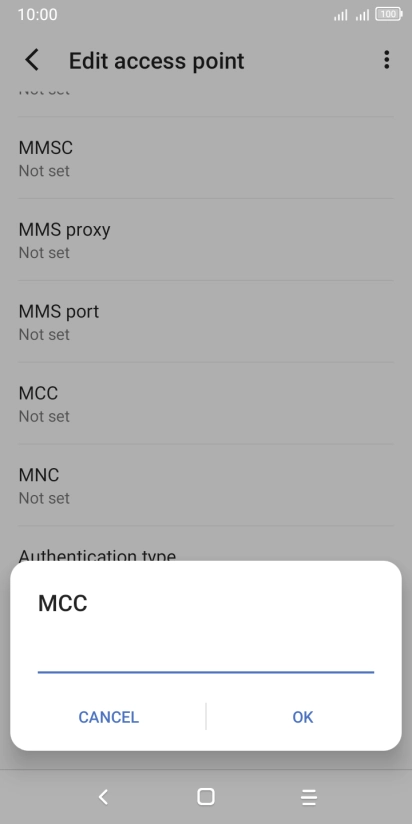

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-94fe0753-e239-4768-9f8d-977f71d282d0.png?width=206&height=412)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

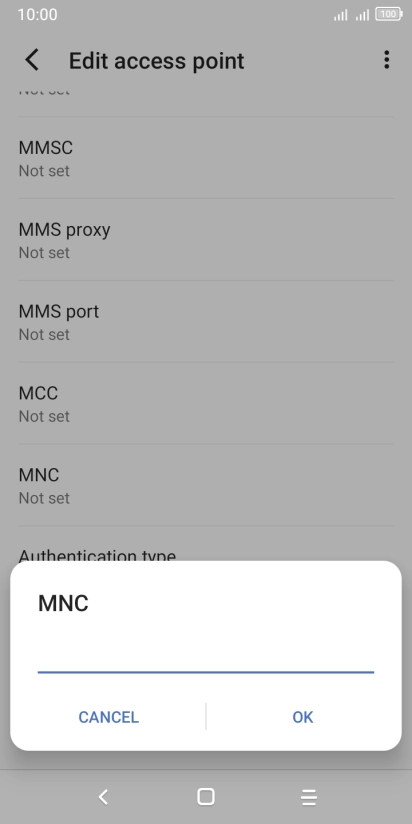

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-20ecf317-79a2-425d-849a-fef6848583f6.png?width=206&height=412)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

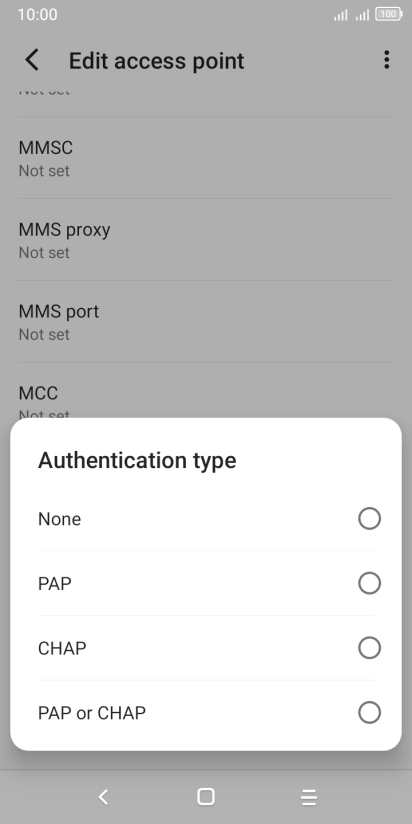

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-54eb2ce6-5019-4f08-8eb1-829bda5471af.png?width=206&height=412)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-60b1262b-3fa6-40a6-ad0d-061def4bd5c5.png?width=206&height=412)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d2a3ea12-0abf-40b7-a1a9-3c520ef80535.png?width=206&height=412)

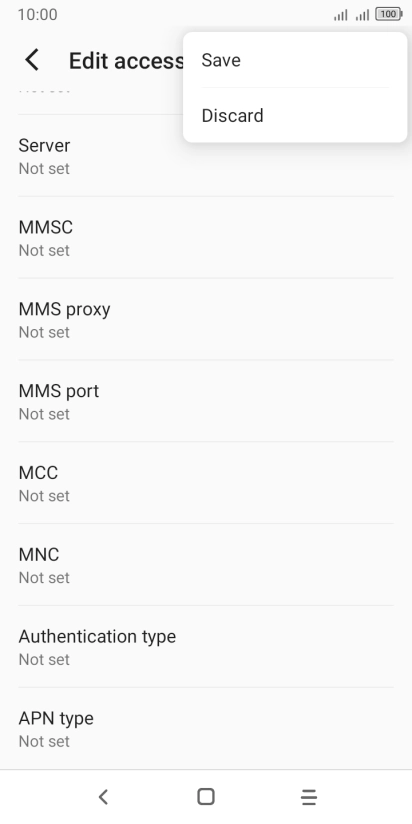

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-97474a0d-55ca-47cd-9714-54e2e4689597.png?width=206&height=412)
12. Return to the home screen

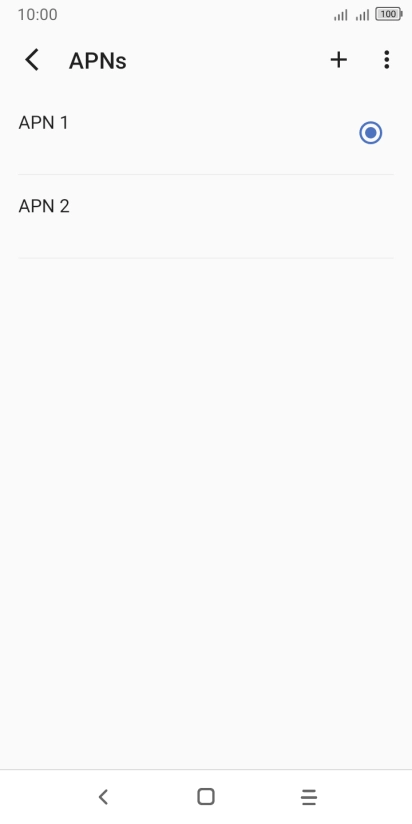

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-f363593c-17b7-4934-afb7-8e2926fa2f4c.png?width=206&height=412)
