Set up your phone for Exchange email - HTC 7 Trophy

Read help info

Follow these instructions to set up your phone for Exchange email.
To send and receive email messages, you need an internet connection. Your phone automatically receives the necessary settings to connect to the internet. If it's not possible, you can set up your phone manually. Click here for information on how to set up your phone for internet.

Step 1 of 22

Find "email & accounts"

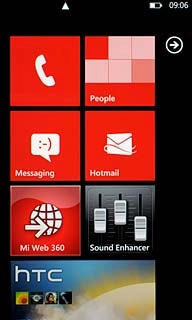

Press arrow right to access the main menu.

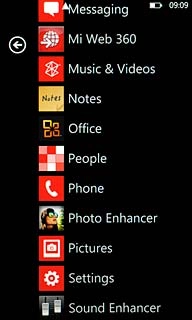

Step 2 of 22

Find "email & accounts"

Press Settings.

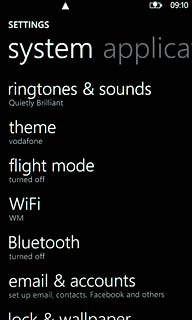

Step 3 of 22

Find "email & accounts"

Press email & accounts.

Step 4 of 22

Create new email account

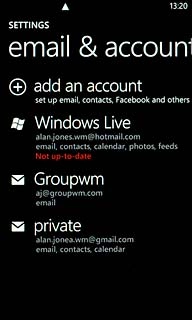

Press add an account.

Step 5 of 22

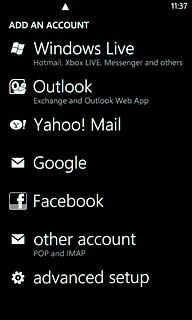

Create new email account

Press advanced setup.

Step 6 of 22

Enter email address

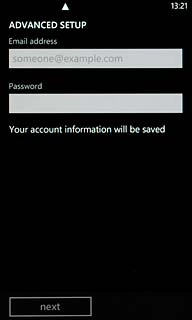

Press the field below Email address and key in your email address.

Step 7 of 22

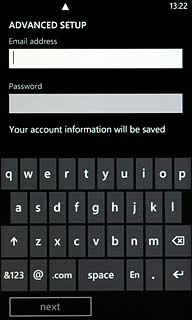

Enter password

Press the field below Password and key in the password for the server.

Step 8 of 22

Enter password

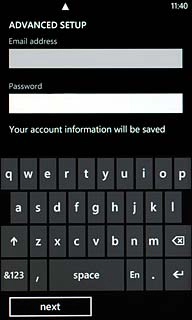

Press next.

Step 9 of 22

Select account type

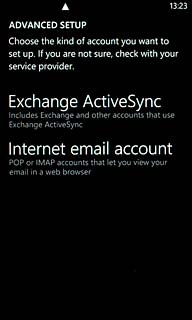

Press Exchange ActiveSync.

Step 10 of 22

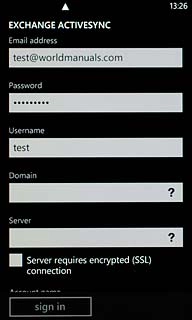

Enter domain

Press the field below Domain and key in the domain.

Step 11 of 22

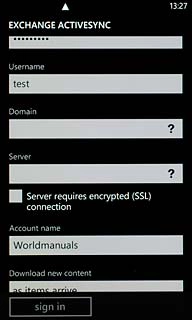

Enter server name

Press the field below Server and key in the server name.

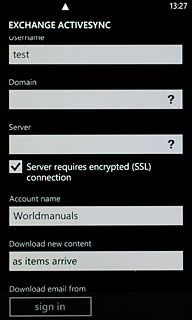

Step 12 of 22

Turn off security

Press Server requires encrypted (SSL) connection to turn off security.

Step 13 of 22

Turn off security

When the box next to the menu item is empty, security is turned off.

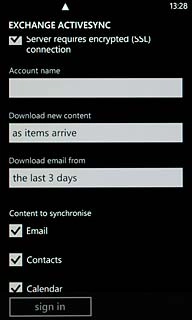

Step 14 of 22

Enter email account name

Press the field below Account name and key in a name for the email account.

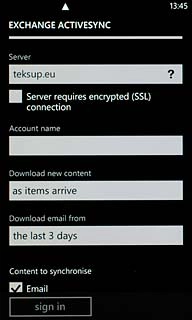

Step 15 of 22

Select setting for synchronisation

Press the field below Download new content.

Step 16 of 22

Select setting for synchronisation

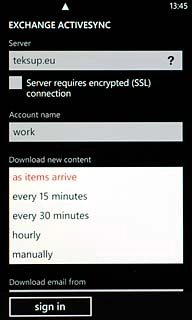

Press the required period or manually.

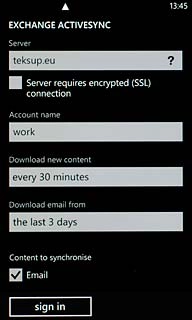

Step 17 of 22

Select time for retrieving email messages

Press the field below Download email from.

Step 18 of 22

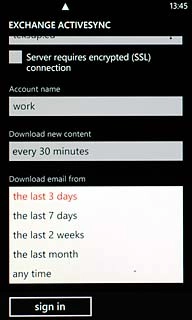

Select time for retrieving email messages

Press the required period or any time.

Step 19 of 22

Select data types

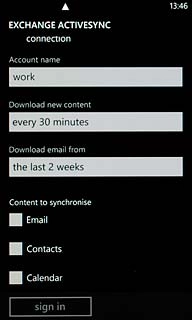

Press Email, Contacts and Calendar to turn synchronisation of each data type on or off.

Step 20 of 22

Select data types

When the box next to the menu item is ticked (V), synchronisation is turned on.

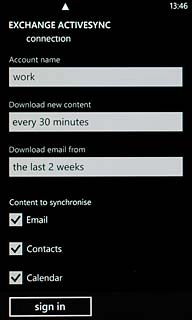

Step 21 of 22

Finish setup

Press sign in.

Step 22 of 22

Exit

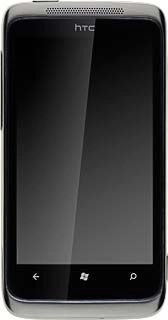

Press the Home key to return to standby mode.

Find "email & accounts"

Press arrow right to access the main menu.
Press Settings.
Press email & accounts.

Create new email account

Press add an account.
Press advanced setup.

Enter email address

Press the field below Email address and key in your email address.

Enter password

Press the field below Password and key in the password for the server.
Press next.

Select account type

Press Exchange ActiveSync.

Enter domain

Press the field below Domain and key in the domain.

Enter server name

Press the field below Server and key in the server name.

Turn off security

Press Server requires encrypted (SSL) connection to turn off security.
When the box next to the menu item is empty, security is turned off.

Enter email account name

Press the field below Account name and key in a name for the email account.

Select setting for synchronisation

Press the field below Download new content.
Press the required period or manually.

Select time for retrieving email messages

Press the field below Download email from.
Press the required period or any time.

Select data types

Press Email, Contacts and Calendar to turn synchronisation of each data type on or off.
When the box next to the menu item is ticked (V), synchronisation is turned on.

Finish setup

Press sign in.

Exit

Press the Home key to return to standby mode.
