Set up your phone for picture messaging - HTC Explorer

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 40

Find "Access Point Names"

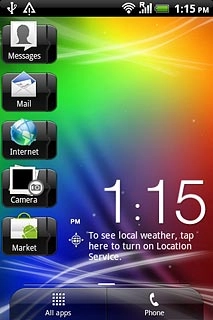

Press All apps to access the main menu.

Step 2 of 40

Find "Access Point Names"

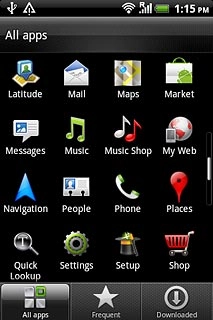

Press Settings.

Step 3 of 40

Find "Access Point Names"

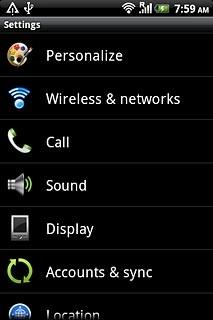

Press Wireless & networks.

Step 4 of 40

Find "Access Point Names"

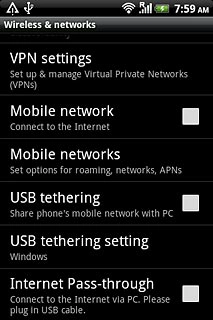

Press Mobile networks.

Step 5 of 40

Find "Access Point Names"

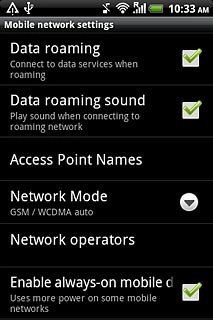

Press Access Point Names.

Step 6 of 40

Create new data connection

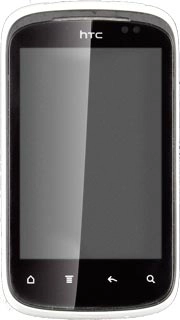

Press the Menu key.

Step 7 of 40

Create new data connection

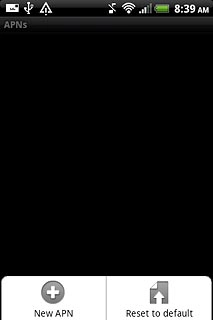

Press New APN.

Step 8 of 40

Enter data connection name

Press Name.

Step 9 of 40

Enter data connection name

Key in Vodafone MMS and press OK.

Step 10 of 40

Enter APN

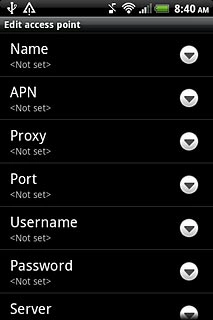

Press APN.
Key in live.vodafone.com

An APN (Access Point Name) is used to establish a connection from your phone to the internet. In order to send and receive picture messages, your phone needs a connection to the internet.
Step 11 of 40

Enter APN

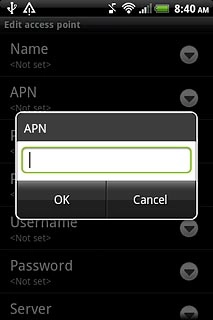

Press OK.

An APN (Access Point Name) is used to establish a connection from your phone to the internet. In order to send and receive picture messages, your phone needs a connection to the internet.
Step 12 of 40

Enter picture messaging server

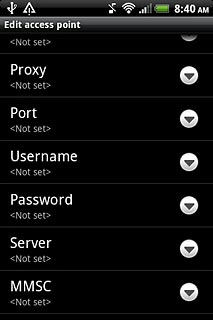

Press MMSC.

Step 13 of 40

Enter picture messaging server

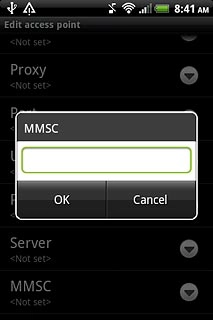

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 40

Enter IP address

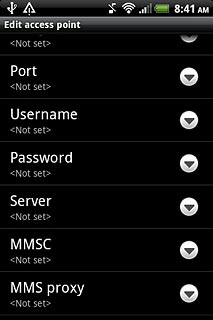

Press MMS proxy.

Step 15 of 40

Enter IP address

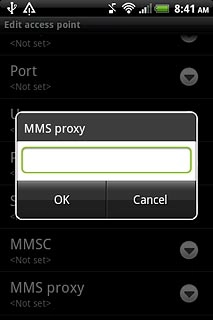

Key in 10.202.002.060 and press OK.

Step 16 of 40

Enter port number

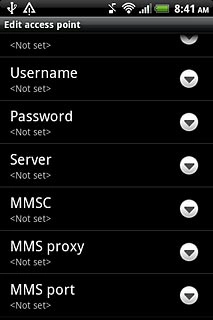

Press MMS port.

Step 17 of 40

Enter port number

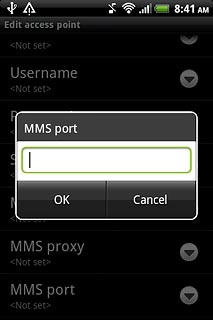

Key in 8080 and press OK.

Step 18 of 40

Enter country code

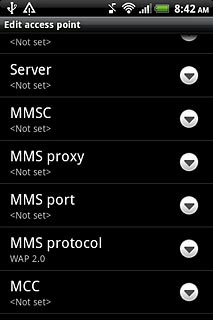

Press MCC.

Step 19 of 40

Enter country code

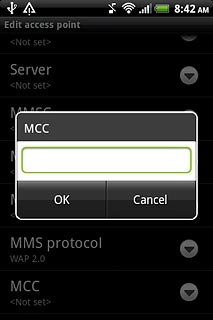

Key in 505 and press OK.

Step 20 of 40

Enter network code

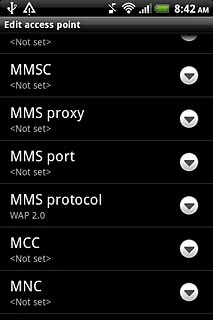

Press MNC.

Step 21 of 40

Enter network code

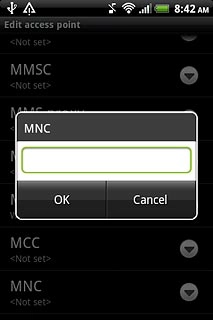

Key in 03 and press OK.

Step 22 of 40

Select authentication

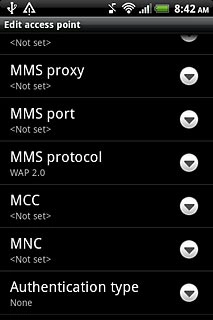

Press Authentication type.

Step 23 of 40

Select authentication

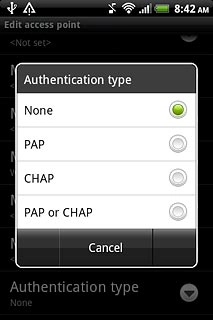

Press PAP.

Step 24 of 40

Select APN type

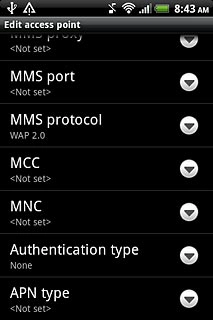

Press APN type.

Step 25 of 40

Select APN type

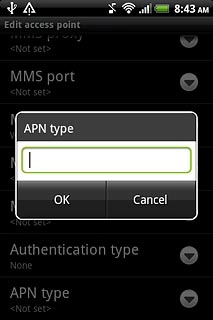

Key in mms and press OK.

Step 26 of 40

Save data connection

Press the Menu key.

Step 27 of 40

Save data connection

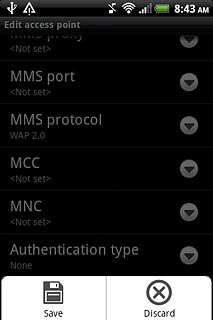

Press Save.

Step 28 of 40

Save data connection

Press the Home key to return to standby mode.

Step 29 of 40

Find "Multimedia messages (MMS)"

Press All apps to access the main menu.

Step 30 of 40

Find "Multimedia messages (MMS)"

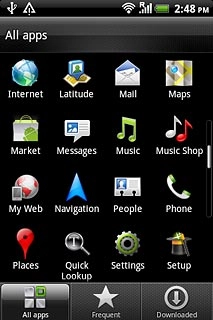

Press Messages.

Step 31 of 40

Find "Multimedia messages (MMS)"

Press the Menu key.

Step 32 of 40

Find "Multimedia messages (MMS)"

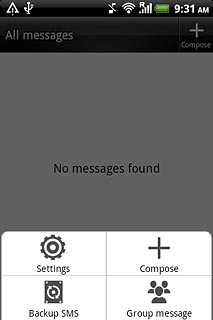

Press Settings.

Step 33 of 40

Find "Multimedia messages (MMS)"

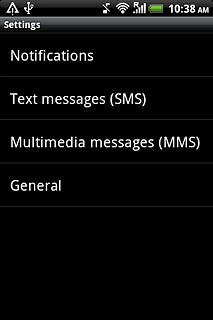

Press Multimedia messages (MMS).

Step 34 of 40

Turn request for delivery reports on or off

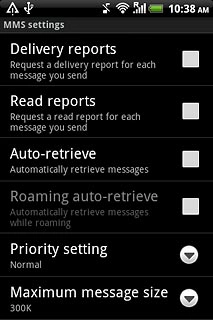

Press Delivery reports to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 35 of 40

Turn request for delivery reports on or off

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 40

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 37 of 40

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 38 of 40

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 15.
Step 39 of 40

Select setting for picture message download when roaming

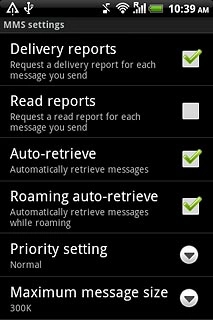

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 15.
Step 40 of 40

Exit

Press the Home key to return to standby mode.
