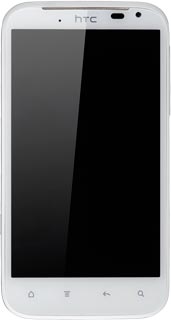

HTC Sensation XL

HTC Sensation XL

Set up your phone for picture messaging - HTC Sensation XL

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 40

Find "Access Point Names"

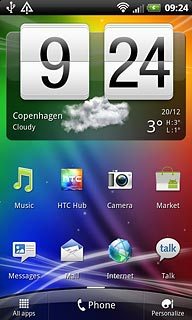

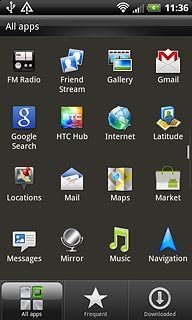

Press All apps.

Step 2 of 40

Find "Access Point Names"

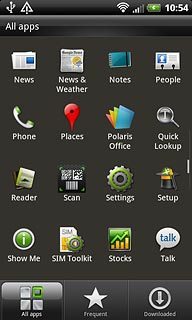

Press Settings.

Step 3 of 40

Find "Access Point Names"

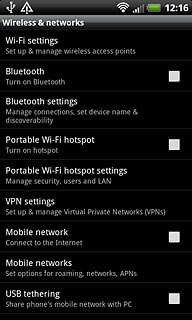

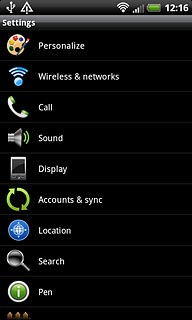

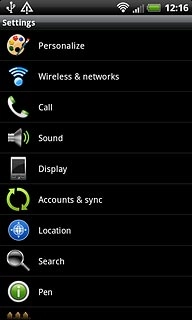

Press Wireless & networks.

Step 4 of 40

Find "Access Point Names"

Press Mobile networks.

Step 5 of 40

Find "Access Point Names"

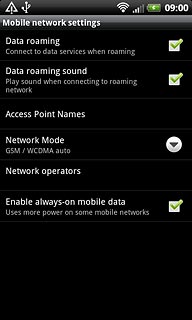

Press Access Point Names.

Step 6 of 40

Create new data connection

Press the Menu key.

Step 7 of 40

Create new data connection

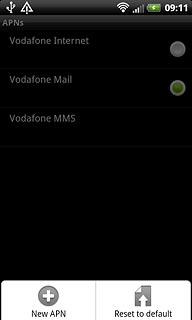

Press New APN.

Step 8 of 40

Enter data connection name

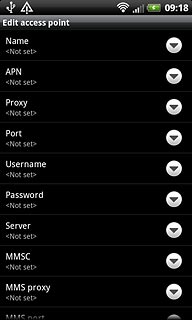

Press Name.

Step 9 of 40

Enter data connection name

Key in Vodafone MMS and press OK.

Step 10 of 40

Enter APN

Press APN.

Step 11 of 40

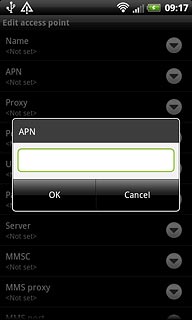

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 40

Enter picture messaging server

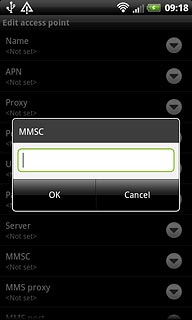

Press MMSC.

Step 13 of 40

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 40

Enter IP address

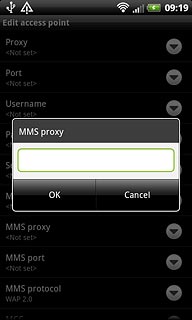

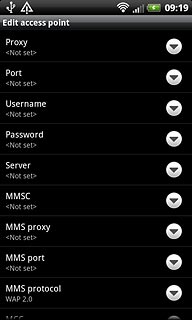

Press MMS proxy.

Step 15 of 40

Enter IP address

Key in 10.202.002.060 and press OK.

Step 16 of 40

Enter port number

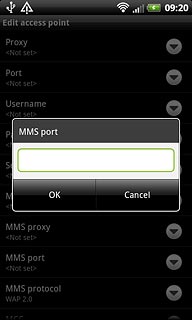

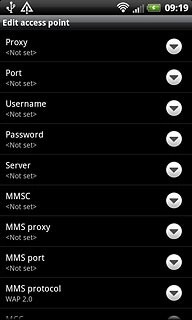

Press MMS port.

Step 17 of 40

Enter port number

Key in 8080 and press OK.

Step 18 of 40

Enter country code

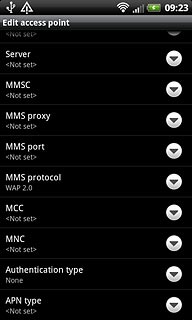

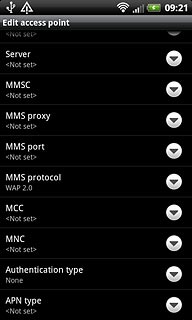

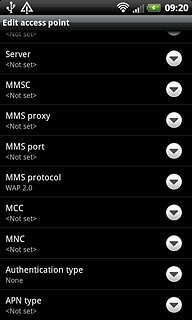

Press MCC.

Step 19 of 40

Enter country code

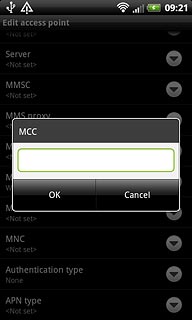

Key in 505 and press OK.

Step 20 of 40

Enter network code

Press MNC.

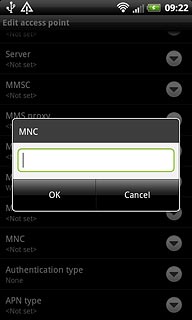

Step 21 of 40

Enter network code

Key in 06 and press OK.

Step 22 of 40

Select authentication type

Press Authentication type.

Step 23 of 40

Select authentication type

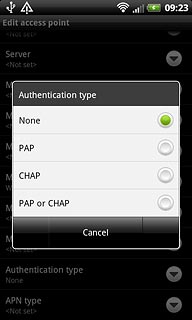

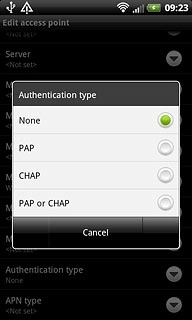

Press PAP.

Step 24 of 40

Select APN type

Press APN type.

Step 25 of 40

Select APN type

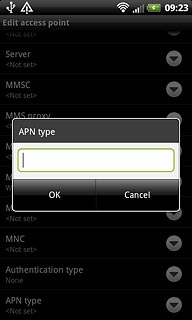

Key in mms and press OK.

Step 26 of 40

Save data connection

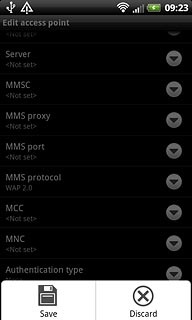

Press the Menu key.

Step 27 of 40

Save data connection

Press Save.

Step 28 of 40

Save data connection

Press the Home key to return to standby mode.

Step 29 of 40

Find "Multimedia messages (MMS)"

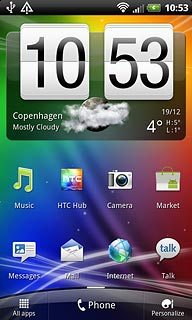

Press All apps.

Step 30 of 40

Find "Multimedia messages (MMS)"

Press Messages.

Step 31 of 40

Find "Multimedia messages (MMS)"

Press the Menu key.

Step 32 of 40

Find "Multimedia messages (MMS)"

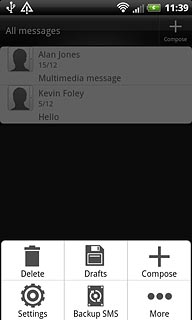

Press Settings.

Step 33 of 40

Find "Multimedia messages (MMS)"

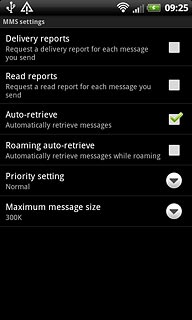

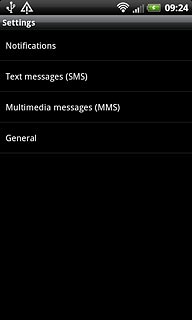

Press Multimedia messages (MMS).

Step 34 of 40

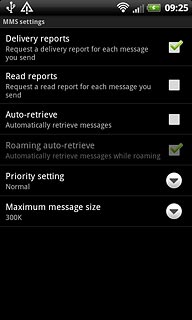

Turn request for delivery reports on or off

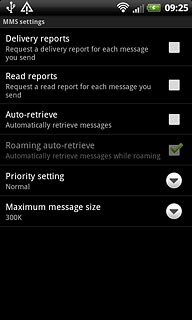

Press Delivery reports to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 35 of 40

Turn request for delivery reports on or off

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 36 of 40

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 37 of 40

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 38 of 40

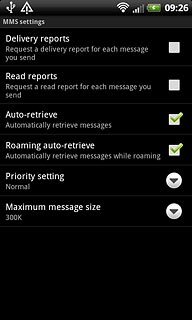

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 17.
Step 39 of 40

Select setting for picture message download when roaming

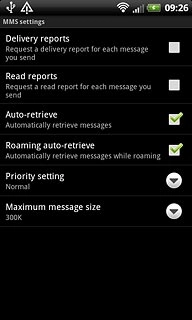

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 17.
Step 40 of 40

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press All apps.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 06 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in mms and press OK.

Save data connection

Press the Menu key.
Press Save.
Press the Home key to return to standby mode.

Find "Multimedia messages (MMS)"

Press All apps.
Press Messages.
Press the Menu key.
Press Settings.
Press Multimedia messages (MMS).

Turn request for delivery reports on or off

Press Delivery reports to turn the function on or off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Select setting for picture message download in home network

Press Auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.

Select setting for picture message download when roaming

Press Roaming auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 17.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
The menu item is only available if Auto-retrieve is turned on, see step 17.

Exit

Press the Home key to return to standby mode.
