Set up your phone for Exchange email - Huawei Ascend G300

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 56

Find "Access Point Names"

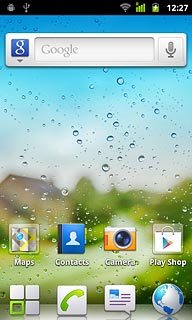

Press the menu icon.

Step 2 of 56

Find "Access Point Names"

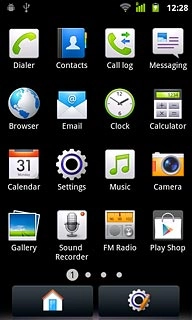

Press Settings.

Step 3 of 56

Find "Access Point Names"

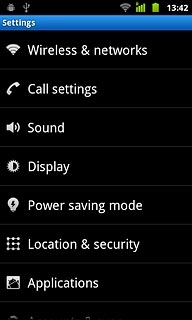

Press Wireless & networks.

Step 4 of 56

Find "Access Point Names"

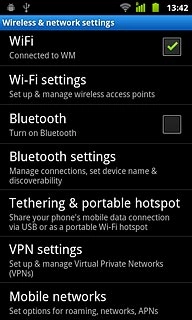

Press Mobile networks.

Step 5 of 56

Find "Access Point Names"

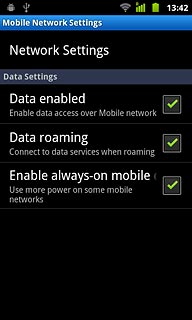

Press Network Settings.

Step 6 of 56

Find "Access Point Names"

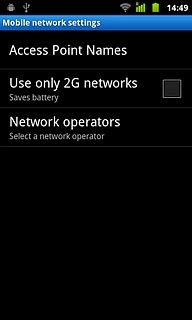

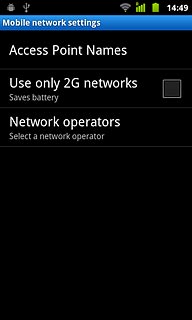

Press Access Point Names.

Step 7 of 56

Create new data connection

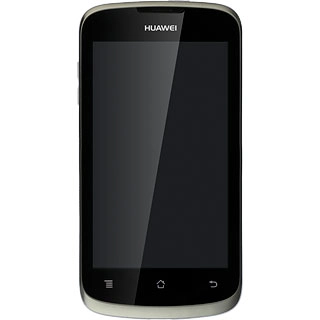

Press the Menu key.

Step 8 of 56

Create new data connection

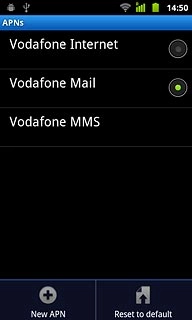

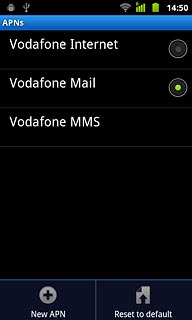

Press New APN.

Step 9 of 56

Enter data connection name

Press Name.

Step 10 of 56

Enter data connection name

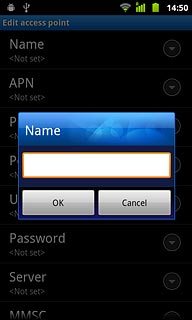

Key in Vodafone Mail and press OK.

Step 11 of 56

Enter APN

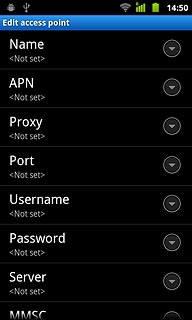

Press APN.

An APN is used to establish a data connection.
Step 12 of 56

Enter APN

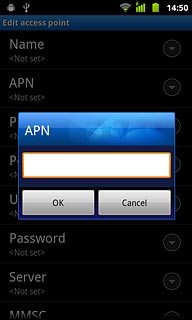

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 13 of 56

Enter country code

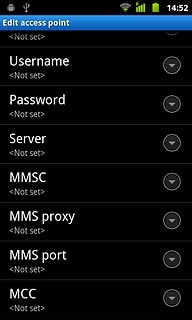

Press MCC.

Step 14 of 56

Enter country code

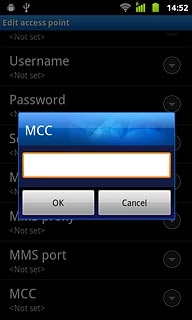

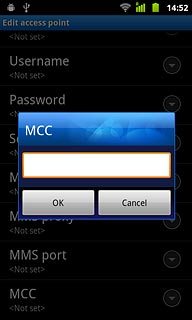

Key in 505 and press OK.

Step 15 of 56

Enter network code

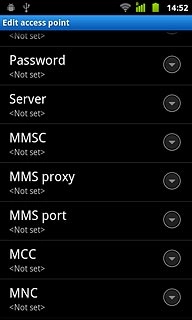

Press MNC.

Step 16 of 56

Enter network code

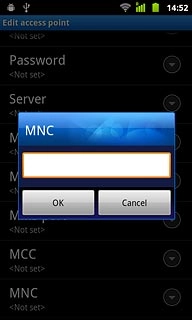

Key in 03 and press OK.

Step 17 of 56

Select authentication type

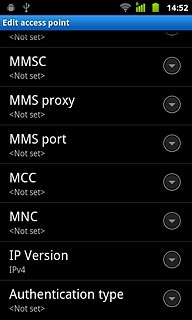

Press Authentication type.

Step 18 of 56

Select authentication type

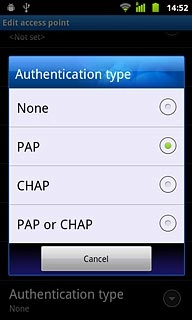

Press PAP.

Step 19 of 56

Select APN type

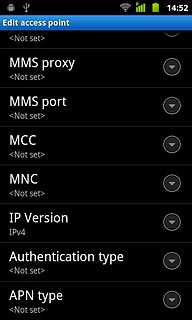

Press APN type.

Step 20 of 56

Select APN type

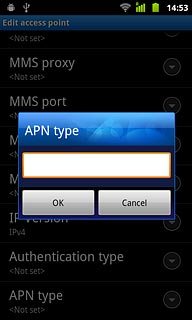

Key in default and press OK.

Step 21 of 56

Save and activate data connection

Press the Menu key.

Step 22 of 56

Save and activate data connection

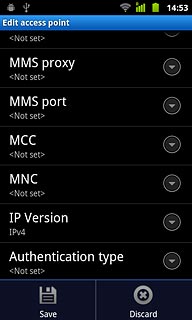

Press Save.

Step 23 of 56

Save and activate data connection

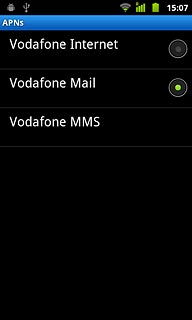

Press the field next to Vodafone Mail to fill in the field.

Step 24 of 56

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 56

Find "Corporate"

Press the menu icon.

Step 26 of 56

Find "Corporate"

Press Settings.

Step 27 of 56

Find "Corporate"

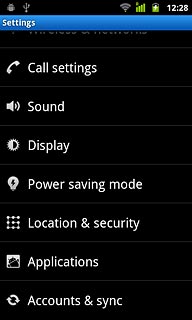

Press Accounts & sync.

Step 28 of 56

Find "Corporate"

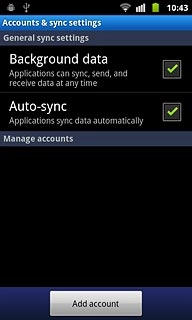

Press Add account.

Step 29 of 56

Find "Corporate"

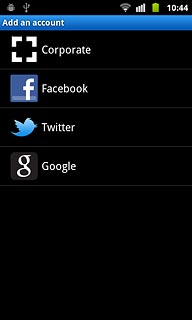

Press Corporate.

Huawei Ascend G300
Step 30 of 56

Enter email address

Key in your email address.

Step 31 of 56

Enter domain name

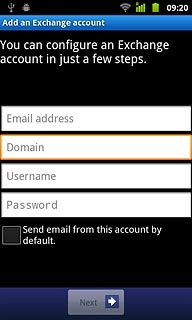

Press Domain and key in the domain name.

Step 32 of 56

Enter username

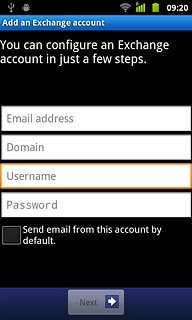

Press Username and key in your username.

Step 33 of 56

Enter password

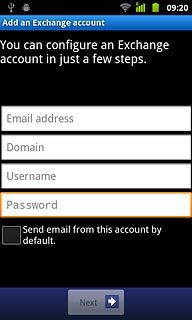

Press Password and key in your password.

Step 34 of 56

Enter password

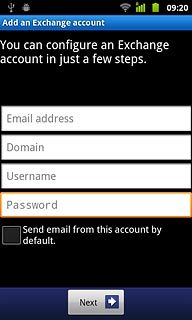

Press Next.

Step 35 of 56

Enter server address

Press the field below Server and key in the server address.

Step 36 of 56

Turn SSL encryption on or off

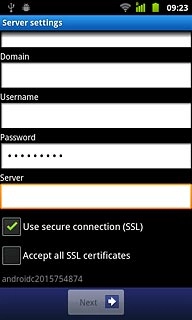

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 37 of 56

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 38 of 56

Turn SSL encryption on or off

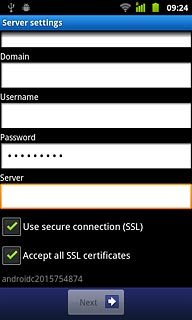

Press Accept all SSL certificates to turn the function on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 39 of 56

Turn SSL encryption on or off

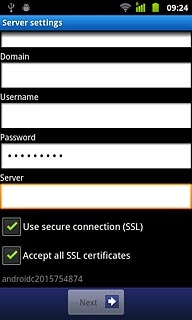

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 40 of 56

Turn SSL encryption on or off

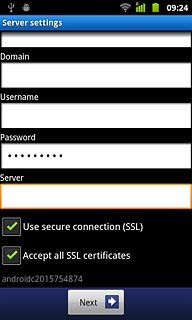

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 41 of 56

Select setting for retrieving new email messages

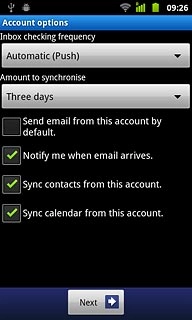

Press the drop down list below Inbox checking frequency.

Step 42 of 56

Select setting for retrieving new email messages

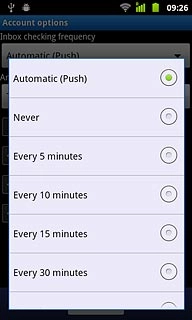

Press Automatic (Push), Never or the required frequency.

Step 43 of 56

Select settings for synchronising new email messages

Press the drop down list below Amount to synchronise.

Step 44 of 56

Select settings for synchronising new email messages

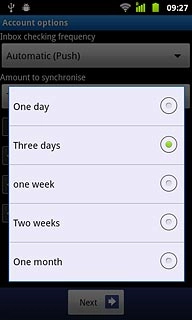

Press the required setting.

Step 45 of 56

Select default email account

Press Send email from this account by default to turn the function on or off.

Step 46 of 56

Select default email account

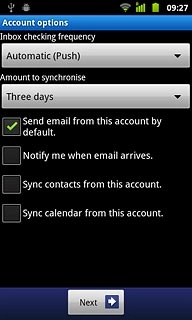

When the box next to the menu item is ticked (V), the function is turned on.

Step 47 of 56

Turn email message notification on or off

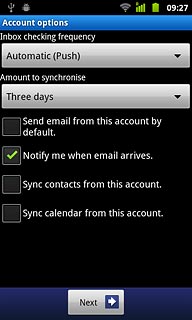

Press Notify me when email arrives to turn the function on or off.

Step 48 of 56

Turn email message notification on or off

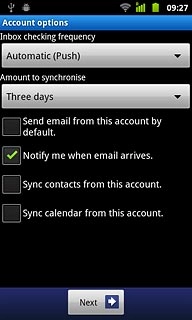

When the box next to the menu item is ticked (V), the function is turned on.

Step 49 of 56

Turn synchronisation of contacts on or off

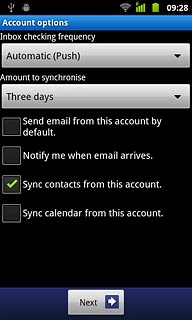

Press Sync contacts from this account to turn the function on or off.

Step 50 of 56

Turn synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 51 of 56

Turn synchronisation of calendar on or off

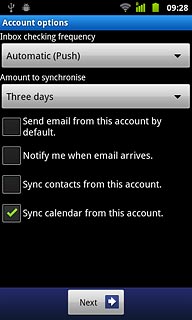

Press Sync calendar from this account to turn the function on or off.

Step 52 of 56

Turn synchronisation of calendar on or off

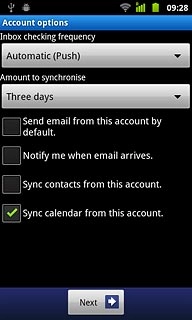

When the box next to the menu item is ticked (V), the function is turned on.

Step 53 of 56

Turn synchronisation of calendar on or off

Press Next.

Huawei Ascend G300
Step 54 of 56

Enter email account name

Key in a name for your email account

Step 55 of 56

Finish setup

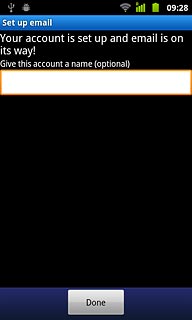

Press Done.
Wait while your phone retrieves new email messages.

Step 56 of 56

Exit

Press the Home key to return to standby mode.
