Set up your phone for picture messaging - Huawei Ascend G6

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 29

Find "Access Point Names"

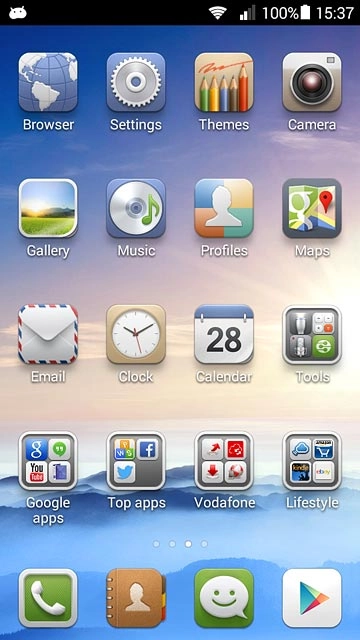

Press Settings.

Step 2 of 29

Find "Access Point Names"

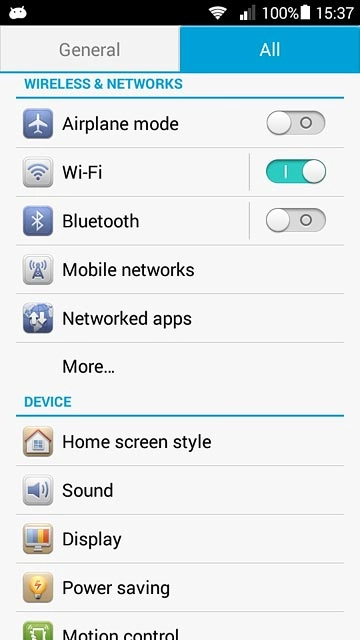

Press All.

Step 3 of 29

Find "Access Point Names"

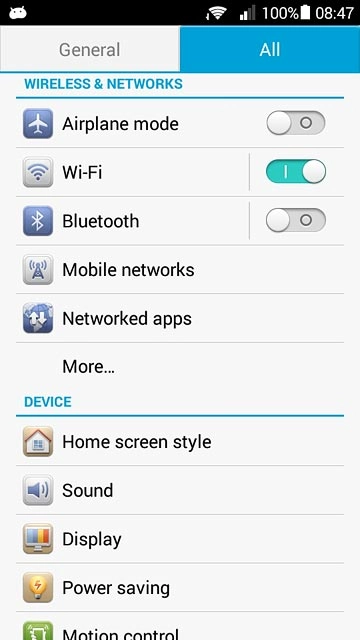

Press Mobile networks.

Step 4 of 29

Find "Access Point Names"

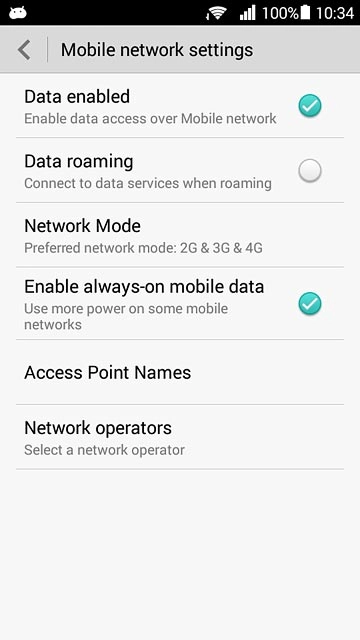

Press Access Point Names.

Step 5 of 29

Create new data connection

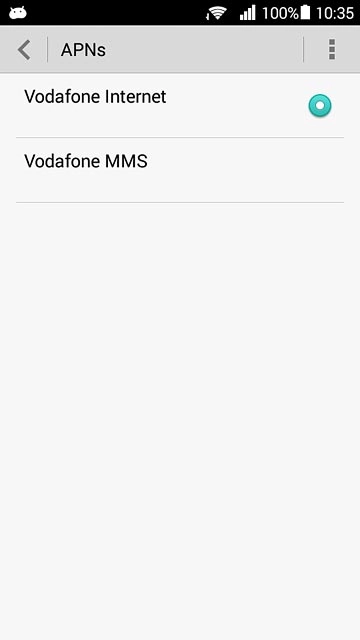

Press the menu icon.

Step 6 of 29

Create new data connection

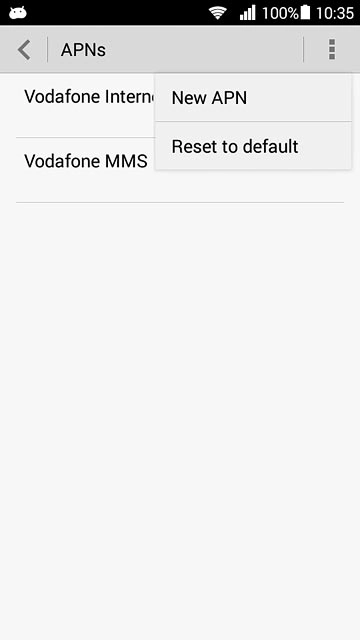

Press New APN.

Step 7 of 29

Enter data connection name

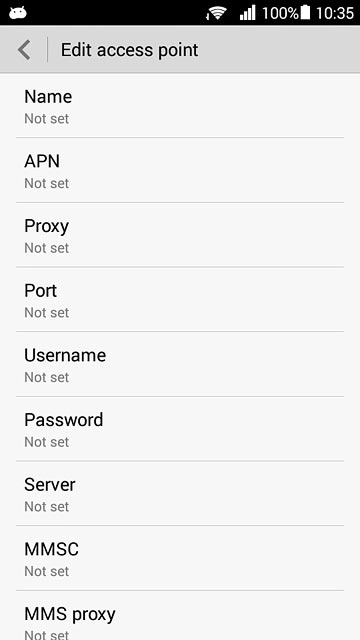

Press Name.

Step 8 of 29

Enter data connection name

Key in Vodafone MMS and press OK.

Step 9 of 29

Enter APN

Press APN.

Step 10 of 29

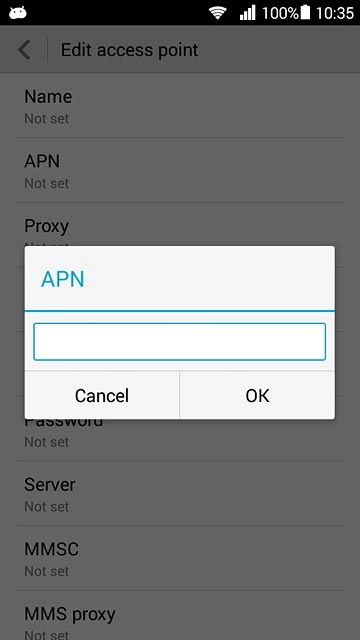

Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 29

Enter picture messaging server

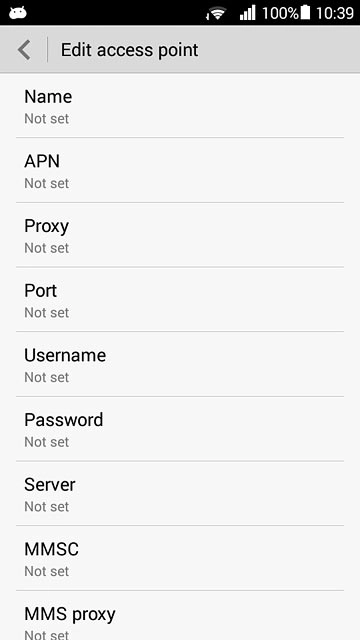

Press MMSC.

Step 12 of 29

Enter picture messaging server

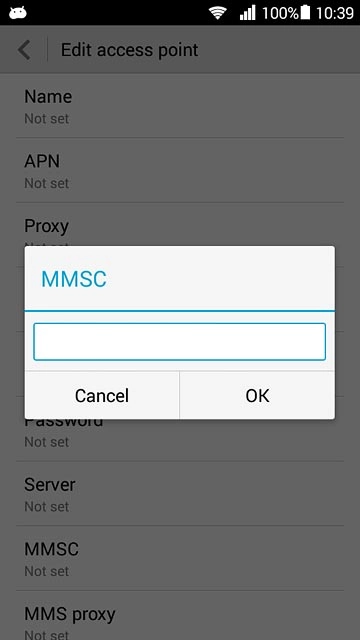

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 13 of 29

Enter IP address

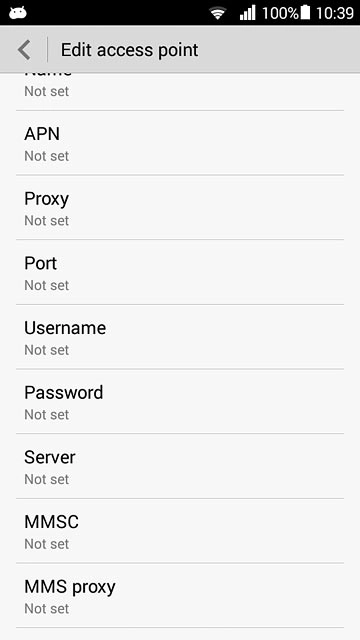

Press MMS proxy.

Step 14 of 29

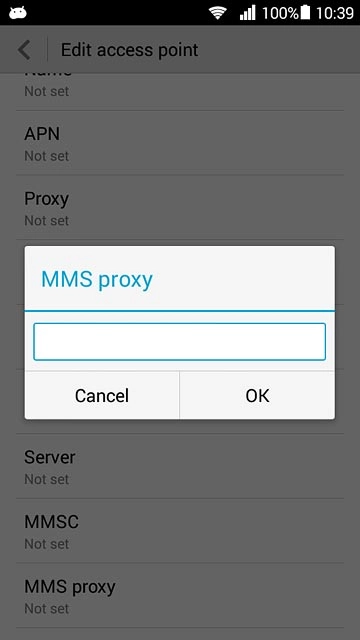

Enter IP address

Key in 10.202.002.060 and press OK.

Step 15 of 29

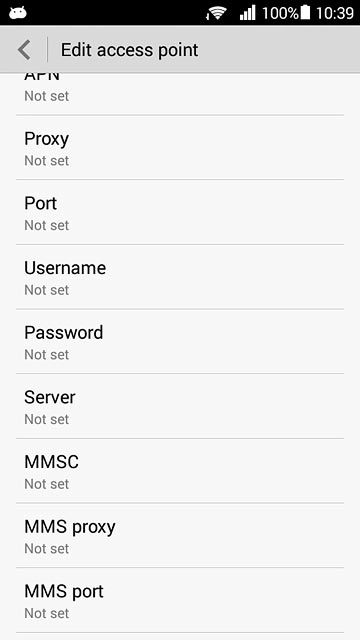

Enter port number

Press MMS port.

Step 16 of 29

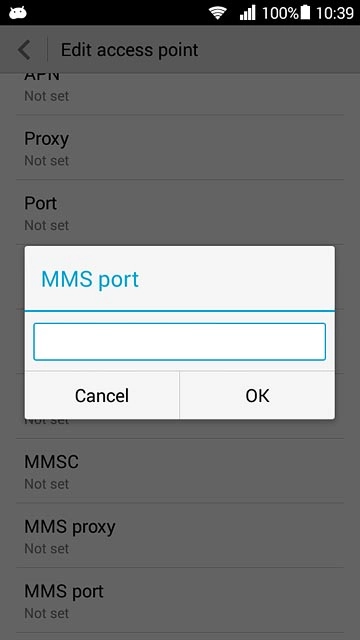

Enter port number

Key in 8080 and press OK.

Step 17 of 29

Enter country code

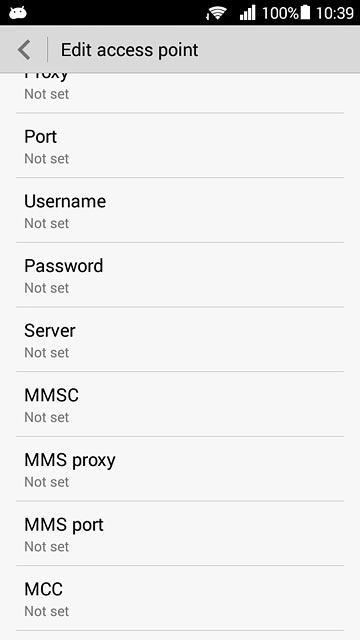

Press MCC.

Step 18 of 29

Enter country code

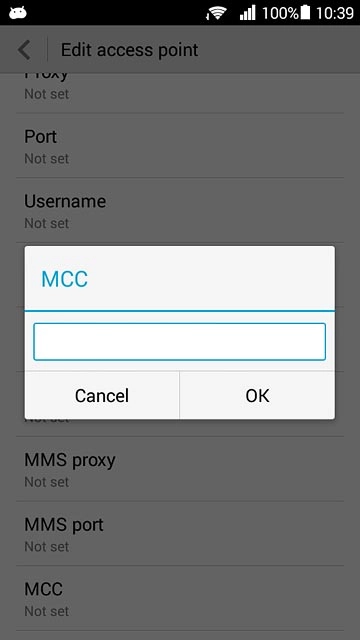

Key in 505 and press OK.

Step 19 of 29

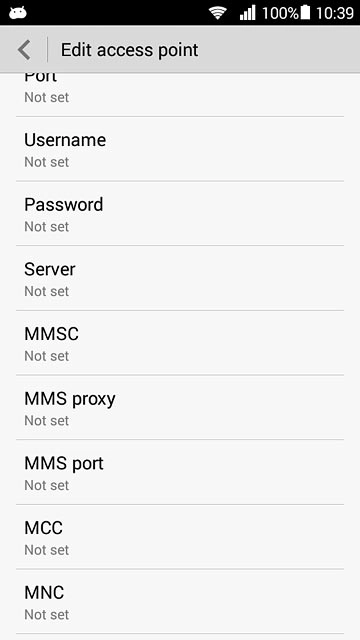

Enter network code

Press MNC.

Step 20 of 29

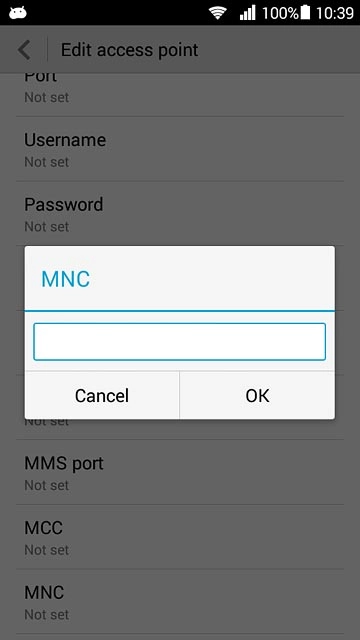

Enter network code

Key in 03 and press OK.

Step 21 of 29

Select authentication type

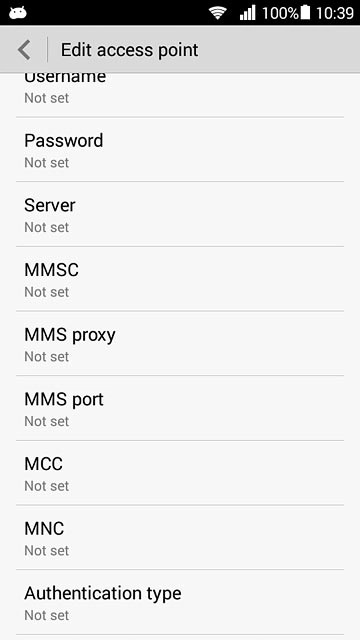

Press Authentication type.

Step 22 of 29

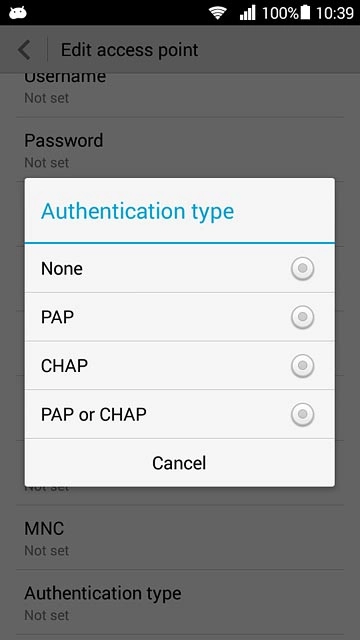

Select authentication type

Press PAP.

Step 23 of 29

Select APN type

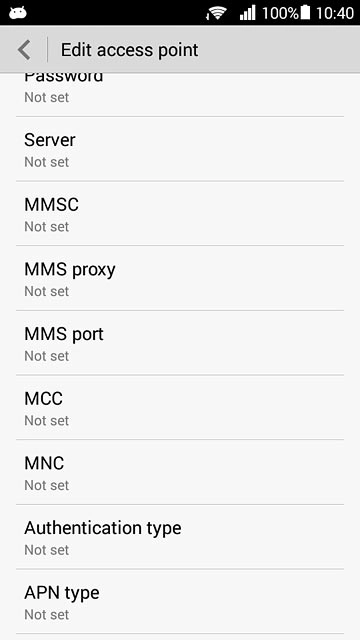

Press APN type.

Step 24 of 29

Select APN type

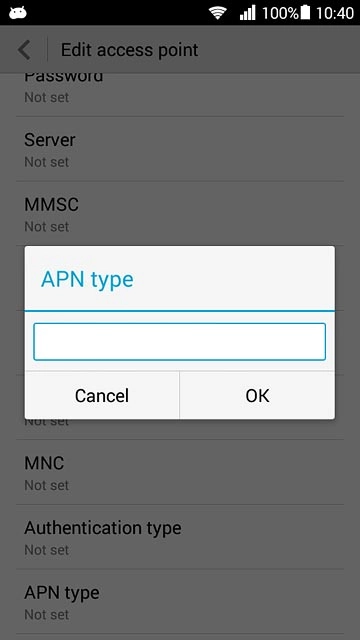

Key in mms and press OK.

Step 25 of 29

Select data bearer

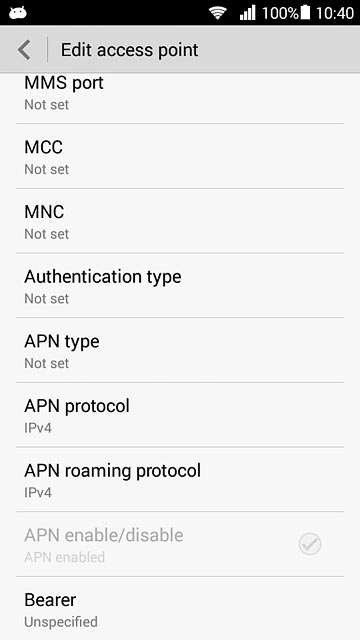

Press Bearer.

Step 26 of 29

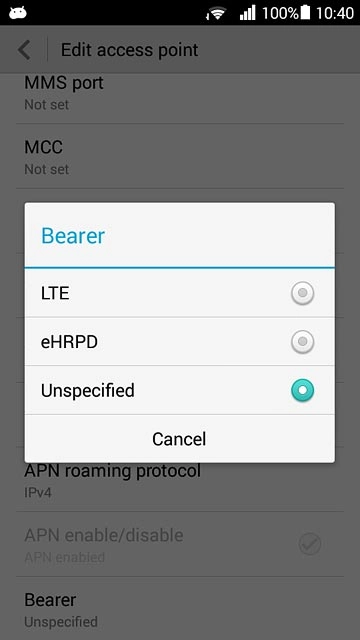

Select data bearer

Press Unspecified.

Step 27 of 29

Save data connection

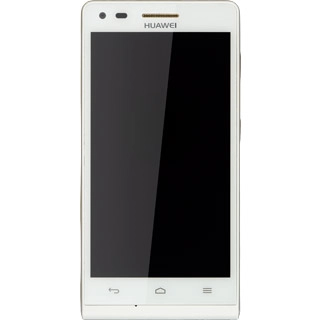

Press the Menu key.

Step 28 of 29

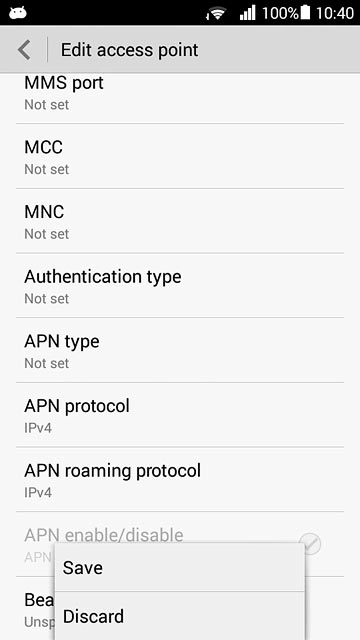

Save data connection

Press Save.

Step 29 of 29

Return to the home screen

Press the Home key to return to the home screen.

Find "Access Point Names"

Press Settings.
Press All.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in mms and press OK.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the Menu key.
Press Save.

Return to the home screen

Press the Home key to return to the home screen.
