1. Find "Access Point Names (APNs)"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c202aa1f-ddd6-44f5-95d9-bd81e8225627.png?width=210&height=454)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6a6a9b0d-d125-485f-8294-f87303567112.png?width=210&height=454)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7fce6432-f8f3-4895-ad1c-2a8f55fd71ec.png?width=210&height=454)
Press Access Point Names (APNs).
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bbf1b80c-6fe2-4034-8a16-6d539981eb7f.png?width=210&height=454)
2. Create new data connection

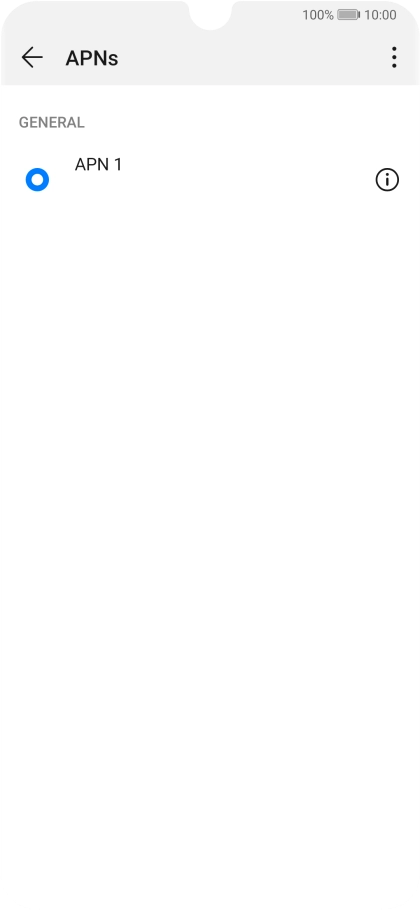

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2f578db-b2e8-485d-87a0-c412249f8ae0.png?width=210&height=454)

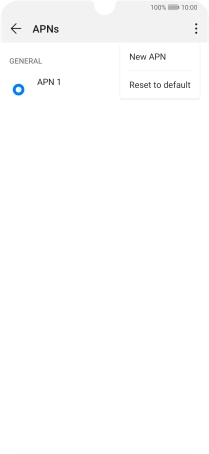

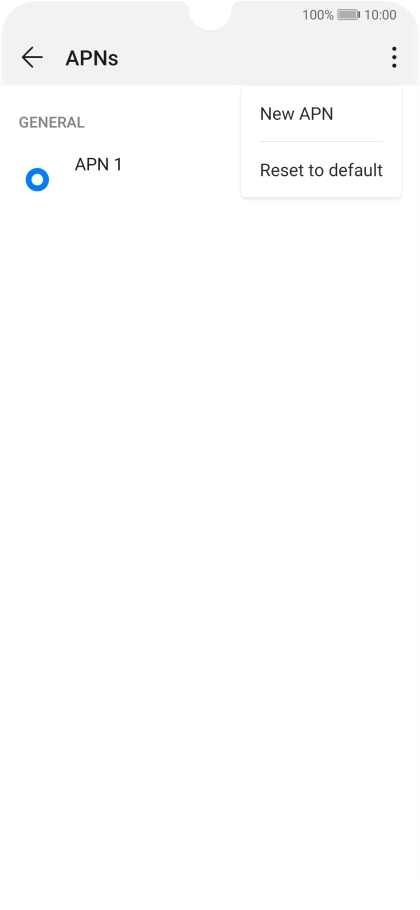

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-763a303e-87a2-4828-b8b5-9cd9c54a4250.png?width=210&height=454)
3. Enter a name for the connection

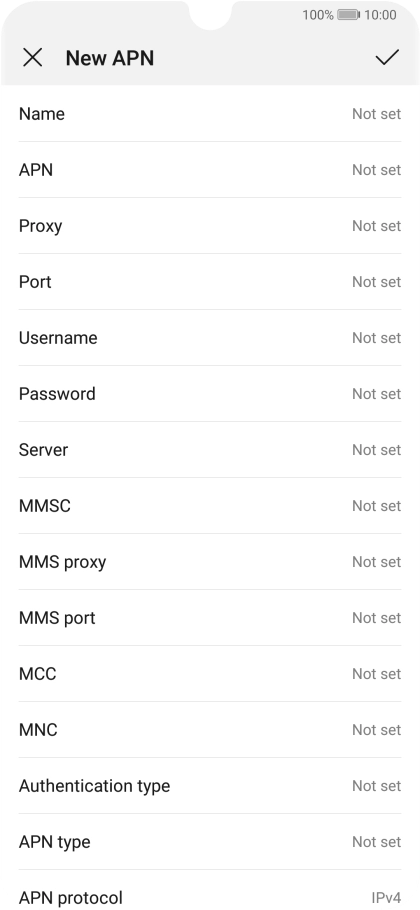

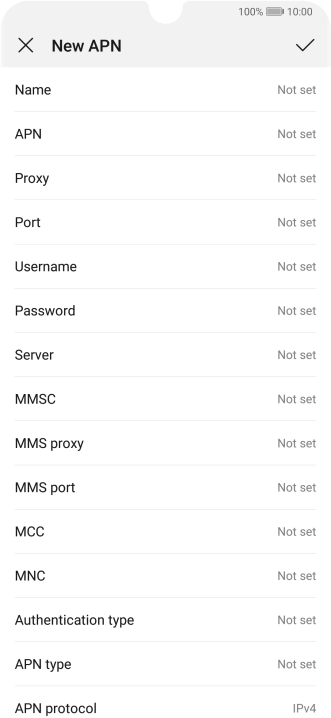

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2e2cd0c6-acc4-4e1d-a210-5bec3fac91ff.png?width=210&height=454)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

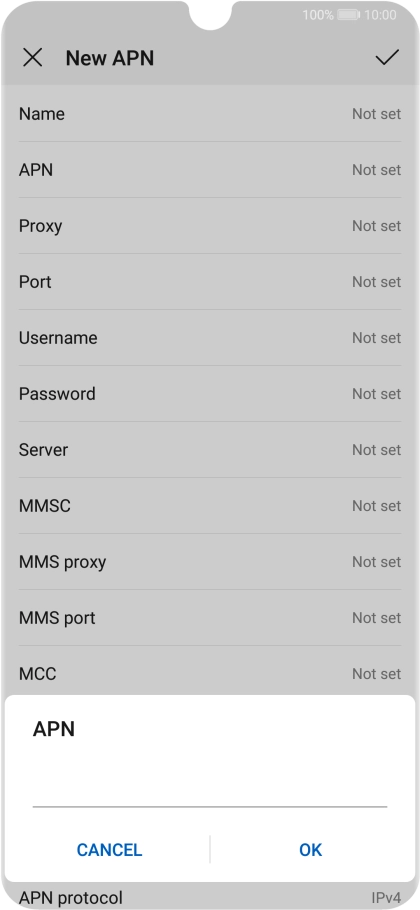

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-529125eb-ff8f-4c90-b322-2c932feac219.png?width=210&height=454)
live.vodafone.com
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

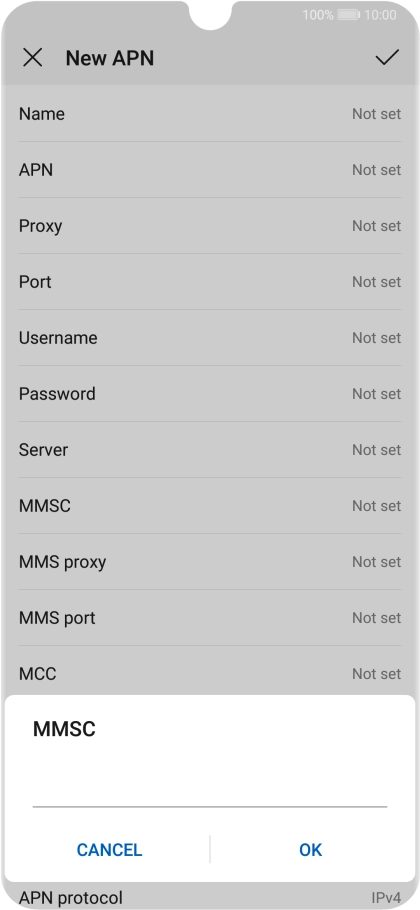

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a6250c8a-c646-4f4f-b563-999858e46290.png?width=210&height=454)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

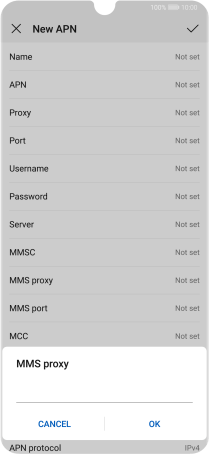

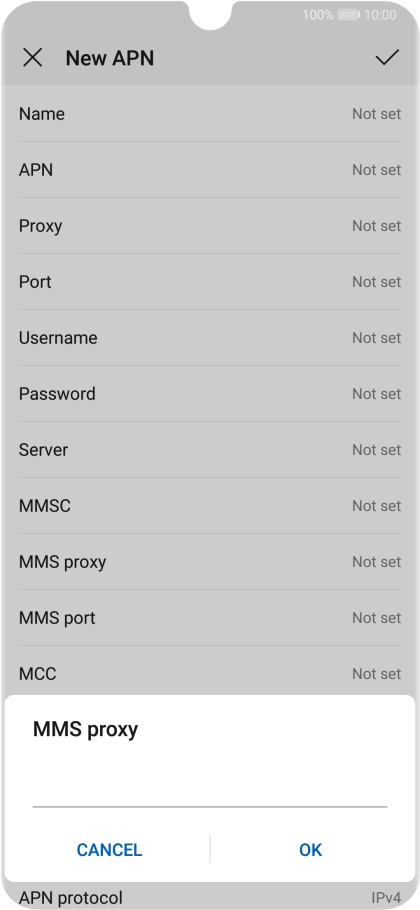

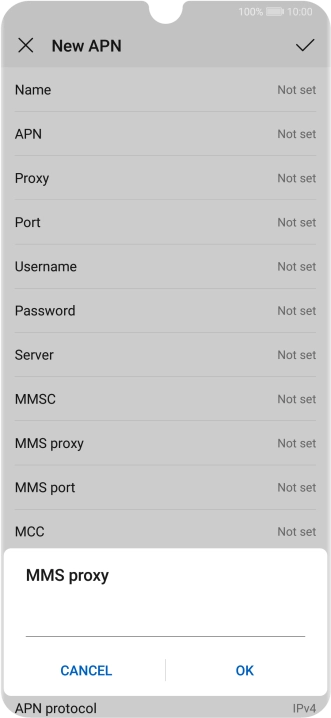

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9c277b81-2eab-43da-9269-6c19a2064c99.png?width=210&height=454)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

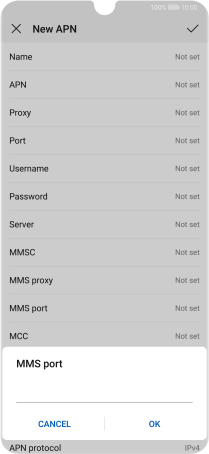

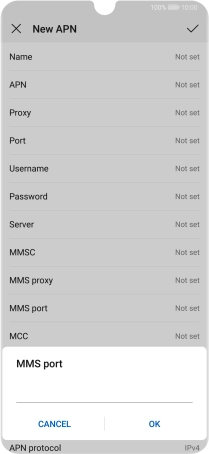

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-83f3c6c0-afff-4b58-b602-1591b443b26e.png?width=210&height=454)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5983477e-24da-4f74-b263-5dab90865eec.png?width=210&height=454)
505
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c48c2e74-c1a8-4fff-9692-4ae0fb5e4c8d.png?width=210&height=454)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

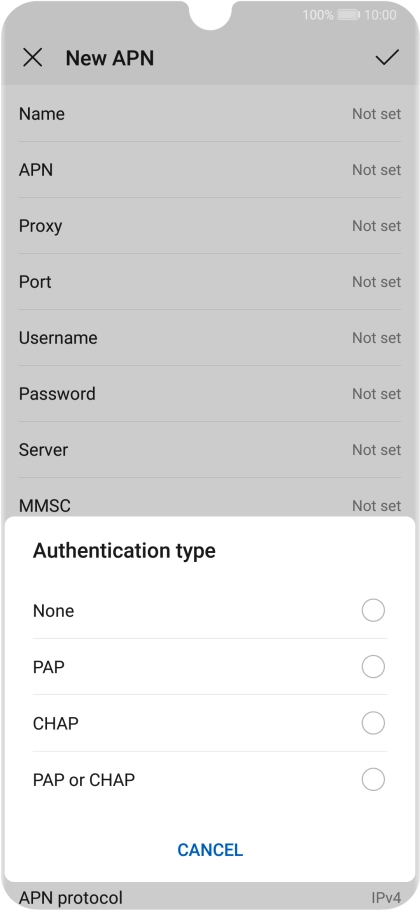

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4df9e365-2237-440f-a80f-d236428cb7f4.png?width=210&height=454)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)

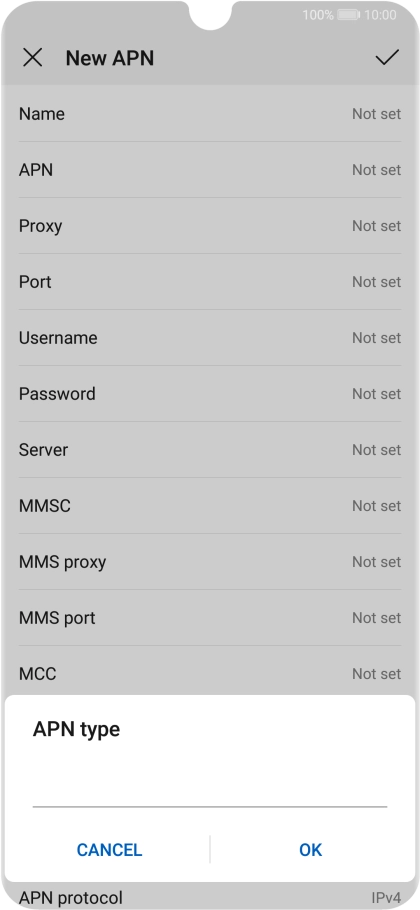

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-54ca07e1-391c-4fac-9322-e1306eab3fb4.png?width=210&height=454)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-81770a8d-a255-48cc-bb23-61ca31cea78e.png?width=210&height=454)
13. Return to the home screen

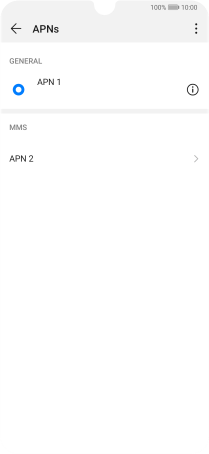

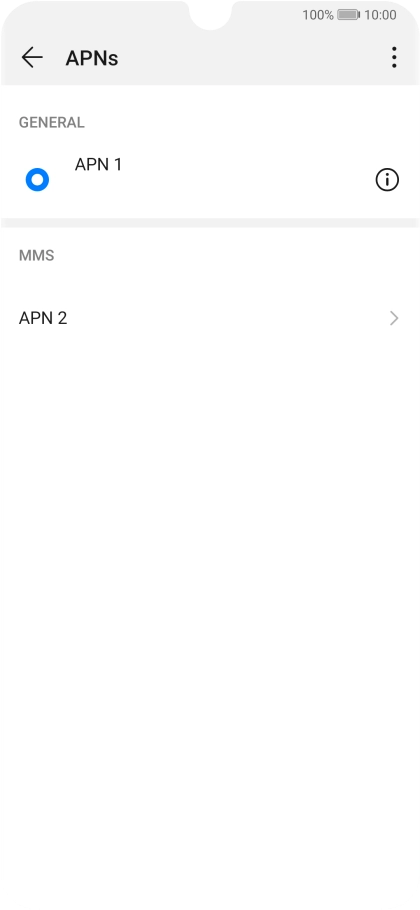

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f575e2df-639f-4037-a79f-73c843aebcfc.png?width=210&height=454)
