Huawei Y5p

Huawei Y5p

Android 10.0

Set up your Huawei Y5p Android 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 21

1. Find "Access Point Names (APNs)"

Press Settings.

Step 2 of 21

1. Find "Access Point Names (APNs)"

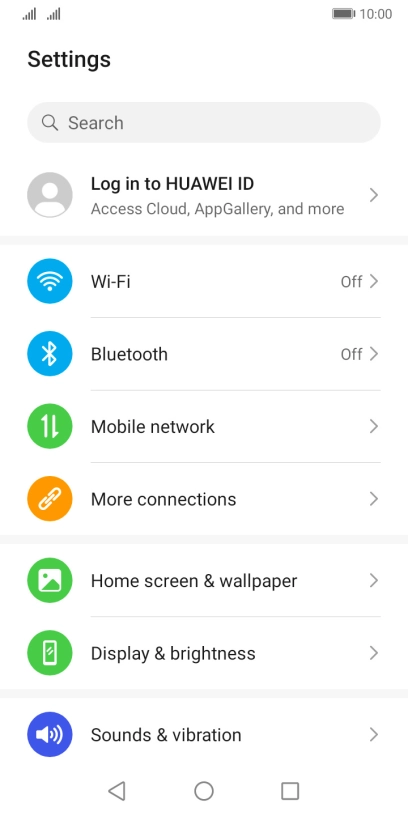

Press Mobile network.

Step 3 of 21

1. Find "Access Point Names (APNs)"

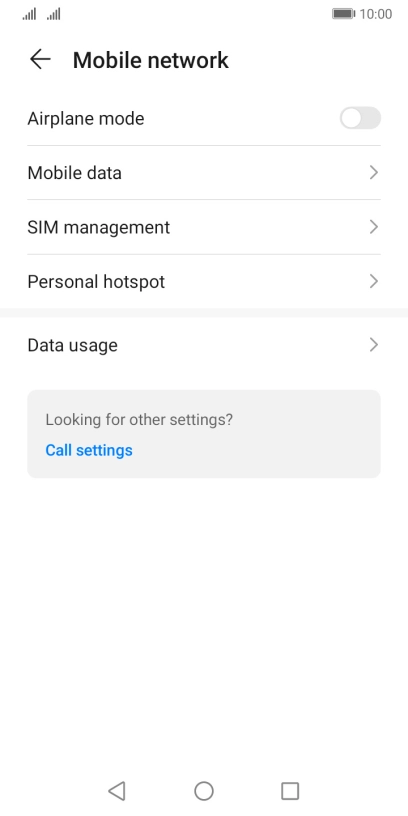

Press Mobile data.

Step 4 of 21

1. Find "Access Point Names (APNs)"

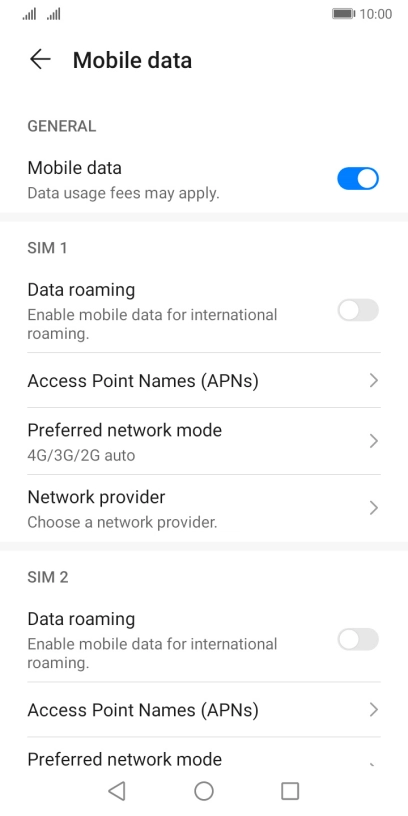

Press Access Point Names (APNs) below the required SIM.

Step 5 of 21

2. Create new data connection

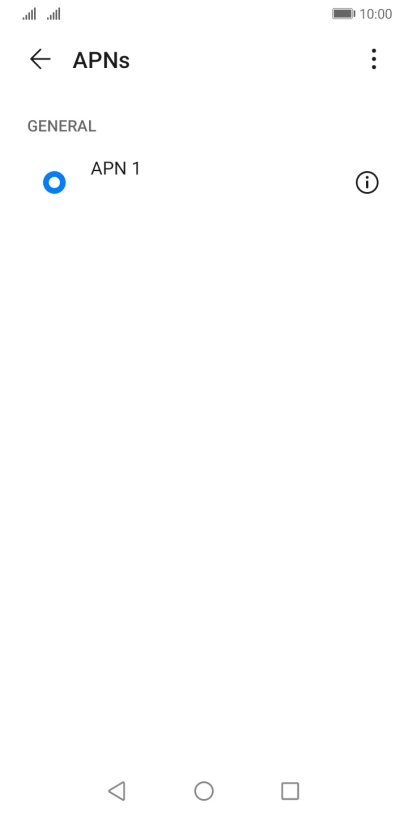

Press the menu icon.

Step 6 of 21

2. Create new data connection

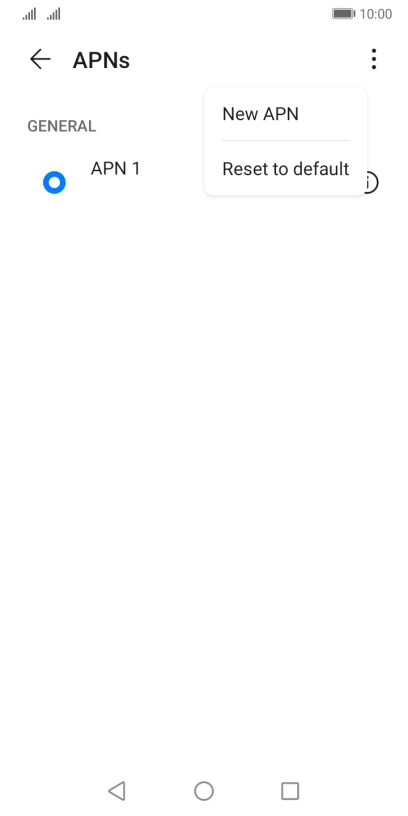

Press New APN.

Step 7 of 21

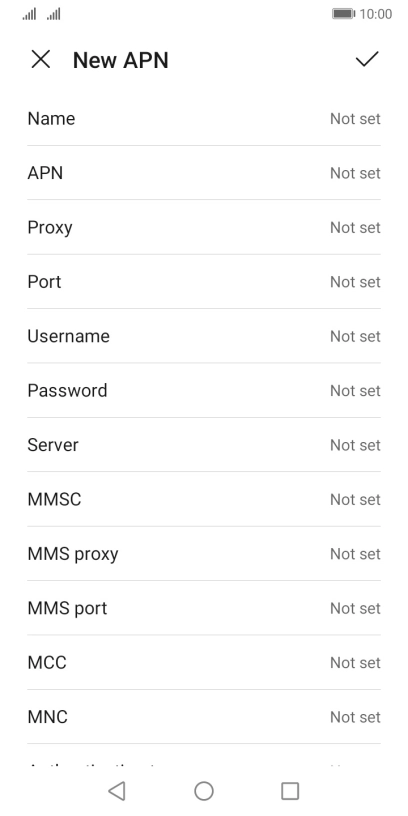

3. Enter a name for the connection

Press Name.

Vodafone Internet
Step 8 of 21

3. Enter a name for the connection

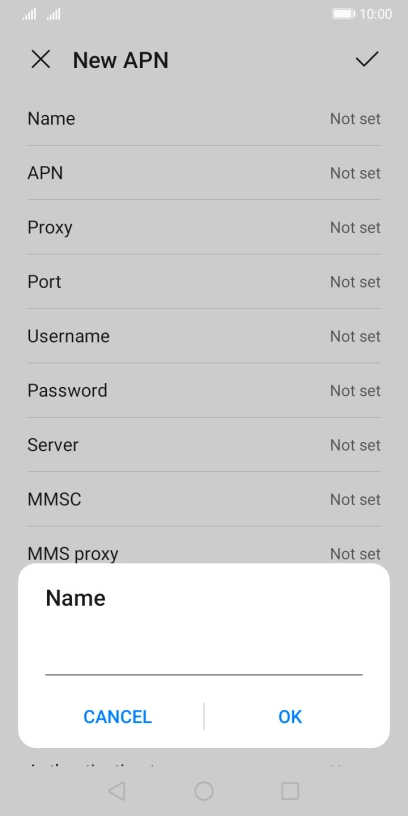

Key in Vodafone Internet and press OK.

Step 9 of 21

4. Enter APN

Press APN.

live.vodafone.com
Step 10 of 21

4. Enter APN

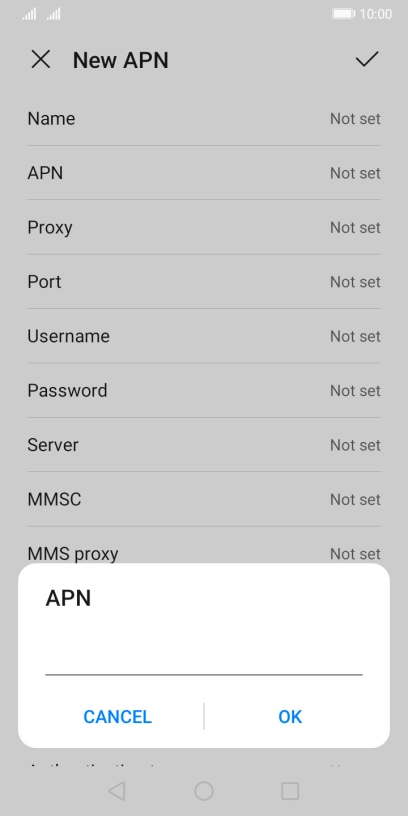

Key in live.vodafone.com and press OK.

Step 11 of 21

5. Enter country code

Press MCC.

505
Step 12 of 21

5. Enter country code

Key in 505 and press OK.

Step 13 of 21

6. Enter network code

Press MNC.

03
Step 14 of 21

6. Enter network code

Key in 03 and press OK.

Step 15 of 21

7. Select authentication type

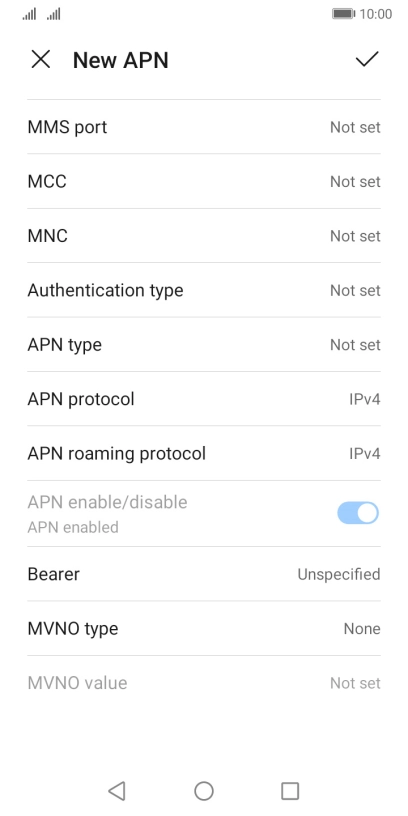

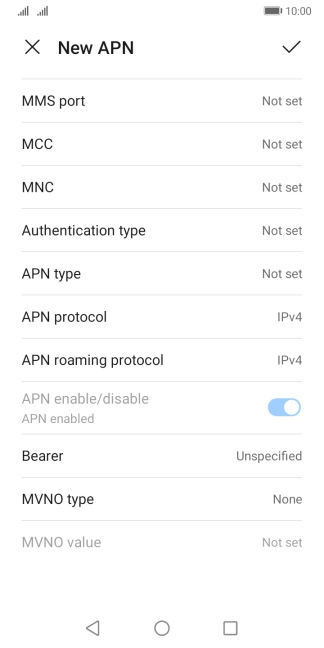

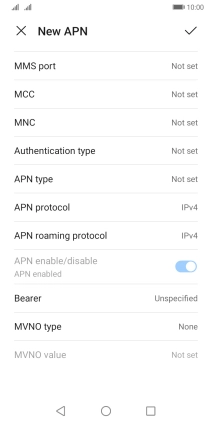

Press Authentication type.

Step 16 of 21

7. Select authentication type

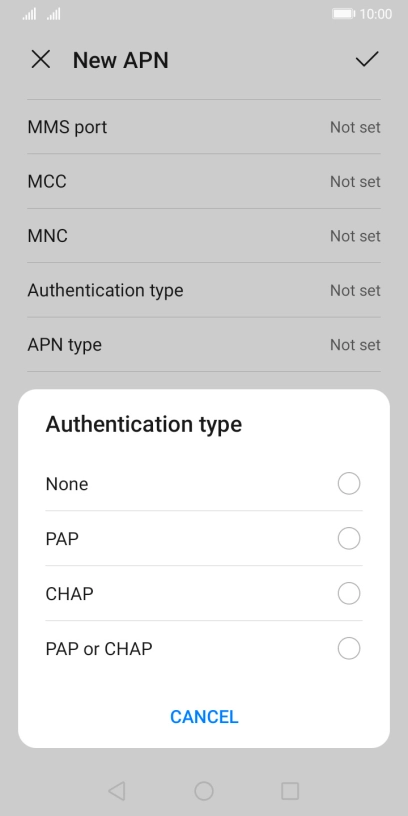

Press PAP.

Step 17 of 21

8. Enter APN type

Press APN type.

default
Step 18 of 21

8. Enter APN type

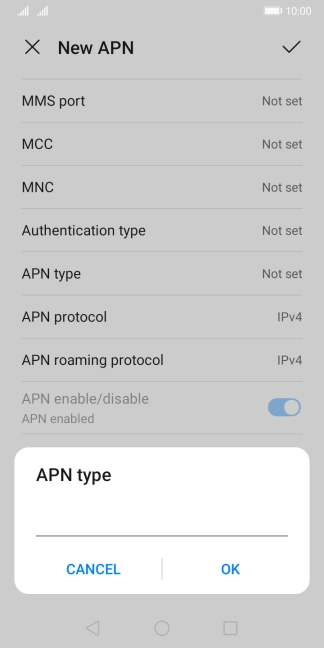

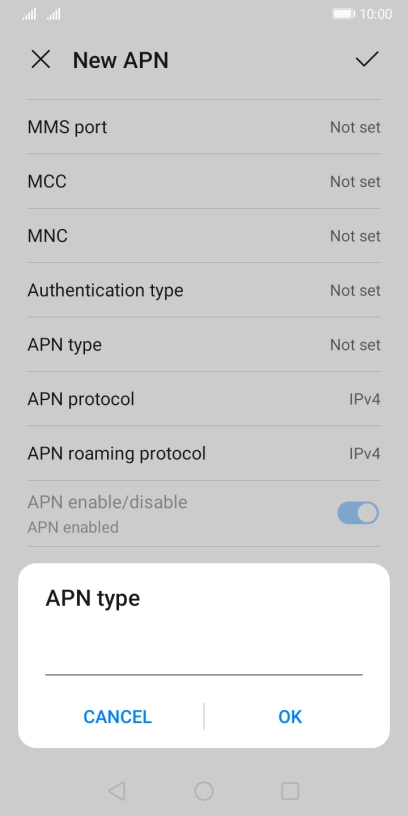

Key in default and press OK.

Step 19 of 21

9. Save data connection

Press the confirm icon.

Step 20 of 21

9. Save data connection

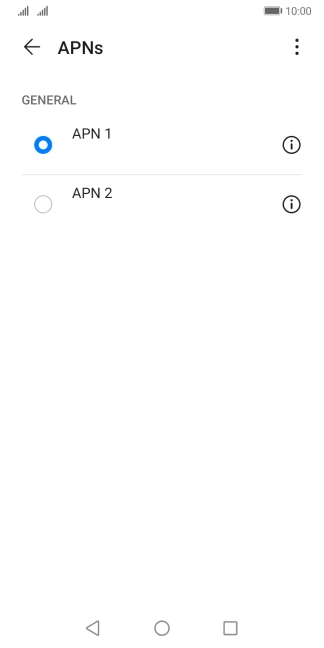

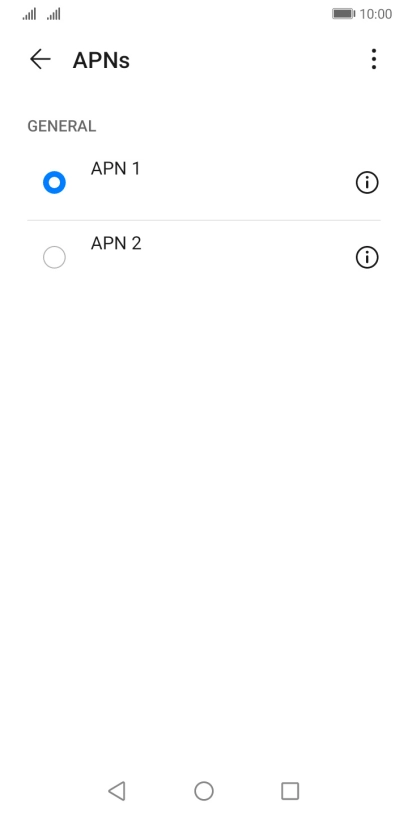

Press the field next to the required data connection to activate it.

Step 21 of 21

10. Return to the home screen

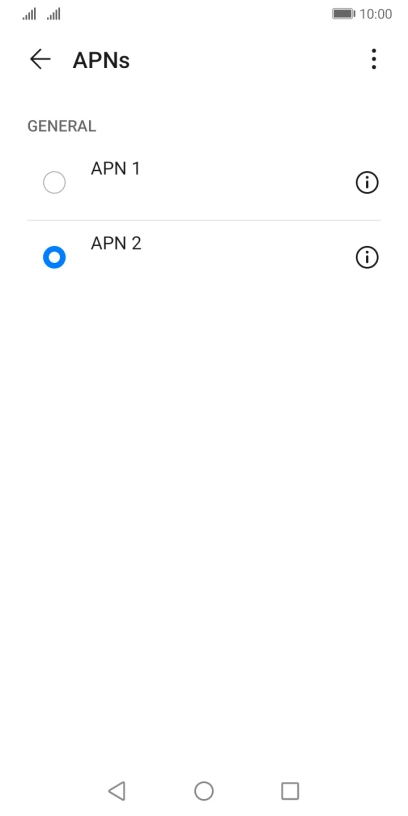

Press the Home key to return to the home screen.

1. Find "Access Point Names (APNs)"

Press Settings.
Press Mobile network.
Press Mobile data.
Press Access Point Names (APNs) below the required SIM.

2. Create new data connection

Press the menu icon.
Press New APN.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter country code

Press MCC.
Key in 505 and press OK.
505

6. Enter network code

Press MNC.
Key in 03 and press OK.
03

7. Select authentication type

Press Authentication type.
Press PAP.

8. Enter APN type

Press APN type.
Key in default and press OK.
default

9. Save data connection

Press the confirm icon.
Press the field next to the required data connection to activate it.

10. Return to the home screen

Press the Home key to return to the home screen.
