Set up your phone for picture messaging - Microsoft Lumia 640 XL

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 12

Find "add MMS APN"

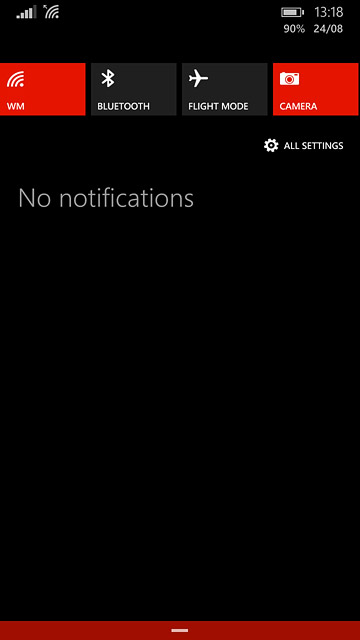

Slide your finger down the display starting from the top edge of your phone.
Press ALL SETTINGS.

Step 2 of 12

Find "add MMS APN"

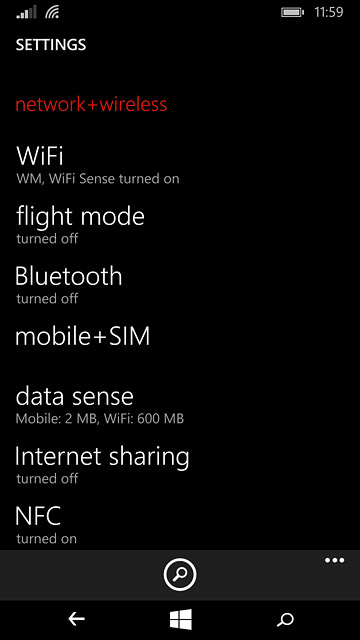

Press mobile+SIM.

Step 3 of 12

Find "add MMS APN"

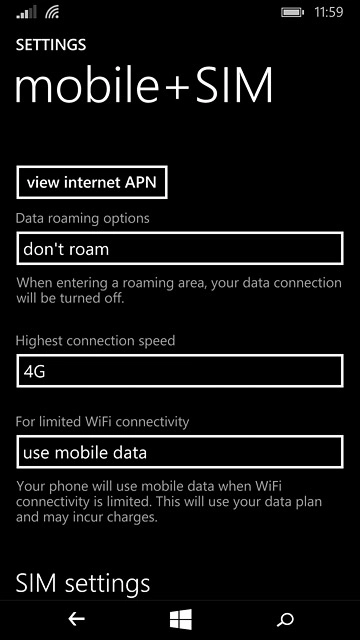

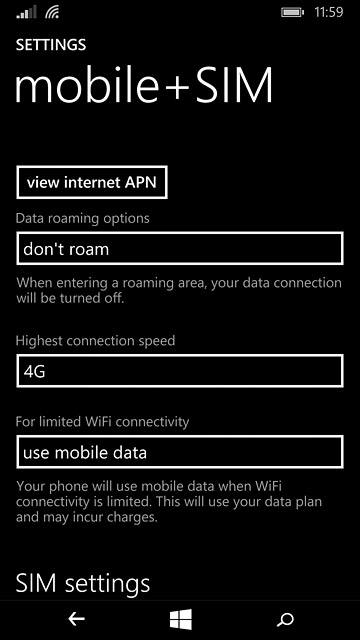

Press SIM settings.

Step 4 of 12

Find "add MMS APN"

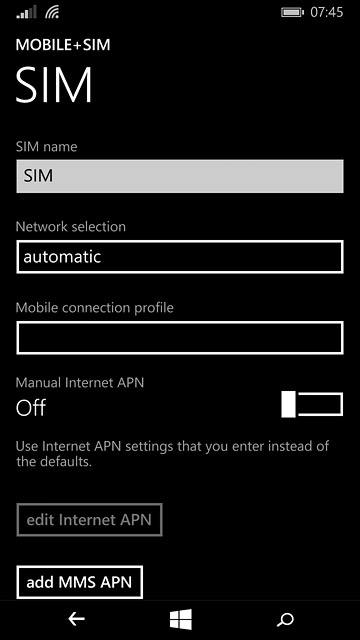

Press add MMS APN.

Step 5 of 12

Enter APN

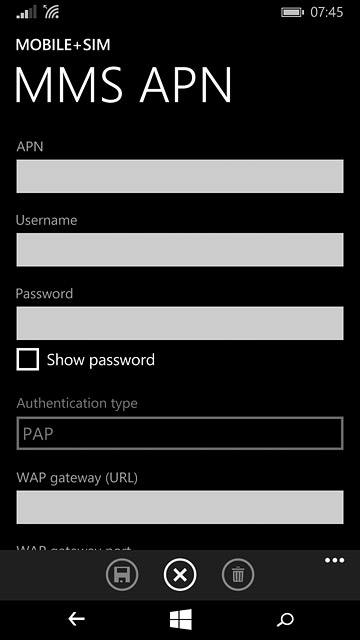

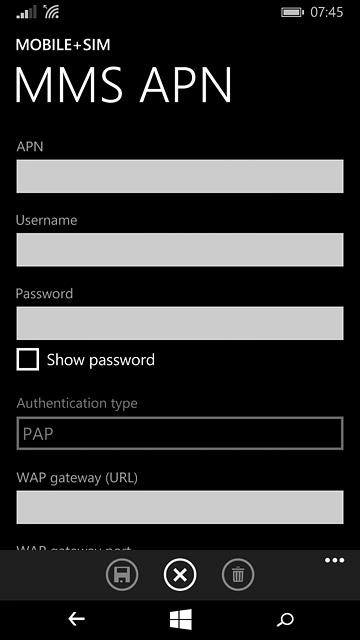

Press the field below "APN".
Key in live.vodafone.com

Step 6 of 12

Select authentication type

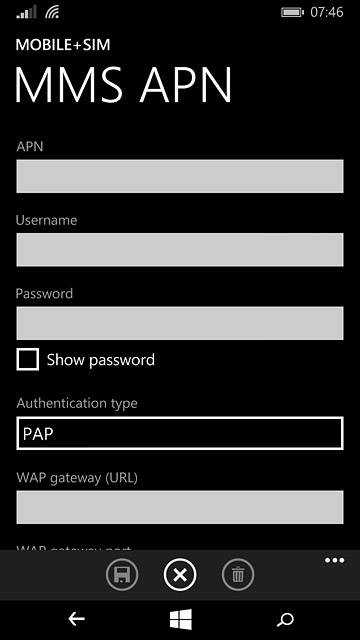

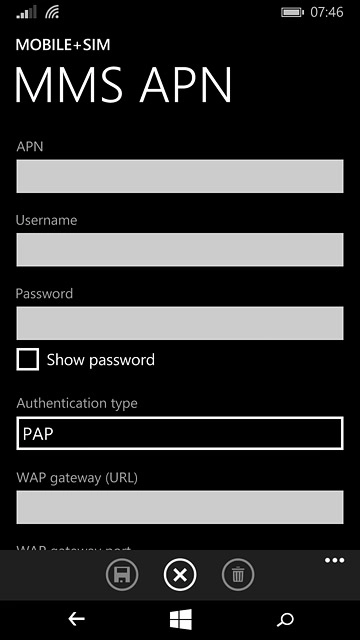

Press the field below "Authentication type".

Step 7 of 12

Select authentication type

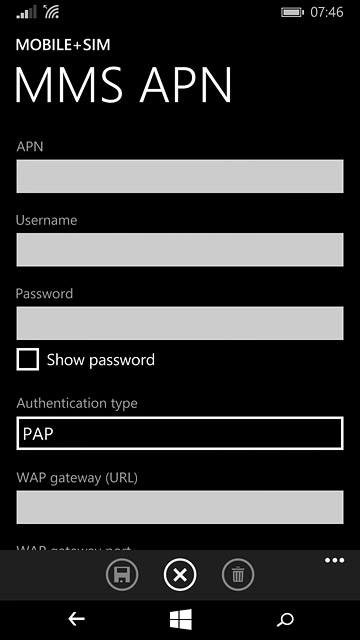

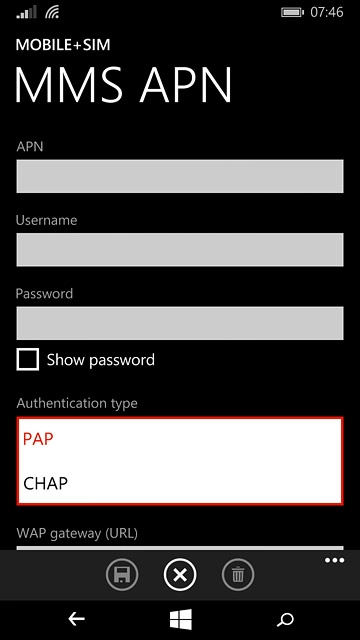

Press PAP.

Step 8 of 12

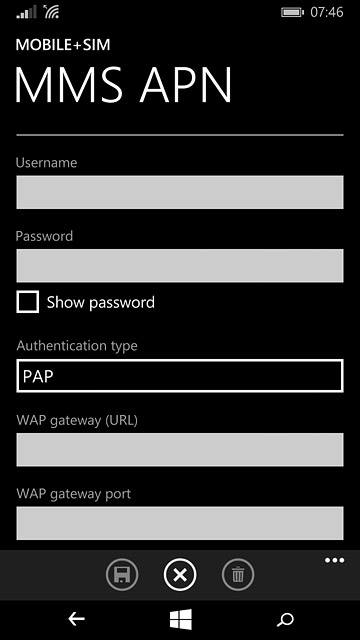

Enter IP address

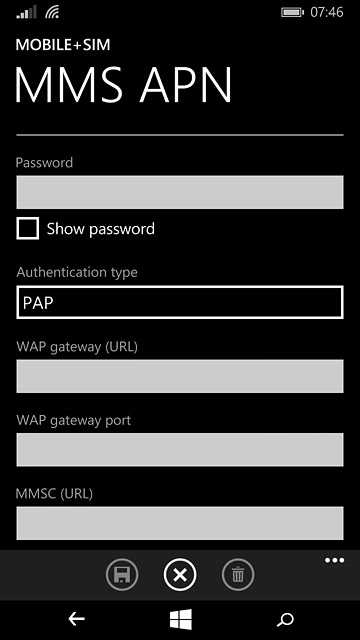

Press the field below "WAP gateway (URL)" and key in 10.202.2.60

Step 9 of 12

Enter incoming port

Press the field below "WAP gateway port" and key in 8080

Step 10 of 12

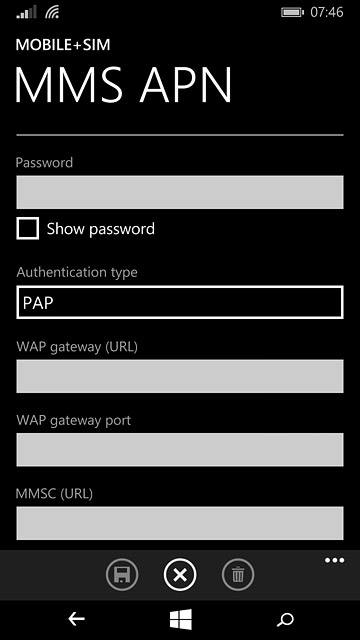

Enter picture messaging server

Press the field below "MMSC (URL)" and key in http://pxt.vodafone.net.au/pxtsend

Step 11 of 12

Save data connection

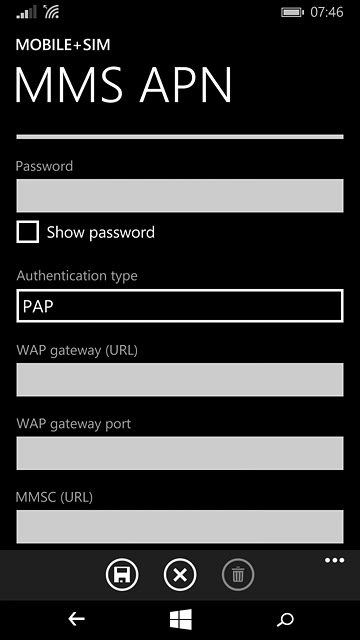

Press the save icon.

Step 12 of 12

Return to the home screen

Press the home icon to return to the home screen.

Find "add MMS APN"

Slide your finger down the display starting from the top edge of your phone.
Press ALL SETTINGS.
Press mobile+SIM.
Press SIM settings.
Press add MMS APN.

Enter APN

Press the field below "APN".
Key in live.vodafone.com

Select authentication type

Press the field below "Authentication type".
Press PAP.

Enter IP address

Press the field below "WAP gateway (URL)" and key in 10.202.2.60

Enter incoming port

Press the field below "WAP gateway port" and key in 8080

Enter picture messaging server

Press the field below "MMSC (URL)" and key in http://pxt.vodafone.net.au/pxtsend

Save data connection

Press the save icon.

Return to the home screen

Press the home icon to return to the home screen.
