Set up your Motorola Moto G 5G Plus Android 10.0 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Slide two fingers downwards starting from the top of the screen.
Slide two fingers downwards starting from the top of the screen.
Slide two fingers downwards starting from the top of the screen.
Step 1 of 27

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.

Press the settings icon.
Press the settings icon.
Press the settings icon.
Step 2 of 27

1. Find "Access point names"

Press the settings icon.

Press Network & Internet.
Press Network & Internet.
Press Network & Internet.
Step 3 of 27

1. Find "Access point names"

Press Network & Internet.

Press Mobile network.
Press Mobile network.
Press Mobile network.
Step 4 of 27

1. Find "Access point names"

Press Mobile network.

Press Advanced.
Press Advanced.
Press Advanced.
Step 5 of 27

1. Find "Access point names"

Press Advanced.

Press Access point names.
Press Access point names.
Press Access point names.
Step 6 of 27

1. Find "Access point names"

Press Access point names.

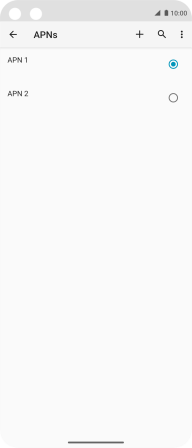

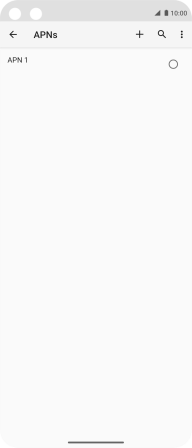

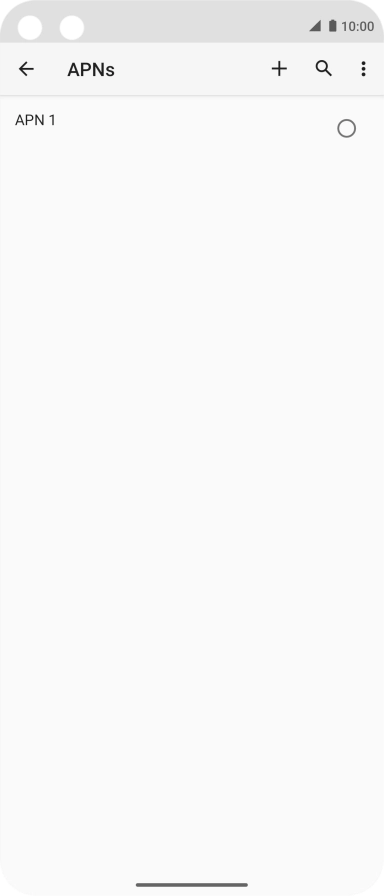

Press the new data connection icon.
Press the new data connection icon.
Press the new data connection icon.
Step 7 of 27

2. Create new data connection

Press the new data connection icon.

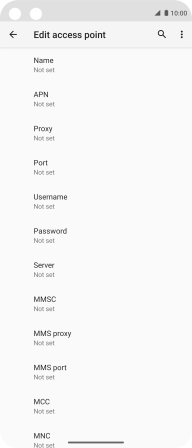

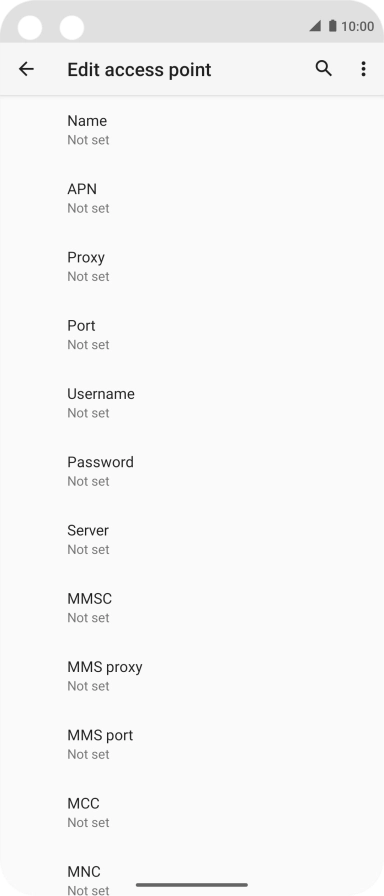

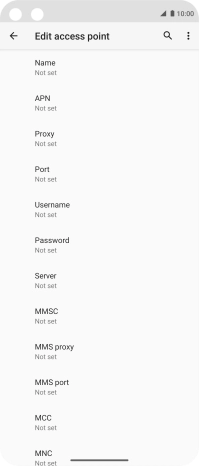

Press Name.
Press Name.
Press Name.
Step 8 of 27

3. Enter a name for the connection

Press Name.

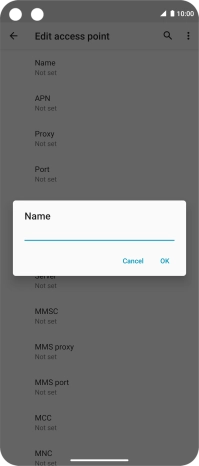

Key in Vodafone Internet and press OK.
Vodafone Internet
Key in Vodafone Internet and press OK.
Vodafone Internet
Key in Vodafone Internet and press OK.
Vodafone Internet
Step 9 of 27

3. Enter a name for the connection

Key in Vodafone Internet and press OK.

Press APN.
Press APN.
Press APN.
Step 10 of 27

4. Enter APN

Press APN.

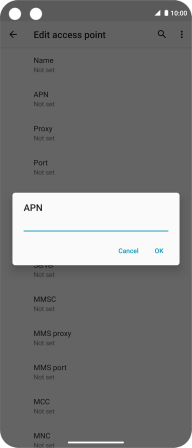

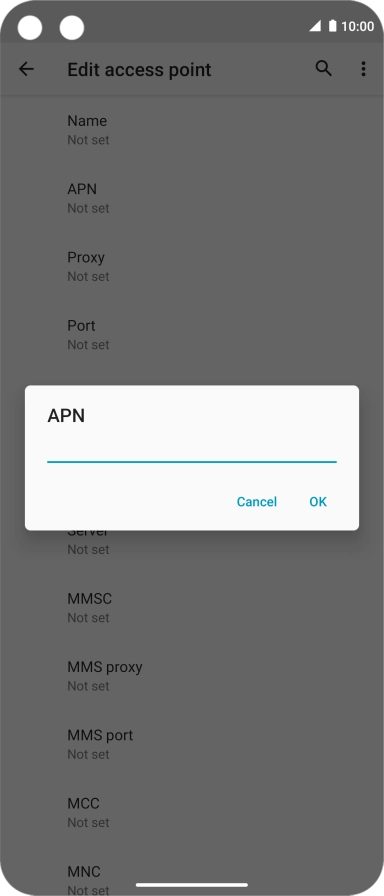

Key in live.vodafone.com and press OK.
live.vodafone.com
Key in live.vodafone.com and press OK.
live.vodafone.com
Key in live.vodafone.com and press OK.
live.vodafone.com
Step 11 of 27

4. Enter APN

Key in live.vodafone.com and press OK.

Press Proxy.
Press Proxy.
Press Proxy.
Step 12 of 27

5. Enter IP address

Press Proxy.

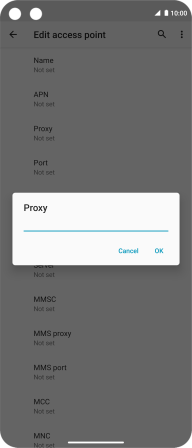

Key in 10.202.2.60 and press OK.
10.202.2.60
Key in 10.202.2.60 and press OK.
10.202.2.60
Key in 10.202.2.60 and press OK.
10.202.2.60
Step 13 of 27

5. Enter IP address

Key in 10.202.2.60 and press OK.

Press Port.
Press Port.
Press Port.
Step 14 of 27

6. Enter port number

Press Port.

Key in 8080 and press OK.
8080
Key in 8080 and press OK.
8080
Key in 8080 and press OK.
8080
Step 15 of 27

6. Enter port number

Key in 8080 and press OK.

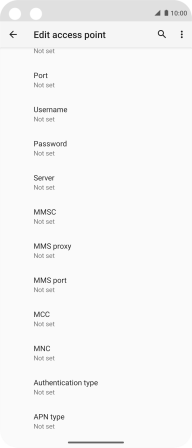

Press MCC.
Press MCC.
Press MCC.
Step 16 of 27

7. Enter country code

Press MCC.

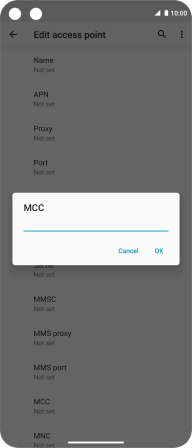

Key in 505 and press OK.
505
Key in 505 and press OK.
505
Key in 505 and press OK.
505
Step 17 of 27

7. Enter country code

Key in 505 and press OK.

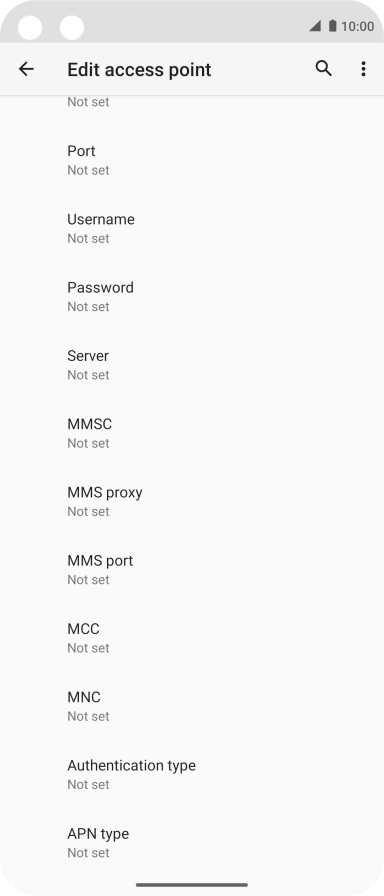

Press MNC.
Press MNC.
Press MNC.
Step 18 of 27

8. Enter network code

Press MNC.

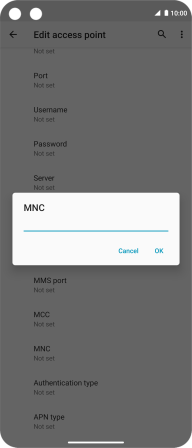

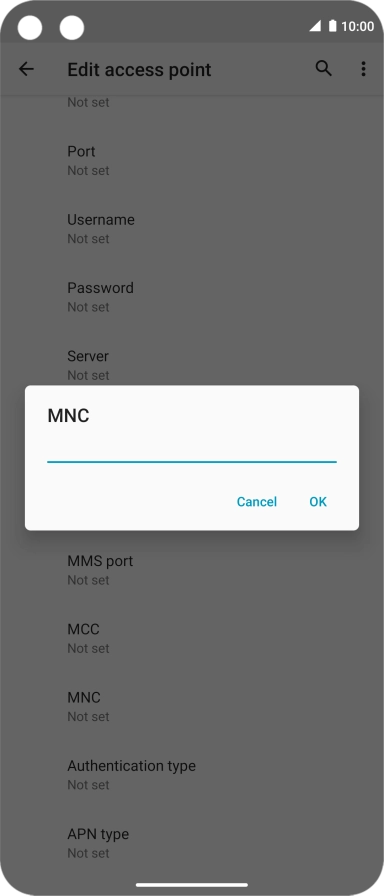

Key in 03 and press OK.
03
Key in 03 and press OK.
03
Key in 03 and press OK.
03
Step 19 of 27

8. Enter network code

Key in 03 and press OK.

Press Authentication type.
Press Authentication type.
Press Authentication type.
Step 20 of 27

9. Select authentication type

Press Authentication type.

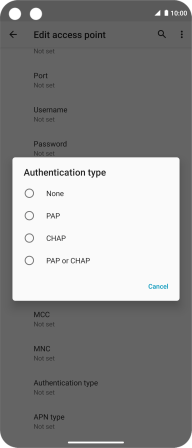

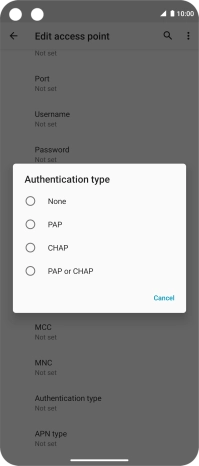

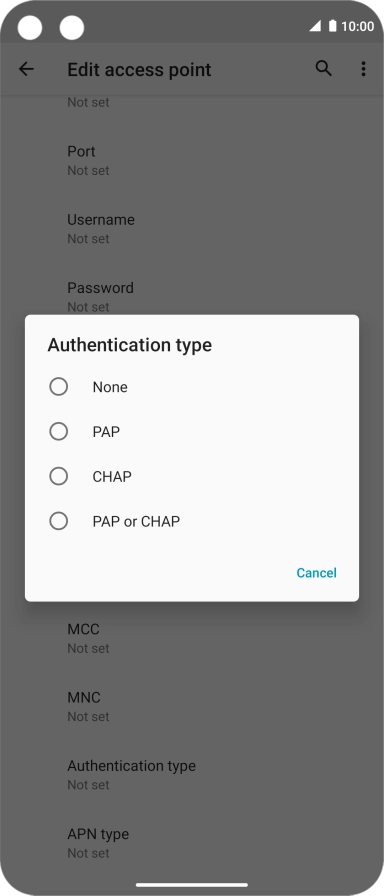

Press PAP.
Press PAP.
Press PAP.
Step 21 of 27

9. Select authentication type

Press PAP.

Press APN type.
Press APN type.
Press APN type.
Step 22 of 27

10. Enter APN type

Press APN type.

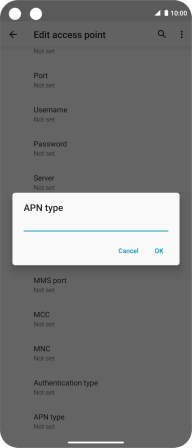

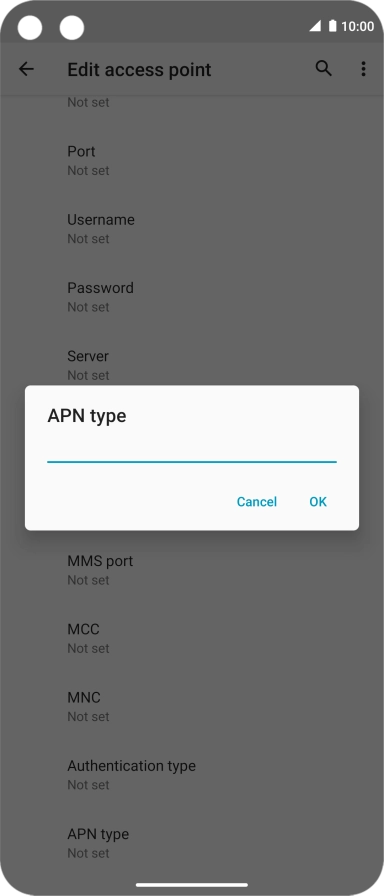

Key in default and press OK.
default
Key in default and press OK.
default
Key in default and press OK.
default
Step 23 of 27

10. Enter APN type

Key in default and press OK.

Press the menu icon.
Press the menu icon.
Press the menu icon.
Step 24 of 27

11. Save data connection

Press the menu icon.

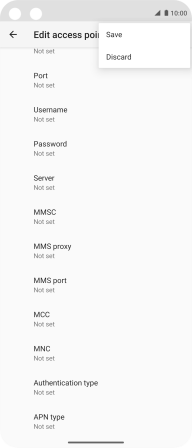

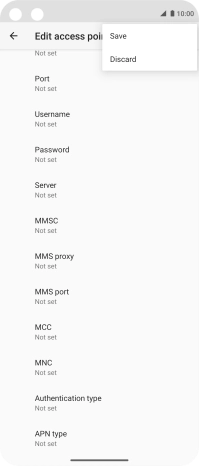

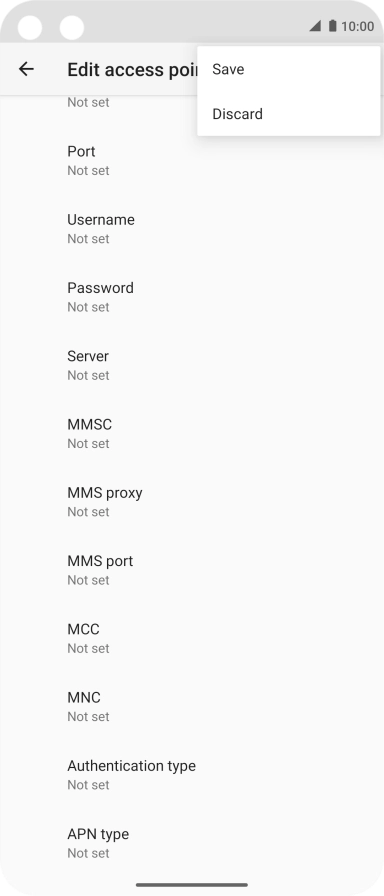

Press Save.
Press Save.
Press Save.
Step 25 of 27

11. Save data connection

Press Save.

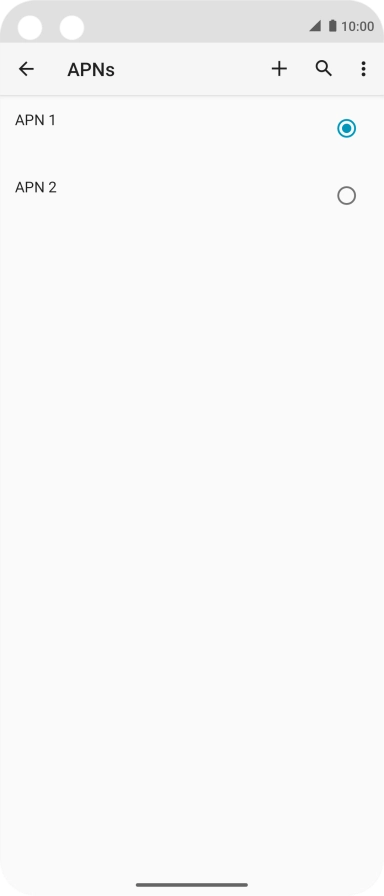

Press the field next to the data connection to activate it.
Press the field next to the data connection to activate it.
Press the field next to the data connection to activate it.
Step 26 of 27

11. Save data connection

Press the field next to the data connection to activate it.

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
Step 27 of 27

12. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network & Internet.
Press Mobile network.
Press Advanced.
Press Access point names.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter IP address

Press Proxy.
Key in 10.202.2.60 and press OK.
10.202.2.60

6. Enter port number

Press Port.
Key in 8080 and press OK.
8080

7. Enter country code

Press MCC.
Key in 505 and press OK.
505

8. Enter network code

Press MNC.
Key in 03 and press OK.
03

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in default and press OK.
default

11. Save data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to activate it.

12. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
