Set up your phone for picture messaging - Nokia 208

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 37

Find "Personal settings"

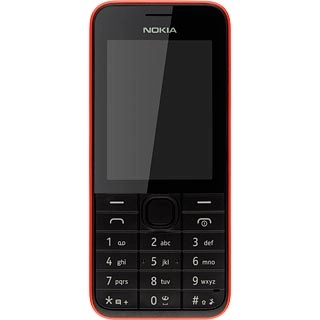

Press the Navigation key.

Step 2 of 37

Find "Personal settings"

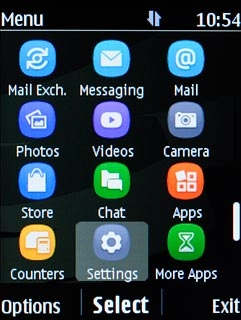

Scroll to Settings and press the Navigation key.

Step 3 of 37

Find "Personal settings"

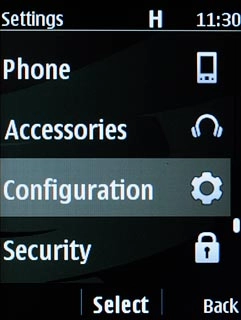

Scroll to Configuration and press the Navigation key.

Step 4 of 37

Find "Personal settings"

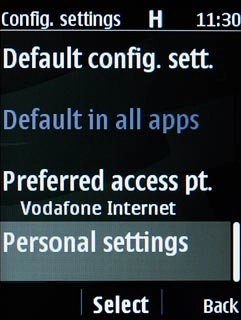

Scroll to Personal settings and press the Navigation key.

Step 5 of 37

Create new data connection

Press the Navigation key.

If a data connection has been created already, do the following instead:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
Step 6 of 37

Create new data connection

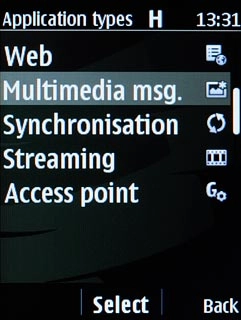

Scroll to Multimedia msg. and press the Navigation key.

If a data connection has been created already, do the following instead:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
Step 7 of 37

Enter data connection name

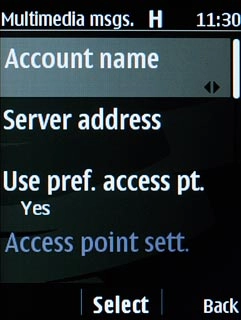

Scroll to Account name and press the Navigation key.

Step 8 of 37

Enter data connection name

Key in Vodafone MMS and press the Navigation key.

Step 9 of 37

Enter picture messaging server

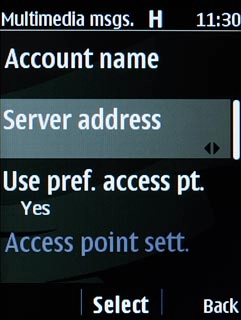

Scroll to Server address and press the Navigation key.

Step 10 of 37

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press the Navigation key.

Step 11 of 37

Turn off default data connection

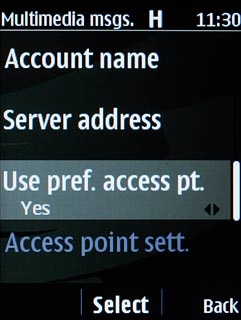

Scroll to Use pref. access pt. and press the Navigation key.

Step 12 of 37

Turn off default data connection

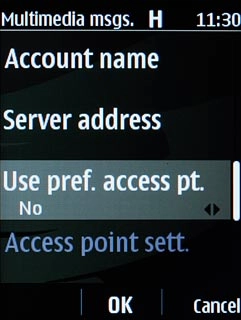

Scroll to No and press the Navigation key.

Step 13 of 37

Turn on proxy server

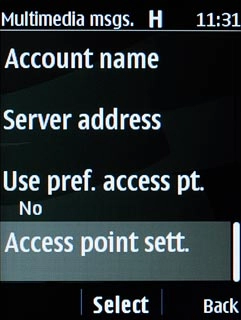

Scroll to Access point sett. and press the Navigation key.

Step 14 of 37

Turn on proxy server

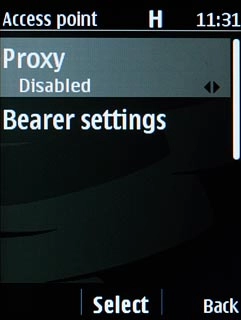

Scroll to Proxy and press the Navigation key.

Step 15 of 37

Turn on proxy server

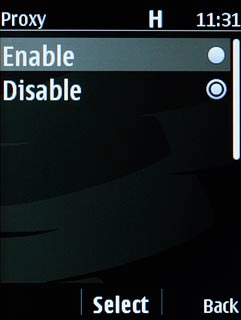

Scroll to Enable and press the Navigation key.

Step 16 of 37

Enter IP address

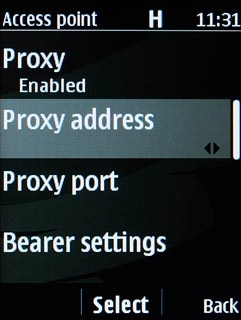

Scroll to Proxy address and press the Navigation key.

Step 17 of 37

Enter IP address

Key in 10.202.002.060 and press the Navigation key.

Step 18 of 37

Enter port

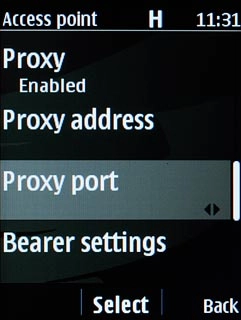

Scroll to Proxy port and press the Navigation key.

Step 19 of 37

Enter port

Key in 8080 and press the Navigation key.

Step 20 of 37

Edit bearer settings

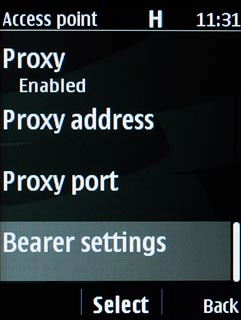

Scroll to Bearer settings and press the Navigation key.

Step 21 of 37

Enter APN

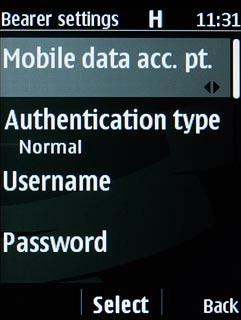

Scroll to Mobile data acc. pt. and press the Navigation key.
Key in live.vodafone.com

Step 22 of 37

Enter APN

Press the Navigation key.

Step 23 of 37

Select authentication type

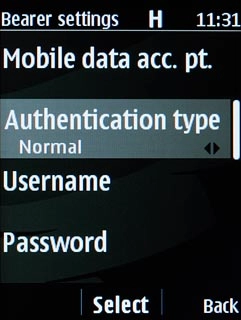

Scroll to Authentication type and press the Navigation key.

Step 24 of 37

Select authentication type

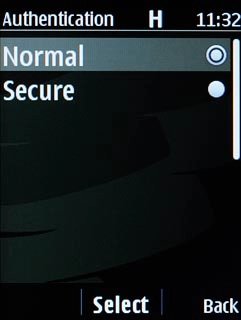

Scroll to Normal and press the Navigation key.

Step 25 of 37

Activate data connection

Press Back three times to save the settings and return to the list of data connections.

Step 26 of 37

Activate data connection

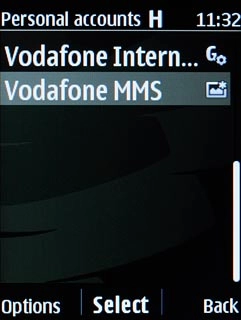

Scroll to the data connection and press Options.

Step 27 of 37

Activate data connection

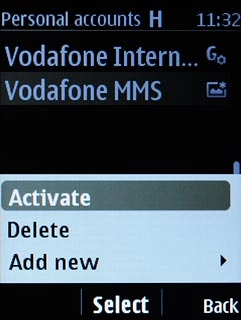

Scroll to Activate and press the Navigation key.

Step 28 of 37

Activate data connection

Press Disconnect to return to the home screen.

Step 29 of 37

Select data connection

Press the Navigation key.

Step 30 of 37

Select data connection

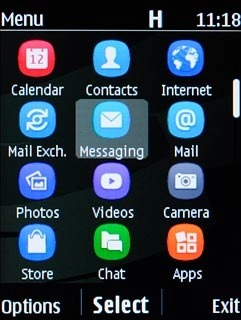

Scroll to Messaging and press the Navigation key.

Step 31 of 37

Select data connection

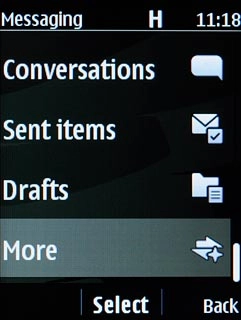

Scroll to More and press the Navigation key.

Step 32 of 37

Select data connection

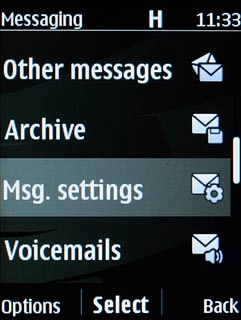

Scroll to Msg. settings and press the Navigation key.

Step 33 of 37

Select data connection

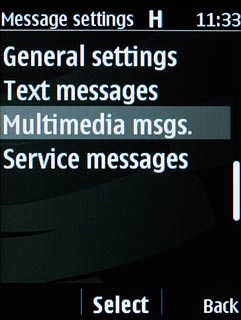

Scroll to Multimedia msgs. and press the Navigation key.

Step 34 of 37

Select data connection

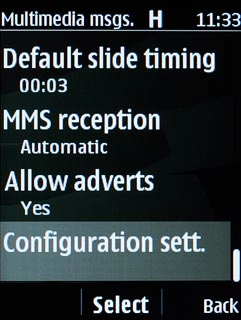

Scroll to Configuration sett. and press the Navigation key.

Step 35 of 37

Select data connection

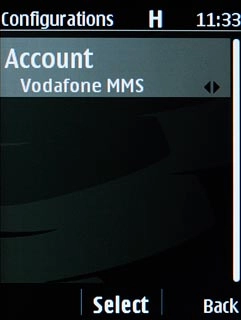

Scroll to Account and press the Navigation key.

Step 36 of 37

Select data connection

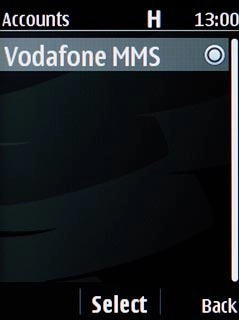

Scroll to the data connection and press the Navigation key.

Step 37 of 37

Return to the home screen

Press Disconnect to return to the home screen.

Find "Personal settings"

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal settings and press the Navigation key.

Create new data connection

Press the Navigation key.
If a data connection has been created already, do the following instead:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.
If a data connection has been created already, do the following instead:
Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Multimedia msg. and press the Navigation key.

Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone MMS and press the Navigation key.

Enter picture messaging server

Scroll to Server address and press the Navigation key.
Key in http://pxt.vodafone.net.au/pxtsend and press the Navigation key.

Turn off default data connection

Scroll to Use pref. access pt. and press the Navigation key.
Scroll to No and press the Navigation key.

Turn on proxy server

Scroll to Access point sett. and press the Navigation key.
Scroll to Proxy and press the Navigation key.
Scroll to Enable and press the Navigation key.

Enter IP address

Scroll to Proxy address and press the Navigation key.
Key in 10.202.002.060 and press the Navigation key.

Enter port

Scroll to Proxy port and press the Navigation key.
Key in 8080 and press the Navigation key.

Edit bearer settings

Scroll to Bearer settings and press the Navigation key.

Enter APN

Scroll to Mobile data acc. pt. and press the Navigation key.
Key in live.vodafone.com
Press the Navigation key.

Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

Activate data connection

Press Back three times to save the settings and return to the list of data connections.
Scroll to the data connection and press Options.
Scroll to Activate and press the Navigation key.
Press Disconnect to return to the home screen.

Select data connection

Press the Navigation key.
Scroll to Messaging and press the Navigation key.
Scroll to More and press the Navigation key.
Scroll to Msg. settings and press the Navigation key.
Scroll to Multimedia msgs. and press the Navigation key.
Scroll to Configuration sett. and press the Navigation key.
Scroll to Account and press the Navigation key.
Scroll to the data connection and press the Navigation key.

Return to the home screen

Press Disconnect to return to the home screen.
