Set up your Nokia 3310 (2017) Proprietary OS for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Press the Navigation key.
Step 1 of 18

1. Find "Access points"

Press the Navigation key.

Select Settings.
Step 2 of 18

1. Find "Access points"

Select Settings.

Select Connectivity.
Step 3 of 18

1. Find "Access points"

Select Connectivity.

Select Mobile data.
Step 4 of 18

1. Find "Access points"

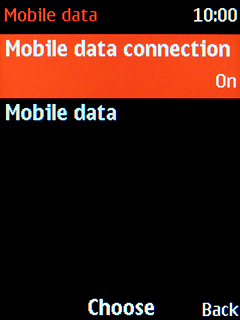

Select Mobile data.

Select Mobile data.
Step 5 of 18

1. Find "Access points"

Select Mobile data.

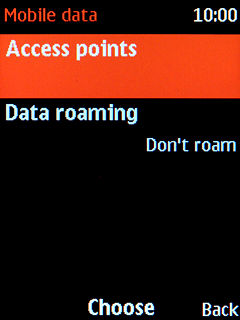

Select Access points.
Step 6 of 18

1. Find "Access points"

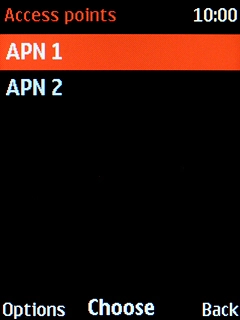

Select Access points.

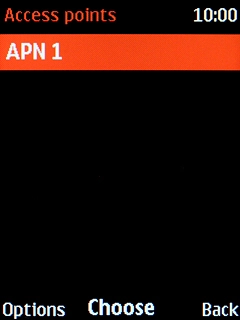

Press the Left selection key.
Step 7 of 18

2. Create new data connection

Press the Left selection key.

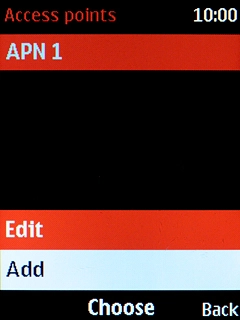

Select Add.
Step 8 of 18

2. Create new data connection

Select Add.

Highlight the field below
Vodafone Internet
Step 9 of 18

2. Create new data connection

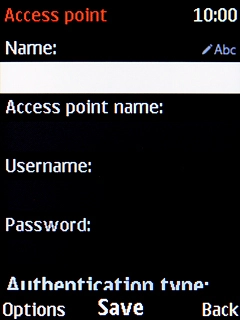

Highlight the field below "Name" and key in Vodafone Internet.

Highlight the field below
live.vodafone.com
Step 10 of 18

3. Enter APN

Highlight the field below "Access points name" and key in live.vodafone.com.

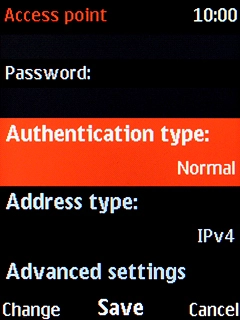

Select Advanced settings.
Step 11 of 18

4. Select connection type

Select Advanced settings.

Select Connection type.
Step 12 of 18

4. Select connection type

Select Connection type.

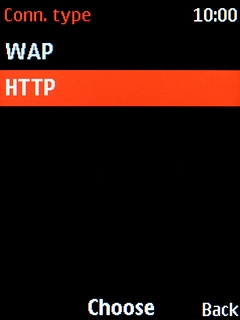

Select HTTP.
Step 13 of 18

4. Select connection type

Select HTTP.

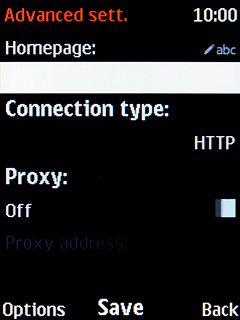

Highlight Proxy and press Navigation key right or Navigation key left to turn on use of proxy.
Step 14 of 18

5. Turn on use of proxy

Highlight Proxy and press Navigation key right or Navigation key left to turn on use of proxy.

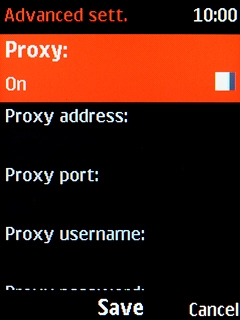

Highlight the field below
10.202.2.60
Step 15 of 18

6. Enter IP address

Highlight the field below "Proxy address" and key in 10.202.2.60.

Highlight the field below
8080
Step 16 of 18

7. Enter port number

Highlight the field below "Proxy port" and key in 8080.

Press the Navigation key.
Step 17 of 18

8. Save data connection

Press the Navigation key.

Press Disconnect to return to the home screen.
Step 18 of 18

9. Return to the home screen

Press Disconnect to return to the home screen.

1. Find "Access points"

Press the Navigation key.
Select Settings.
Select Connectivity.
Select Mobile data.
Select Mobile data.
Select Access points.

2. Create new data connection

Press the Left selection key.
Select Add.
Highlight the field below "Name" and key in Vodafone Internet.
Vodafone Internet

3. Enter APN

Highlight the field below "Access points name" and key in live.vodafone.com.
live.vodafone.com

4. Select connection type

Select Advanced settings.
Select Connection type.
Select HTTP.

5. Turn on use of proxy

Highlight Proxy and press Navigation key right or Navigation key left to turn on use of proxy.

6. Enter IP address

Highlight the field below "Proxy address" and key in 10.202.2.60.
10.202.2.60

7. Enter port number

Highlight the field below "Proxy port" and key in 8080.
8080

8. Save data connection

Press the Navigation key.

9. Return to the home screen

Press Disconnect to return to the home screen.
