Set up your phone for web-based email - Nokia C3

Read help info

You can send and retrieve email messages from a web-based email account, such as Hotmail, Yahoo! Mail and Gmail. Follow these instructions to set up your phone for web-based email.
Before you can set up your phone for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for more information.

Step 1 of 32

Find "Personal settings"

Press the Navigation key.

Step 2 of 32

Find "Personal settings"

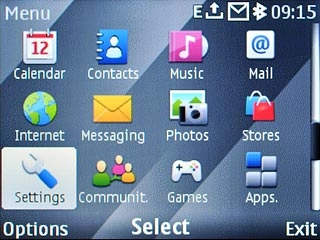

Scroll to Settings and press the Navigation key.

Step 3 of 32

Find "Personal settings"

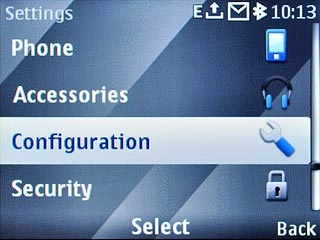

Scroll to Configuration and press the Navigation key.

Step 4 of 32

Find "Personal settings"

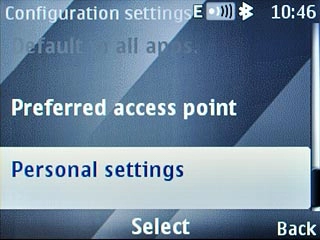

Scroll to Personal settings and press the Navigation key.

Step 5 of 32

Create new data connection

If no data connections have been created:
Press the Navigation key.

Step 6 of 32

Create new data connection

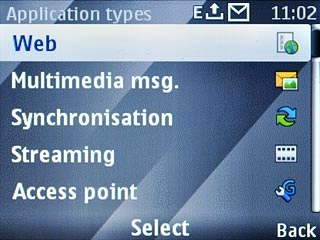

Scroll to Web and press the Navigation key.

Step 7 of 32

Create new data connection

If data connections have been created already:
Press Options.

Step 8 of 32

Create new data connection

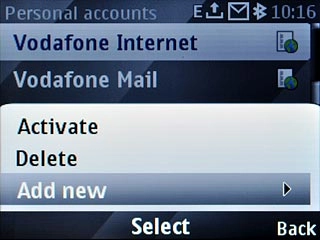

Scroll to Add new and press the Navigation key.

Step 9 of 32

Create new data connection

Scroll to Web and press the Navigation key.

Step 10 of 32

Enter data connection name

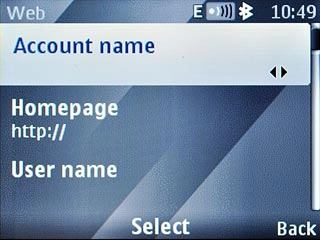

Scroll to Account name and press the Navigation key.

Step 11 of 32

Enter data connection name

Key in Vodafone Mail and press the Navigation key.

Step 12 of 32

Turn off default data connection

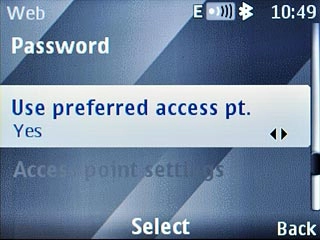

Scroll to Use preferred access pt. and press the Navigation key.

Step 13 of 32

Turn off default data connection

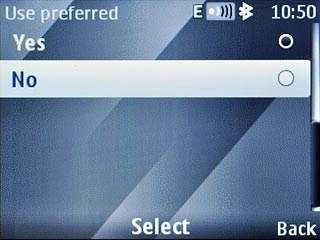

Scroll to No and press the Navigation key.

Step 14 of 32

Edit bearer settings

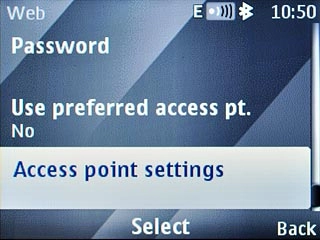

Scroll to Access point settings and press the Navigation key.

Step 15 of 32

Edit bearer settings

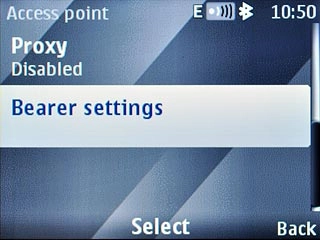

Scroll to Bearer settings and press the Navigation key.

Step 16 of 32

Enter APN

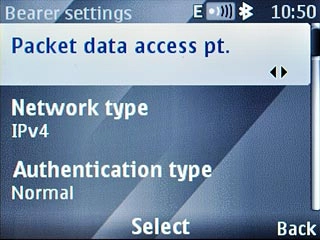

Scroll to Packet data access pt. and press the Navigation key.

Step 17 of 32

Enter APN

Key in live.vodafone.com and press the Navigation key.

Step 18 of 32

Select authentication type

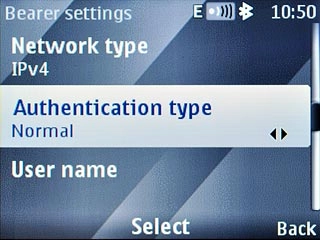

Scroll to Authentication type and press the Navigation key.

Step 19 of 32

Select authentication type

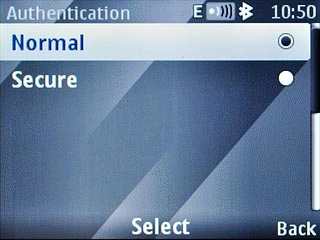

Scroll to Normal and press the Navigation key.

Step 20 of 32

Activate data connection

Press Back three times to save the settings.

Step 21 of 32

Activate data connection

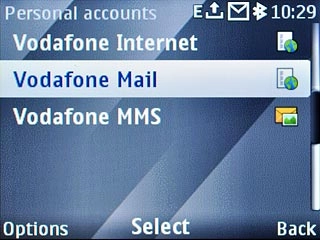

Scroll to Vodafone Mail and press Options.

Step 22 of 32

Activate data connection

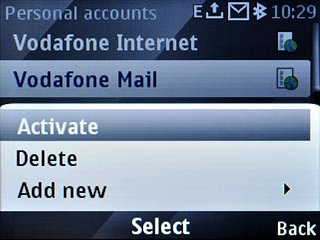

Scroll to Activate and press the Navigation key.

Step 23 of 32

Activate data connection

Press Disconnect to return to standby mode.

Step 24 of 32

Find "Mail"

Press the Navigation key.

The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Step 25 of 32

Find "Mail"

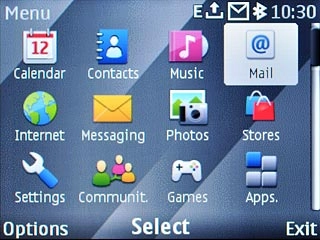

Scroll to Mail and press the Navigation key.

The first time you open the application, different questions are displayed. Follow the instructions on the display to select the required settings.
Step 26 of 32

Create new email account

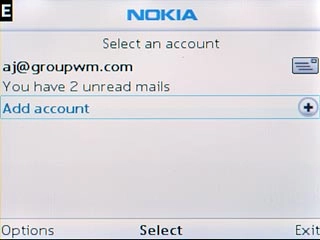

If email accounts have been created already:
Scroll to Add account and press the Navigation key.

Step 27 of 32

Create new email account

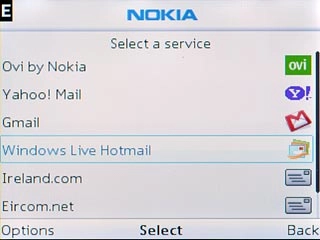

Highlight the required provider and press the Navigation key.
These instructions are based on a Windows Live Hotmail account. If you select another email provider, there may be some differences in relation to the instructions.

Step 28 of 32

Enter email address

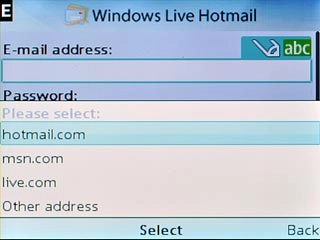

Highlight the required domain or Other address and press the Navigation key.

Step 29 of 32

Enter email address

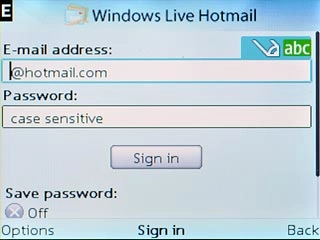

Scroll to E-mail address and key in your email address (such as name@provider.com).

Step 30 of 32

Enter password

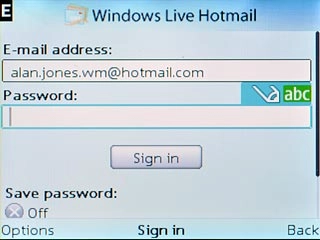

Scroll to Password and key in the password for your mailbox at your email provider.

Step 31 of 32

Retrieve email messages

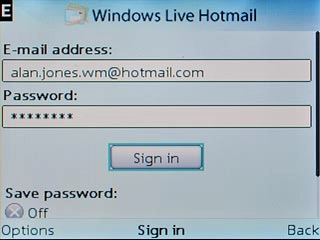

Scroll to Sign in and press the Navigation key.
Wait while your phone retrieves new email messages.

Step 32 of 32

Exit

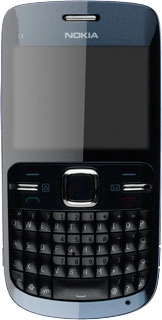

Press and hold Disconnect to return to standby mode.
