Set up your phone for picture messaging - Nokia E7

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 43

Find "Destinations"

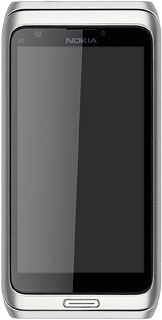

Press the Menu key.

Step 2 of 43

Find "Destinations"

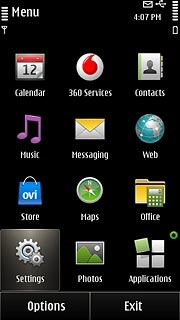

Press Settings.

Step 3 of 43

Find "Destinations"

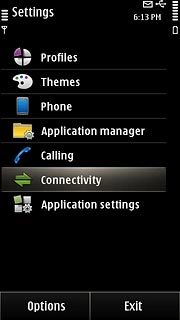

Press Connectivity.

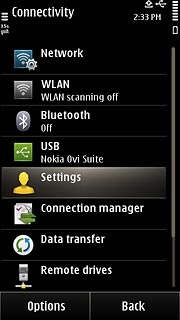

Step 4 of 43

Find "Destinations"

Press Settings.

Step 5 of 43

Find "Destinations"

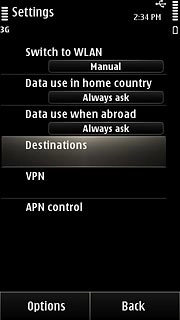

Press Destinations.

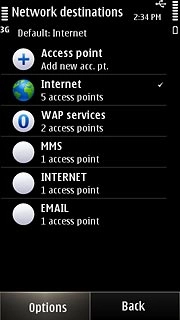

Step 6 of 43

Create new data connection group

Press Options.

Step 7 of 43

Create new data connection group

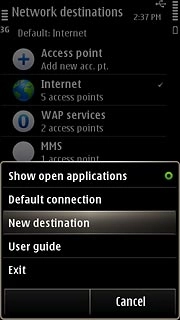

Press New destination.
Key in MMS

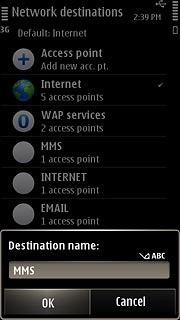

Step 8 of 43

Create new data connection group

Press OK.

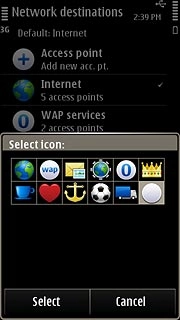

Step 9 of 43

Create new data connection group

Press the required icon.

Step 10 of 43

Create new data connection

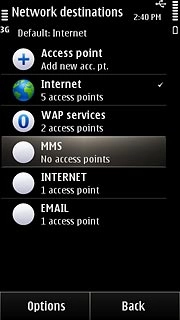

Press MMS.

Step 11 of 43

Create new data connection

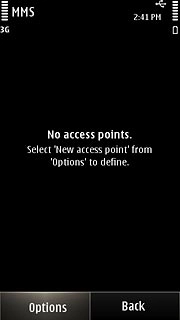

Press Options.

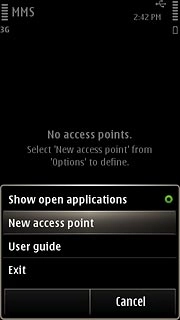

Step 12 of 43

Create new data connection

Press New access point.

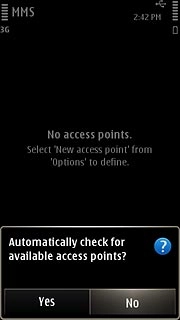

Step 13 of 43

Create new data connection

Press No.

Step 14 of 43

Create new data connection

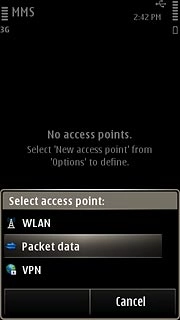

Press Packet data.

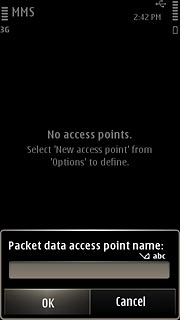

Step 15 of 43

Enter APN

Key in live.vodafone.com
Press OK.

Step 16 of 43

Edit data connection settings

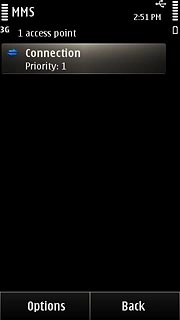

Press the data connection you've just created.

Step 17 of 43

Enter data connection name

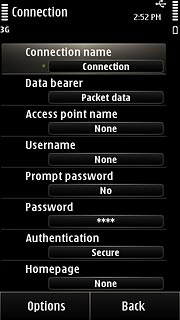

Press Connection name.
Key in Vodafone MMS

Step 18 of 43

Enter data connection name

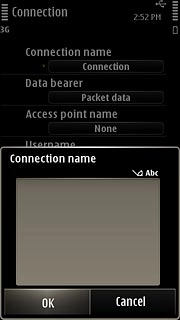

Press OK.

Step 19 of 43

Select authentication type

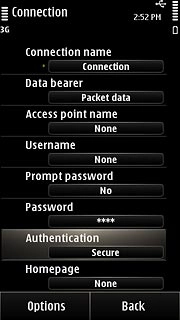

Press Authentication to select Normal.

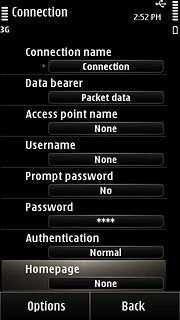

Step 20 of 43

Enter picture messaging server

Press Homepage.

Step 21 of 43

Enter picture messaging server

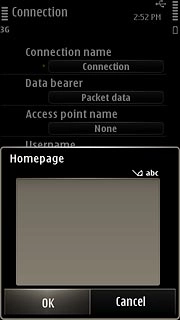

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 22 of 43

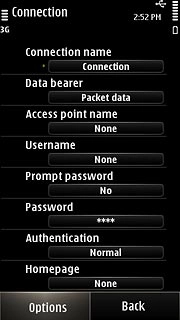

Enter IP address

Press Options.

Step 23 of 43

Enter IP address

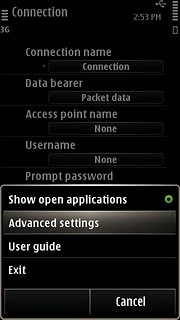

Press Advanced settings.

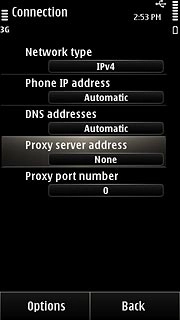

Step 24 of 43

Enter IP address

Press Proxy server address.
Key in 10.202.002.060

Step 25 of 43

Enter IP address

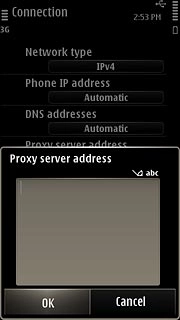

Press OK.

Step 26 of 43

Enter port number

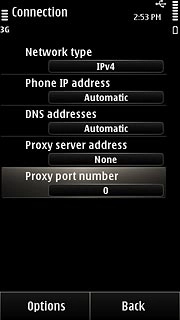

Press Proxy port number.
Key in 8080

Step 27 of 43

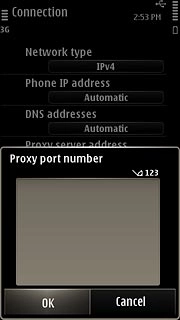

Enter port number

Press OK.

Step 28 of 43

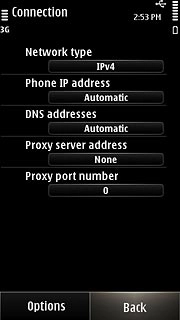

Save data connection

Press Back twice to save the settings and return to the list of data connections.

Step 29 of 43

Save data connection

Press the Menu key to return to standby mode.

Step 30 of 43

Find "Multimedia message"

Press the Menu key.

Step 31 of 43

Find "Multimedia message"

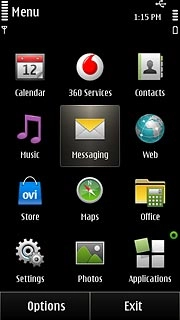

Press Messaging.

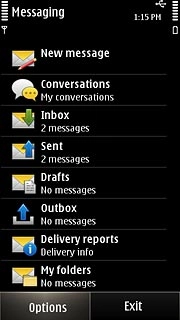

Step 32 of 43

Find "Multimedia message"

Press Options.

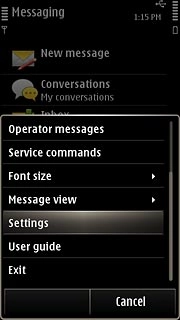

Step 33 of 43

Find "Multimedia message"

Press Settings.

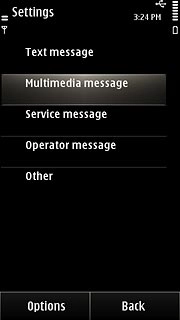

Step 34 of 43

Find "Multimedia message"

Press Multimedia message.

Step 35 of 43

Select data connection

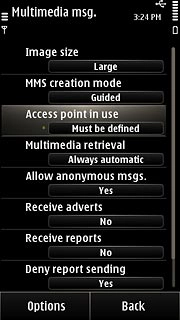

Press Access point in use.

Step 36 of 43

Select data connection

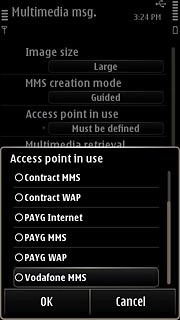

Press Vodafone MMS.

Step 37 of 43

Select picture message download

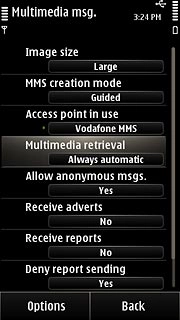

Press Multimedia retrieval.

If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home netw., you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.

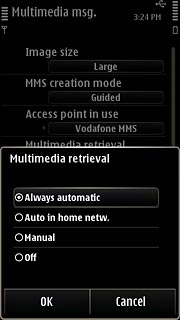

Step 38 of 43

Select picture message download

Press Always automatic.

If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home netw., you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.
Step 39 of 43

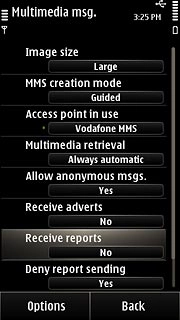

Turn request for delivery reports on or off

Press Receive reports.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 40 of 43

Turn request for delivery reports on or off

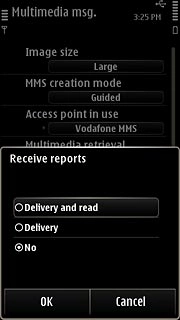

To turn on the function:
Press Delivery and read or Delivery.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 41 of 43

Turn request for delivery reports on or off

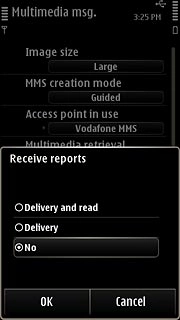

To turn off the function:
Press No.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 42 of 43

Exit

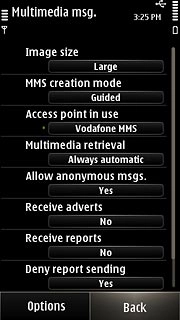

Press Back.

Step 43 of 43

Exit

Press the Menu key to return to standby mode.
