1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network and Internet.
1. Find "Access point names"
Press SIMs.
1. Find "Access point names"
Press Access point names.
2. Create new data connection

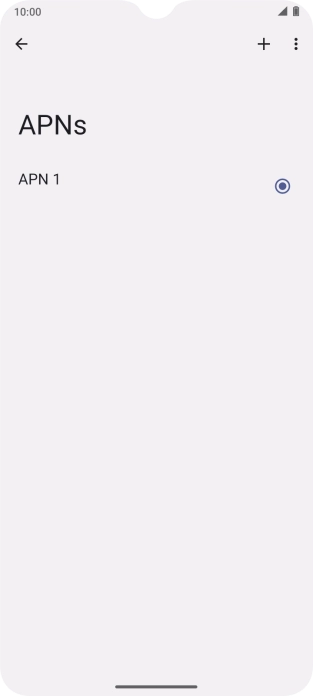

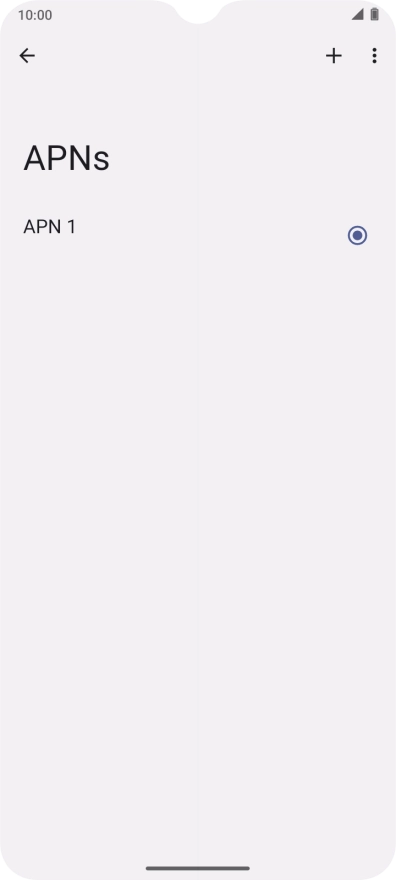

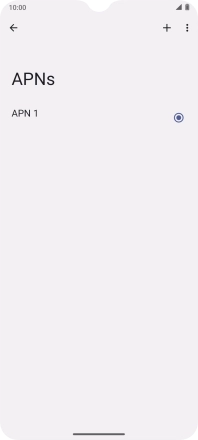

Press the new data connection icon.
3. Enter a name for the connection

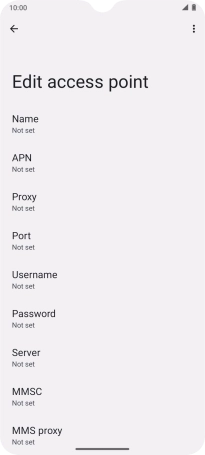

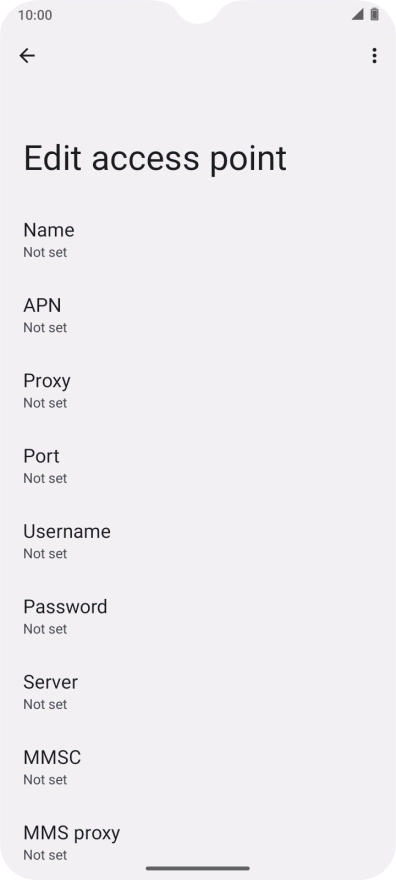

Press Name.
3. Enter a name for the connection

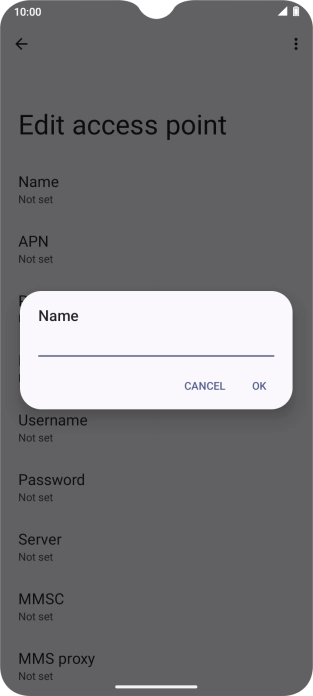

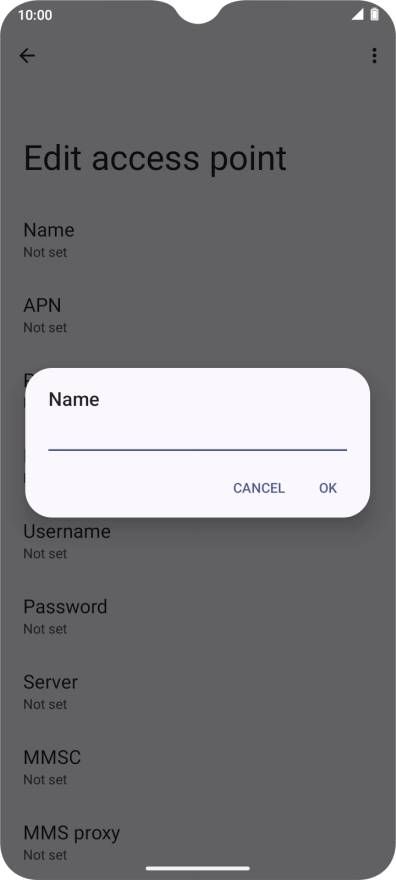

Key in Vodafone MMS and press OK.
4. Enter APN
Press APN.
4. Enter APN
Key in live.vodafone.com and press OK.
5. Enter picture messaging server
Press MMSC.
5. Enter picture messaging server

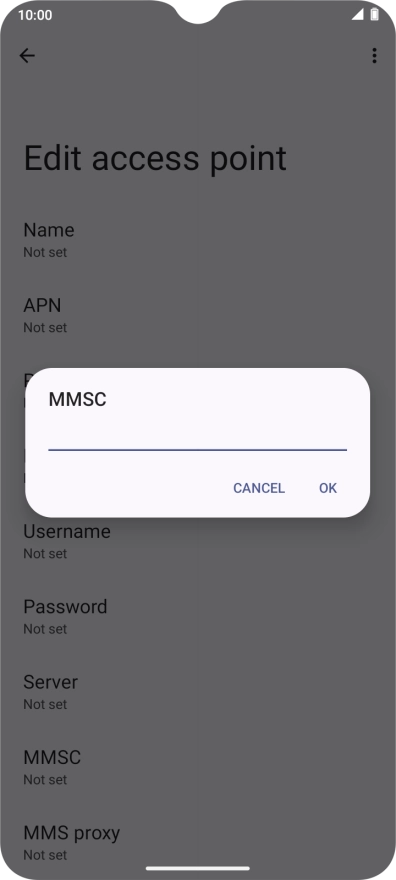

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
6. Enter IP address

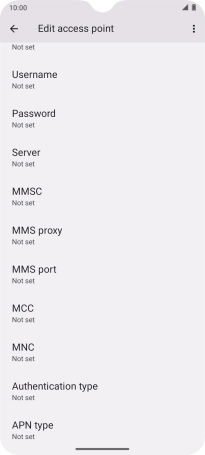

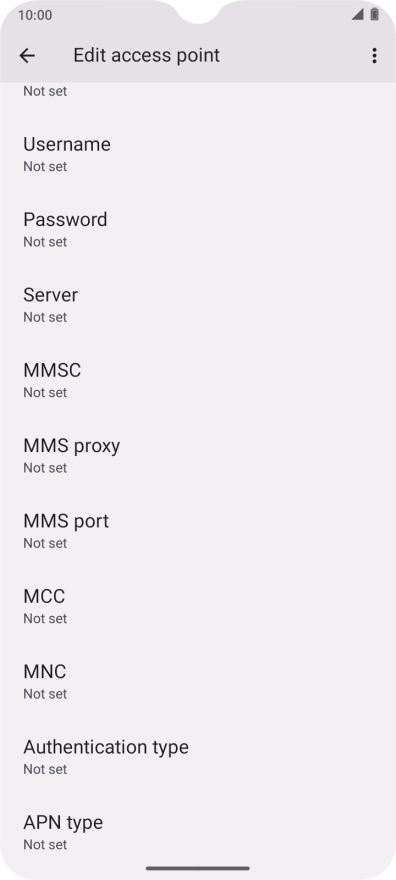

Press MMS proxy.
6. Enter IP address

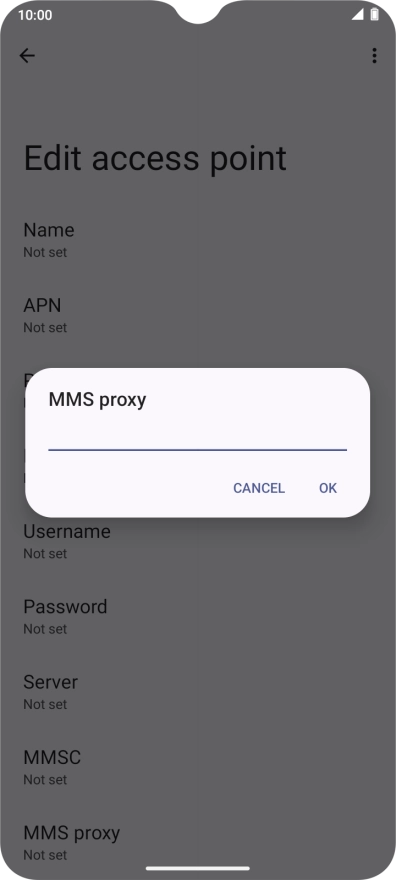

Key in 10.202.002.060 and press OK.
7. Enter port number
Press MMS port.
7. Enter port number

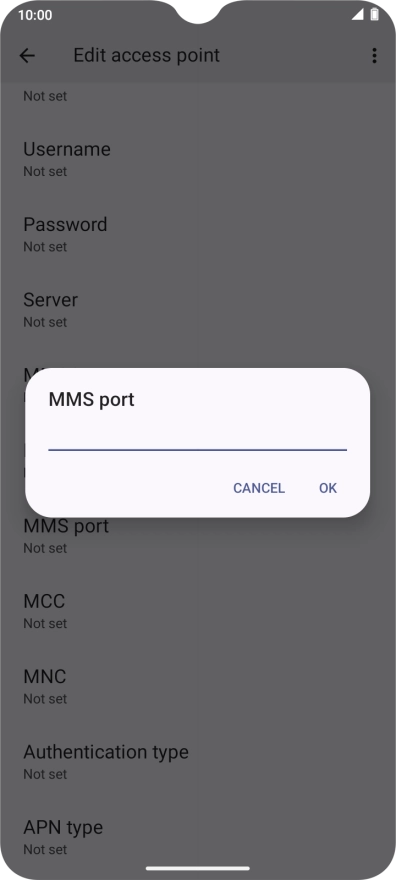

Key in 8080 and press OK.
8. Enter country code
Press MCC.
8. Enter country code
Key in 505 and press OK.

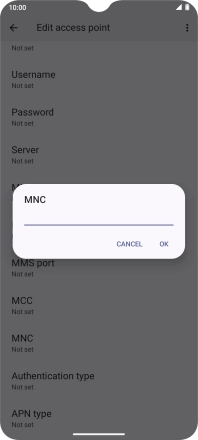

9. Enter network code
Press MNC.
9. Enter network code

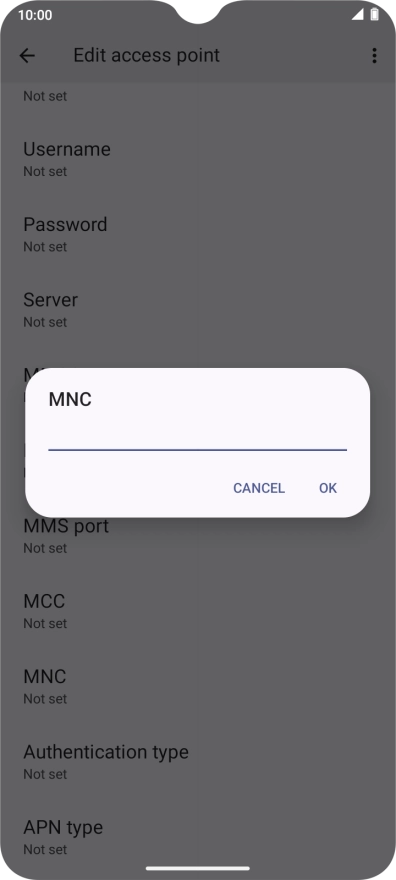

Key in 03 and press OK.
10. Select authentication type
Press Authentication type.
10. Select authentication type

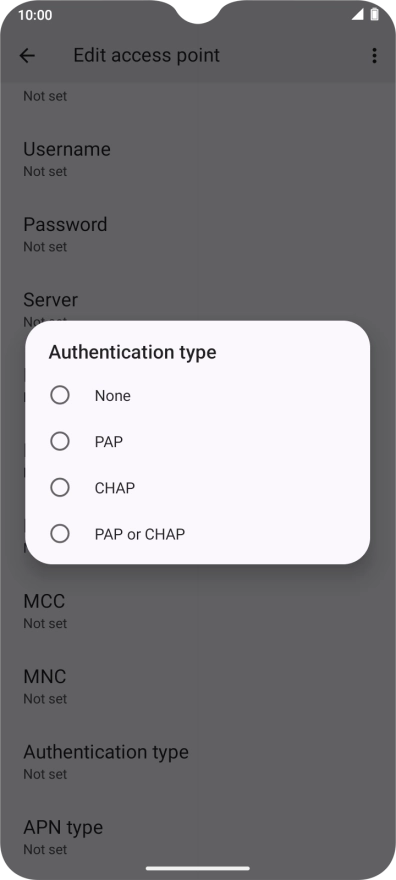

Press PAP.
11. Enter APN type
Press APN type.
11. Enter APN type
Key in mms and press OK.
12. Save data connection
Press the menu icon.
12. Save data connection

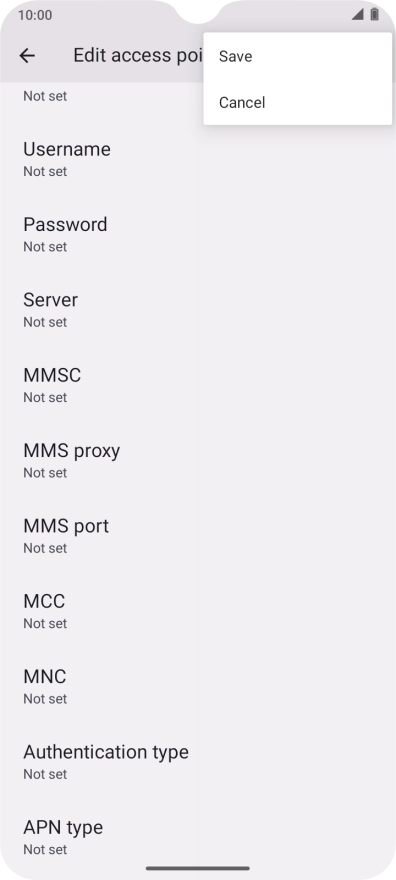

Press Save.
13. Return to the home screen

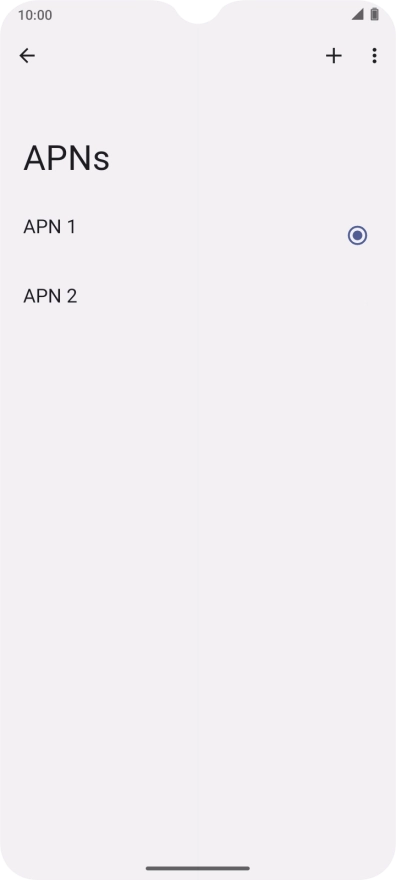

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
1. Find "Access point names"
2. Create new data connection
3. Enter a name for the connection
4. Enter APN
5. Enter picture messaging server
6. Enter IP address
7. Enter port number
8. Enter country code
9. Enter network code
10. Select authentication type
11. Enter APN type
12. Save data connection
13. Return to the home screen
