Set up your phone for picture messaging - Nokia Lumia 625

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 16

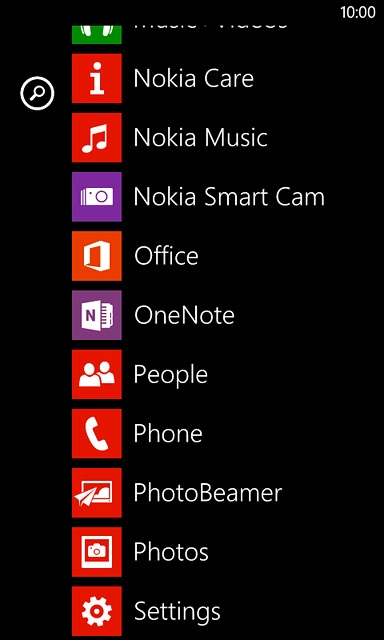

Find "access point"

Slide your finger left on the display.
Press Settings.

Please note that your phone is set up for picture messaging and internet at the same time.
Step 2 of 16

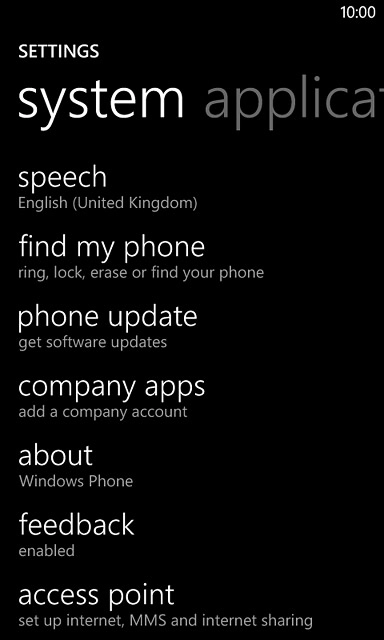

Find "access point"

Press access point.

Please note that your phone is set up for picture messaging and internet at the same time.
Step 3 of 16

Create new data connection

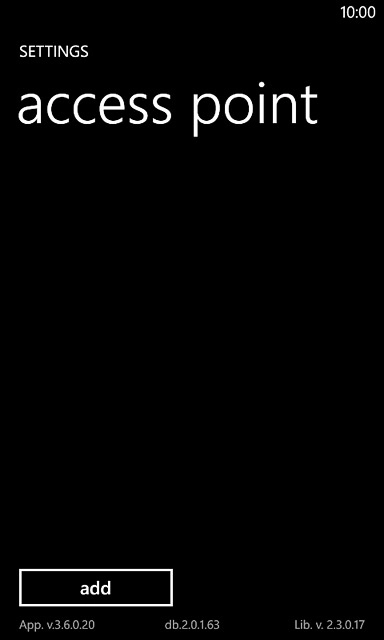

Press add.

Step 4 of 16

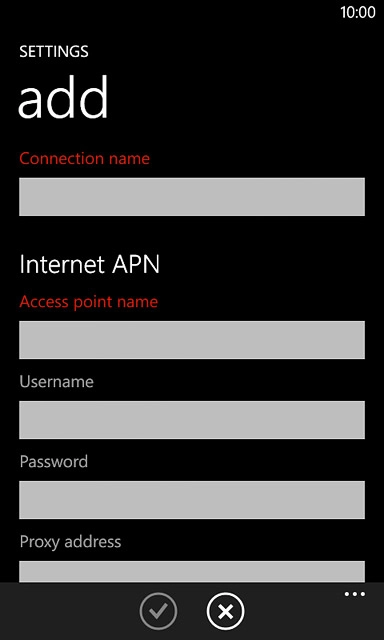

Enter name

Press the field below "Connection name" and key in Vodafone MMS + Internet

Step 5 of 16

Enter APN for internet

Press the field below "Access point name" and key in live.vodafone.com

Step 6 of 16

Select authentication type

Press the field below "Authentication type".

Step 7 of 16

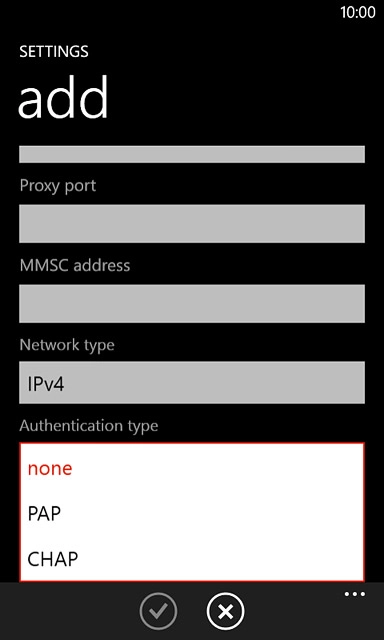

Select authentication type

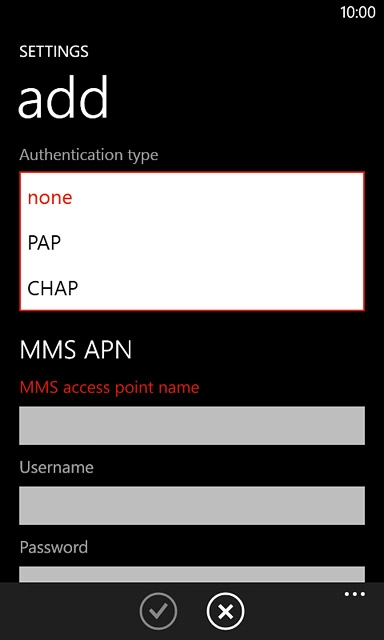

Press PAP.

Step 8 of 16

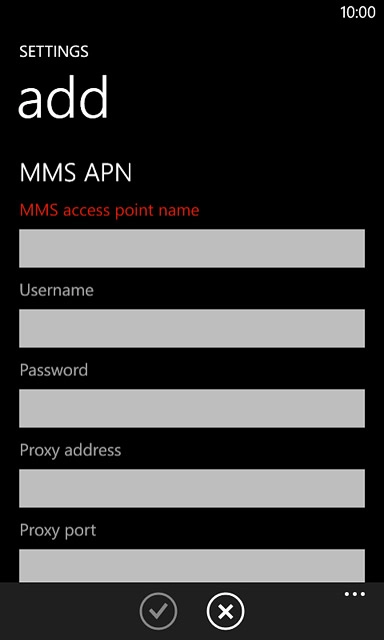

Enter APN for picture messaging

Press the field below "MMS access point name" and key in live.vodafone.com

Step 9 of 16

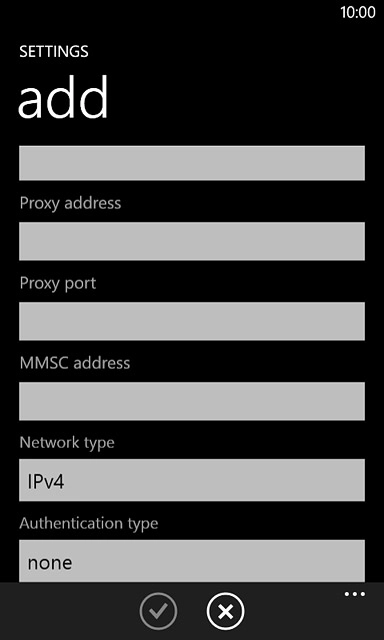

Enter IP address for picture messaging

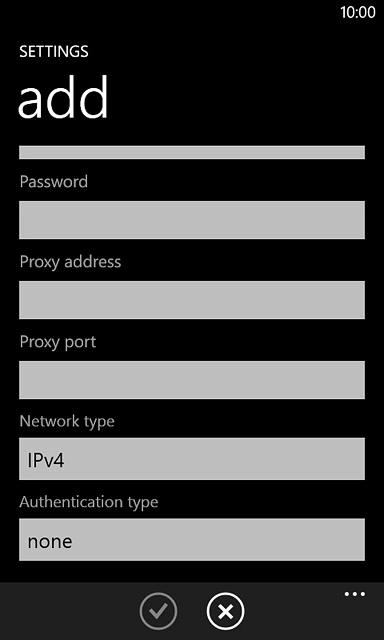

Press the field below "Proxy address" and key in 10.202.2.60

Step 10 of 16

Enter port for picture messaging

Press the field below "Proxy port" and key in 8080

Step 11 of 16

Enter picture messaging server

Press the field below "MMSC address" and key in http://pxt.vodafone.net.au/pxtsend

Step 12 of 16

Select authentication type

Press the field below "Authentication type".

Step 13 of 16

Select authentication type

Press PAP.

Step 14 of 16

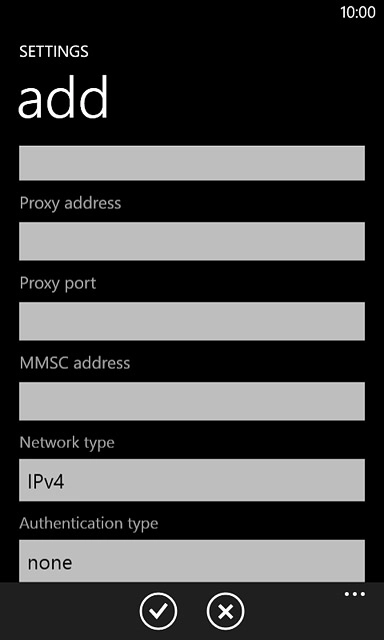

Save and activate data connection

Press the confirm icon.

Step 15 of 16

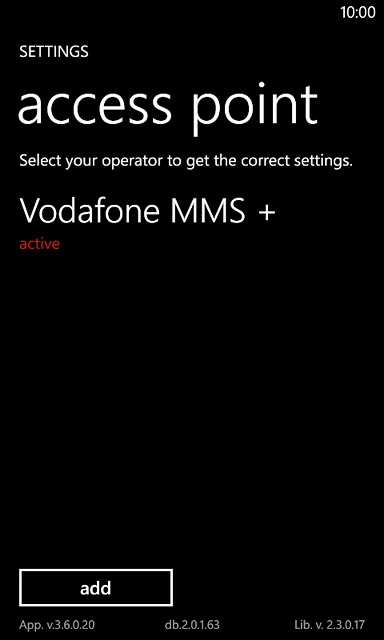

Save and activate data connection

Press the required data connection.

Step 16 of 16

Return to the home screen

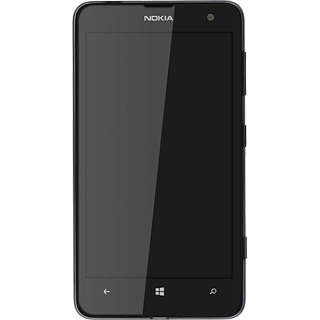

Press the Home key to return to the home screen.

Find "access point"

Slide your finger left on the display.
Press Settings.
Please note that your phone is set up for picture messaging and internet at the same time.
Press access point.
Please note that your phone is set up for picture messaging and internet at the same time.

Create new data connection

Press add.

Enter name

Press the field below "Connection name" and key in Vodafone MMS + Internet

Enter APN for internet

Press the field below "Access point name" and key in live.vodafone.com

Select authentication type

Press the field below "Authentication type".
Press PAP.

Enter APN for picture messaging

Press the field below "MMS access point name" and key in live.vodafone.com

Enter IP address for picture messaging

Press the field below "Proxy address" and key in 10.202.2.60

Enter port for picture messaging

Press the field below "Proxy port" and key in 8080

Enter picture messaging server

Press the field below "MMSC address" and key in http://pxt.vodafone.net.au/pxtsend

Select authentication type

Press the field below "Authentication type".
Press PAP.

Save and activate data connection

Press the confirm icon.
Press the required data connection.

Return to the home screen

Press the Home key to return to the home screen.
