Guide for the Nokia Lumia 820 - Set up your phone for picture messaging

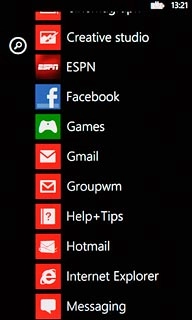

Slide your finger left on the display.Press Messaging.

Step 1 of 11

Find "settings"

Slide your finger left on the display.
Press Messaging.

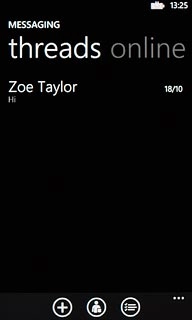

Press the dots in the bottom right corner of the display.

Step 2 of 11

Find "settings"

Press the dots in the bottom right corner of the display.

Step 3 of 11

Find "settings"

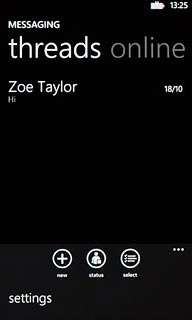

Press settings.

Step 4 of 11

Create new data connection

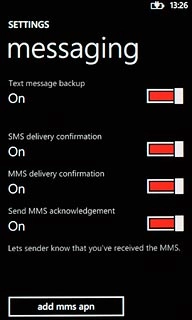

Press add mms apn.

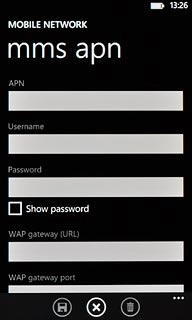

Press the field below APN and key in live.vodafone.com

Step 5 of 11

Enter APN

Press the field below APN and key in live.vodafone.com

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.

Press the field below WAP gateway (URL) and key in 10.202.2.60

Step 6 of 11

Enter IP address

Press the field below WAP gateway (URL) and key in 10.202.2.60

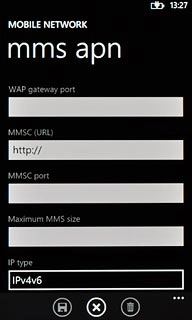

Press the field below WAP gateway port and key in 8080

Step 7 of 11

Enter port

Press the field below WAP gateway port and key in 8080

Press the field below MMSC (URL) and key in http://pxt.vodafone.net.au/pxtsend

Step 8 of 11

Enter picture messaging server

Press the field below MMSC (URL) and key in http://pxt.vodafone.net.au/pxtsend

Step 9 of 11

Save data connection

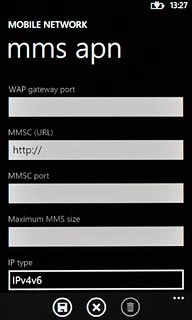

Press the save icon.

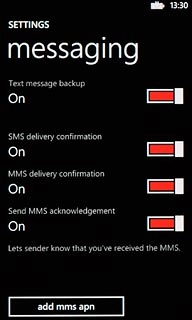

Press the indicator next to MMS delivery confirmation.Depending on the current setting, the function is turned on or off.

Step 10 of 11

Turn request for delivery reports on or off

Press the indicator next to MMS delivery confirmation.
Depending on the current setting, the function is turned on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

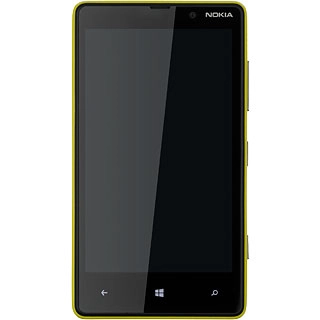

Press the Home key to return to standby mode.

Step 11 of 11

Exit

Press the Home key to return to standby mode.

Find "settings"

Slide your finger left on the display.
Press Messaging.

Press the dots in the bottom right corner of the display.

Press settings.

Create new data connection

Press add mms apn.

Enter APN

Press the field below APN and key in live.vodafone.com

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.

Enter IP address

Press the field below WAP gateway (URL) and key in 10.202.2.60

Enter port

Press the field below WAP gateway port and key in 8080

Enter picture messaging server

Press the field below MMSC (URL) and key in http://pxt.vodafone.net.au/pxtsend

Save data connection

Press the save icon.

Turn request for delivery reports on or off

Press the indicator next to MMS delivery confirmation.
Depending on the current setting, the function is turned on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Exit

Press the Home key to return to standby mode.
