Set up your phone for picture messaging - Nokia N700

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 41

Find "Destinations"

Press the Menu key.

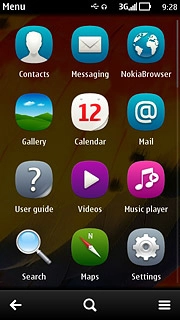

Step 2 of 41

Find "Destinations"

Press Settings.

Step 3 of 41

Find "Destinations"

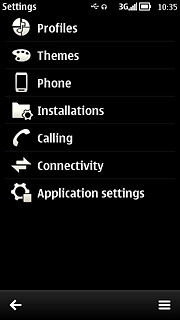

Press Connectivity.

Step 4 of 41

Find "Destinations"

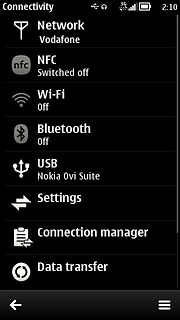

Press Settings.

Step 5 of 41

Find "Destinations"

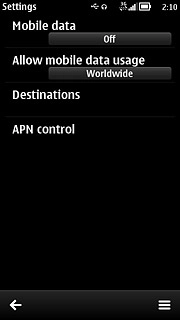

Press Destinations.

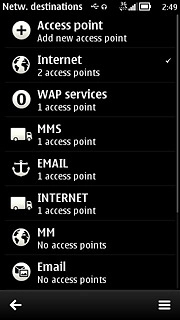

Step 6 of 41

Create new data connection group

Press the menu icon.

Step 7 of 41

Create new data connection group

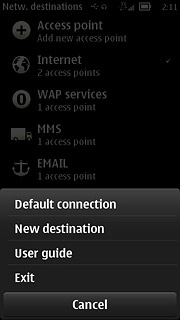

Press New destination.
Key in MMS

Step 8 of 41

Create new data connection group

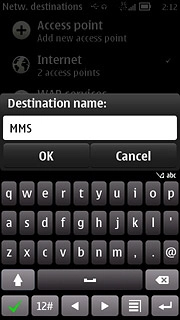

Press OK.

Step 9 of 41

Create new data connection group

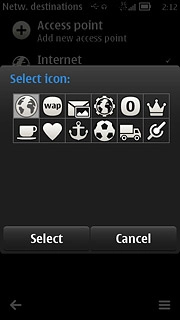

Press the required icon.

Step 10 of 41

Create new data connection

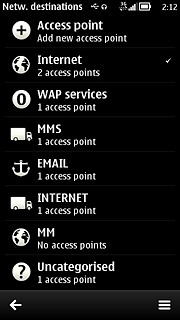

Press MMS.

Step 11 of 41

Create new data connection

Press the menu icon.

Step 12 of 41

Create new data connection

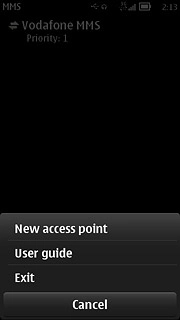

Press New access point.

Step 13 of 41

Create new data connection

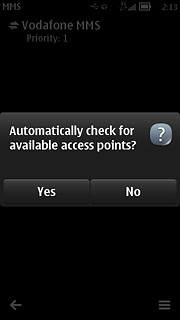

Press No.

Step 14 of 41

Create new data connection

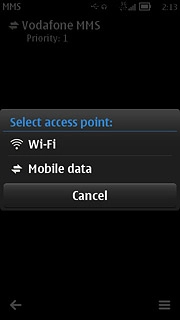

Press Mobile data.

Step 15 of 41

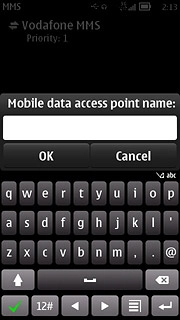

Enter APN

Key in live.vodafone.com
Press OK.

Step 16 of 41

Edit data connection settings

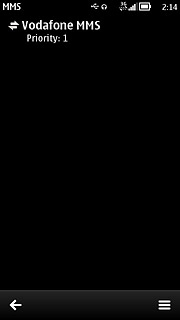

Press the data connection you've just created.

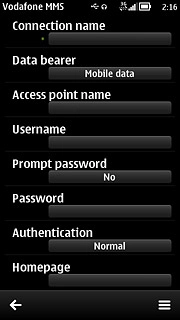

Step 17 of 41

Enter data connection name

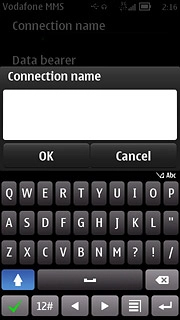

Press Connection name.
Key in Vodafone MMS

Step 18 of 41

Enter data connection name

Press OK.

Step 19 of 41

Select authentication type

Press Authentication to select Normal.

Step 20 of 41

Enter picture messaging server

Press Homepage.

Step 21 of 41

Enter picture messaging server

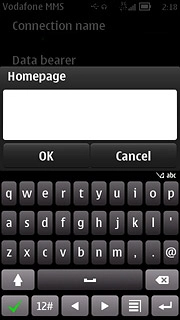

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 22 of 41

Enter IP address

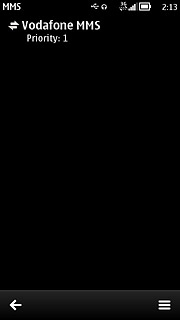

Press the menu icon.

Step 23 of 41

Enter IP address

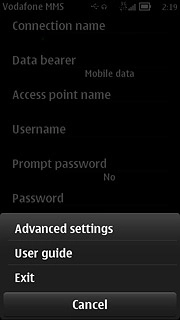

Press Advanced settings.

Step 24 of 41

Enter IP address

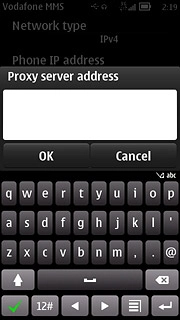

Press Proxy server address.
Key in 10.202.002.060

Step 25 of 41

Enter IP address

Press OK.

Step 26 of 41

Enter port number

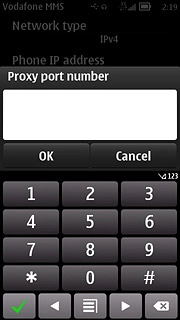

Press Proxy port number.
Key in 8080

Step 27 of 41

Enter port number

Press OK.

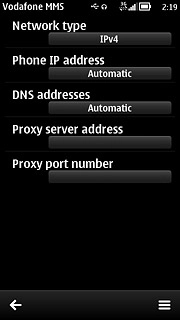

Step 28 of 41

Save data connection

Press the return icon twice to save the settings and return to the list of data connections.

Step 29 of 41

Save data connection

Press the Menu key to return to standby mode.

Step 30 of 41

Find "Multimedia message"

Press the Menu key.

Step 31 of 41

Find "Multimedia message"

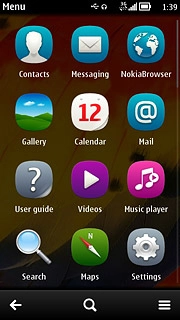

Press Messaging.

Step 32 of 41

Find "Multimedia message"

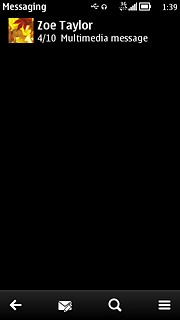

Press the menu icon.

Step 33 of 41

Find "Multimedia message"

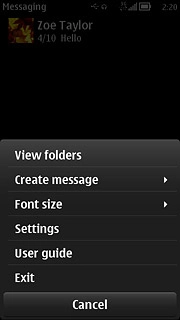

Press Settings.

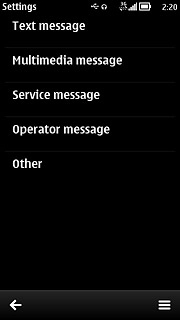

Step 34 of 41

Find "Multimedia message"

Press Multimedia message.

Step 35 of 41

Select data connection

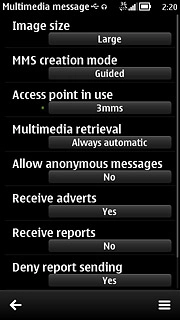

Press Access point in use.

Step 36 of 41

Select data connection

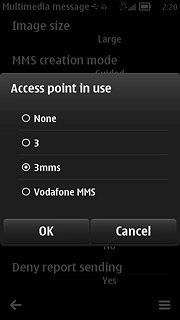

Press Vodafone MMS.

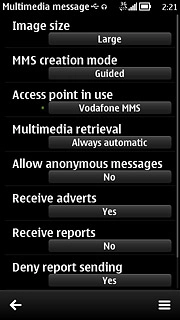

Step 37 of 41

Select picture message download

Press Multimedia retrieval.

If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home network, you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.

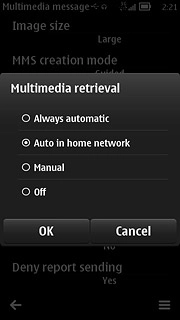

Step 38 of 41

Select picture message download

Press Auto in home network.

If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home network, you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.
Step 39 of 41

Turn request for delivery reports on or off

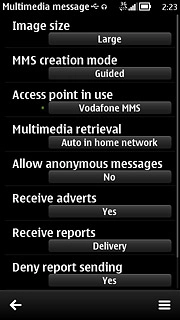

Press Receive reports.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 40 of 41

Turn request for delivery reports on or off

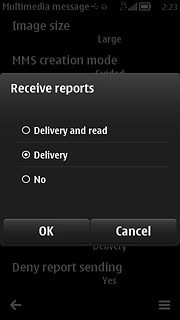

Press Delivery or No.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 41 of 41

Exit

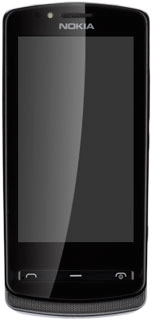

Press the Menu key to return to standby mode.

Find "Destinations"

Press the Menu key.
Press Settings.
Press Connectivity.
Press Settings.
Press Destinations.

Create new data connection group

Press the menu icon.
Press New destination.
Key in MMS
Press OK.
Press the required icon.

Create new data connection

Press MMS.
Press the menu icon.
Press New access point.
Press No.
Press Mobile data.

Enter APN

Key in live.vodafone.com
Press OK.

Edit data connection settings

Press the data connection you've just created.

Enter data connection name

Press Connection name.
Key in Vodafone MMS
Press OK.

Select authentication type

Press Authentication to select Normal.

Enter picture messaging server

Press Homepage.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press the menu icon.
Press Advanced settings.
Press Proxy server address.
Key in 10.202.002.060
Press OK.

Enter port number

Press Proxy port number.
Key in 8080
Press OK.

Save data connection

Press the return icon twice to save the settings and return to the list of data connections.
Press the Menu key to return to standby mode.

Find "Multimedia message"

Press the Menu key.
Press Messaging.
Press the menu icon.
Press Settings.
Press Multimedia message.

Select data connection

Press Access point in use.
Press Vodafone MMS.

Select picture message download

Press Multimedia retrieval.
If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home network, you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.
Press Auto in home network.
If you select Always automatic, you'll receive all picture messages both when in your home network and when roaming.
If you select Auto in home network, you'll always be notified when roaming before you receive picture messages.
If you select Manual, you'll be notified before you receive picture messages when roaming and when in your home network.
If you select Off, you won't receive any picture messages.

Turn request for delivery reports on or off

Press Receive reports.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Press Delivery or No.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Exit

Press the Menu key to return to standby mode.
