1. Find "Access point name"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point name"
Press the settings icon.
1. Find "Access point name"
Press SIM card & mobile data.
1. Find "Access point name"

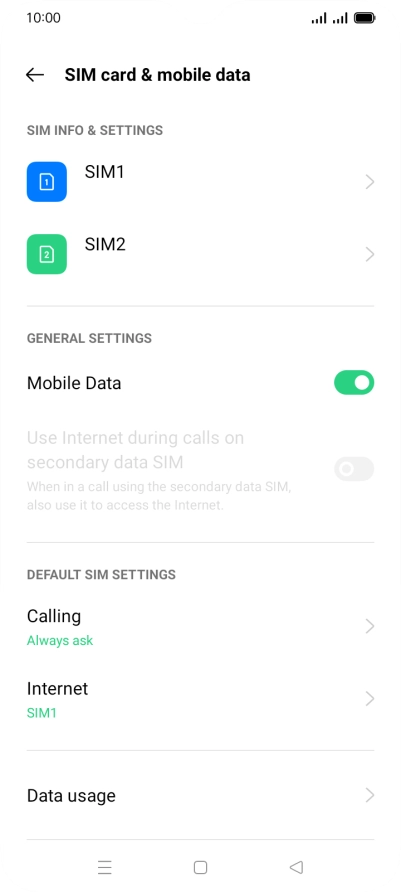

Press the name of the SIM.
1. Find "Access point name"

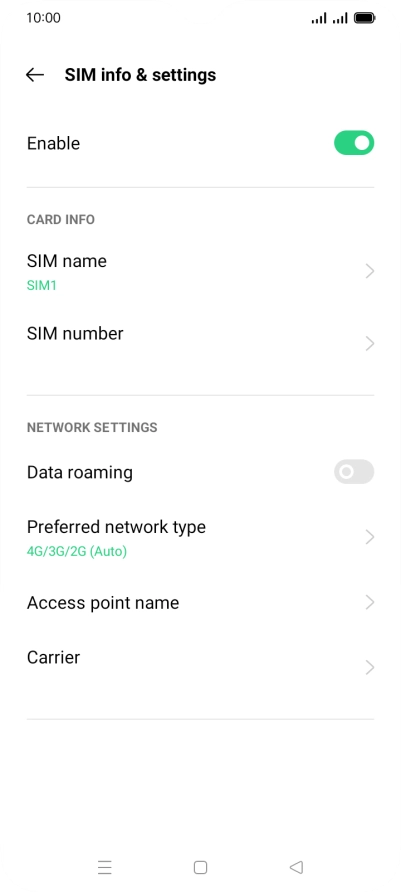

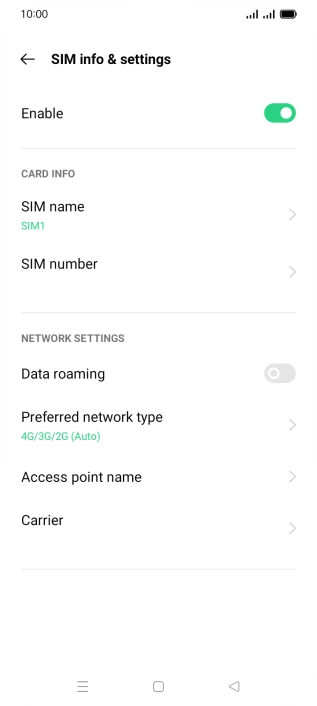

Press Access point name.
2. Create new data connection

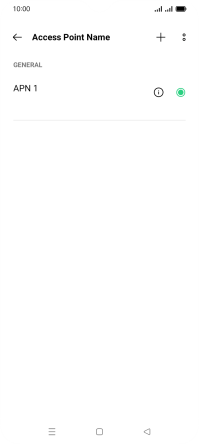

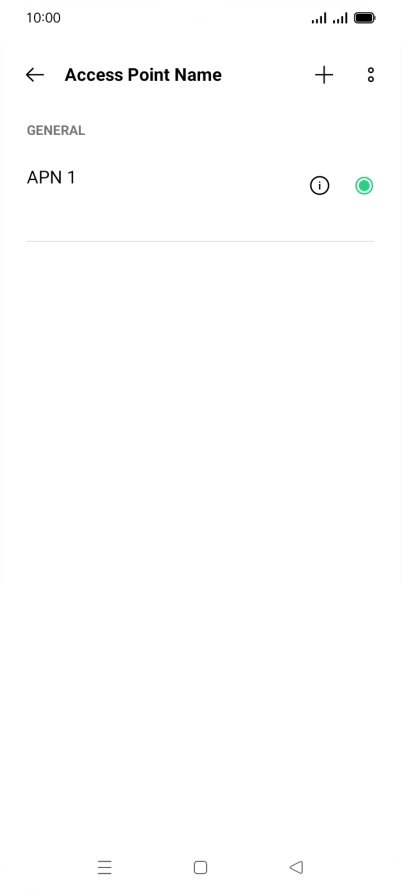

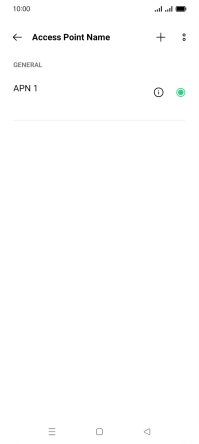

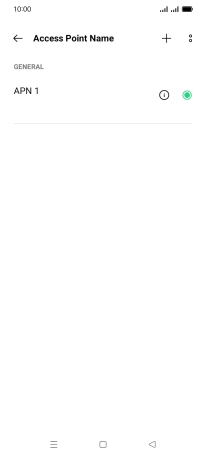

Press the new data connection icon.
2. Create new data connection

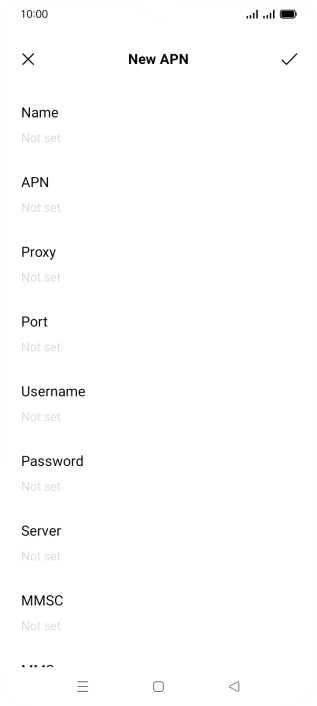

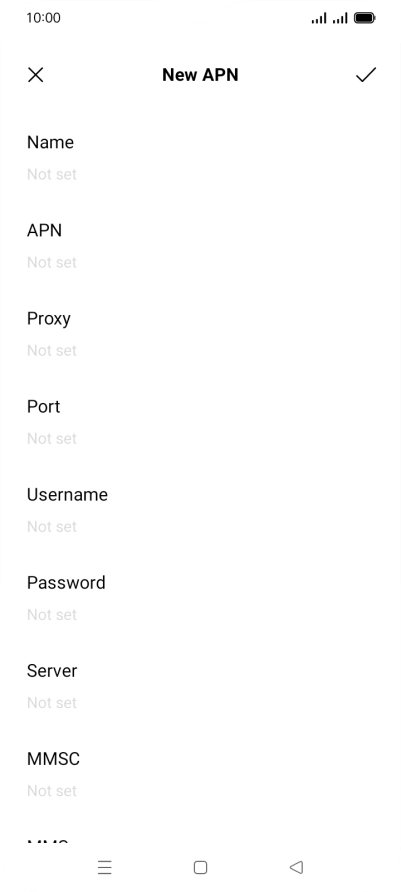

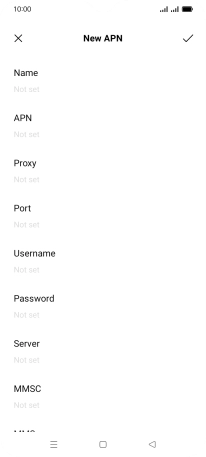

Press the field below "Name" and key in Vodafone MMS.
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.
4. Enter MMSC
Press the field below "MMSC" and key in http://pxt.vodafone.net.au/pxtsend.
5. Enter IP address

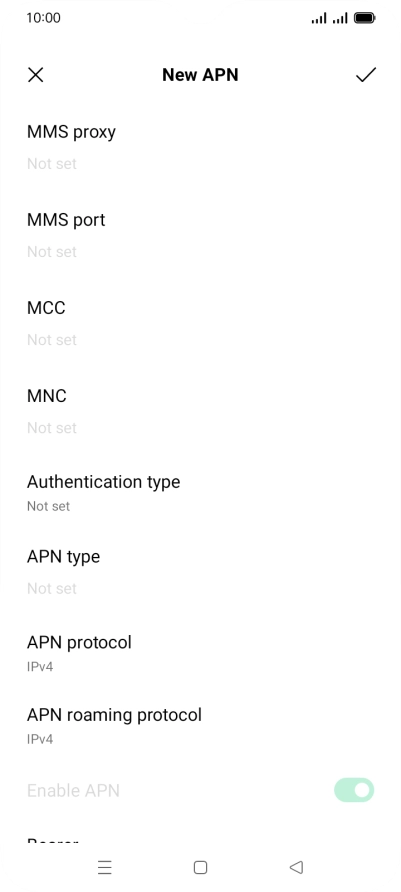

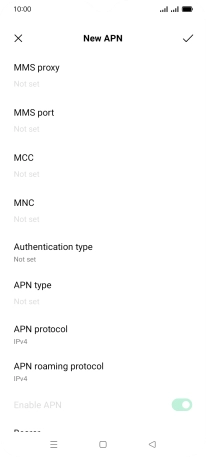

Press the field below "MMS proxy" and key in 10.202.002.060.
6. Enter port number
Press the field below "MMS port" and key in 8080.
7. Enter country code
Press the field below "MCC" and key in 505.
8. Enter network code
Press the field below "MNC" and key in 03.
9. Select authentication type

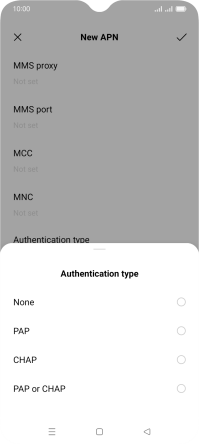

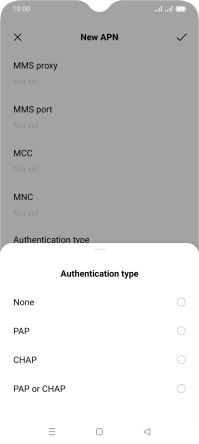

Press Authentication type.
9. Select authentication type

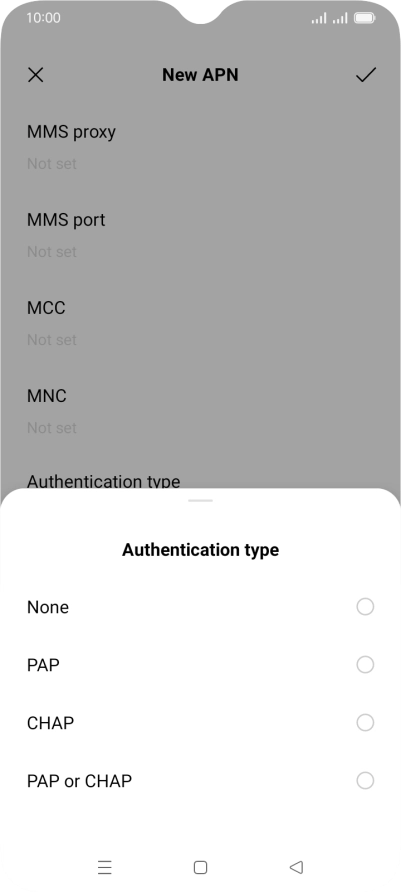

Press PAP.
10. Enter APN type
Press the field below "APN type" and key in mms.
11. Save data connection
Press the save icon.
12. Return to the home screen

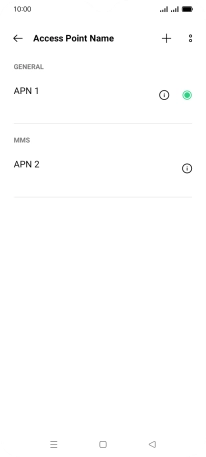

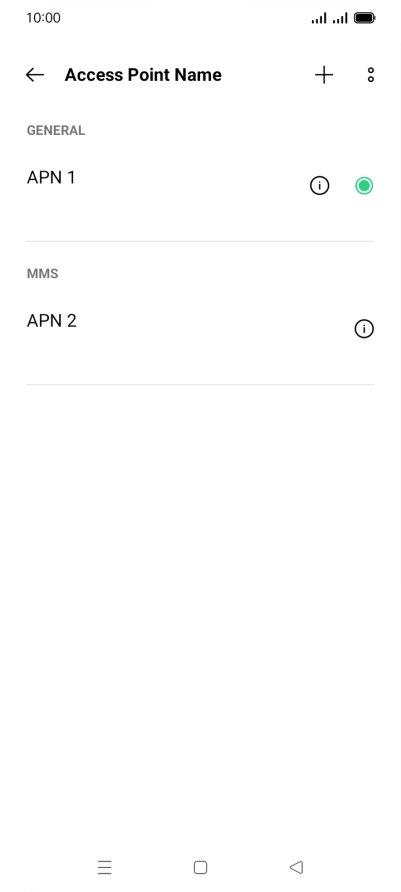

Press the Home key to return to the home screen.
