1. Find "Access Point Name"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access Point Name"
Press the settings icon.

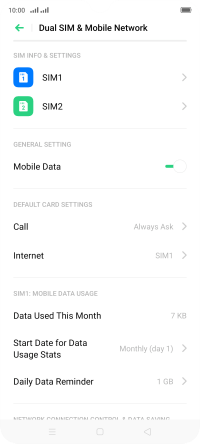

1. Find "Access Point Name"
Press Dual SIM & Mobile Network.
1. Find "Access Point Name"
Press the name of the SIM.

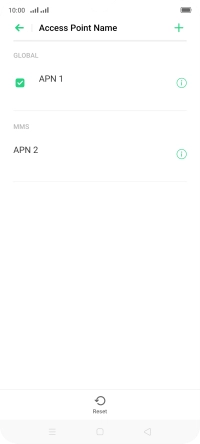

1. Find "Access Point Name"
Press Access Point Name.

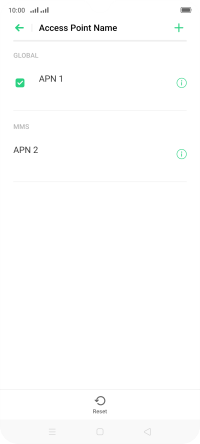

2. Create new data connection

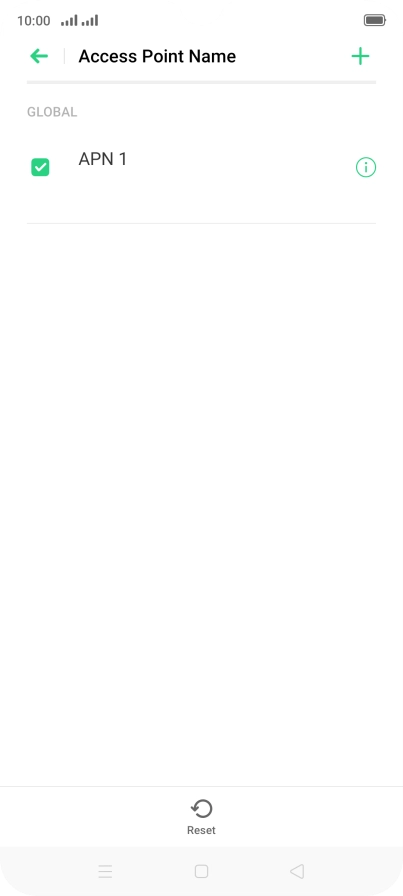

Press the add icon.
2. Create new data connection

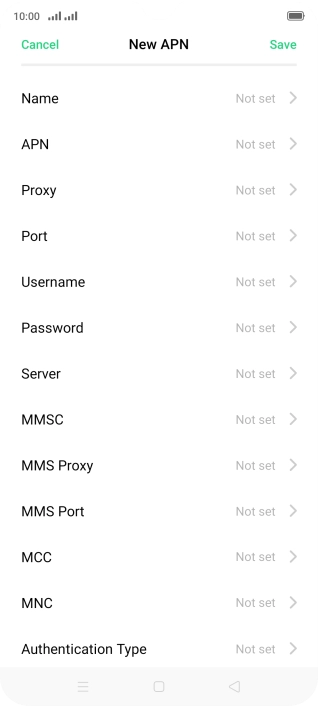

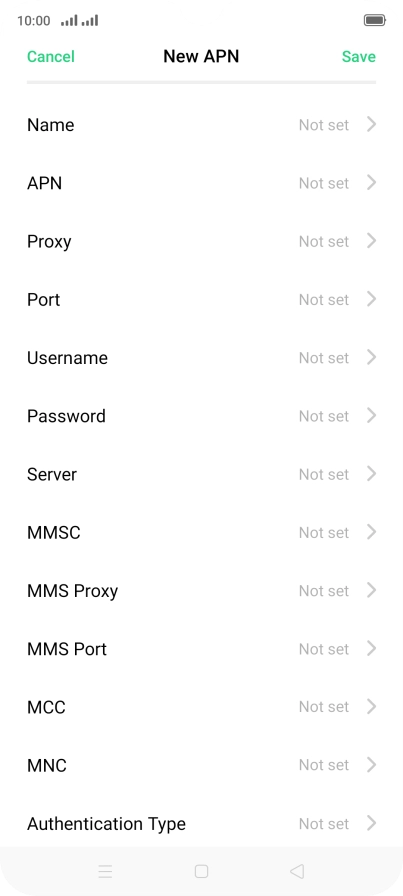

Press Name.
2. Create new data connection
Key in Vodafone MMS and press Save.
3. Enter APN
Press APN.

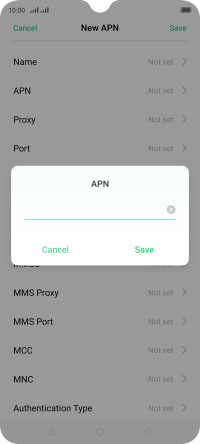

3. Enter APN

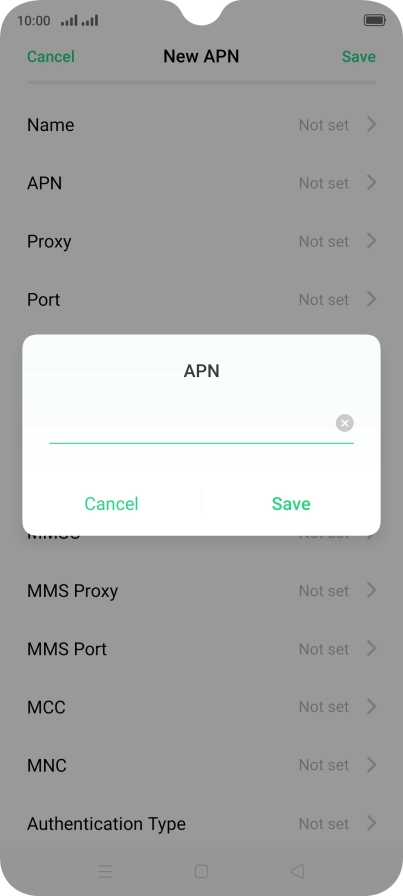

Key in live.vodafone.com and press Save.
4. Enter MMSC
Press MMSC.
4. Enter MMSC
Key in http://pxt.vodafone.net.au/pxtsend and press Save.
5. Enter IP address
Press MMS Proxy.

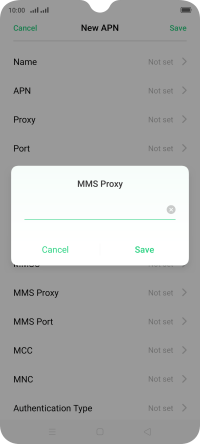

5. Enter IP address
Key in 10.202.002.060 and press Save.
6. Enter port number
Press MMS Port.

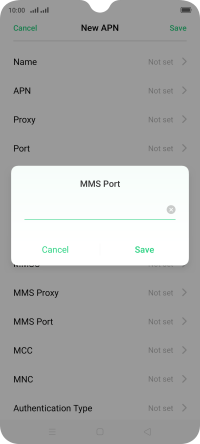

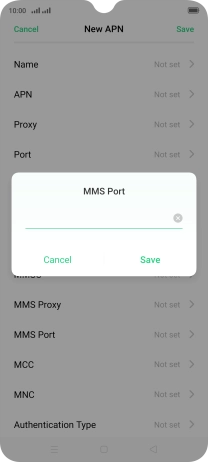

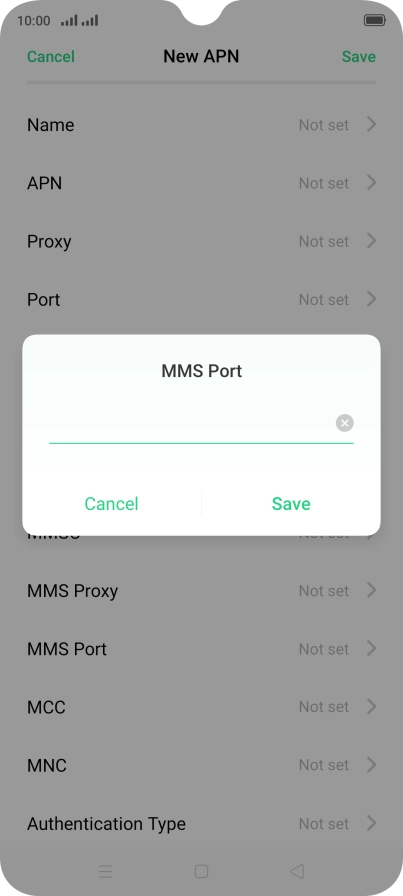

6. Enter port number
Key in 8080 and press Save.
7. Enter country code
Press MCC.

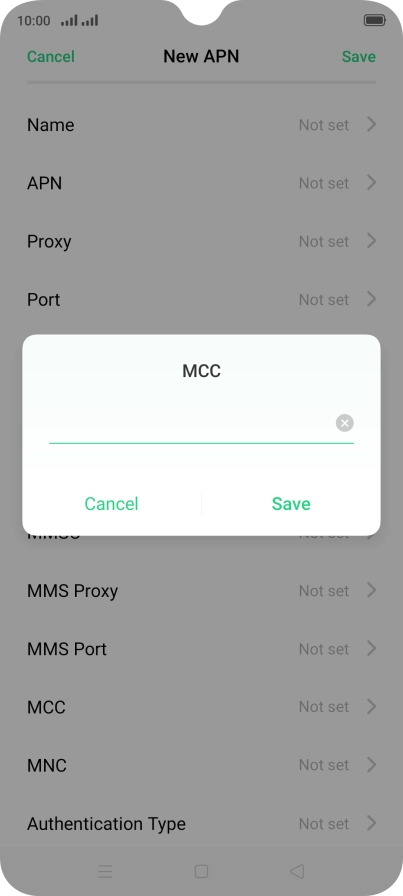

7. Enter country code
Key in 505 and press Save.
8. Enter network code
Press MNC.

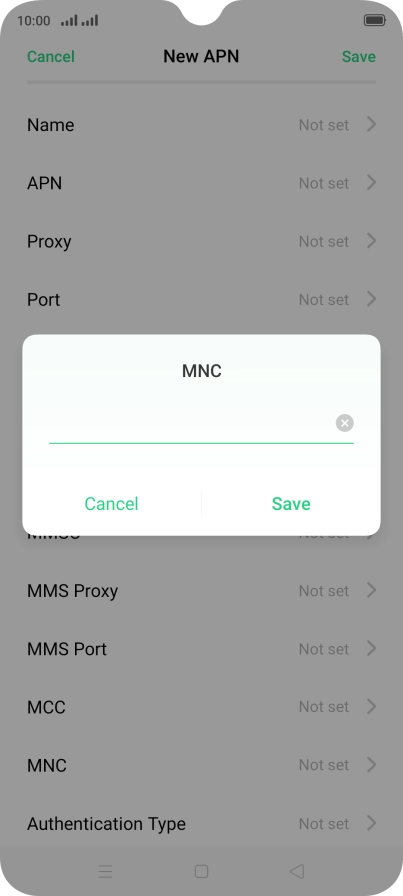

8. Enter network code
Key in 03 and press Save.
9. Select authentication type
Press Authentication Type.

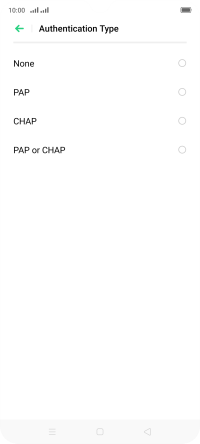

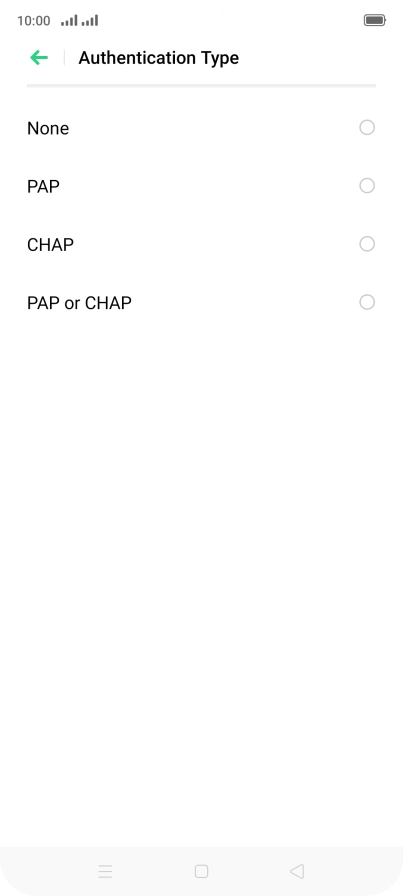

9. Select authentication type
Press PAP.

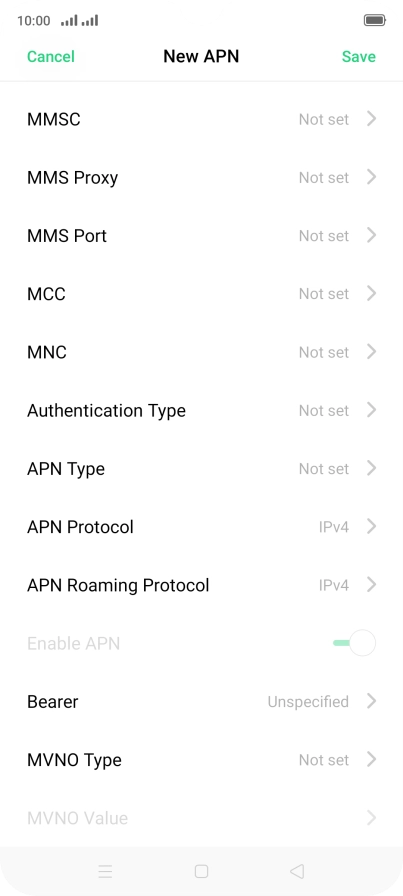

10. Enter APN type
Press APN Type.

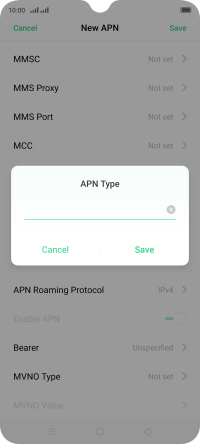

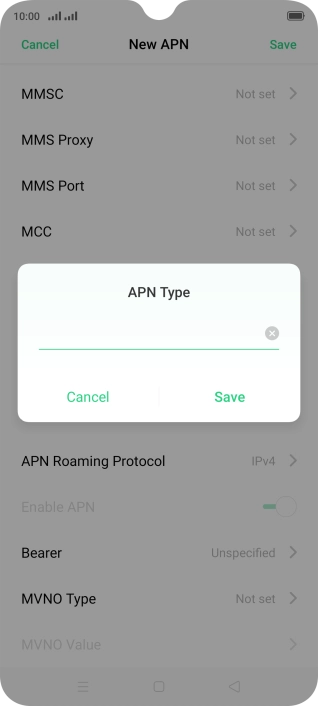

10. Enter APN type

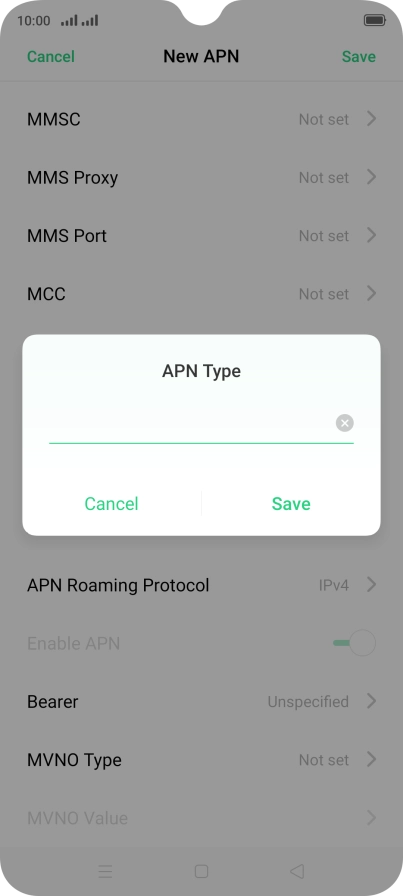

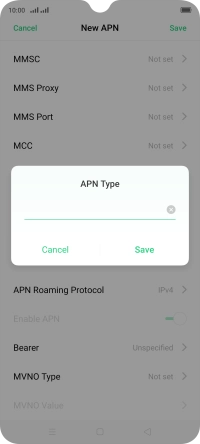

Key in mms and press Save.
11. Save data connection
Press Save.

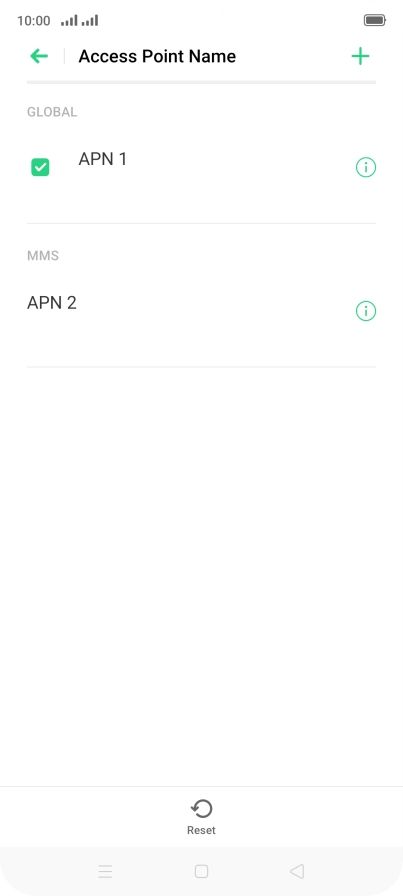

12. Return to the home screen
Press the Home key to return to the home screen.
1. Find "Access Point Name"
2. Create new data connection
3. Enter APN
4. Enter MMSC
5. Enter IP address
6. Enter port number
7. Enter country code
8. Enter network code
9. Select authentication type
10. Enter APN type
11. Save data connection
12. Return to the home screen
