1. Find "Access Point Name"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-83de70ec-cef6-4390-93fc-d823f873ba05.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3e2aa675-b615-49dd-ba0b-4a84d03834f7.png?width=202&height=448)
Press SIM Card & Mobile Data.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8b505bdb-7cb3-4b7f-bcc6-b8127aad0acc.png?width=202&height=448)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a67a3257-7665-40b4-8ead-7b3d26b470e5.png?width=202&height=448)
Press Access Point Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-be7fea3e-5c33-483a-8251-8729c286c271.png?width=202&height=448)
2. Create new data connection

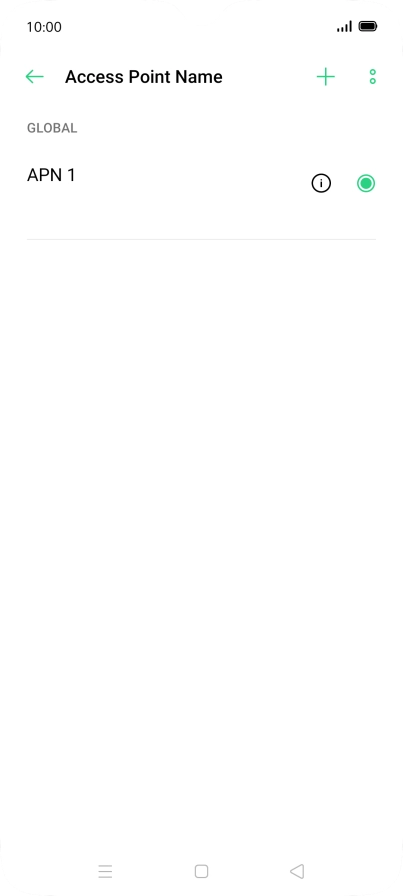

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5a634b86-9f8c-4ce3-91b5-39f788eb5740.png?width=202&height=448)

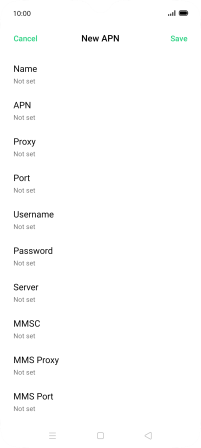

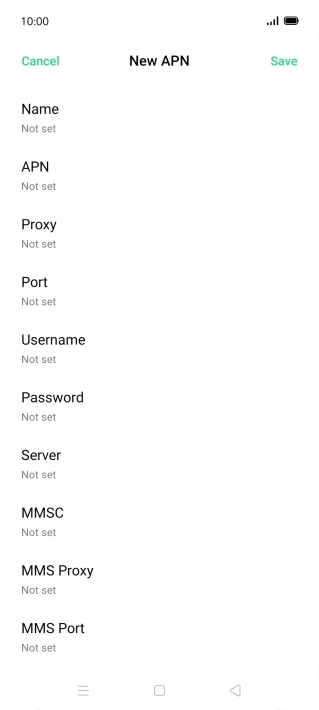

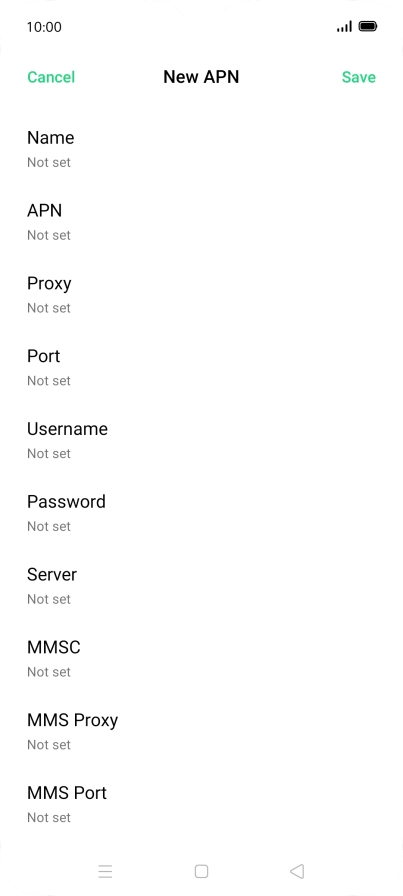

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfc2f8be-f6eb-4052-b294-c9aad4e6cee4.png?width=202&height=448)

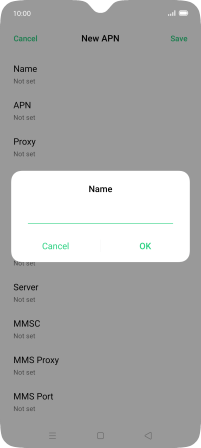

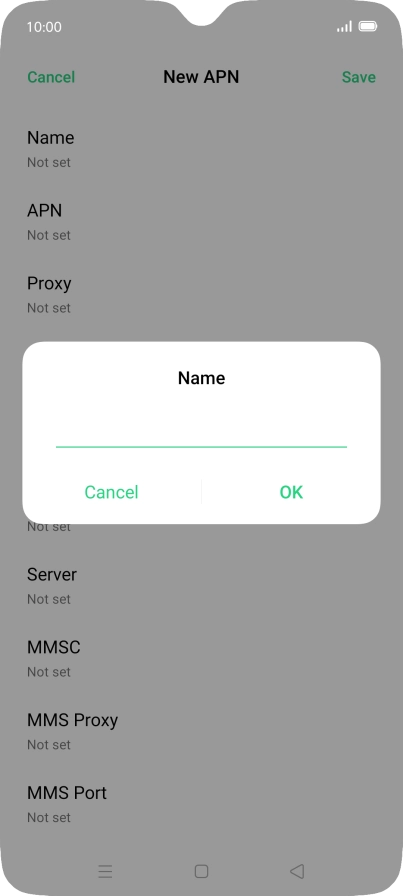

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f8b8a31f-ff5a-454d-a9cc-2139fed4200b.png?width=202&height=448)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfc2f8be-f6eb-4052-b294-c9aad4e6cee4.png?width=202&height=448)

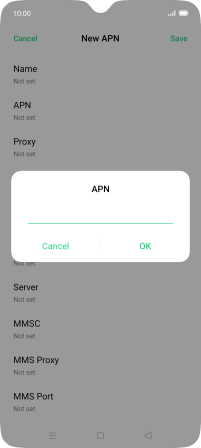

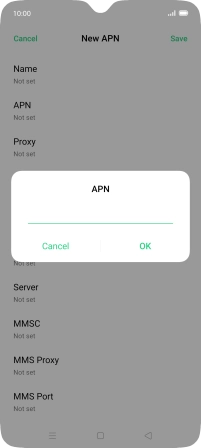

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cc40df8c-55f8-42d0-8088-6cff6b5fa8f2.png?width=202&height=448)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfc2f8be-f6eb-4052-b294-c9aad4e6cee4.png?width=202&height=448)

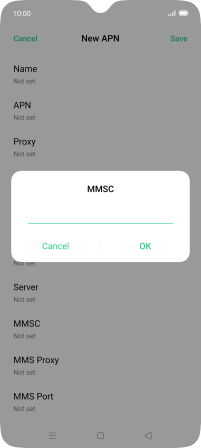

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a1eb222d-a4da-44e9-a622-8f29659c1302.png?width=202&height=448)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS Proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfc2f8be-f6eb-4052-b294-c9aad4e6cee4.png?width=202&height=448)

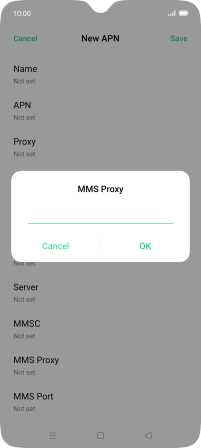

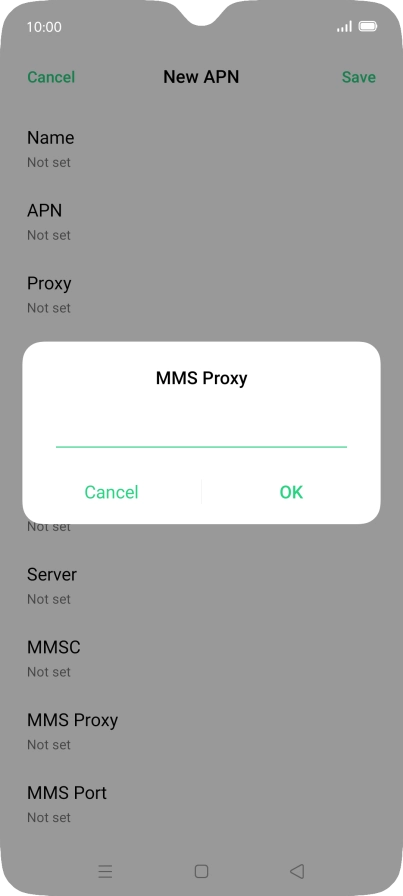

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6329cd38-5673-4404-b2bc-bc08491da8bf.png?width=202&height=448)
10.202.002.060
6. Enter port number
Press MMS Port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dfc2f8be-f6eb-4052-b294-c9aad4e6cee4.png?width=202&height=448)

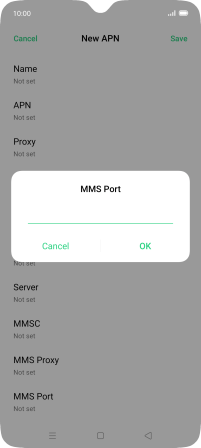

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3ec15486-aff3-4d82-a9d0-094e2aa22622.png?width=202&height=448)
8080
7. Enter country code

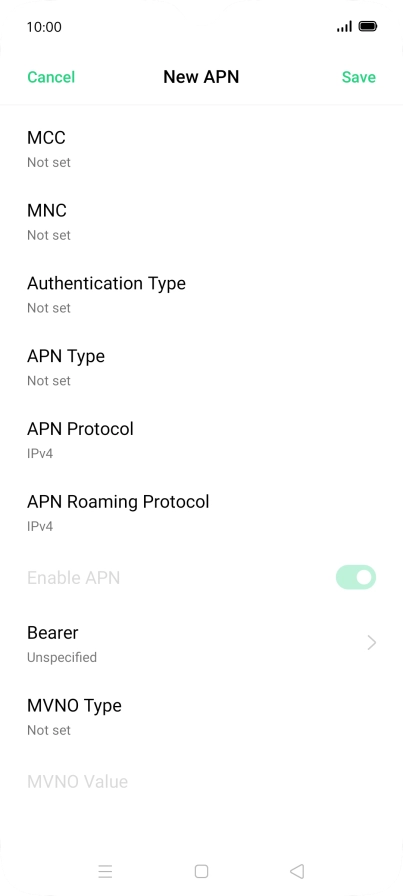

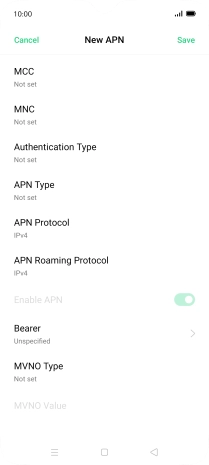

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb215104-a74c-4d3a-92f5-37596f94208b.png?width=202&height=448)

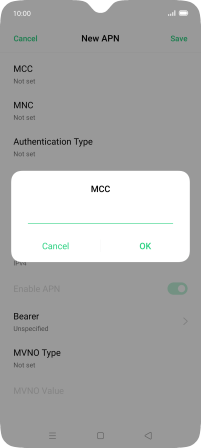

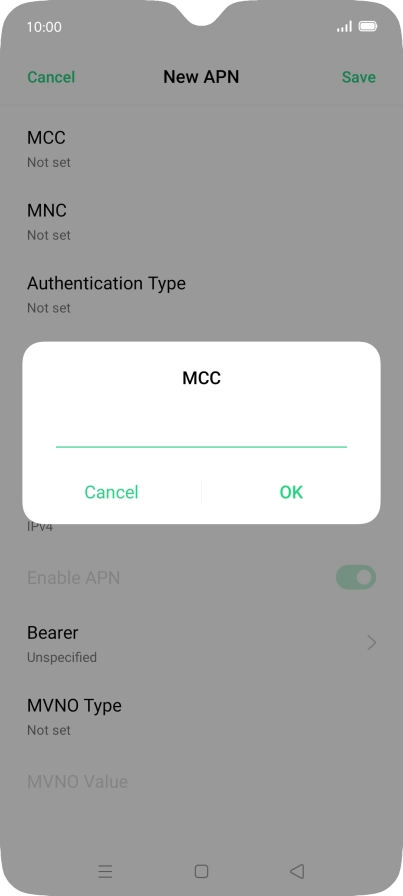

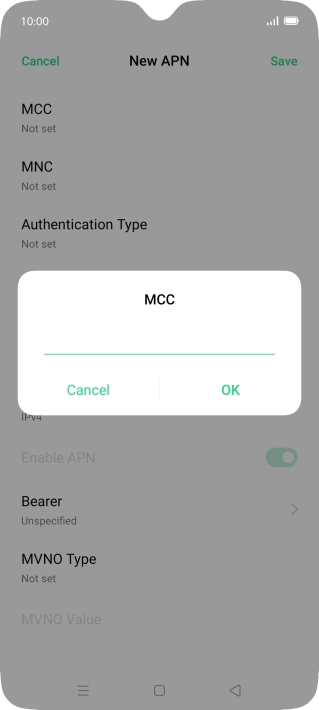

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-703516a3-b497-4993-b47b-f169aa103e00.png?width=202&height=448)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb215104-a74c-4d3a-92f5-37596f94208b.png?width=202&height=448)

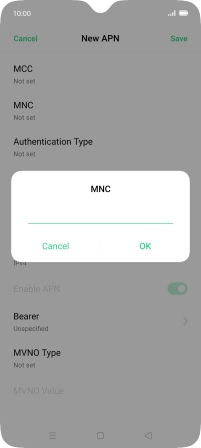

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-87fc0b4b-6842-41d2-abe7-f62fac655091.png?width=202&height=448)
03
9. Select authentication type

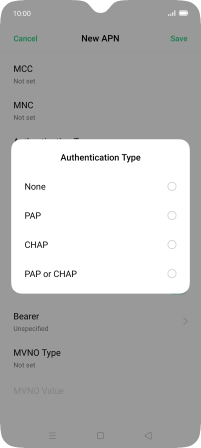

Press Authentication Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb215104-a74c-4d3a-92f5-37596f94208b.png?width=202&height=448)

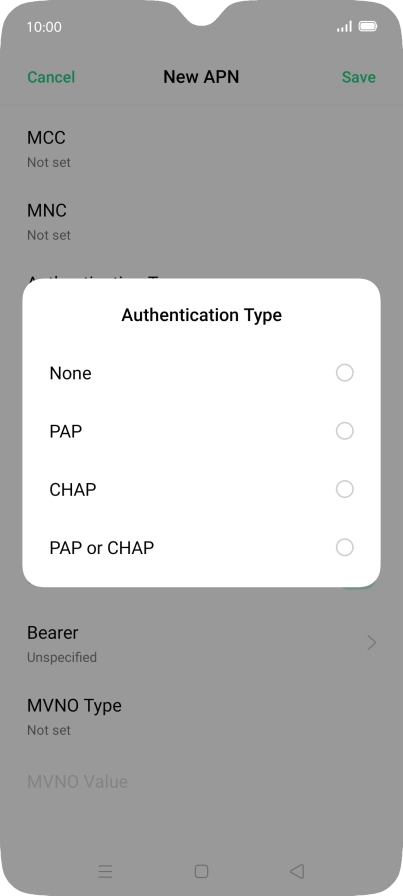

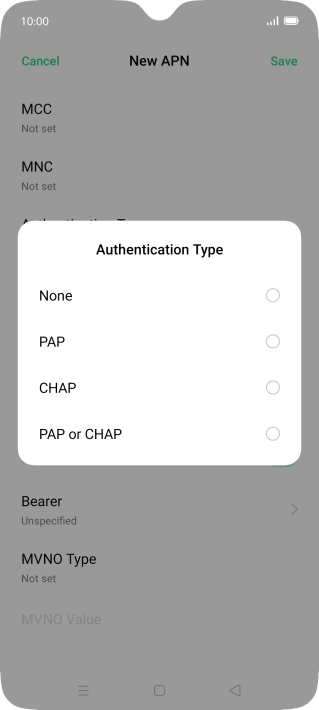

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2f7a3c8d-1417-4b7b-a486-5be0b50cb4c9.png?width=202&height=448)
10. Enter APN type
Press APN Type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb215104-a74c-4d3a-92f5-37596f94208b.png?width=202&height=448)

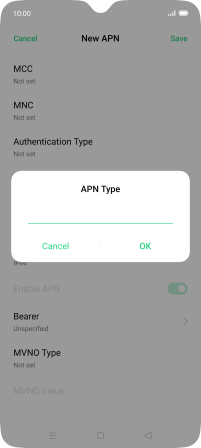

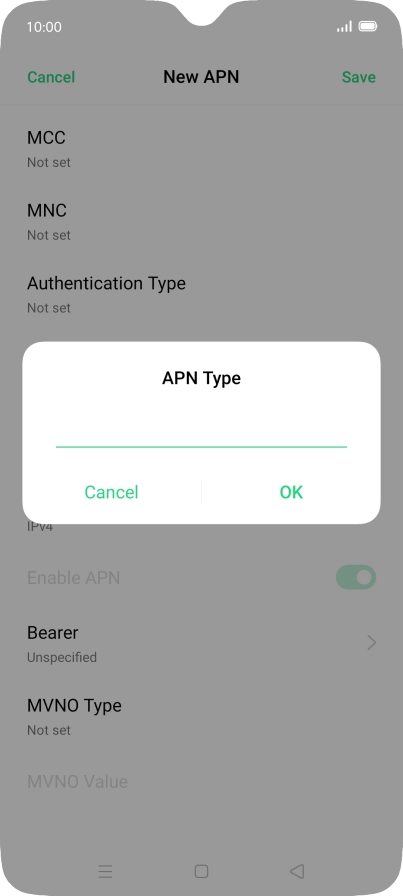

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bea9e78a-9b84-483f-868a-67f5301cf2bd.png?width=202&height=448)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb215104-a74c-4d3a-92f5-37596f94208b.png?width=202&height=448)
12. Return to the home screen

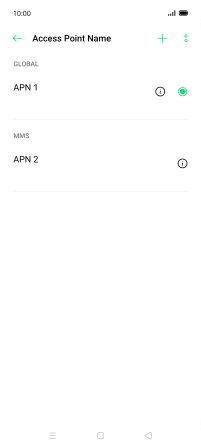

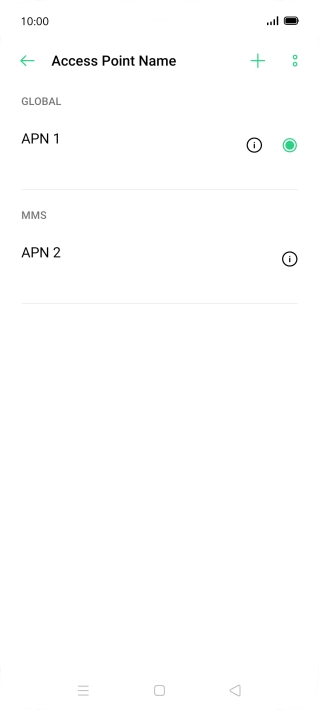

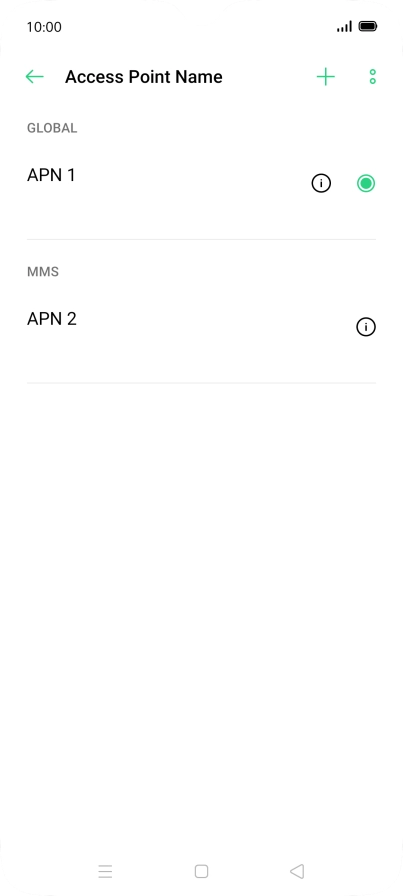

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2381fc7d-4f5d-45dd-aff5-3309b877742a.png?width=202&height=448)
