Set up your OPPO R11s Android 7.1 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Press Settings.
Step 1 of 20

1. Find "Access Point Name"

Press Settings.

Press Dual SIM & Mobile.
Step 2 of 20

1. Find "Access Point Name"

Press Dual SIM & Mobile.

Press the required SIM.
Step 3 of 20

1. Find "Access Point Name"

Press the required SIM.

Press Access Point Name.
Step 4 of 20

1. Find "Access Point Name"

Press Access Point Name.

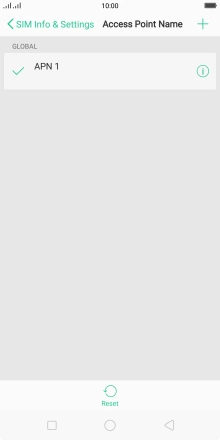

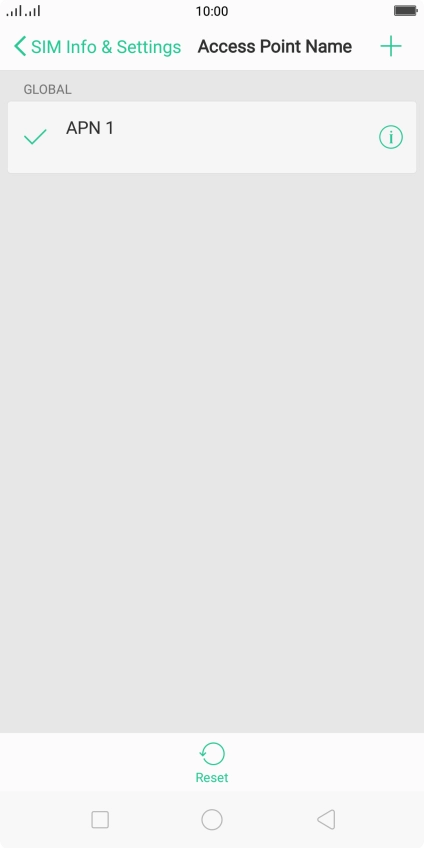

Press the new data connection icon.
Step 5 of 20

2. Create new data connection

Press the new data connection icon.

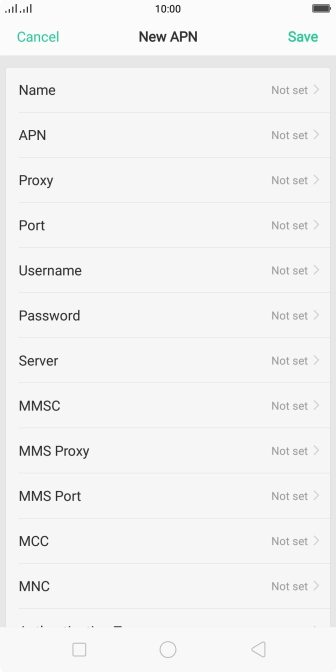

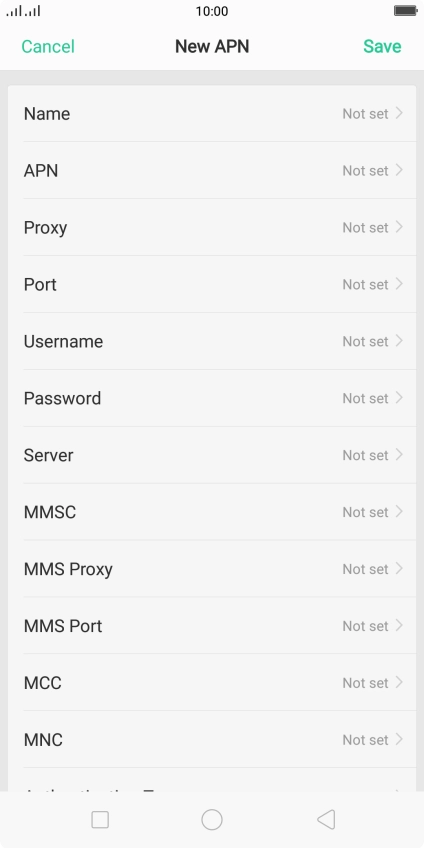

Press Name.
Step 6 of 20

3. Enter a name for the connection

Press Name.

Key in Vodafone Internet and press Save.
Vodafone Internet
Step 7 of 20

3. Enter a name for the connection

Key in Vodafone Internet and press Save.

Press APN.
Step 8 of 20

4. Enter APN

Press APN.

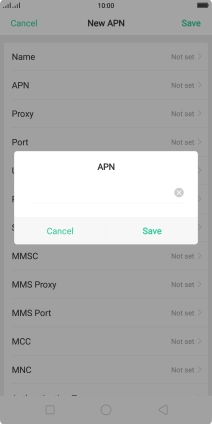

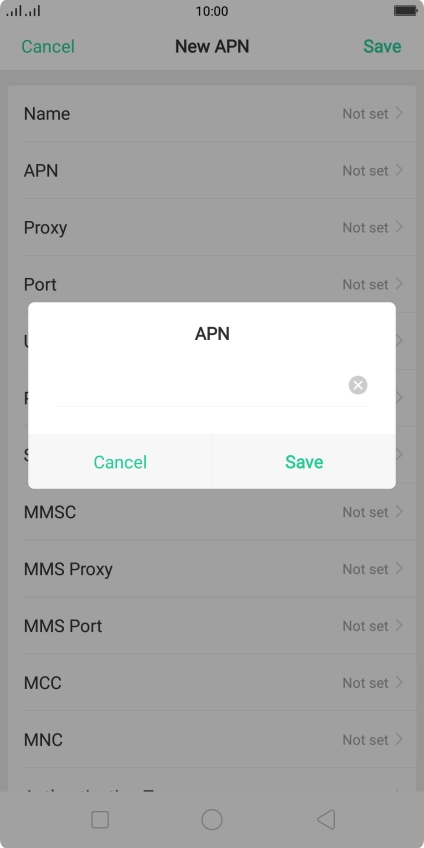

Key in live.vodafone.com and press Save.
live.vodafone.com
Step 9 of 20

4. Enter APN

Key in live.vodafone.com and press Save.

Press MCC.
Step 10 of 20

5. Enter country code

Press MCC.

Key in 505 and press Save.
505
Step 11 of 20

5. Enter country code

Key in 505 and press Save.

Press MNC.
Step 12 of 20

6. Enter network code

Press MNC.

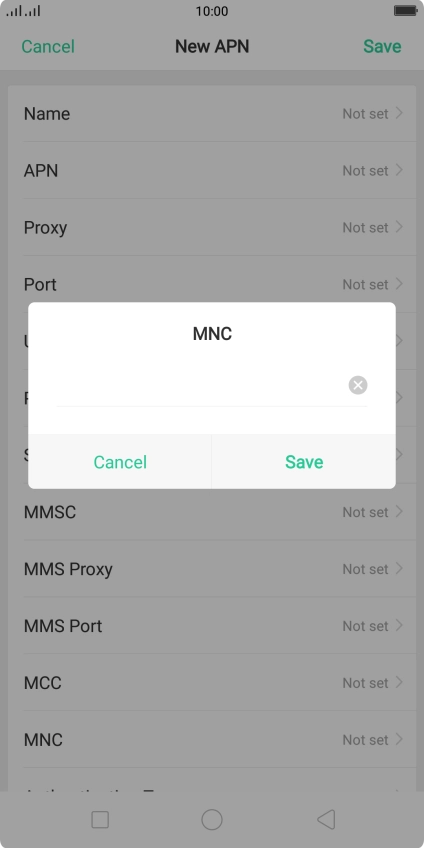

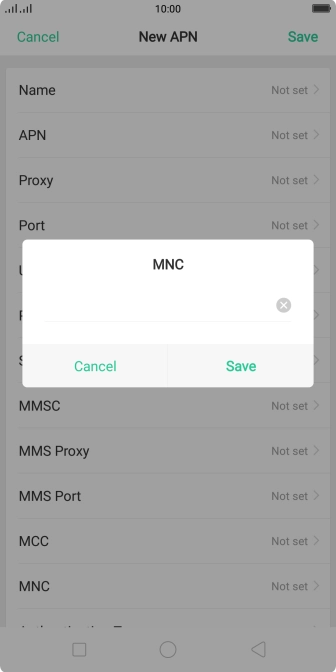

Key in 03 and press Save.
03
Step 13 of 20

6. Enter network code

Key in 03 and press Save.

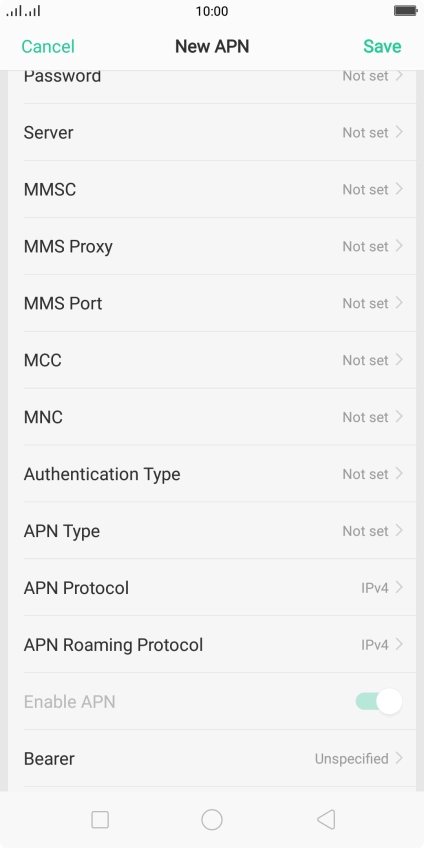

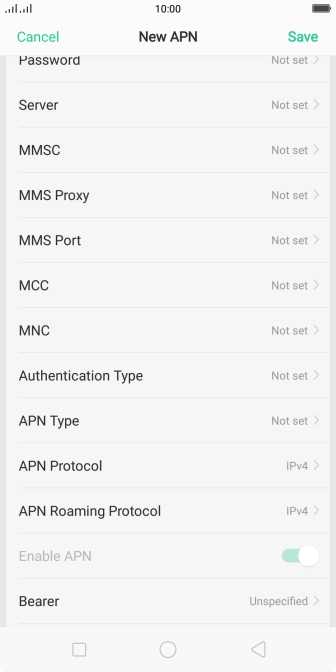

Press Authentication Type.
Step 14 of 20

7. Select authentication type

Press Authentication Type.

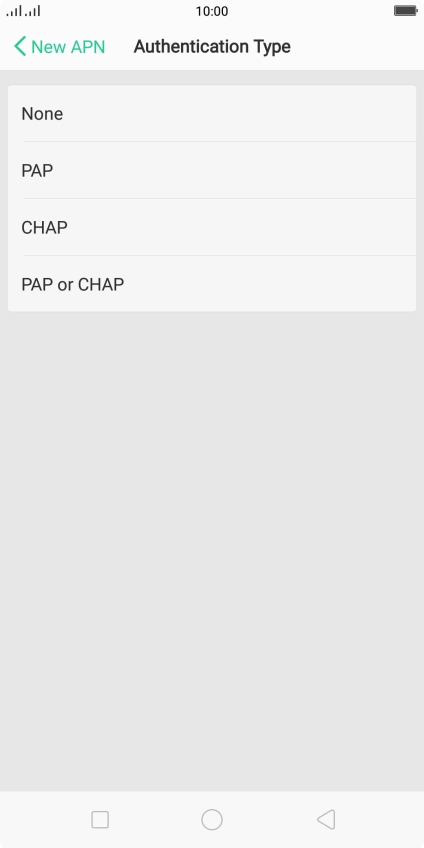

Press PAP.
Step 15 of 20

7. Select authentication type

Press PAP.

Press APN Type.
Step 16 of 20

8. Enter APN type

Press APN Type.

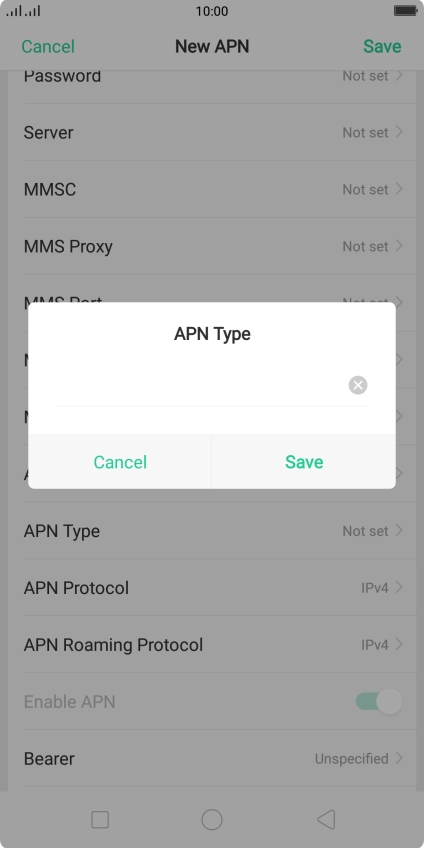

Key in default and press Save.
default
Step 17 of 20

8. Enter APN type

Key in default and press Save.

Press Save.
Step 18 of 20

9. Save data connection

Press Save.

Press the required data connection to activate it.
Step 19 of 20

9. Save data connection

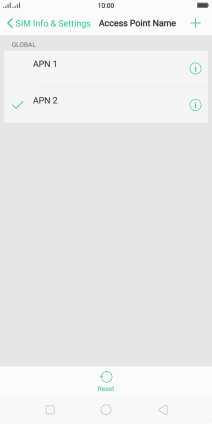

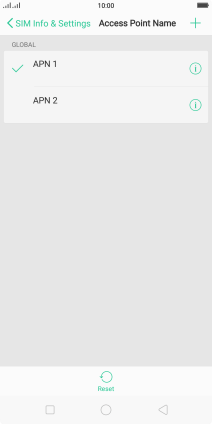

Press the required data connection to activate it.

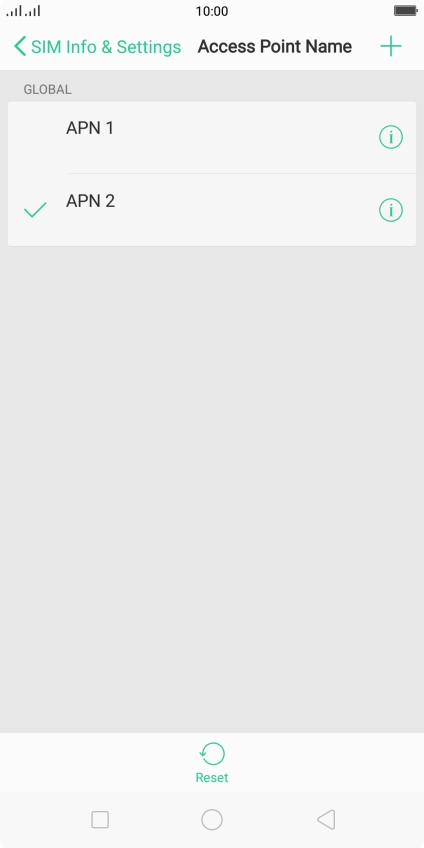

Press the Home key to return to the home screen.
Step 20 of 20

10. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Name"

Press Settings.
Press Dual SIM & Mobile.
Press the required SIM.
Press Access Point Name.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press Save.
Vodafone Internet

4. Enter APN

Press APN.
Key in live.vodafone.com and press Save.
live.vodafone.com

5. Enter country code

Press MCC.
Key in 505 and press Save.
505

6. Enter network code

Press MNC.
Key in 03 and press Save.
03

7. Select authentication type

Press Authentication Type.
Press PAP.

8. Enter APN type

Press APN Type.
Key in default and press Save.
default

9. Save data connection

Press Save.
Press the required data connection to activate it.

10. Return to the home screen

Press the Home key to return to the home screen.
