Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"
Press the settings icon.
Find "Access Point Names"
Press Connections.
Find "Access Point Names"
Press Mobile networks.
Find "Access Point Names"

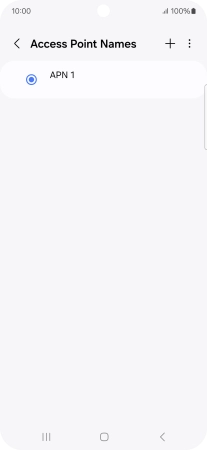

Press Access Point Names.
Create new data connection
Press the add icon.
Create new data connection

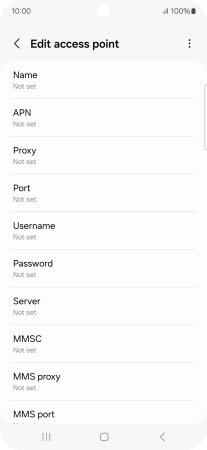

Press Name.
Create new data connection
Key in Vodafone MMS and press OK.
Enter APN

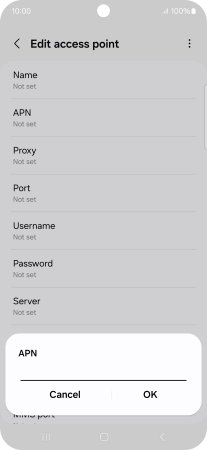

Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter picture messaging server

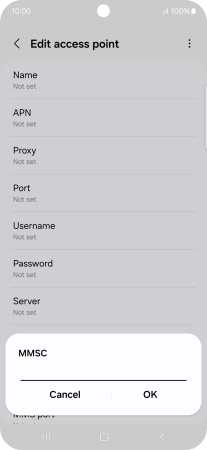

Press MMSC.
Enter picture messaging server
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
Enter IP address

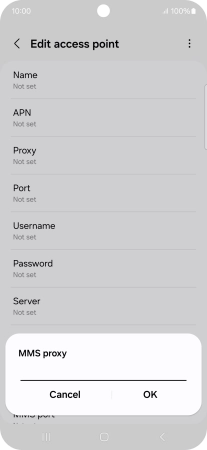

Press MMS proxy.
Enter IP address
Key in 10.202.002.060 and press OK.
Enter port number

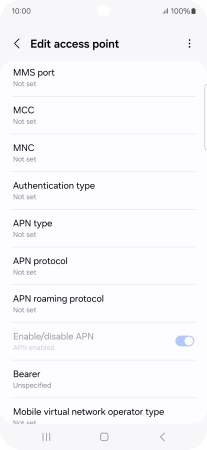

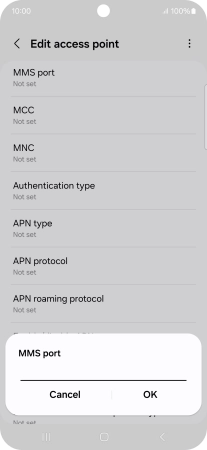

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code
Press MCC.
Enter country code
Key in 505 and press OK.
Enter network code

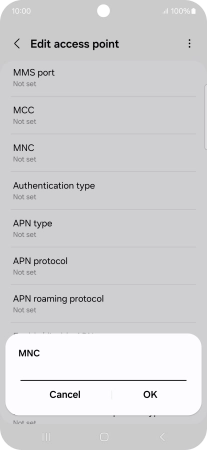

Press MNC.
Enter network code
Key in 03 and press OK.
Select authentication type

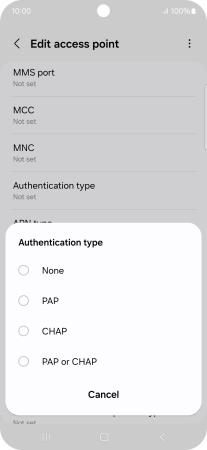

Press Authentication type.
Select authentication type
Press PAP.
Enter APN type
Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection

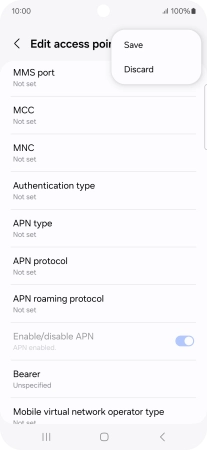

Press the menu icon.
Save data connection

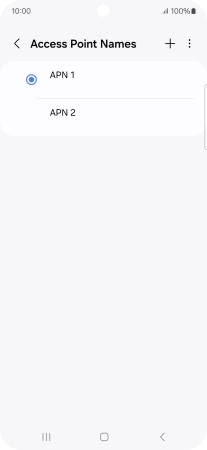

Press Save.
Return to the home screen
Press the Home key to return to the home screen.
