Set up your Samsung Galaxy A51 Android 10.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Slide two fingers downwards starting from the top of the screen.
Slide two fingers downwards starting from the top of the screen.
Slide two fingers downwards starting from the top of the screen.
Step 1 of 27

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Press the settings icon.
Press the settings icon.
Press the settings icon.
Step 2 of 27

1. Find "Access Point Names"

Press the settings icon.

Press Connections.
Press Connections.
Press Connections.
Step 3 of 27

1. Find "Access Point Names"

Press Connections.

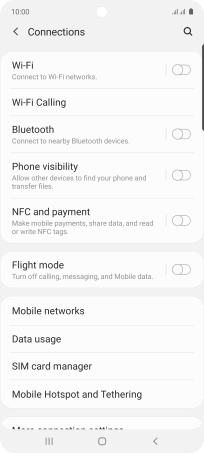

Press Mobile networks.
Press Mobile networks.
Press Mobile networks.
Step 4 of 27

1. Find "Access Point Names"

Press Mobile networks.

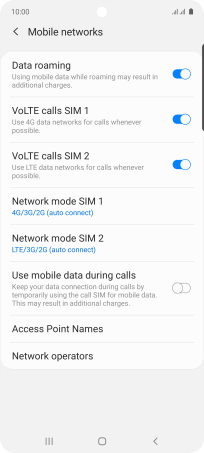

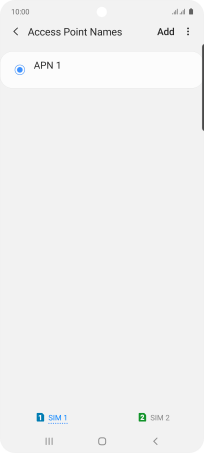

Press Access Point Names.
Press Access Point Names.
Press Access Point Names.
Step 5 of 27

1. Find "Access Point Names"

Press Access Point Names.

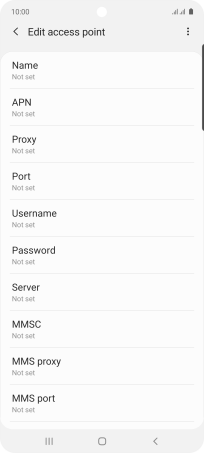

Press Add.
Press Add.
Press Add.
Step 6 of 27

2. Create new data connection

Press Add.

Press Name.
Press Name.
Press Name.
Step 7 of 27

2. Create new data connection

Press Name.

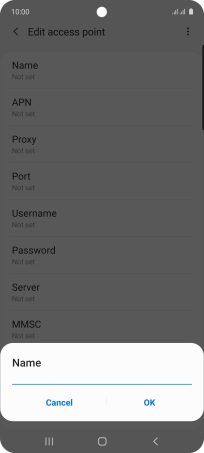

Key in Vodafone MMS and press OK.
Vodafone MMS
Key in Vodafone MMS and press OK.
Vodafone MMS
Key in Vodafone MMS and press OK.
Vodafone MMS
Step 8 of 27

2. Create new data connection

Key in Vodafone MMS and press OK.

Press APN.
Press APN.
Press APN.
Step 9 of 27

3. Enter APN

Press APN.

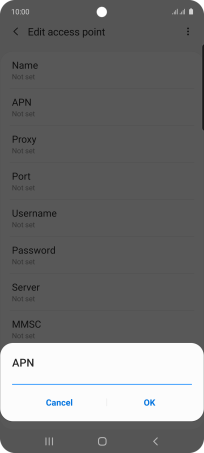

Key in live.vodafone.com and press OK.
live.vodafone.com
Key in live.vodafone.com and press OK.
live.vodafone.com
Key in live.vodafone.com and press OK.
live.vodafone.com
Step 10 of 27

3. Enter APN

Key in live.vodafone.com and press OK.

Press MMSC.
Press MMSC.
Press MMSC.
Step 11 of 27

4. Enter MMSC

Press MMSC.

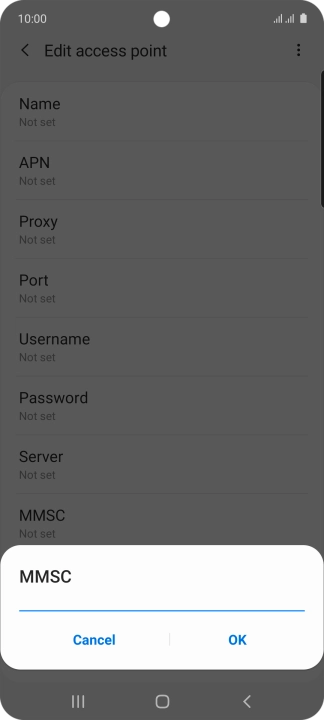

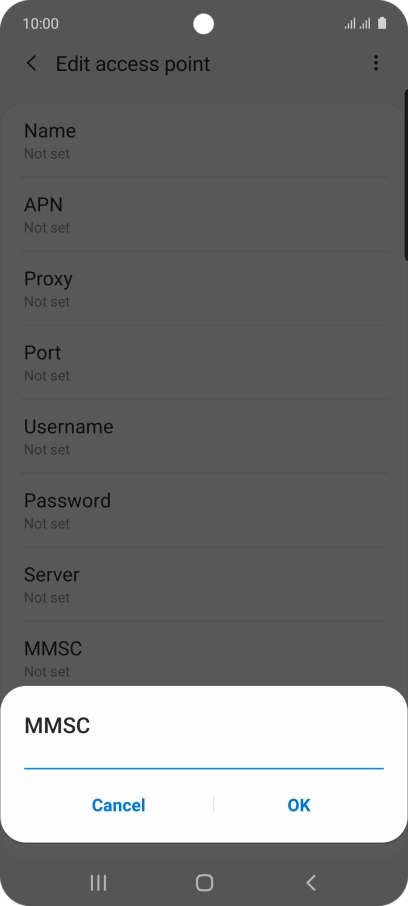

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend
Step 12 of 27

4. Enter MMSC

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Press MMS proxy.
Press MMS proxy.
Press MMS proxy.
Step 13 of 27

5. Enter IP address

Press MMS proxy.

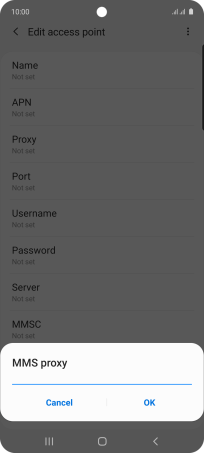

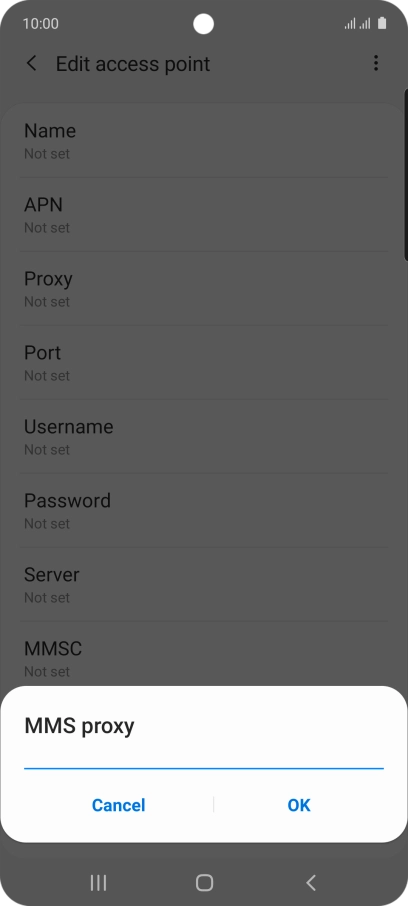

Key in 10.202.002.060 and press OK.
10.202.002.060
Key in 10.202.002.060 and press OK.
10.202.002.060
Key in 10.202.002.060 and press OK.
10.202.002.060
Step 14 of 27

5. Enter IP address

Key in 10.202.002.060 and press OK.

Press MMS port.
Press MMS port.
Press MMS port.
Step 15 of 27

6. Enter port number

Press MMS port.

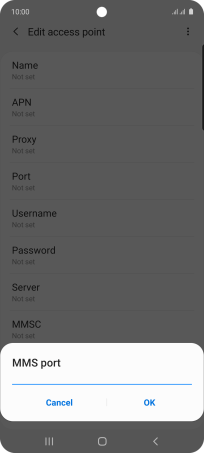

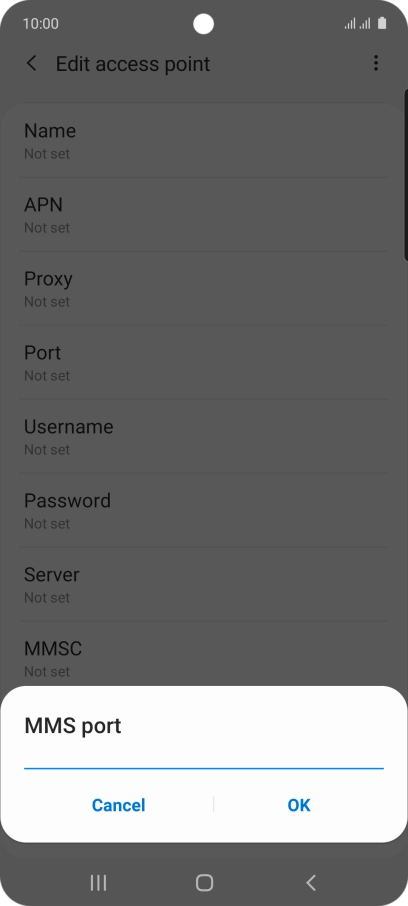

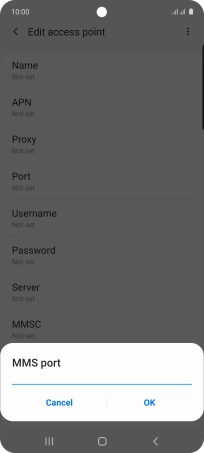

Key in 8080 and press OK.
8080
Key in 8080 and press OK.
8080
Key in 8080 and press OK.
8080
Step 16 of 27

6. Enter port number

Key in 8080 and press OK.

Press MCC.
Press MCC.
Press MCC.
Step 17 of 27

7. Enter country code

Press MCC.

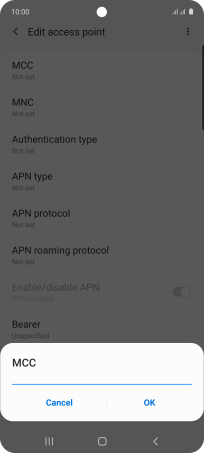

Key in 505 and press OK.
505
Key in 505 and press OK.
505
Key in 505 and press OK.
505
Step 18 of 27

7. Enter country code

Key in 505 and press OK.

Press MNC.
Press MNC.
Press MNC.
Step 19 of 27

8. Enter network code

Press MNC.

Key in 03 and press OK.
03
Key in 03 and press OK.
03
Key in 03 and press OK.
03
Step 20 of 27

8. Enter network code

Key in 03 and press OK.

Press Authentication type.
Press Authentication type.
Press Authentication type.
Step 21 of 27

9. Select authentication type

Press Authentication type.

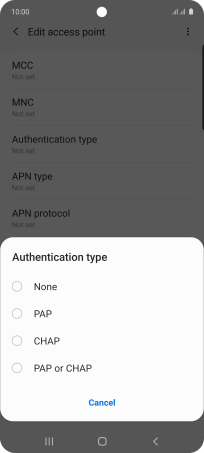

Press PAP.
Press PAP.
Press PAP.
Step 22 of 27

9. Select authentication type

Press PAP.

Press APN type.
Press APN type.
Press APN type.
Step 23 of 27

10. Enter APN type

Press APN type.

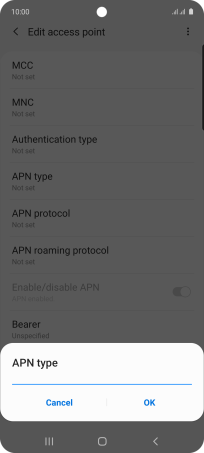

Key in mms and press OK.
mms
Key in mms and press OK.
mms
Key in mms and press OK.
mms
Step 24 of 27

10. Enter APN type

Key in mms and press OK.

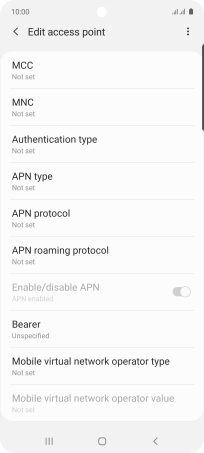

Press the menu icon.
Press the menu icon.
Press the menu icon.
Step 25 of 27

11. Save data connection

Press the menu icon.

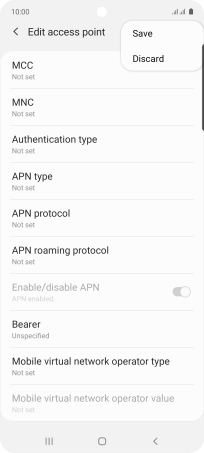

Press Save.
Press Save.
Press Save.
Step 26 of 27

11. Save data connection

Press Save.

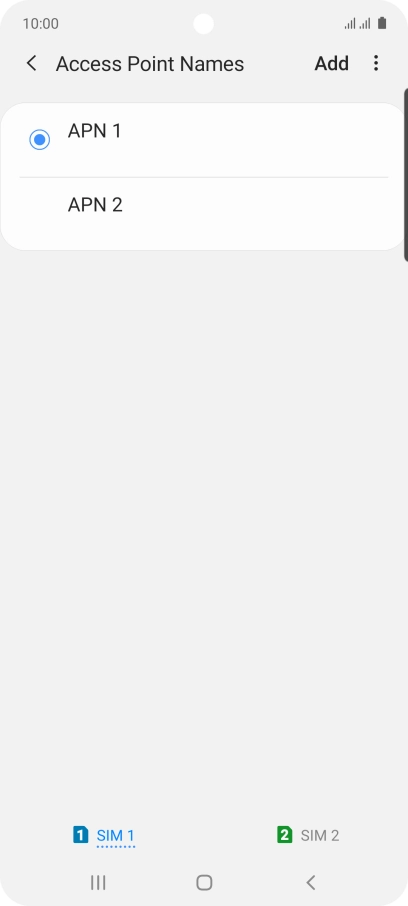

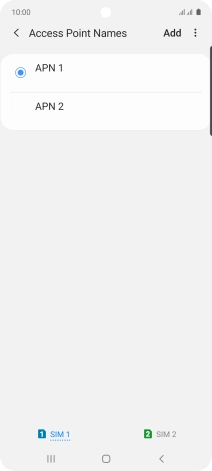

Press the Home key to return to the home screen.
Press the Home key to return to the home screen.
Press the Home key to return to the home screen.
Step 27 of 27

12. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press Add.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Enter MMSC

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

5. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

6. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

7. Enter country code

Press MCC.
Key in 505 and press OK.
505

8. Enter network code

Press MNC.
Key in 03 and press OK.
03

9. Select authentication type

Press Authentication type.
Press PAP.

10. Enter APN type

Press APN type.
Key in mms and press OK.
mms

11. Save data connection

Press the menu icon.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.
