1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-6ceee3b6-3165-44ad-8b5f-25133a2d59f0.png?width=202&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-8d79b9d9-337c-4fc8-af1a-cc57dad8ff9f.png?width=202&height=452)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-5dbda127-7cf9-4e7b-9d31-ef68ad7ba61a.png?width=202&height=452)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d19375d3-4be4-4e0c-8df5-9b84a3831346.png?width=202&height=452)

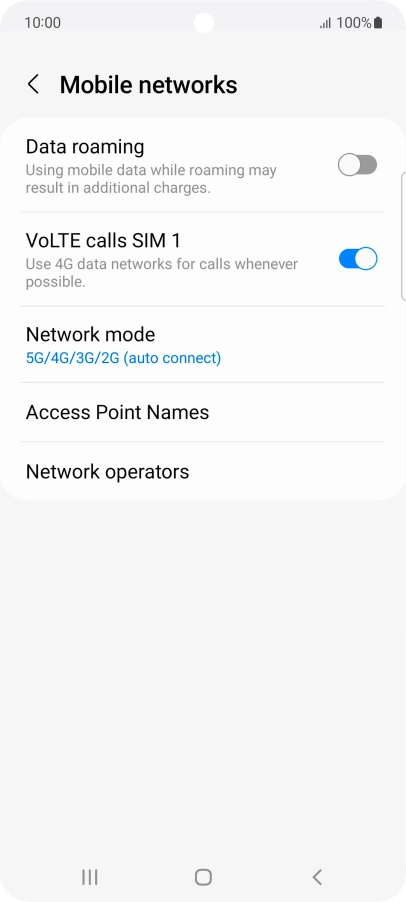

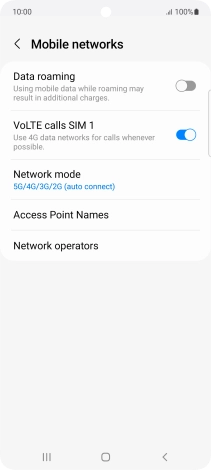

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-e0c81205-b847-4023-838b-19fe64048563.png?width=202&height=452)
2. Create new data connection

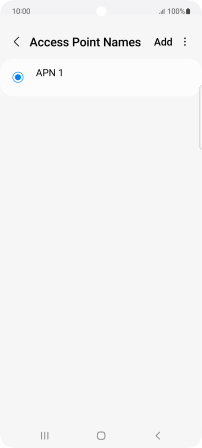

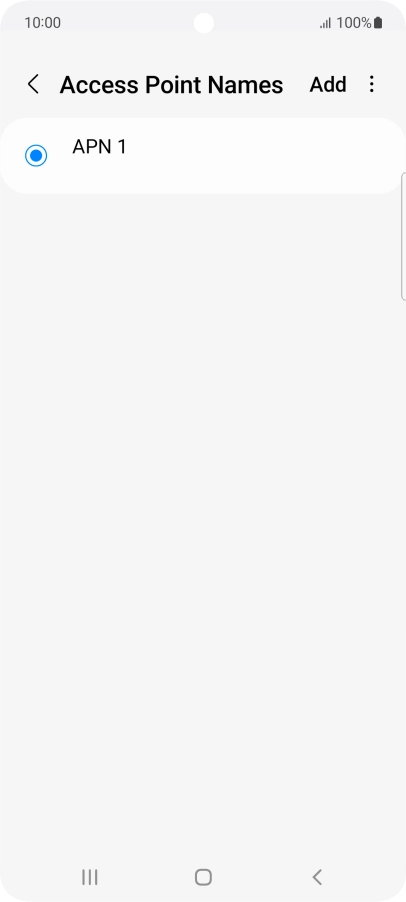

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-57596db8-c305-4cad-89b3-bcbc14b244f9.png?width=202&height=452)

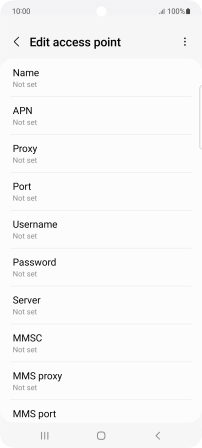

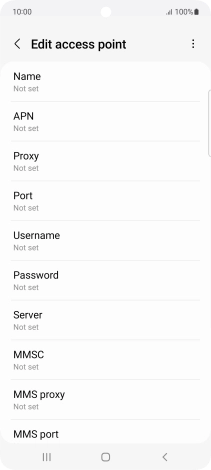

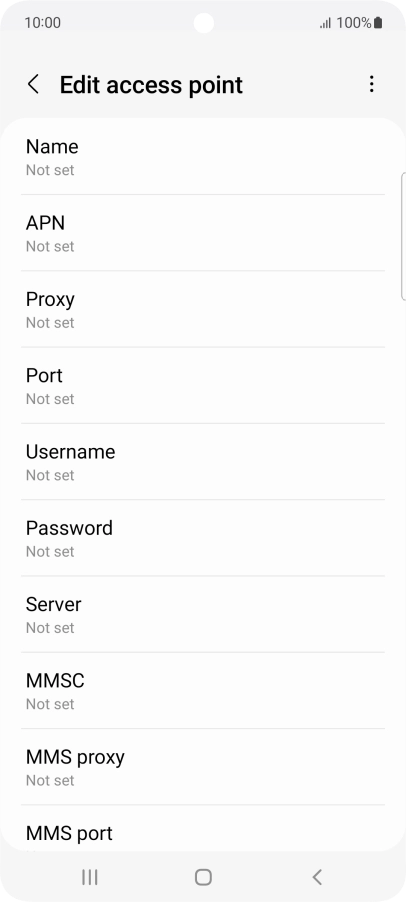

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-63aedfeb-ffc5-45a5-ab1b-29eafd59146e.png?width=202&height=452)

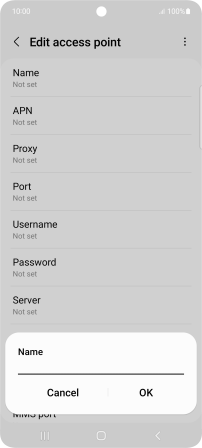

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-f146626c-86e3-43ad-8b6f-8f9a3494cc42.png?width=202&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-63aedfeb-ffc5-45a5-ab1b-29eafd59146e.png?width=202&height=452)

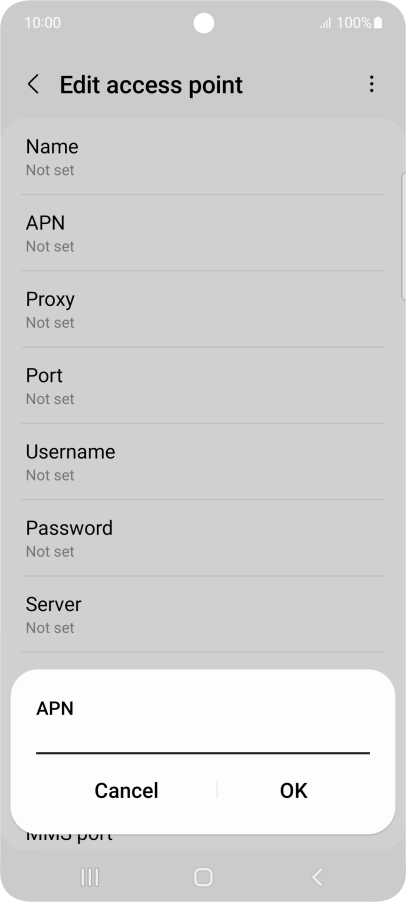

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-089eccd4-52fe-4067-ab83-0326d2810fe3.png?width=202&height=452)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-63aedfeb-ffc5-45a5-ab1b-29eafd59146e.png?width=202&height=452)

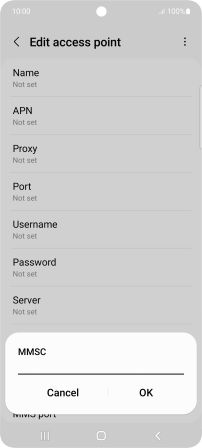

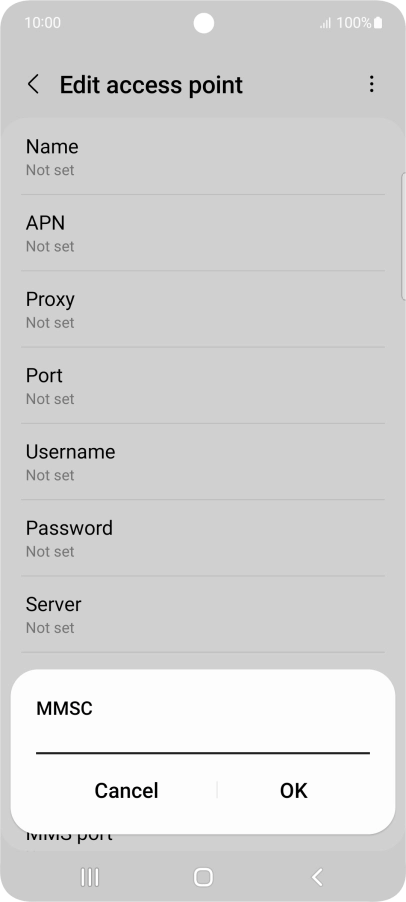

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-4bb6c4d5-0ccb-49ec-941b-e776d3f1f81c.png?width=202&height=452)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-63aedfeb-ffc5-45a5-ab1b-29eafd59146e.png?width=202&height=452)

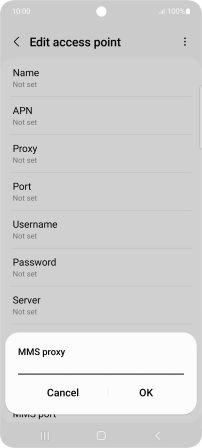

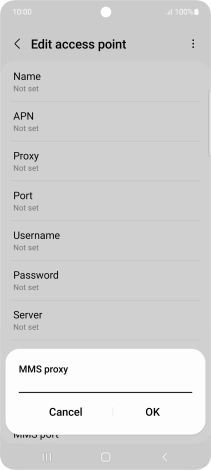

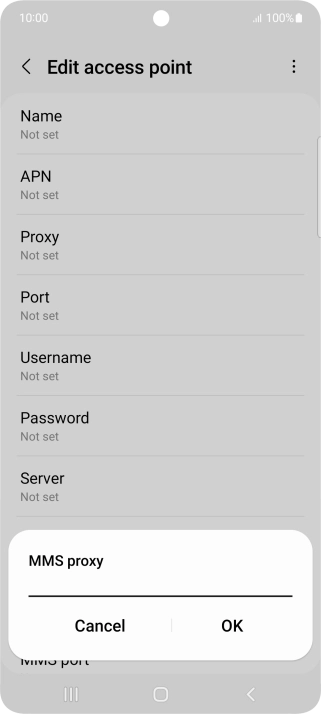

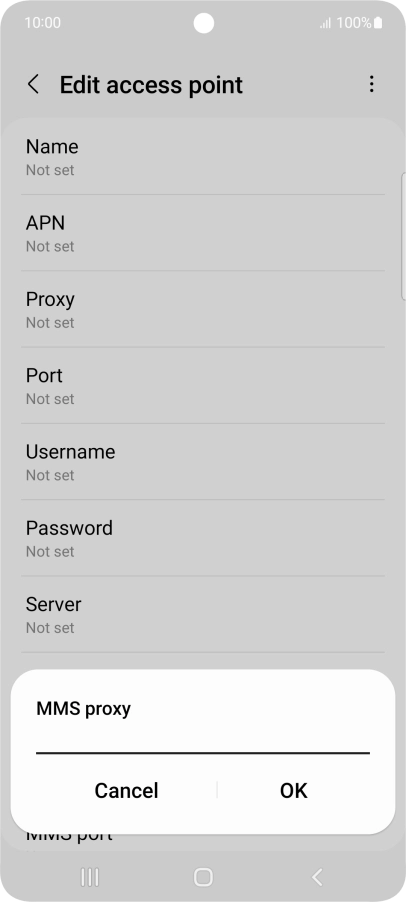

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-86bf1a8b-f227-4374-aaad-edf15abef8e8.png?width=202&height=452)
10.202.002.060
6. Enter port number

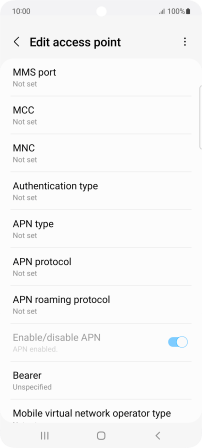

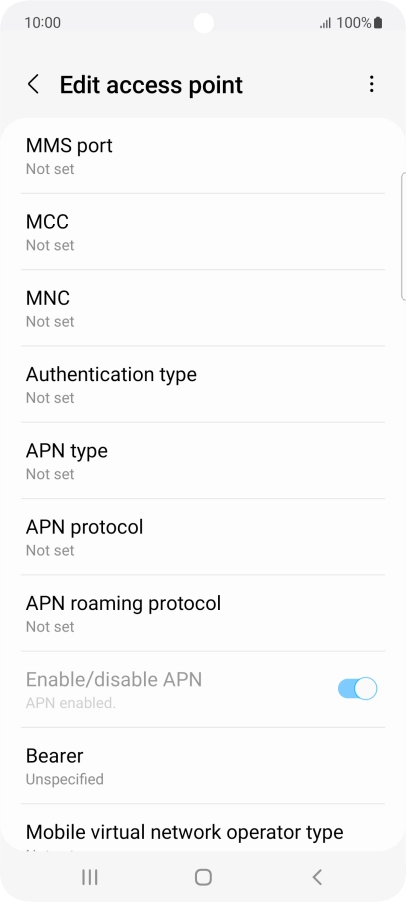

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

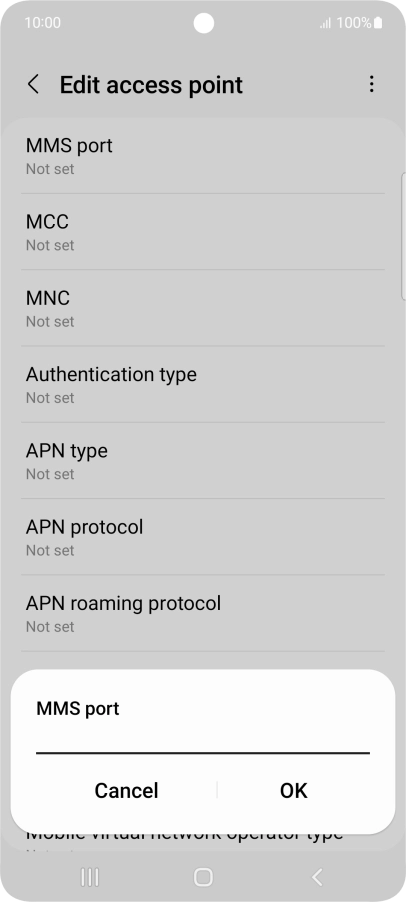

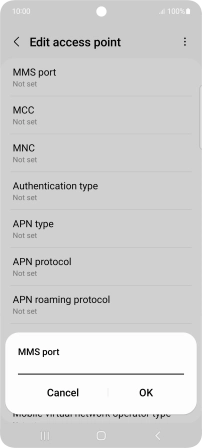

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-1a1358ae-0c1b-458e-9a2c-0ffff852443d.png?width=202&height=452)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

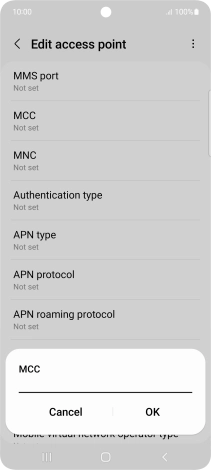

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d32a8be8-2a73-4e5a-9e8e-14f40942677d.png?width=202&height=452)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

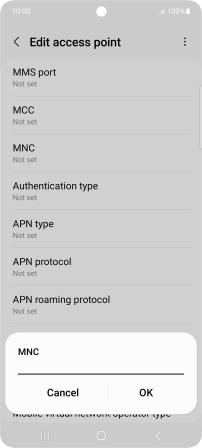

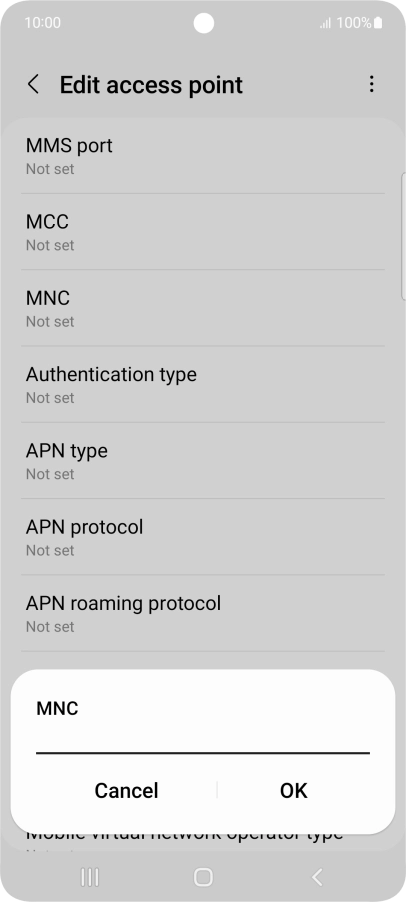

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-e96251c5-4616-4c5a-b6a5-dcf74bb9d03e.png?width=202&height=452)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

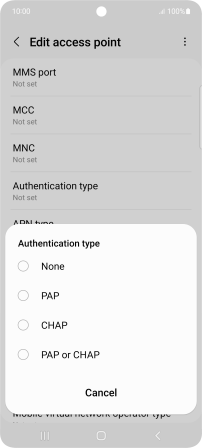

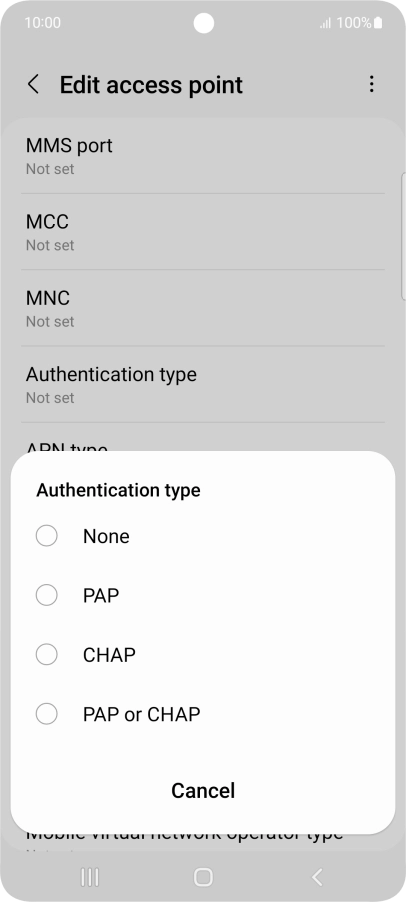

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-f4db6720-3dd7-43b9-928c-4e5bbb40b6bb.png?width=202&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

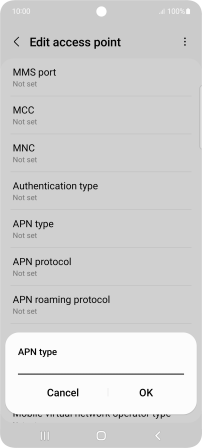

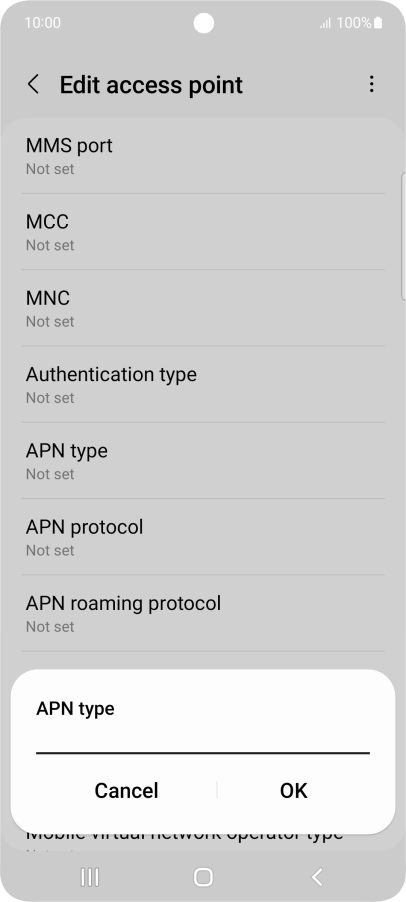

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d1919999-7e76-43b0-8742-7a5f3e633136.png?width=202&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c7cffe72-a68b-45d1-b45d-d5335743a3df.png?width=202&height=452)

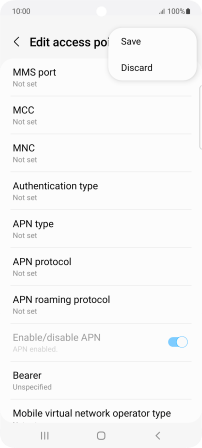

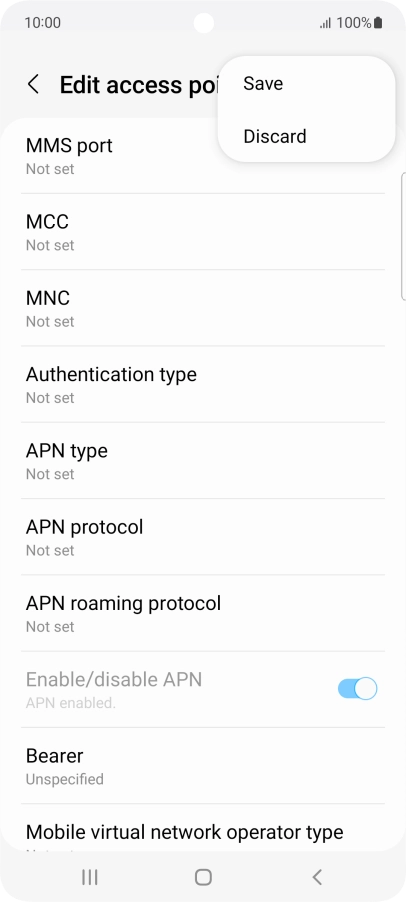

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-4e5bff1b-0c0c-465f-9968-f20f2ef07c75.png?width=202&height=452)
12. Return to the home screen

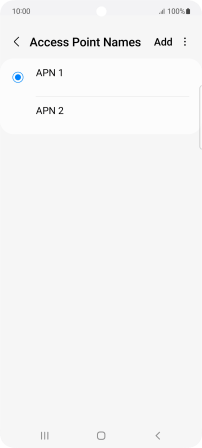

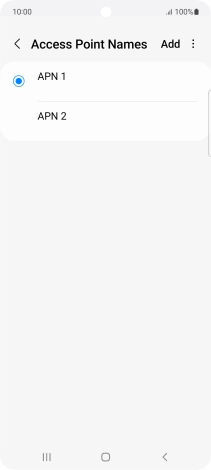

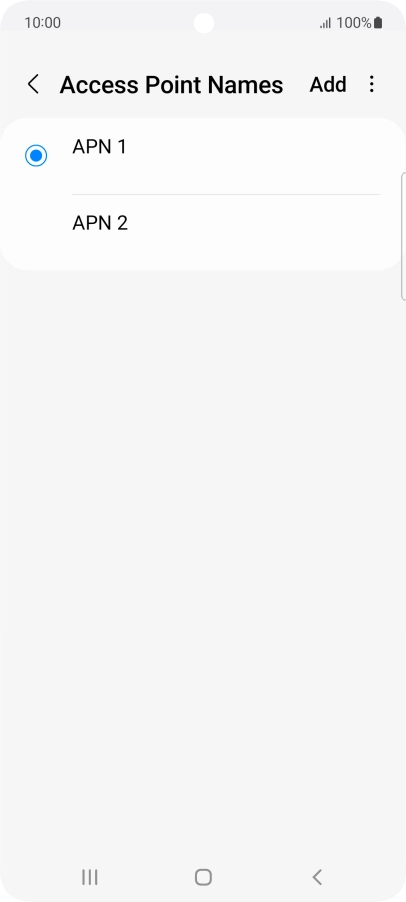

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-e77c7f93-2f0f-40ae-9afc-5fc23a3b8fb2.png?width=202&height=452)
