1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6fadd150-2f14-4375-b90b-e951f2a5f0d8.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-c00a6b9d-b513-4dac-a043-e3aafac8988d.png?width=204&height=452)

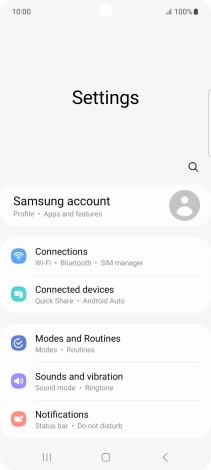

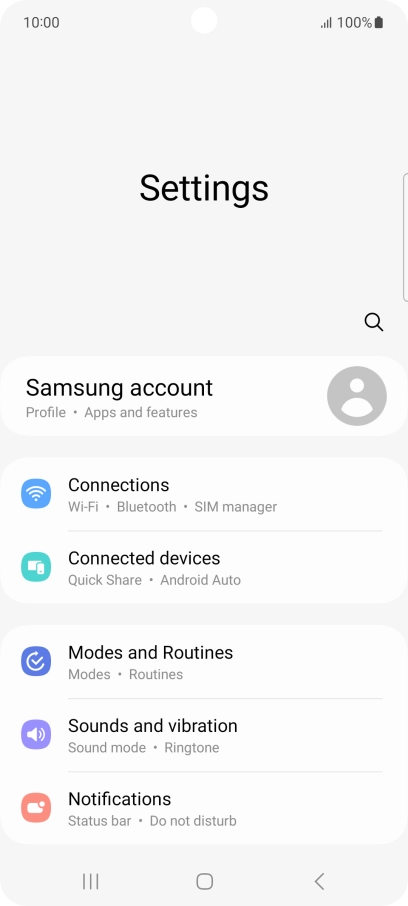

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9cde9b2e-12c8-420e-a149-8153f331e5ec.png?width=204&height=452)

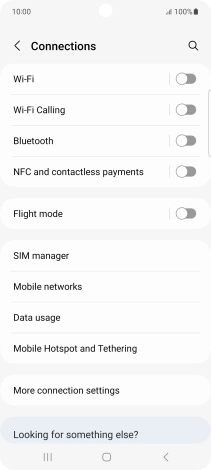

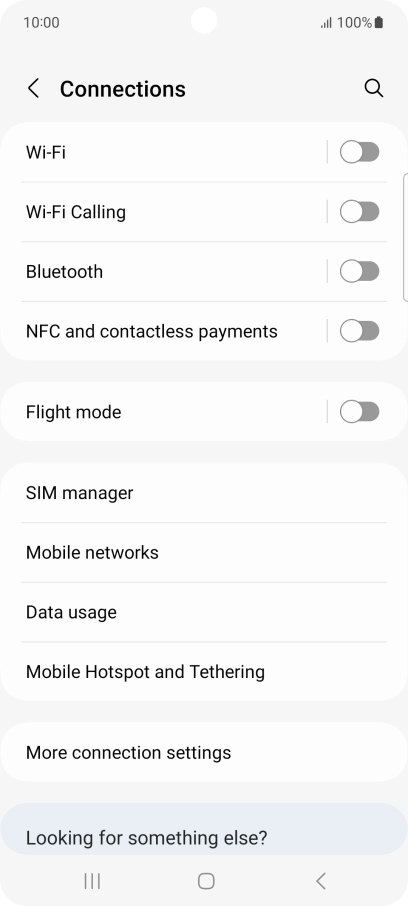

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-75c9e571-9f00-4ad5-a190-3af3b50a1940.png?width=204&height=452)

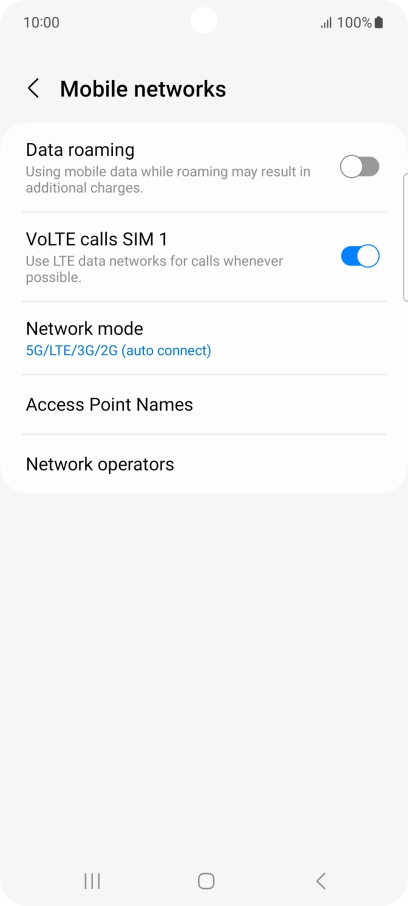

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-9718be62-0100-4ea2-bb54-981c2b91ab24.png?width=204&height=452)
2. Create new data connection

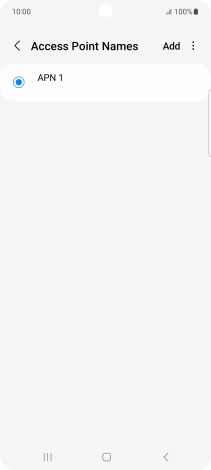

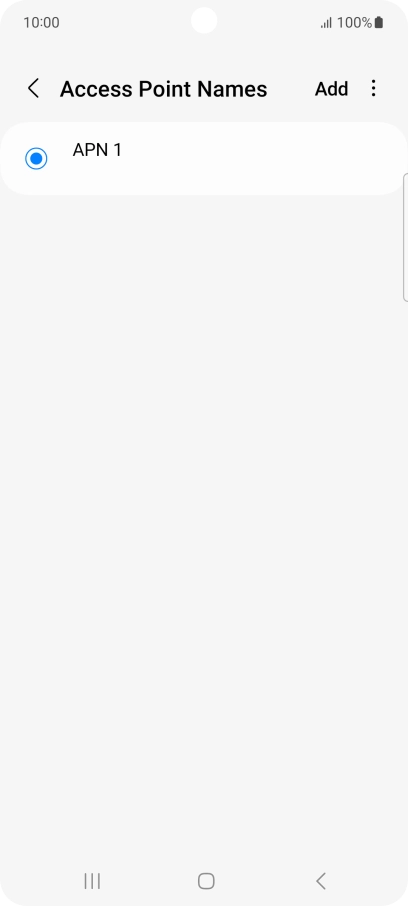

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b68c63db-ea88-4b47-ae72-f7d7e870e783.png?width=204&height=452)

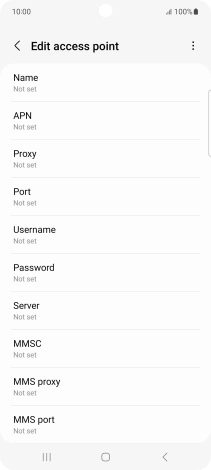

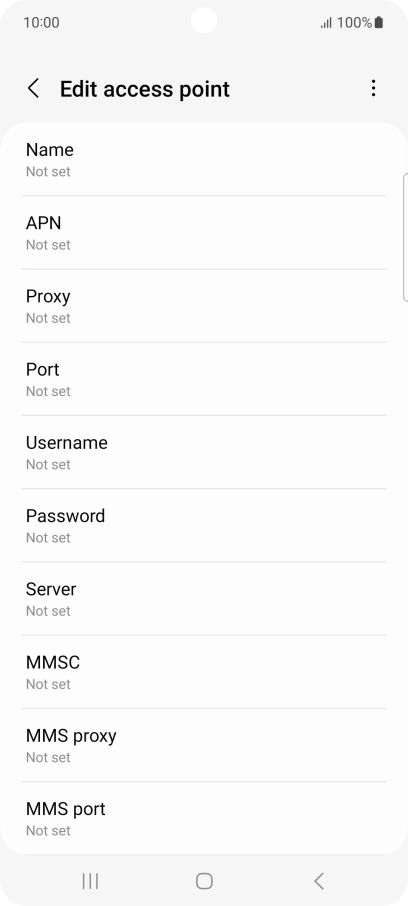

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)

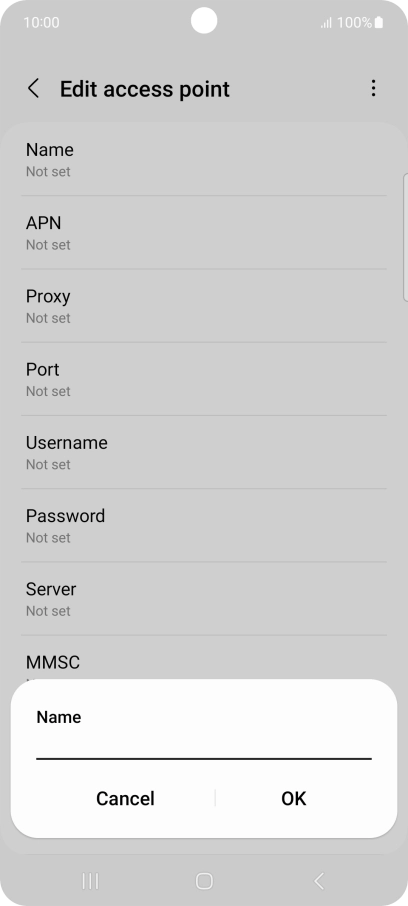

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-b22fb8a2-a287-4e55-ab90-6857f61bc406.png?width=204&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-dfa3e638-0c15-4e2d-8241-4671a3c0016c.png?width=204&height=452)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)

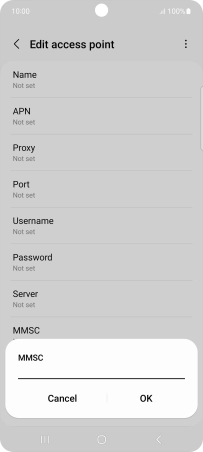

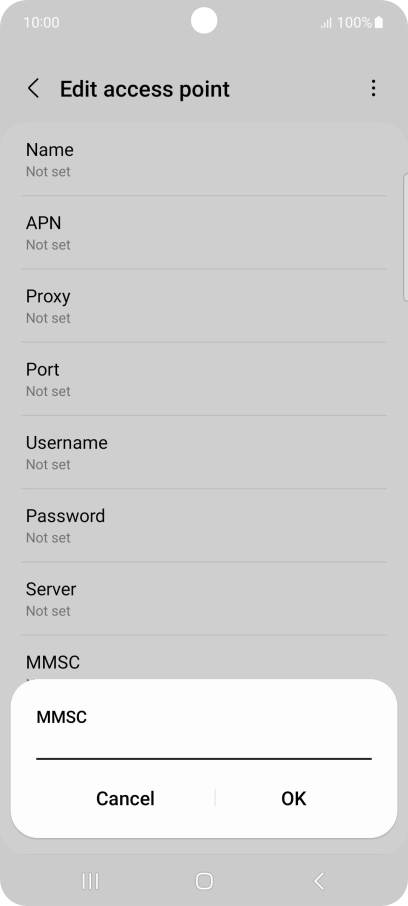

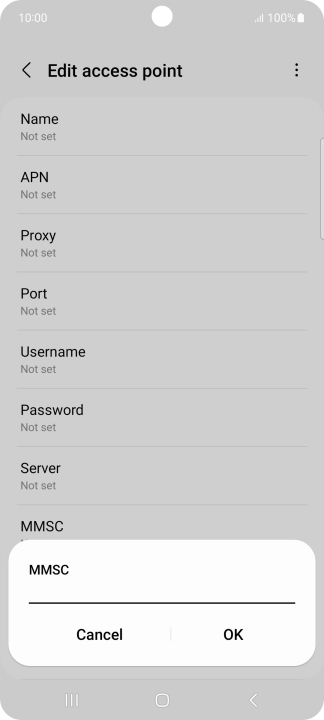

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-8ebc1625-3002-4000-9aee-15638fbb06e7.png?width=204&height=452)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)

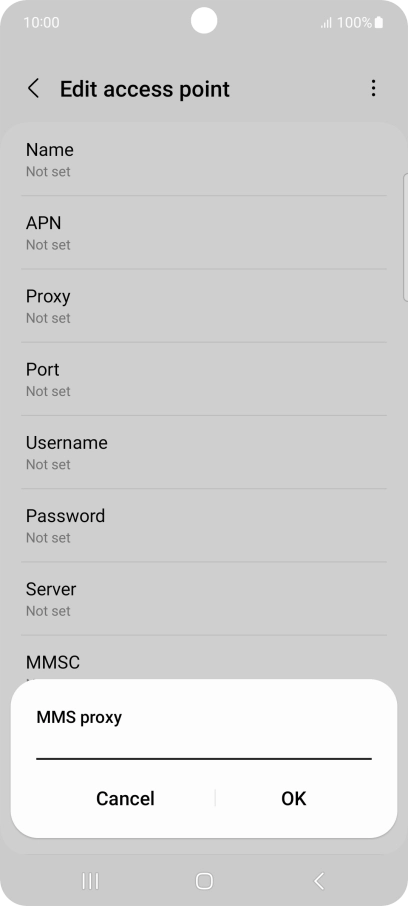

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-047c58d0-75d9-4e10-93e7-e6fadd13ca31.png?width=204&height=452)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-5656be71-0881-4110-92fc-c7179a76ef7b.png?width=204&height=452)

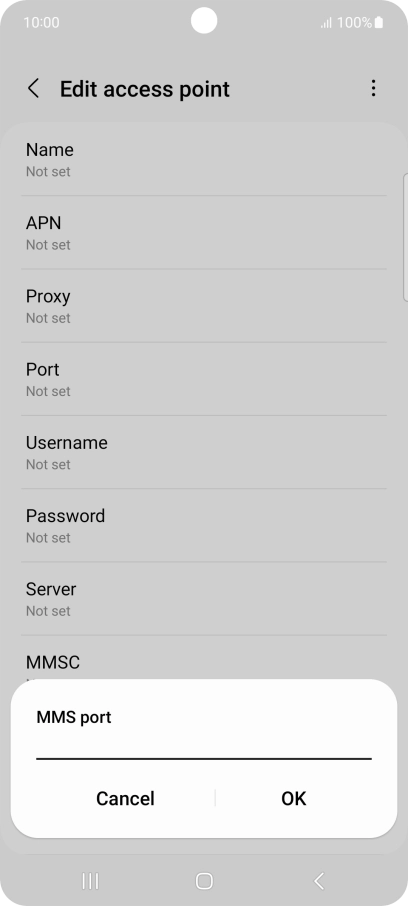

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-e8974045-2307-4fdf-abe9-9fcb1fc043f7.png?width=204&height=452)
8080
7. Enter country code

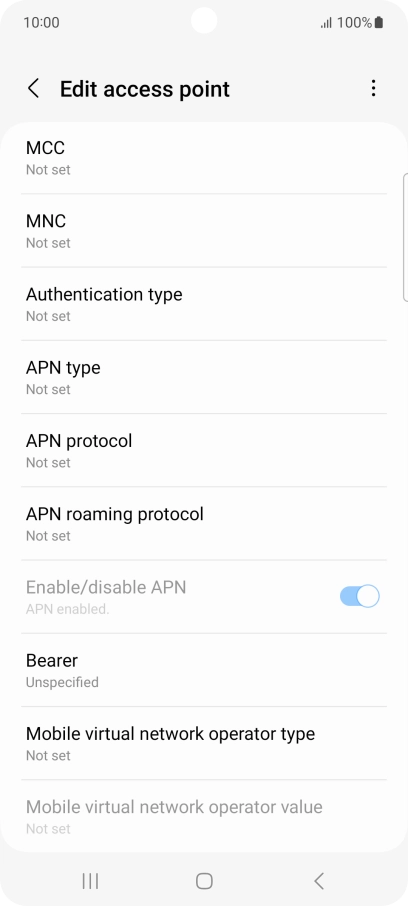

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

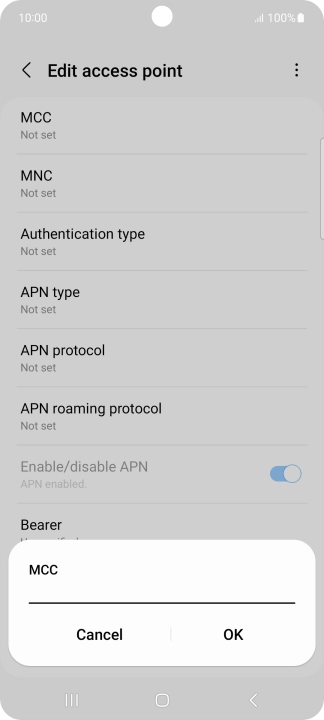

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-1947e5d3-165d-48aa-aee1-fc4a6797093e.png?width=204&height=452)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

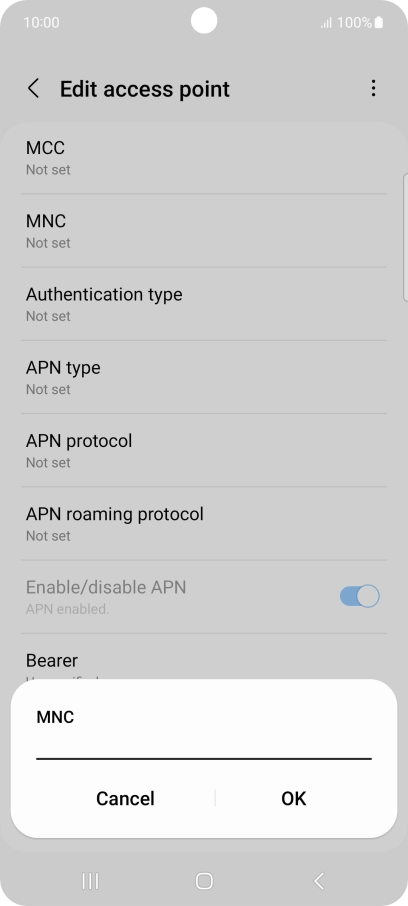

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d3c10829-5169-4b03-93db-db4b789ca668.png?width=204&height=452)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

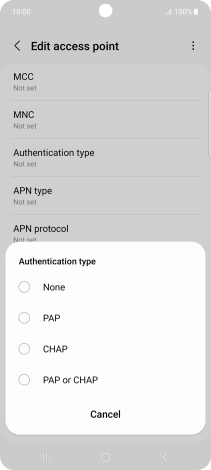

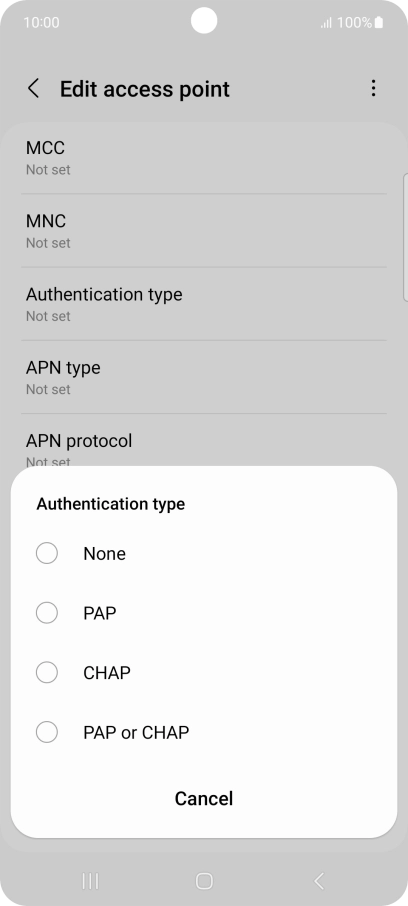

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-97b5ea53-65f3-4ec7-b77a-3c5ea776b9ba.png?width=204&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

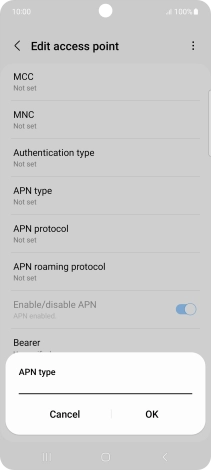

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-d49df3a3-55a8-4d54-90da-aa47a2478705.png?width=204&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-68c0578c-b00b-40a7-818f-af8dd901a3d9.png?width=204&height=452)

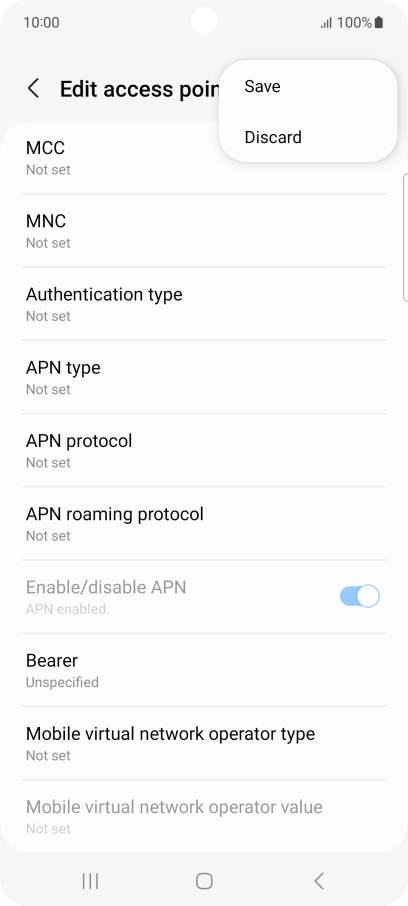

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-96bff6f9-45eb-4daa-a145-1bff0cef1f93.png?width=204&height=452)
12. Return to the home screen

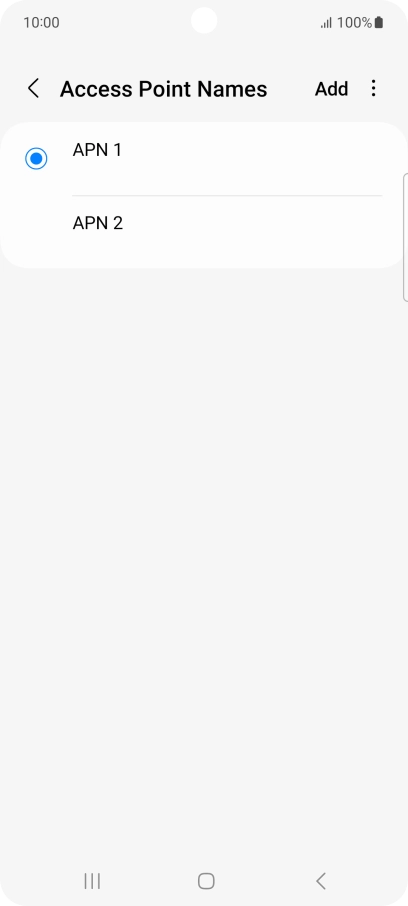

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7140723-f-6e49846c-8a17-45fd-86ab-afea59eb563e.png?width=204&height=452)
