Set up your phone for picture messaging - Samsung Galaxy Ace

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 38

Find "Access Point Names"

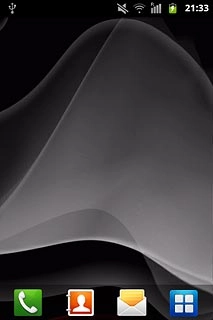

Press the menu icon.

Step 2 of 38

Find "Access Point Names"

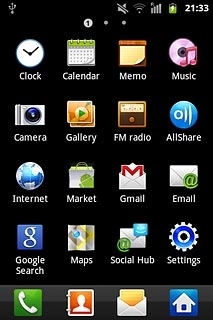

Press Settings.

Step 3 of 38

Find "Access Point Names"

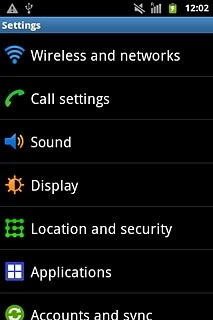

Press Wireless and network.

Step 4 of 38

Find "Access Point Names"

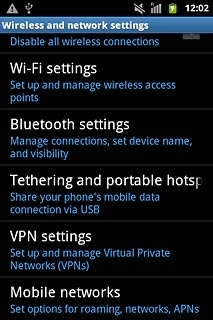

Press Mobile networks.

Step 5 of 38

Find "Access Point Names"

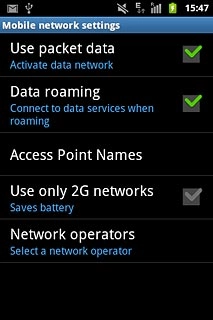

Press Access Point Names.

Step 6 of 38

Create new data connection

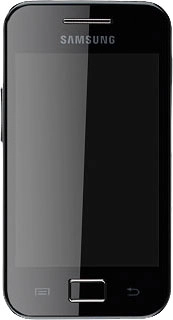

Press the Menu key.

Step 7 of 38

Create new data connection

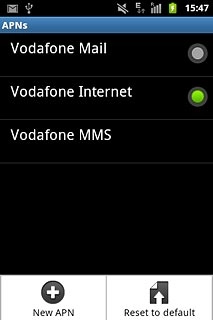

Press New APN.

Step 8 of 38

Enter data connection name

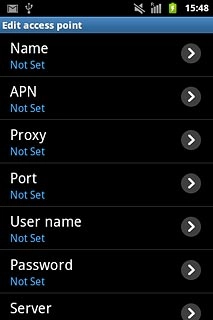

Press Name.

Step 9 of 38

Enter data connection name

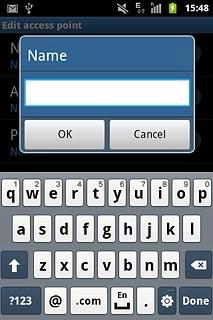

Key in Vodafone MMS and press OK.

Step 10 of 38

Enter APN

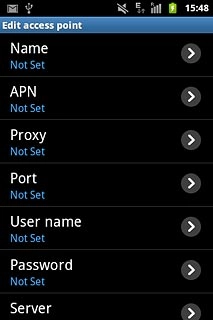

Press APN.
Key in live.vodafone.com

Step 11 of 38

Enter APN

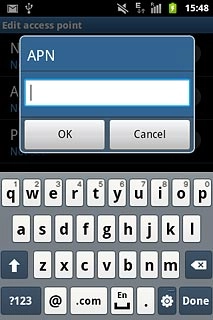

Press OK.

Step 12 of 38

Enter picture messaging server

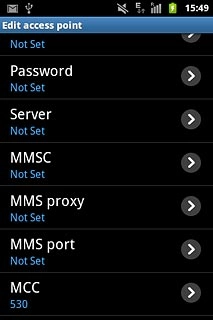

Press MMSC.

Step 13 of 38

Enter picture messaging server

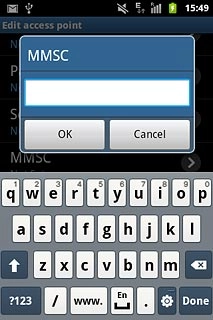

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 38

Enter IP address

Press MMS proxy.

Step 15 of 38

Enter IP address

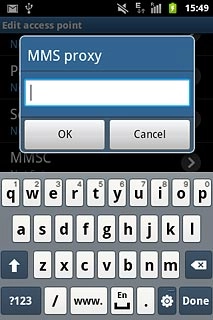

Key in 10.202.002.060 and press OK.

Step 16 of 38

Enter port number

Press MMS port.

Step 17 of 38

Enter port number

Key in 8080 and press OK.

Step 18 of 38

Enter country code

Press MCC.

Step 19 of 38

Enter country code

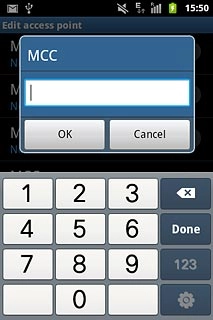

Key in 505 and press OK.

Step 20 of 38

Enter network code

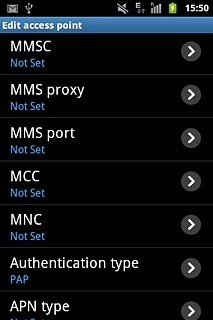

Press MNC.

Step 21 of 38

Enter network code

Key in 03 and press OK.

Step 22 of 38

Select authentication type

Press Authentication type.

Step 23 of 38

Select authentication type

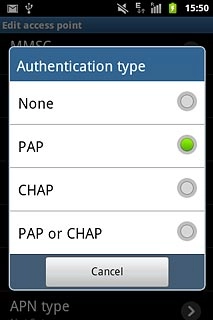

Press PAP.

Step 24 of 38

Select APN type

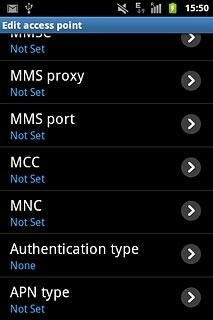

Press APN type.

Step 25 of 38

Select APN type

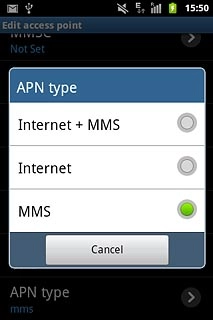

Press MMS.

Step 26 of 38

Save data connection

Press the Menu key.

Step 27 of 38

Save data connection

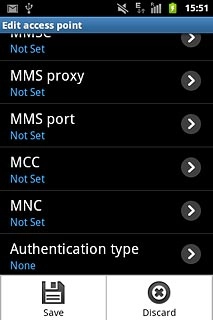

Press Save.

Step 28 of 38

Save data connection

Press the Home key to return to standby mode.

Step 29 of 38

Find "Settings"

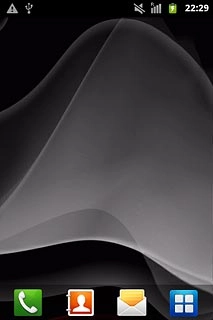

Press the messages icon.

Step 30 of 38

Find "Settings"

Press the Menu key.

Step 31 of 38

Find "Settings"

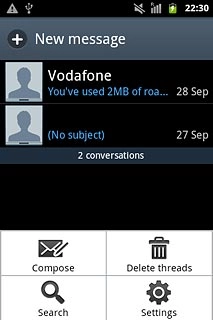

Press Settings.

Step 32 of 38

Turn request for delivery reports on or off

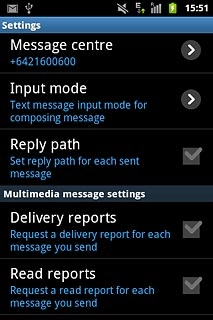

Press Delivery reports below Multimedia message settings to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 33 of 38

Turn request for delivery reports on or off

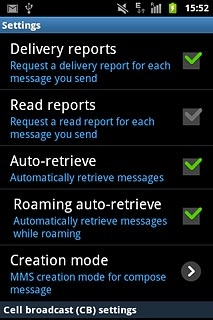

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 34 of 38

Turn on auto-retrieve in home network

Press Auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
Step 35 of 38

Turn on auto-retrieve in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
Step 36 of 38

Turn on roaming auto-retrieve

Press Roaming auto-retrieve to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
Step 37 of 38

Turn on roaming auto-retrieve

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
Step 38 of 38

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless and network.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press MMS.

Save data connection

Press the Menu key.
Press Save.
Press the Home key to return to standby mode.

Find "Settings"

Press the messages icon.
Press the Menu key.
Press Settings.

Turn request for delivery reports on or off

Press Delivery reports below Multimedia message settings to turn the function on or off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.

Turn on auto-retrieve in home network

Press Auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're within range of your home network.

Turn on roaming auto-retrieve

Press Roaming auto-retrieve to turn on the function.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on the function, you'll receive all picture messages when you're out of range of your home network.

Exit

Press the Home key to return to standby mode.
