Guide for the Samsung Galaxy Ace - Set up your phone for POP3 email

Step 1 of 52

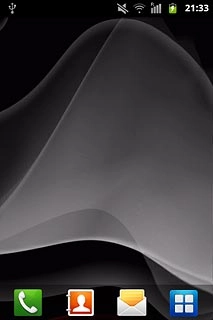

Find "Access Point Names"

Press the menu icon.

Step 2 of 52

Find "Access Point Names"

Press Settings.

Step 3 of 52

Find "Access Point Names"

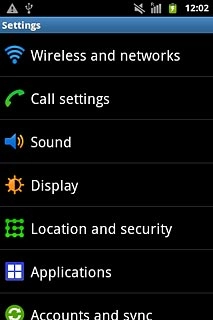

Press Wireless and network.

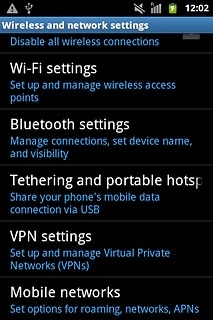

Step 4 of 52

Find "Access Point Names"

Press Mobile networks.

Step 5 of 52

Find "Access Point Names"

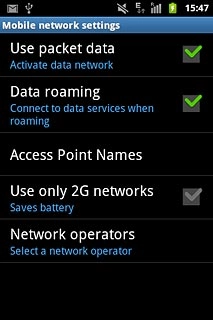

Press Access Point Names.

Step 6 of 52

Create new data connection

Press the Menu key.

Step 7 of 52

Create new data connection

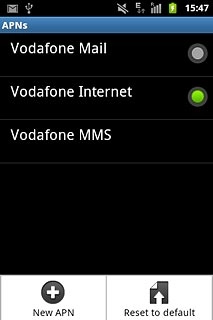

Press New APN.

Step 8 of 52

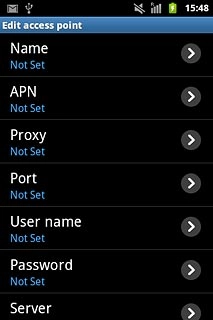

Enter data connection name

Press Name.

Step 9 of 52

Enter data connection name

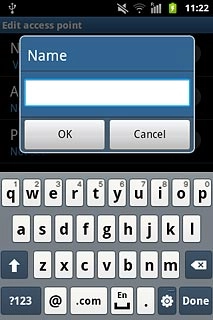

Key in Vodafone Mail and press OK.

Step 10 of 52

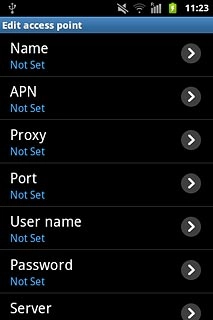

Enter APN

Press APN.

Step 11 of 52

Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 52

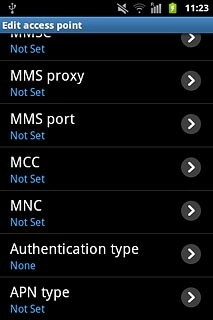

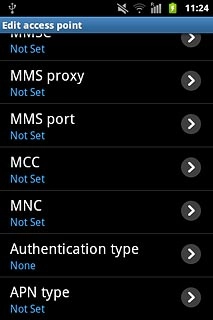

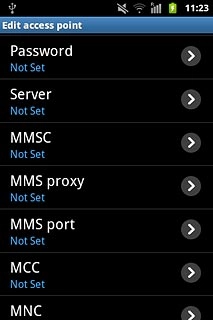

Enter country code

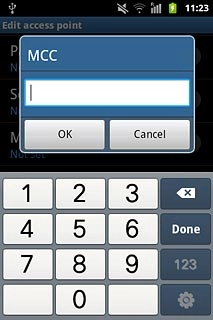

Press MCC.

Step 13 of 52

Enter country code

Key in 505 and press OK.

Step 14 of 52

Enter network code

Press MNC.

Step 15 of 52

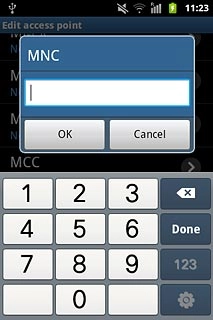

Enter network code

Key in 03 and press OK.

Step 16 of 52

Select authentication type

Press Authentication type.

Step 17 of 52

Select authentication type

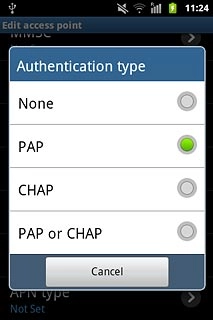

Press PAP.

Step 18 of 52

Select APN type

Press APN type.

Step 19 of 52

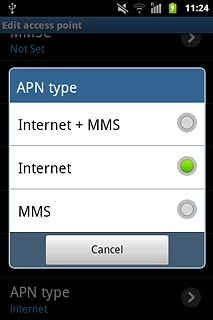

Select APN type

Press Internet.

Step 20 of 52

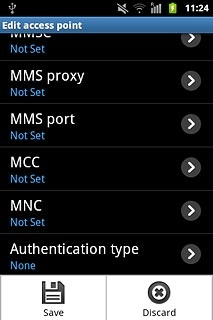

Save and activate data connection

Press the Menu key.

Step 21 of 52

Save and activate data connection

Press Save.

Step 22 of 52

Save and activate data connection

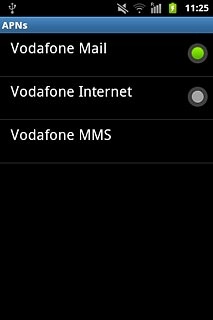

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 52

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 52

Find "Email"

Press the menu icon.

Step 25 of 52

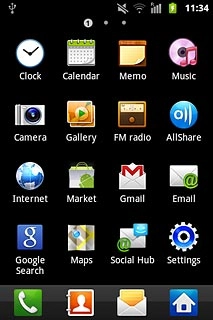

Find "Email"

Press Email.

Step 26 of 52

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 27 of 52

Create new email account

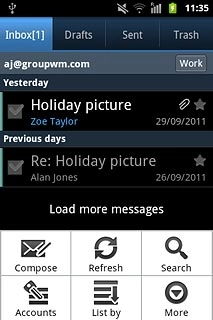

Press Accounts.

Step 28 of 52

Create new email account

Press the Menu key.

Step 29 of 52

Create new email account

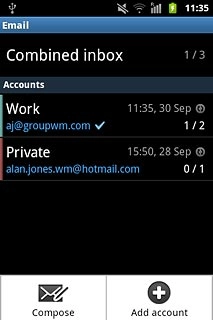

Press Add account.

Step 30 of 52

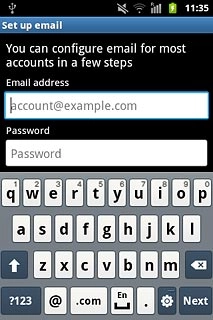

Enter email address

Press account@example.com and key in your email address.

Step 31 of 52

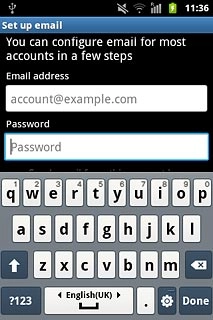

Enter password

Press Password and key in the password for your email account.

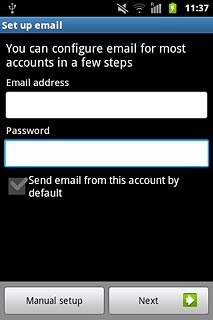

Step 32 of 52

Enter password

Press Next.

Step 33 of 52

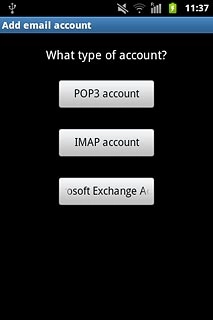

Select server type

Press POP3 account.

Step 34 of 52

Enter username

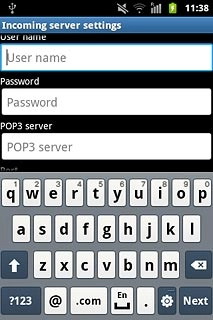

Press the field below User name and key in the username for your email account.

Step 35 of 52

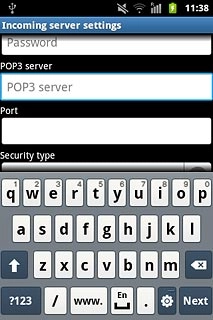

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming mail server.

Step 36 of 52

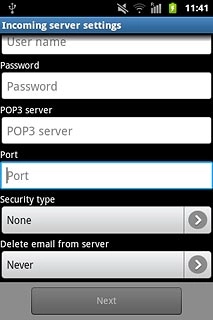

Enter incoming port

Press the field below Port and key in 110

Step 37 of 52

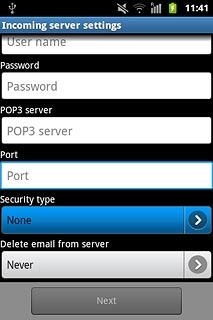

Turn off SSL encryption of incoming email messages

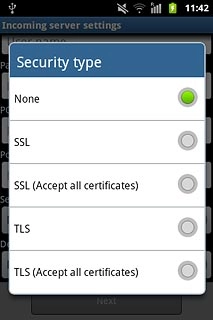

Press the drop down list below Security type.

Step 38 of 52

Turn off SSL encryption of incoming email messages

Press None.

Step 39 of 52

Turn off SSL encryption of incoming email messages

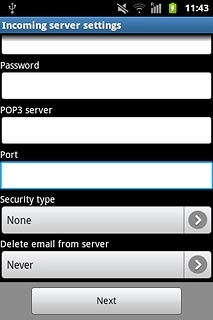

Press Next.

Step 40 of 52

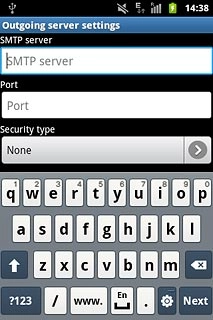

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 41 of 52

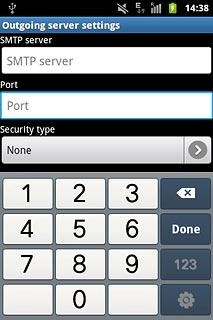

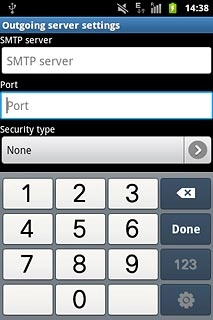

Enter outgoing port

Press the field below Port and key in 25

Step 42 of 52

Turn off SSL encryption of outgoing email messages

Press the drop down list below Security type.

Step 43 of 52

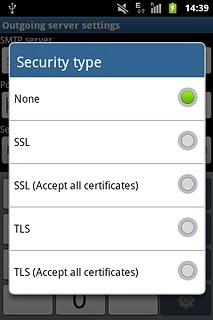

Turn off SSL encryption of outgoing email messages

Press None.

Step 44 of 52

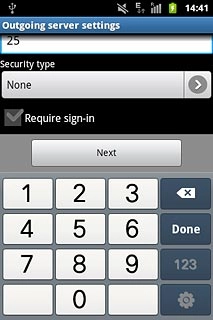

Turn SMTP authentication on or off

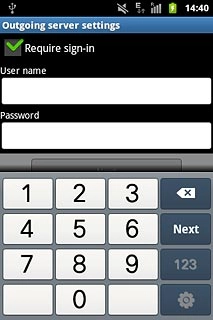

Press Require sign-in to turn SMTP authentication on or off.

Step 45 of 52

Turn SMTP authentication on or off

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 46 of 52

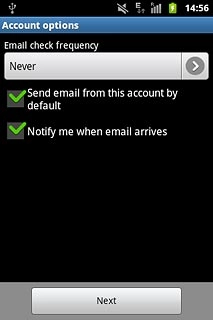

Select setting for retrieving new email messages

Press the drop down list below Email check frequency.

Step 47 of 52

Select setting for retrieving new email messages

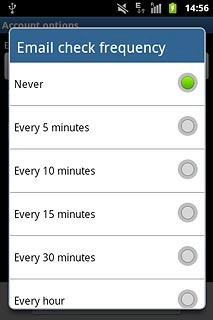

Press Never or the required period.

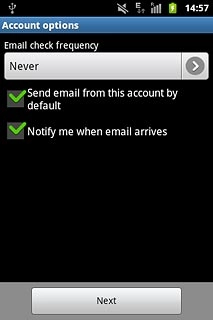

Step 48 of 52

Select setting for retrieving new email messages

Press Next.

Step 49 of 52

Enter email account name

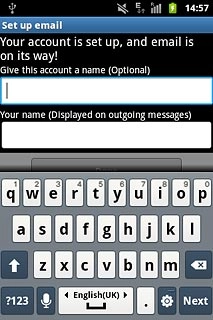

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

Step 50 of 52

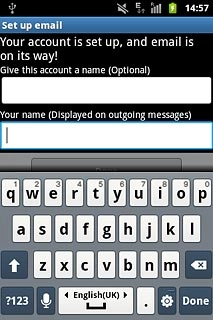

Enter sender name

Press the field below Your name (Displayed on outgoing messages) and key in the required sender name.

Step 51 of 52

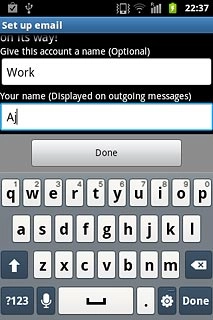

Retrieve email messages

Press Done.
Wait while your phone retrieves new email messages.

Step 52 of 52

Exit

Press the Home key to return to standby mode.
