Set up your phone for POP3 email - Samsung Galaxy Note II

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 52

Find "Access Point Names"

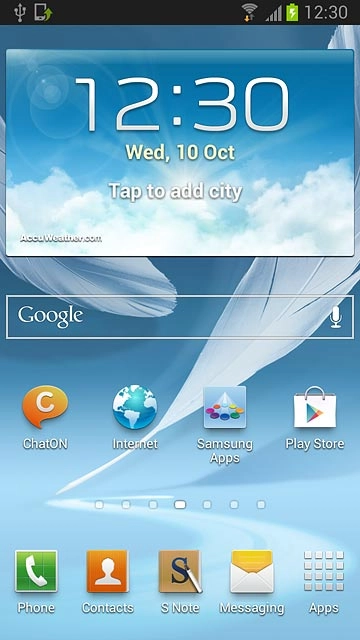

Press Apps.

Step 2 of 52

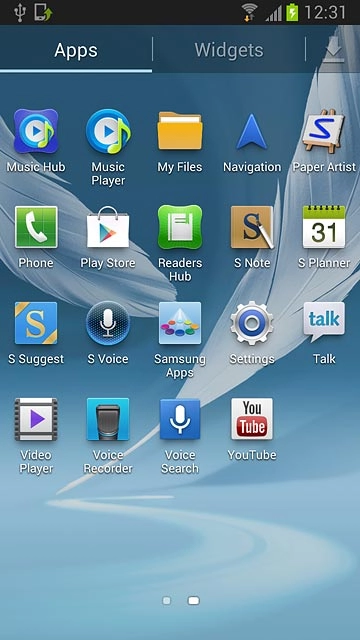

Find "Access Point Names"

Press Settings.

Step 3 of 52

Find "Access Point Names"

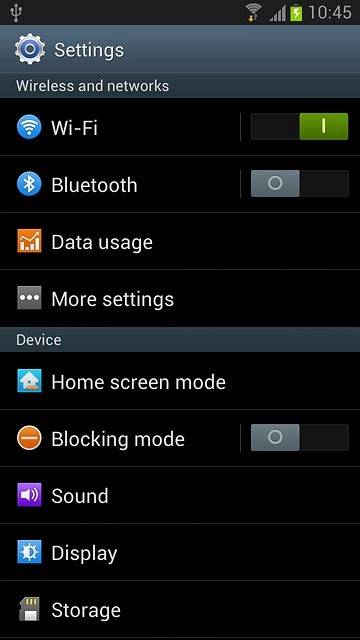

Press More settings.

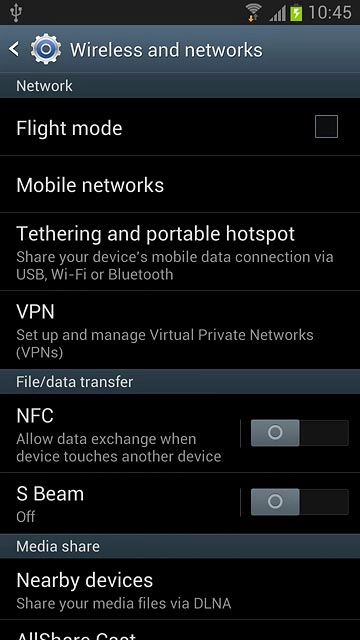

Step 4 of 52

Find "Access Point Names"

Press Mobile networks.

Step 5 of 52

Find "Access Point Names"

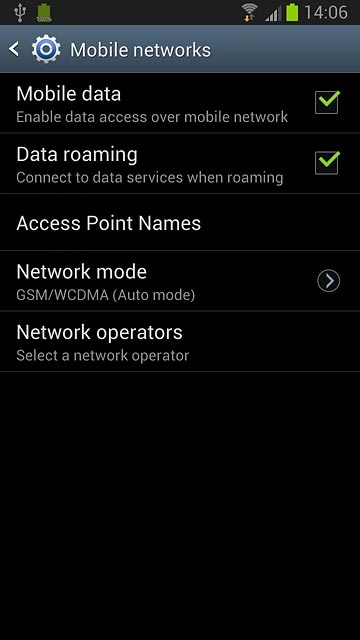

Press Access Point Names.

Step 6 of 52

Create new data connection

Press the Menu key.

Step 7 of 52

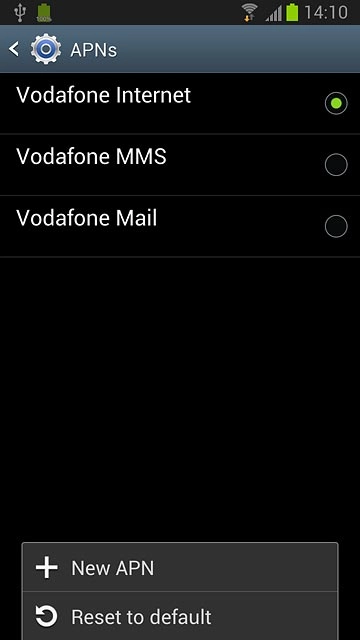

Create new data connection

Press New APN.

Step 8 of 52

Enter data connection name

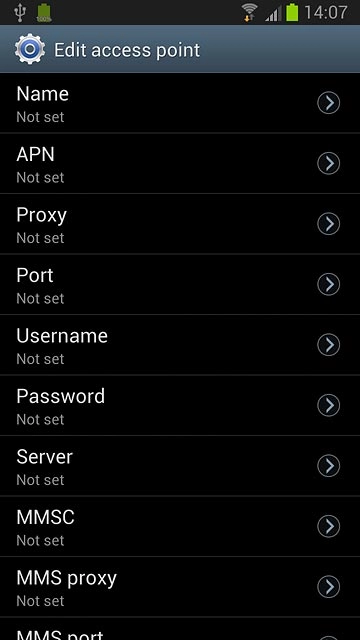

Press Name.

Step 9 of 52

Enter data connection name

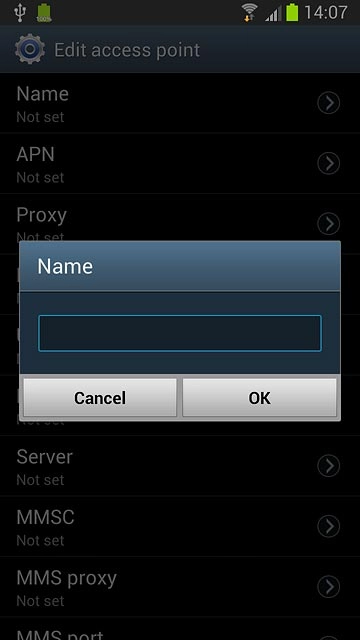

Key in Vodafone Mail and press OK.

Step 10 of 52

Enter APN

Press APN.

An APN is used to establish a data connection.
Step 11 of 52

Enter APN

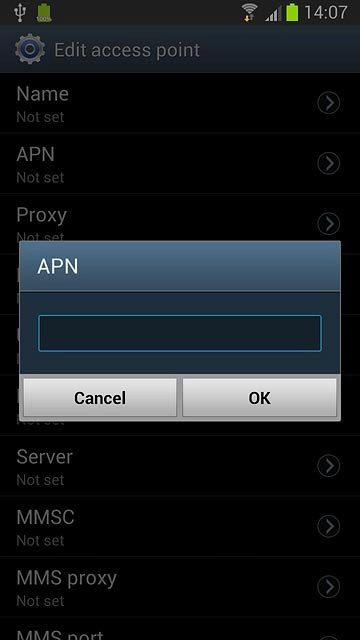

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 52

Enter country code

Press MCC.

Step 13 of 52

Enter country code

Key in 505 and press OK.

Step 14 of 52

Enter network code

Press MNC.

Step 15 of 52

Enter network code

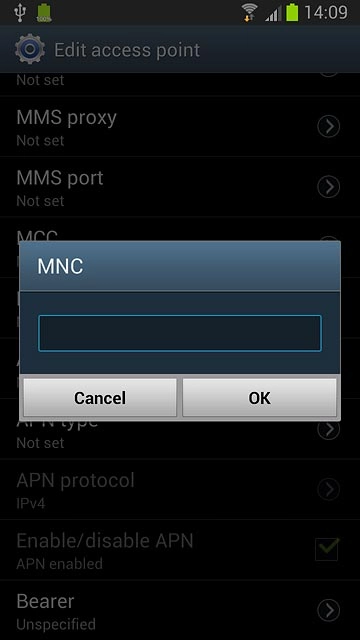

Key in 03 and press OK.

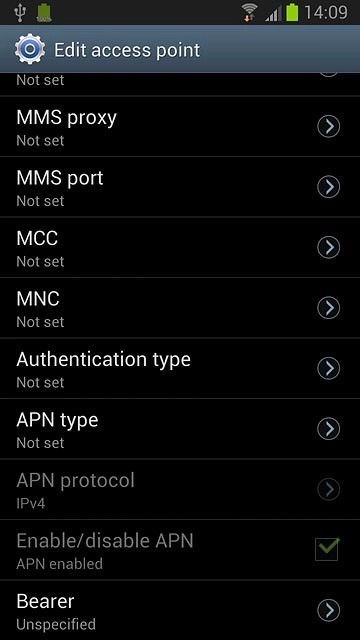

Step 16 of 52

Select authentication type

Press Authentication type.

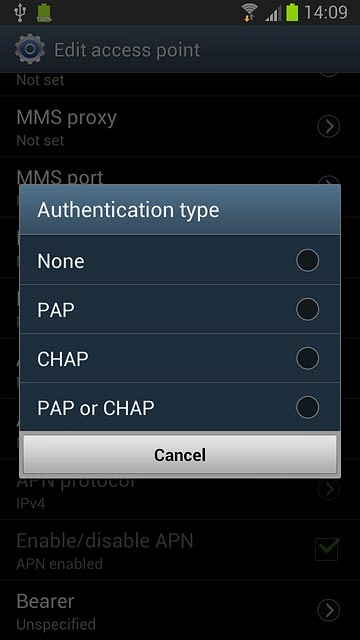

Step 17 of 52

Select authentication type

Press PAP.

Step 18 of 52

Select APN type

Press APN type.

Step 19 of 52

Select APN type

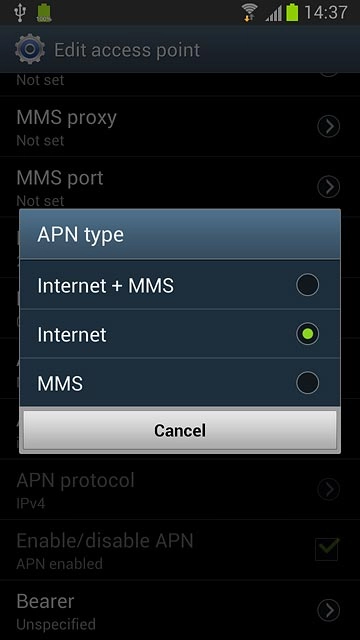

Press Internet.

Step 20 of 52

Save and activate data connection

Press the Menu key.

Step 21 of 52

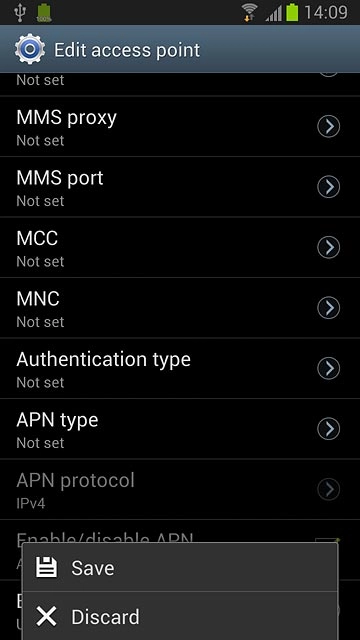

Save and activate data connection

Press Save.

Step 22 of 52

Save and activate data connection

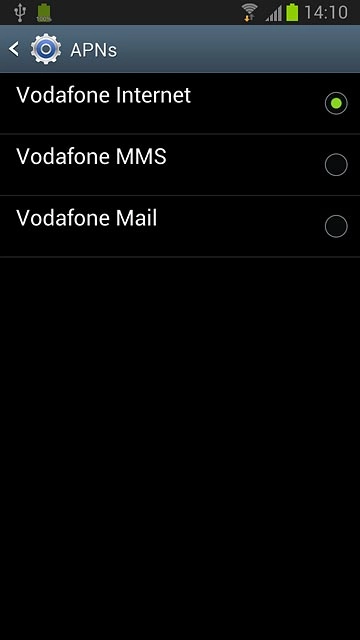

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 52

Save and activate data connection

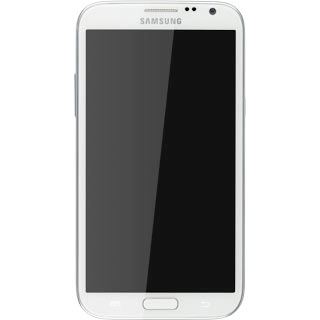

Press the Home key to return to standby mode.

Step 24 of 52

Find "Email"

Press Apps.

If email accounts have been created already, press the Menu key. Press Settings. Press the add account icon.
Step 25 of 52

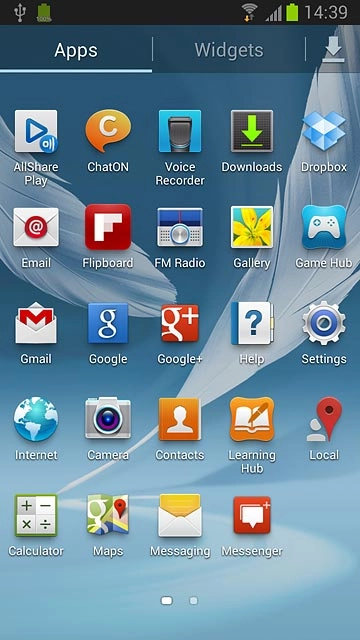

Find "Email"

Press Email.

If email accounts have been created already, press the Menu key. Press Settings. Press the add account icon.
Samsung Galaxy Note II
Step 26 of 52

Enter email address

Key in your email address.

Step 27 of 52

Enter password

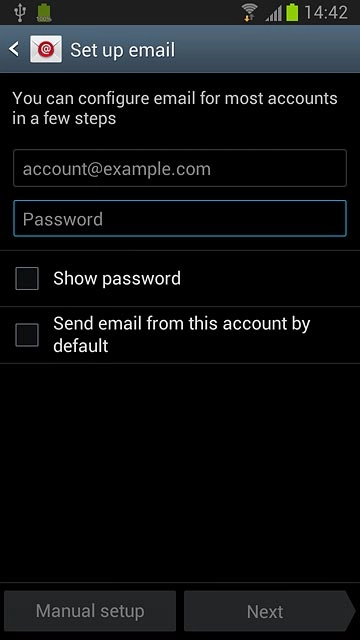

Press Password and key in the password for your email account.

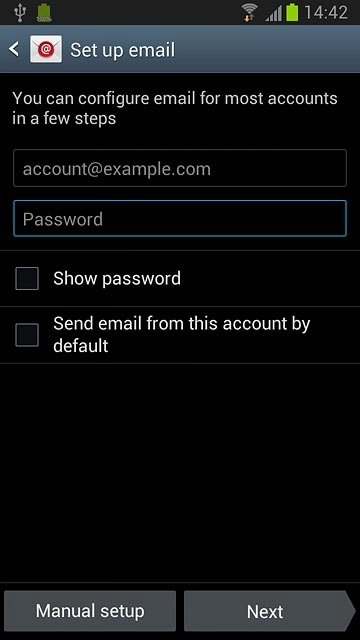

Step 28 of 52

Enter password

Press Next.

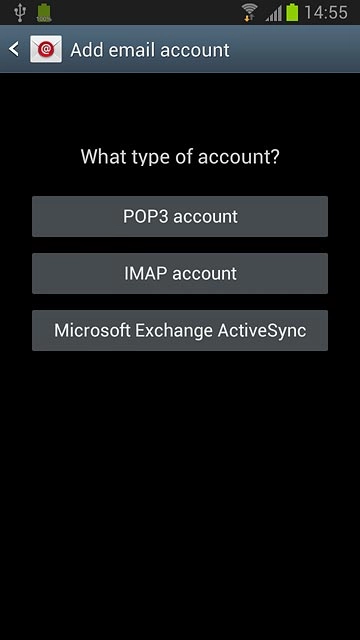

Step 29 of 52

Select server type

Press POP3 account.

Samsung Galaxy Note II
Step 30 of 52

Enter username

Key in the username for your email account.

Step 31 of 52

Enter incoming server

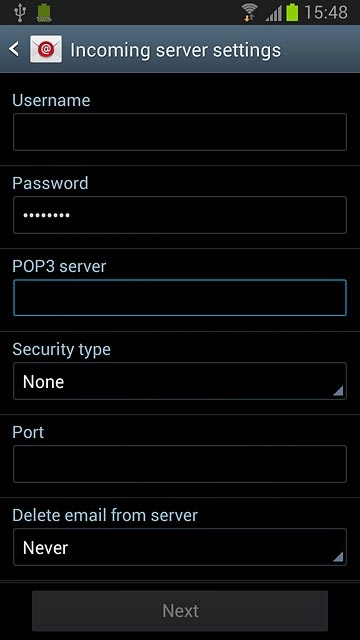

Press the field below POP3 server and key in the name or IP address of your email provider's incoming server.

Step 32 of 52

Turn encryption of incoming email messages on or off

Press the drop down list below Security type.

Step 33 of 52

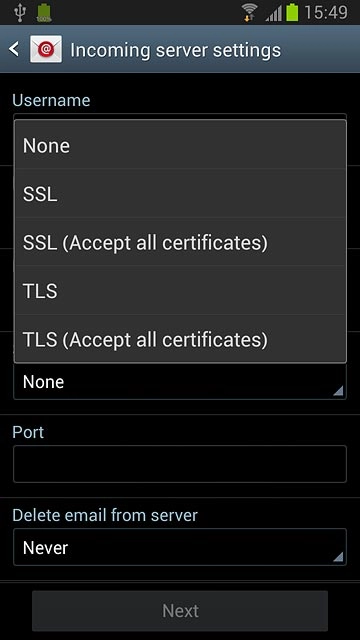

Turn encryption of incoming email messages on or off

Press None.

Step 34 of 52

Enter incoming port

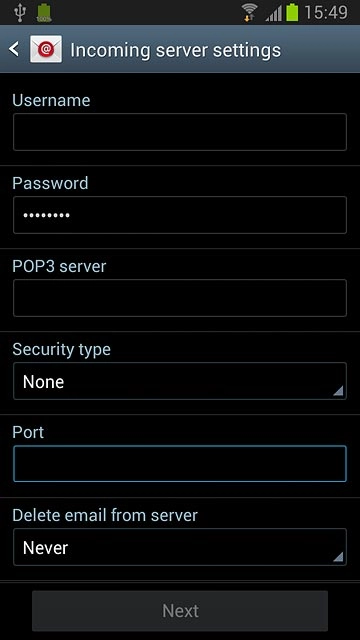

Press the field below Port and key in 110

Step 35 of 52

Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.

Step 36 of 52

Turn deletion of email messages on server on or off

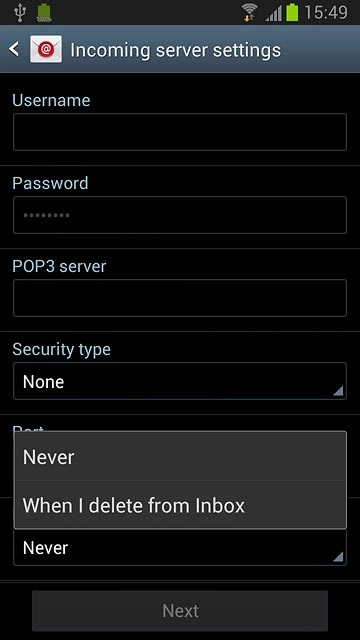

Press Never or When I delete from Inbox.

Step 37 of 52

Turn deletion of email messages on server on or off

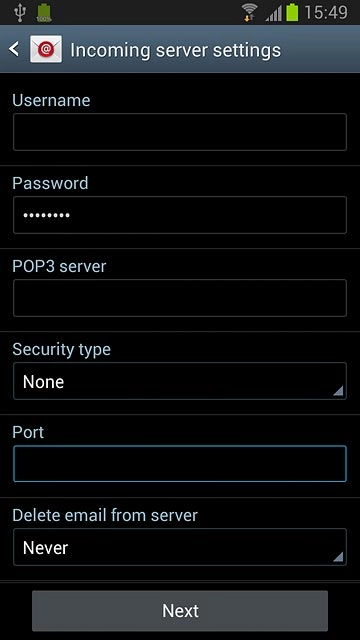

Press Next.

Samsung Galaxy Note II
Step 38 of 52

Enter outgoing server

Key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 39 of 52

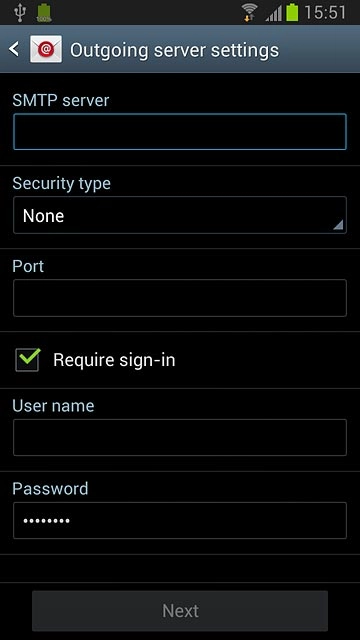

Turn off encryption of outgoing email messages

Press the drop down list below Security type.

Step 40 of 52

Turn off encryption of outgoing email messages

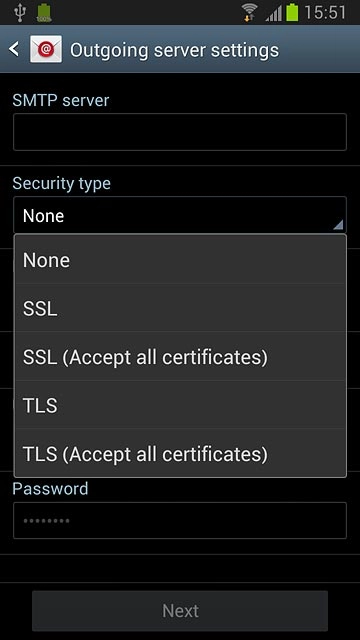

Press None.

Step 41 of 52

Enter outgoing port

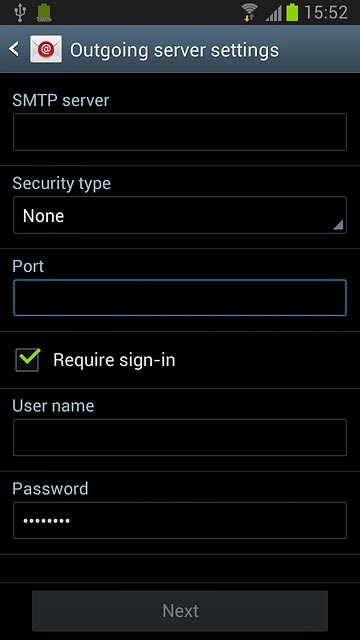

Press the field below Port and key in 25

Step 42 of 52

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 43 of 52

Turn SMTP authentication on or off

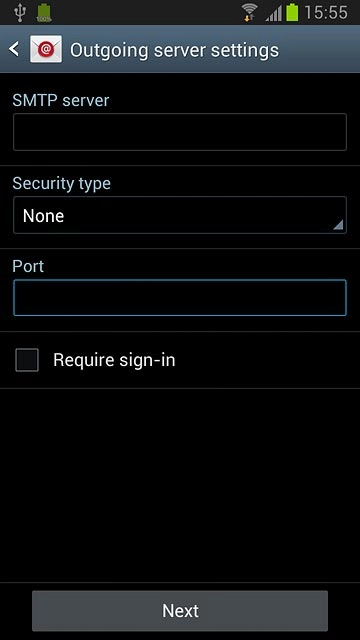

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

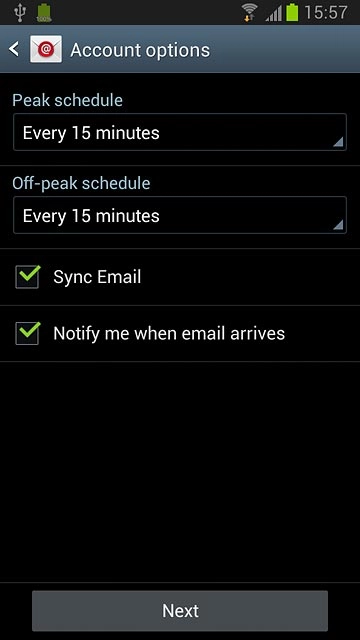

Step 44 of 52

Select setting for retrieving new email messages

Press the drop down list below Peak schedule.

Step 45 of 52

Select setting for retrieving new email messages

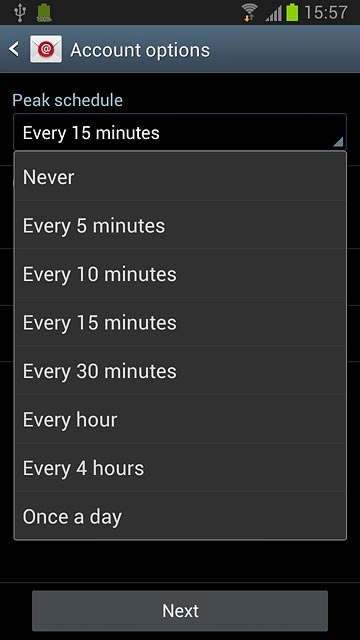

Press Never or the required period.

Step 46 of 52

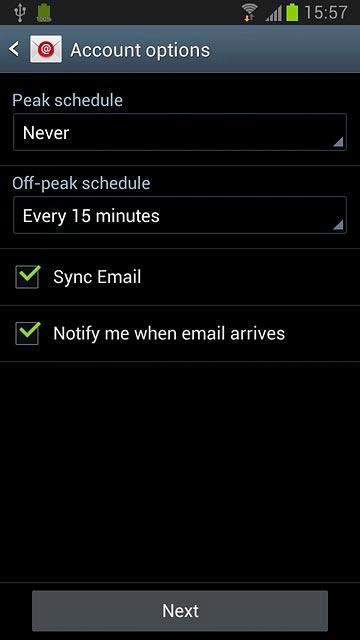

Select setting for retrieving new email messages

Press the drop down list below Off-peak schedule.

Step 47 of 52

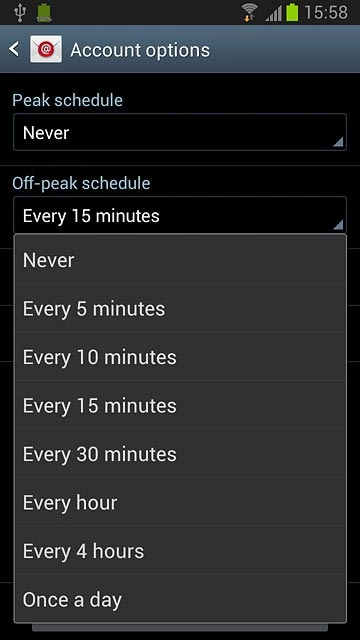

Select setting for retrieving new email messages

Press Never or the required period.

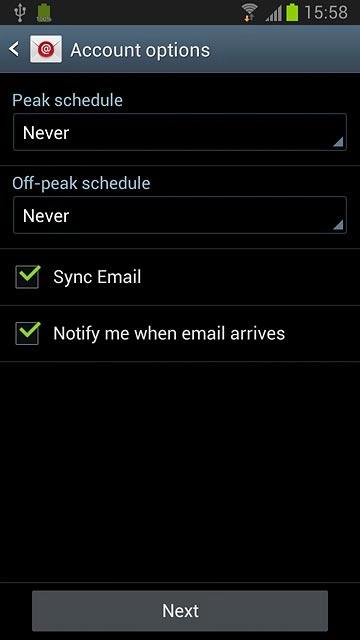

Step 48 of 52

Select setting for retrieving new email messages

Press Next.

Step 49 of 52

Enter email account name

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

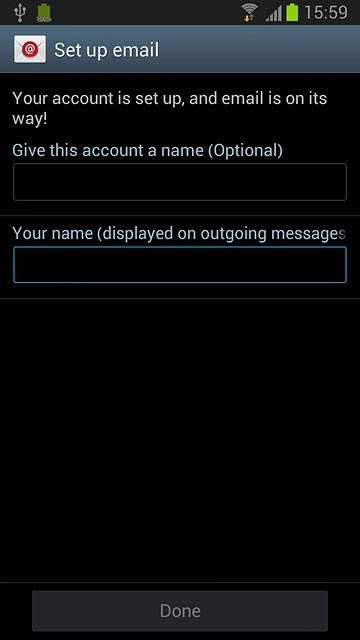

Step 50 of 52

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 51 of 52

Retrieve email messages

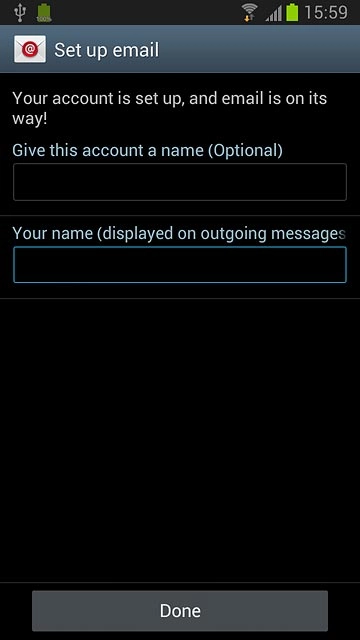

Press Done.
Wait while your phone retrieves new email messages.

Step 52 of 52

Exit

Press the Home key to return to standby mode.
