1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.

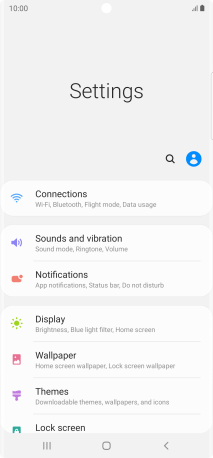

Press the settings icon.

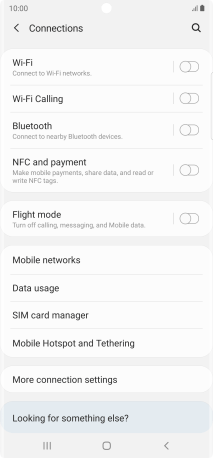

Press Connections.

Press Mobile networks.

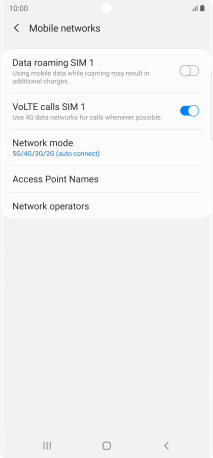

Press Access Point Names.

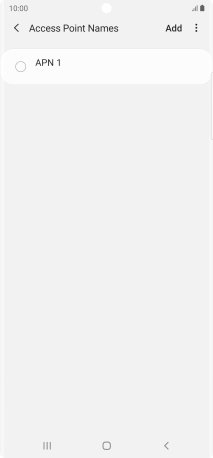

2. Create new data connection

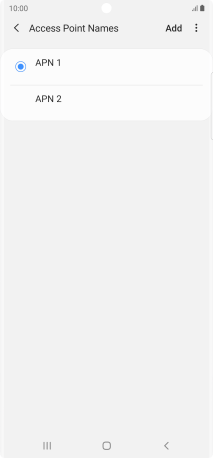

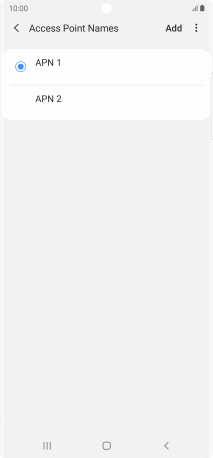

Press Add.

3. Enter a name for the connection

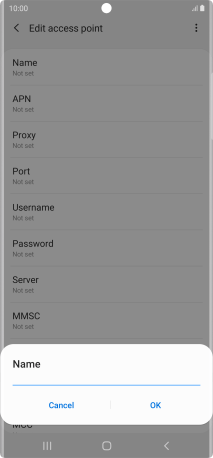

Press Name.

Key in Vodafone MMS and press OK.

Vodafone MMS

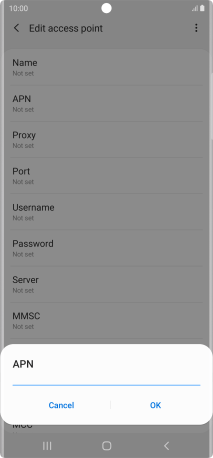

4. Enter APN
Press APN.

Key in live.vodafone.com and press OK.

live.vodafone.com

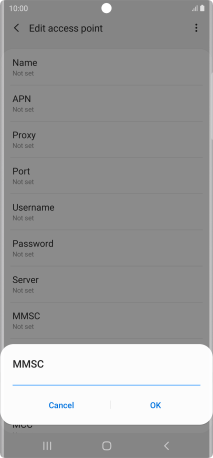

5. Enter MMSC

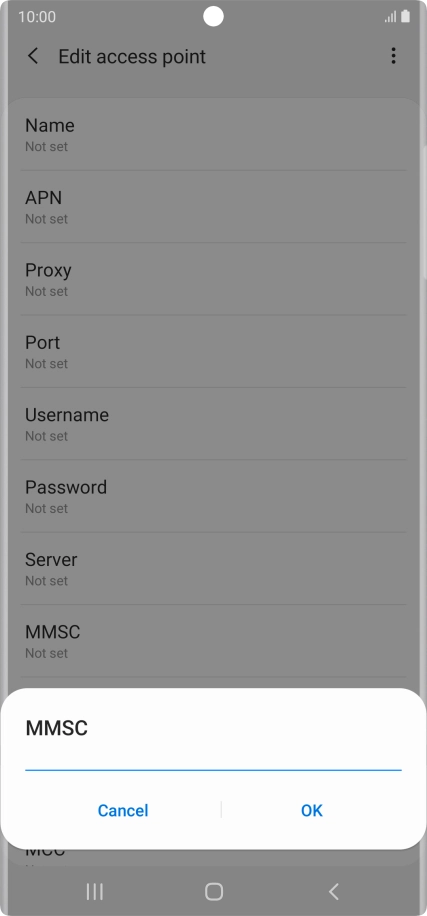

Press MMSC.

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

http://pxt.vodafone.net.au/pxtsend

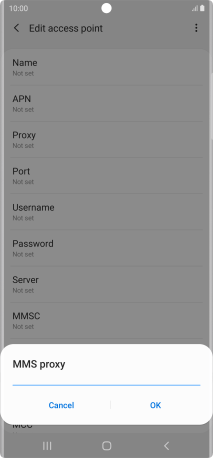

6. Enter IP address

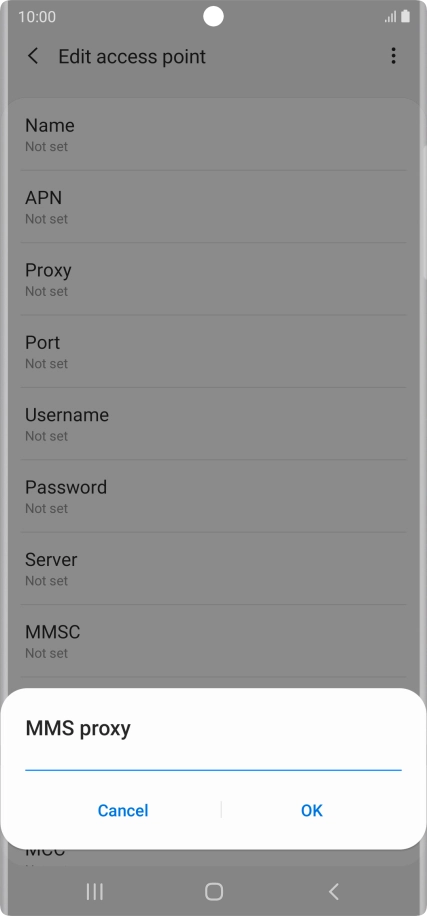

Press MMS proxy.

Key in 10.202.002.060 and press OK.

10.202.002.060

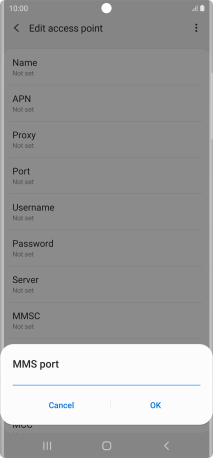

7. Enter port number

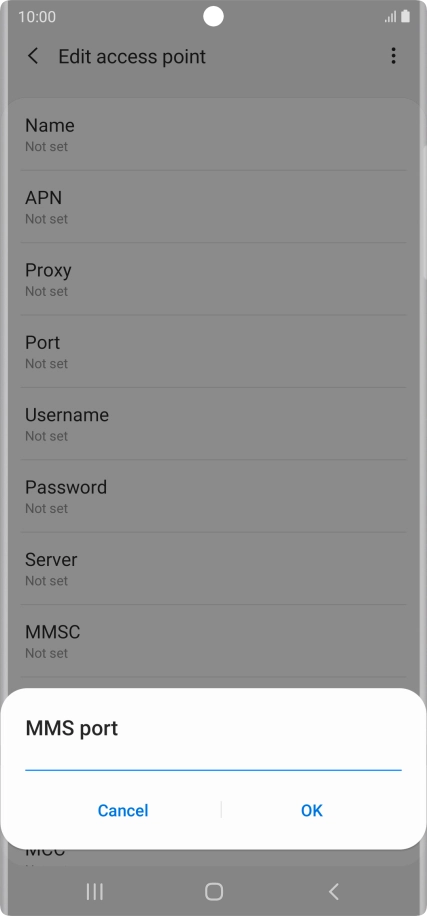

Press MMS port.

Key in 8080 and press OK.

8080

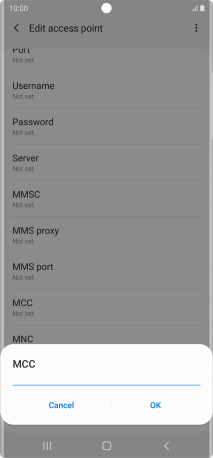

8. Enter country code
Press MCC.

Key in 505 and press OK.

505
9. Enter network code

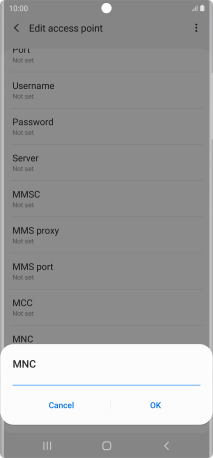

Press MNC.

Key in 03 and press OK.

03

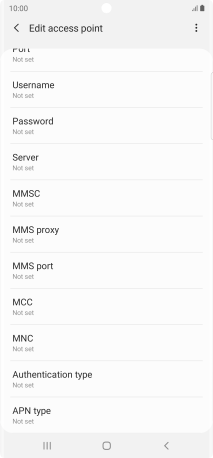

10. Select authentication type

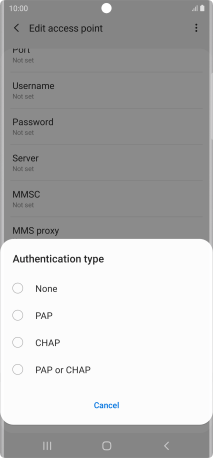

Press Authentication type.

Press PAP.

11. Enter APN type

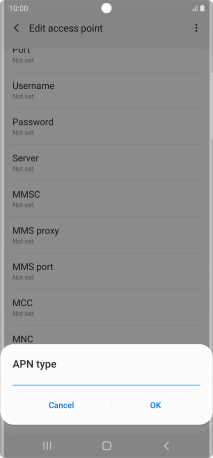

Press APN type.

Key in mms and press OK.

mms
12. Save data connection

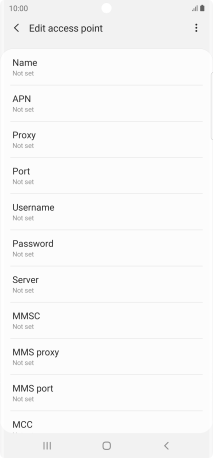

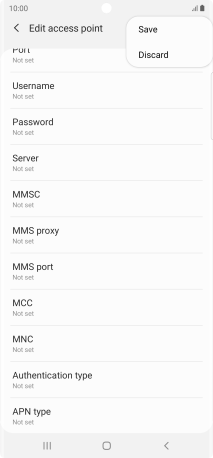

Press the menu icon.

Press Save.

13. Return to the home screen

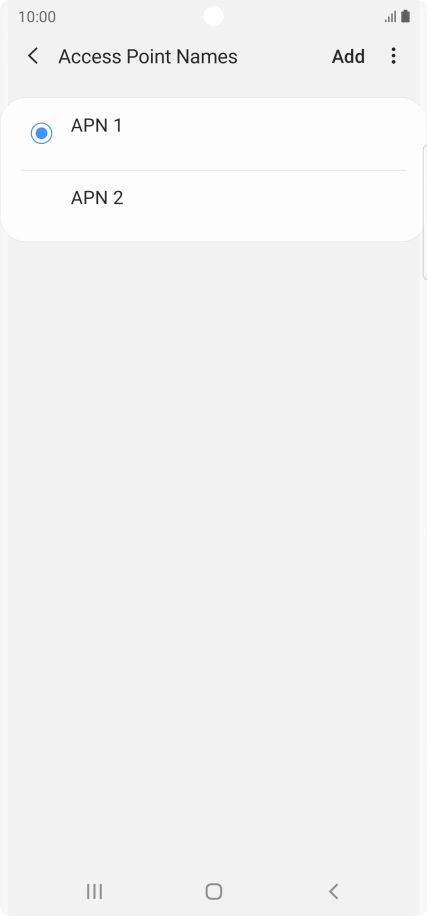

Press the Home key to return to the home screen.
