Set up your phone for Exchange email - Samsung Galaxy Pro 2

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 52

Find "Access Point Names"

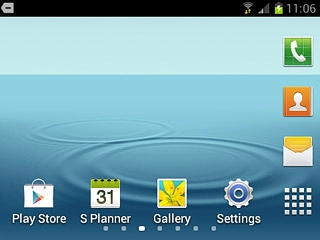

Press the menu icon.

Step 2 of 52

Find "Access Point Names"

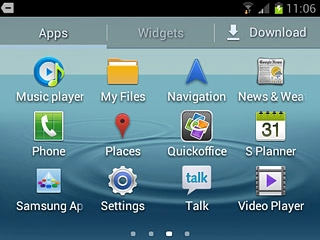

Press Settings.

Step 3 of 52

Find "Access Point Names"

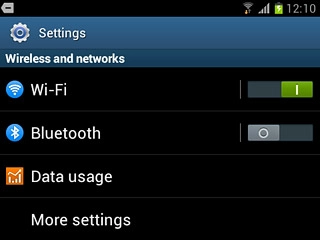

Press More settings.

Step 4 of 52

Find "Access Point Names"

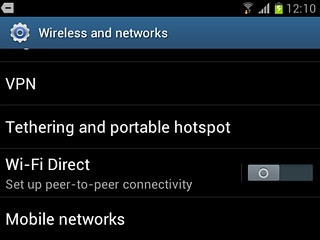

Press Mobile networks.

Step 5 of 52

Find "Access Point Names"

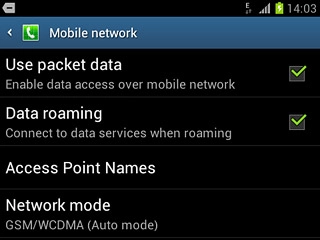

Press Access Point Names.

Step 6 of 52

Create new data connection

Press the Menu key.

Step 7 of 52

Create new data connection

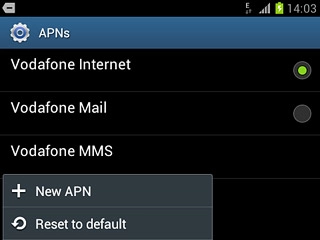

Press New APN.

Step 8 of 52

Enter data connection name

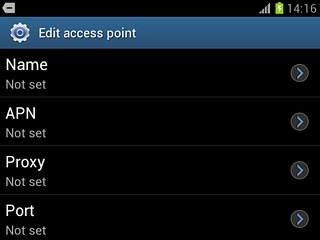

Press Name.

Step 9 of 52

Enter data connection name

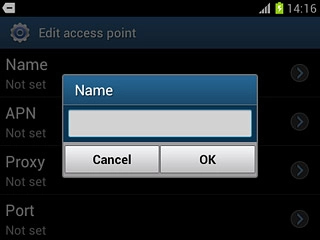

Key in Vodafone Mail and press OK.

Step 10 of 52

Enter APN

Press APN.

An APN is used to establish a data connection.
Step 11 of 52

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 52

Enter country code

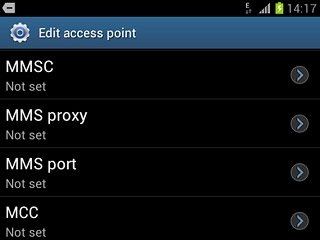

Press MCC.

Step 13 of 52

Enter country code

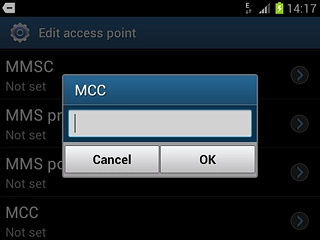

Key in 505 and press OK.

Step 14 of 52

Enter network code

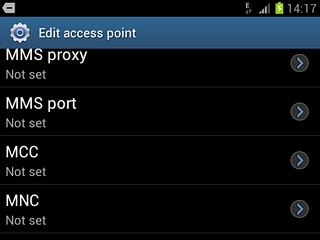

Press MNC.

Step 15 of 52

Enter network code

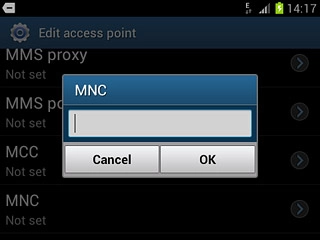

Key in 03 and press OK.

Step 16 of 52

Select authentication type

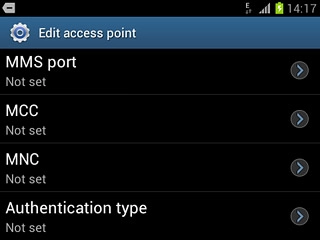

Press Authentication type.

Step 17 of 52

Select authentication type

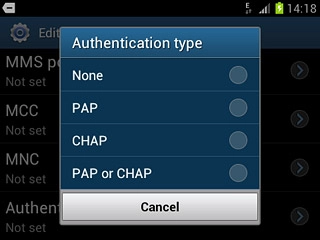

Press PAP.

Step 18 of 52

Select APN type

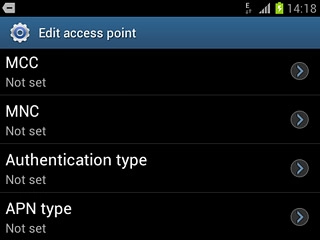

Press APN type.

Step 19 of 52

Select APN type

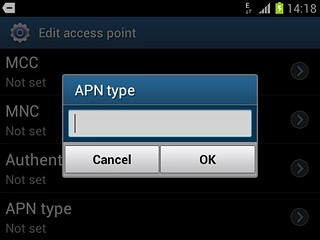

Key in default and press OK.

Step 20 of 52

Save and activate data connection

Press the Menu key.

Step 21 of 52

Save and activate data connection

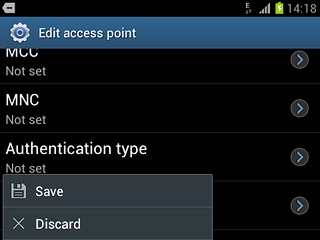

Press Save.

Step 22 of 52

Save and activate data connection

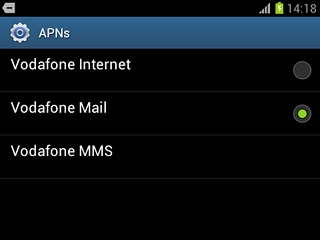

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 52

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 52

Find "Email"

Press the menu icon.

If email accounts have been created already, press the Menu key. Press Settings. Press Add account.
Step 25 of 52

Find "Email"

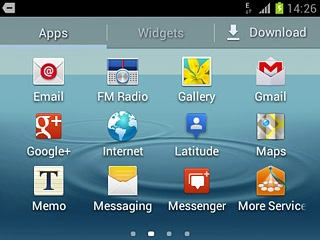

Press Email.

If email accounts have been created already, press the Menu key. Press Settings. Press Add account.
Samsung Galaxy Pro 2
Step 26 of 52

Enter email address

Key in your email address.

Step 27 of 52

Enter password

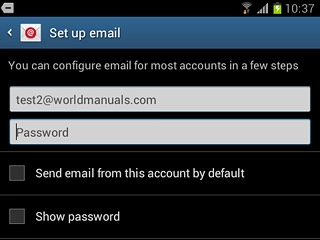

Press Password and key in your password.

Step 28 of 52

Enter password

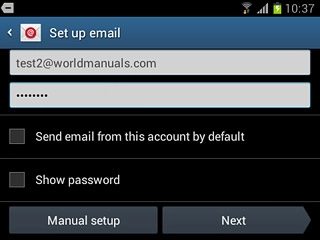

Press Manual setup.

Step 29 of 52

Select account type

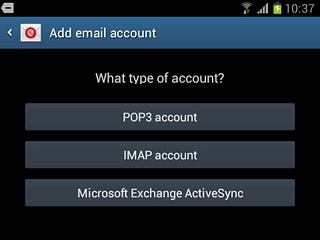

Press Microsoft Exchange ActiveSync.

Step 30 of 52

Enter domain and username

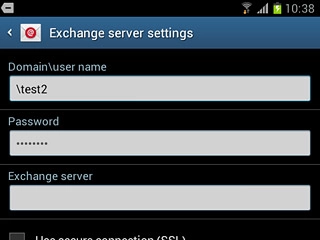

Press the field below Domain\user name.
Enter domain and username separated by a "\".

Step 31 of 52

Enter server address

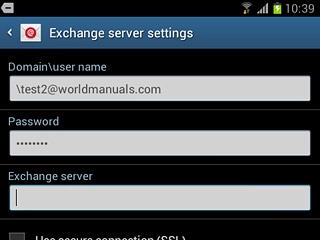

Press the field below Exchange server and key in the server address.

Step 32 of 52

Turn SSL encryption on or off

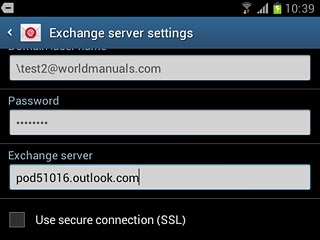

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 33 of 52

Turn SSL encryption on or off

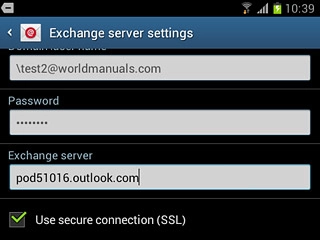

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 34 of 52

Turn SSL encryption on or off

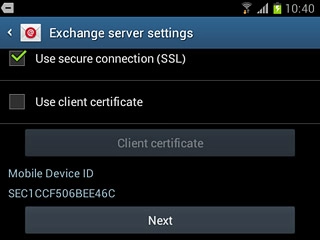

Press Next.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 35 of 52

Select interval for synchronisation

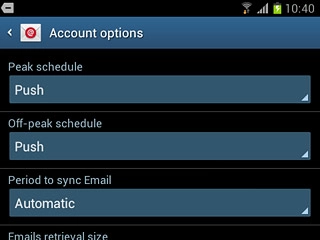

Press the drop down list below Peak schedule and Off-peak schedule.

Step 36 of 52

Select interval for synchronisation

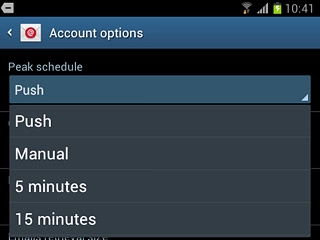

Press Push, Manual or the required interval.
Please note:
Each time your phone connects to the server to synchronise, data charges will apply.

Step 37 of 52

Select settings for synchronisation of email messages

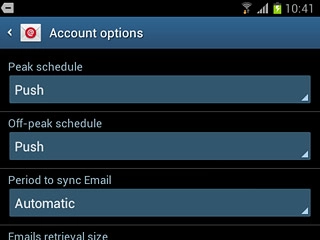

Press Period to sync Email.

Step 38 of 52

Select settings for synchronisation of email messages

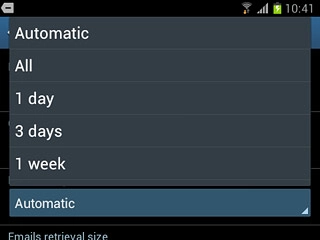

Press the required setting.

Step 39 of 52

Select setting for email message retrieval size

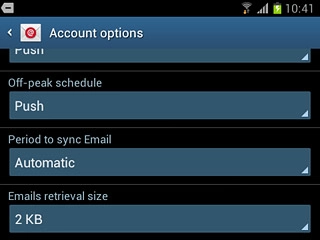

Press Emails retrieval size.

Step 40 of 52

Select setting for email message retrieval size

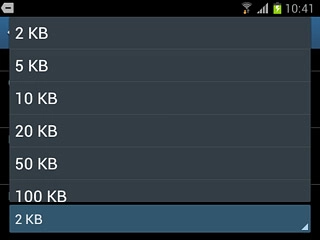

Press the required setting.

Step 41 of 52

Select setting for synchronisation of calendar

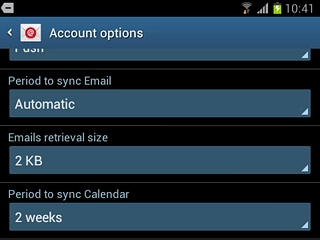

Press Period to sync Calendar.

Step 42 of 52

Select setting for synchronisation of calendar

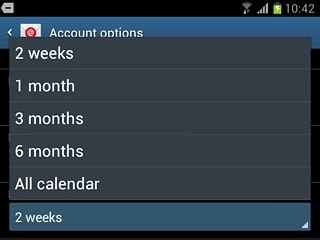

Press the required setting.

Step 43 of 52

Select data types for synchronisation

Press the following data types to turn synchronisation on or off:
Sync Email

Step 44 of 52

Select data types for synchronisation

Sync Contacts

Step 45 of 52

Select data types for synchronisation

Sync Calendar

Step 46 of 52

Select data types for synchronisation

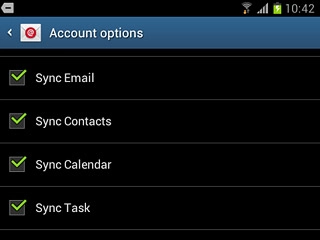

Sync Tasks

Step 47 of 52

Select data types for synchronisation

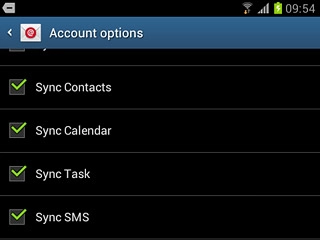

Sync SMS

Step 48 of 52

Select data types for synchronisation

When the menu item is ticked V, synchronisation is turned on.

Step 49 of 52

Select data types for synchronisation

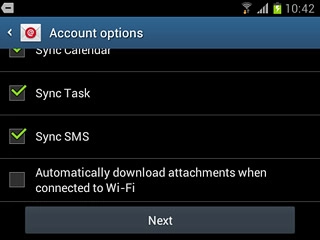

Press Next.

Samsung Galaxy Pro 2
Step 50 of 52

Enter email account name

Key in a name for your email account

Step 51 of 52

Finish setup

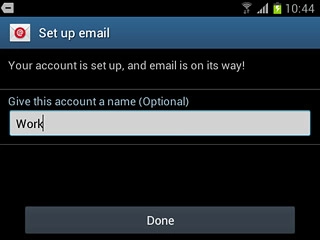

Press Done.

Step 52 of 52

Exit

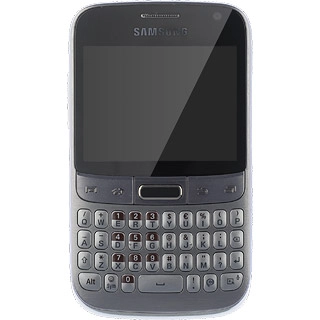

Press the Home key to return to standby mode.
