Guide for the Samsung Galaxy Pro 2 - Set up your phone for POP3 email

Step 1 of 50

Find "Access Point Names"

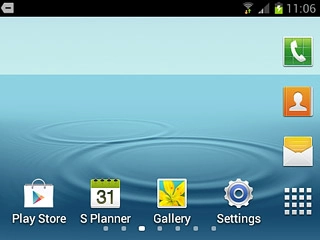

Press the menu icon.

Step 2 of 50

Find "Access Point Names"

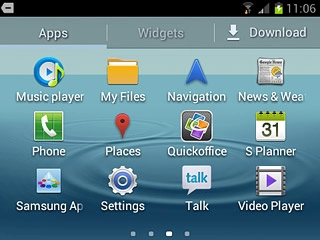

Press Settings.

Step 3 of 50

Find "Access Point Names"

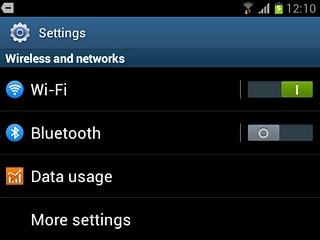

Press More settings.

Step 4 of 50

Find "Access Point Names"

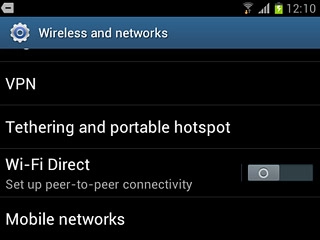

Press Mobile networks.

Step 5 of 50

Find "Access Point Names"

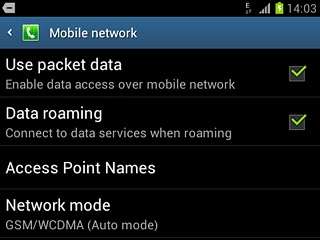

Press Access Point Names.

Step 6 of 50

Create new data connection

Press the Menu key.

Step 7 of 50

Create new data connection

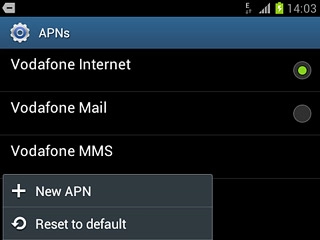

Press New APN.

Step 8 of 50

Enter data connection name

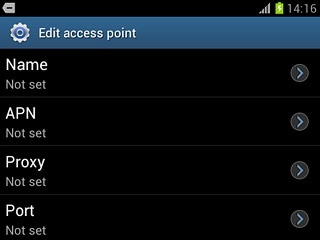

Press Name.

Step 9 of 50

Enter data connection name

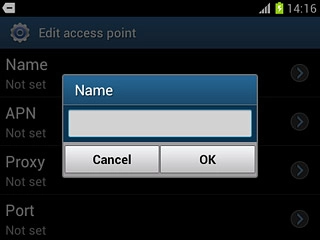

Key in Vodafone Mail and press OK.

Step 10 of 50

Enter APN

Press APN.

An APN is used to establish a data connection.

Step 11 of 50

Enter APN

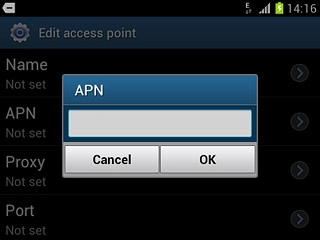

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.

Step 12 of 50

Enter country code

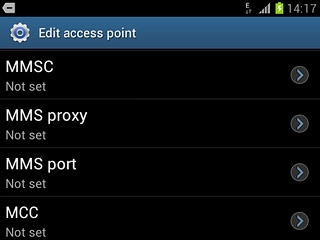

Press MCC.

Step 13 of 50

Enter country code

Key in 505 and press OK.

Step 14 of 50

Enter network code

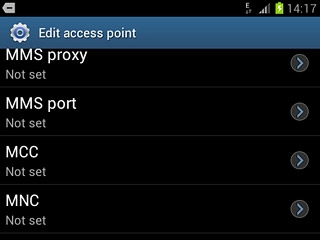

Press MNC.

Step 15 of 50

Enter network code

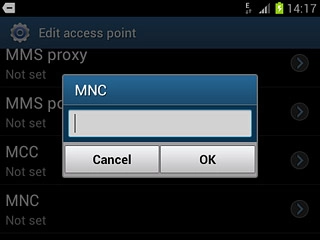

Key in 03 and press OK.

Step 16 of 50

Select authentication type

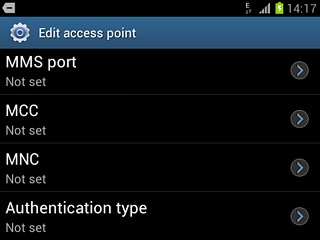

Press Authentication type.

Step 17 of 50

Select authentication type

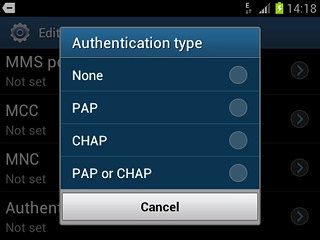

Press PAP.

Step 18 of 50

Select APN type

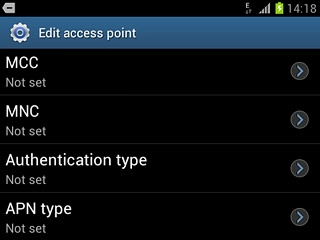

Press APN type.

Step 19 of 50

Select APN type

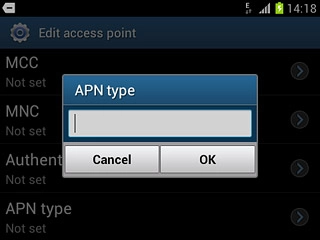

Key in default and press OK.

Step 20 of 50

Save and activate data connection

Press the Menu key.

Step 21 of 50

Save and activate data connection

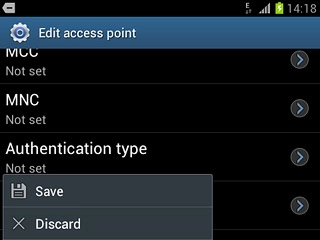

Press Save.

Step 22 of 50

Save and activate data connection

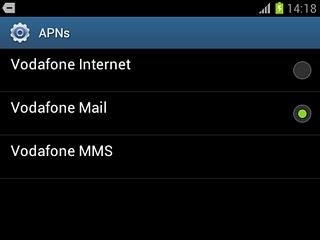

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 50

Save and activate data connection

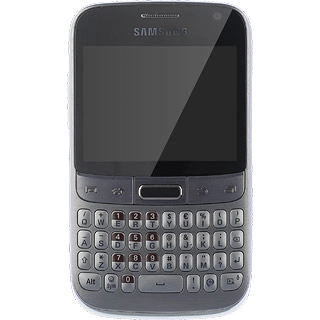

Press the Home key to return to standby mode.

Step 24 of 50

Find "Email"

Press the menu icon.

If email accounts have been created already, press the Menu key. Press Settings. Press Add account.

Step 25 of 50

Find "Email"

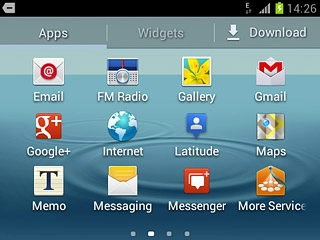

Press Email.

If email accounts have been created already, press the Menu key. Press Settings. Press Add account.

Step 26 of 50

Enter email address

Key in your email address.

Step 27 of 50

Enter password

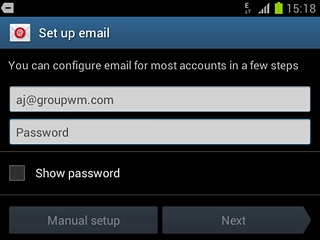

Press Password and key in the password for your email account.

Step 28 of 50

Enter password

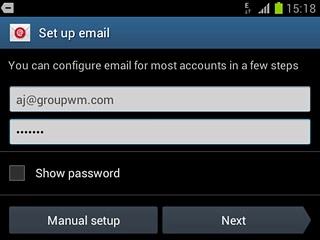

Press Next.

Step 29 of 50

Select server type

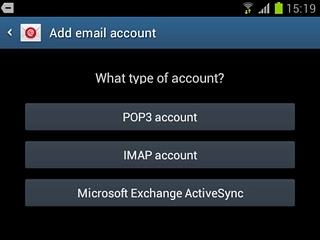

Press POP3 account.

Step 30 of 50

Enter username

Key in the username for your email account.

Step 31 of 50

Enter incoming server

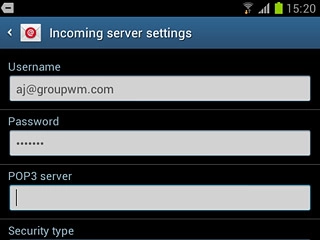

Press the field below POP3 server and key in the name or IP address of your email provider's incoming server.

Step 32 of 50

Turn off encryption of incoming email messages

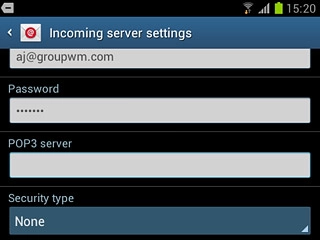

Press the drop down list below Security type.

Step 33 of 50

Turn off encryption of incoming email messages

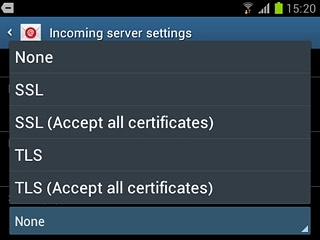

Press None.

Step 34 of 50

Enter incoming port

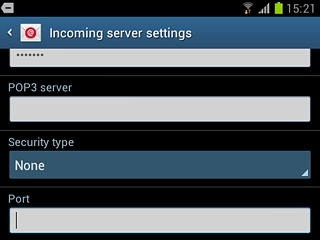

Press the field below Port and key in 110

Step 35 of 50

Turn off deletion of email messages on server

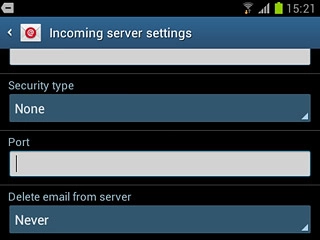

Press the drop down list below Delete email from server.

Step 36 of 50

Turn off deletion of email messages on server

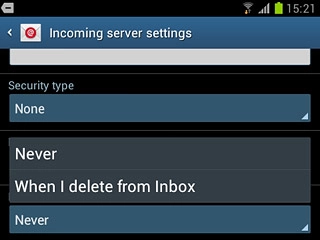

Press Never or When I delete from Inbox.

Step 37 of 50

Turn off deletion of email messages on server

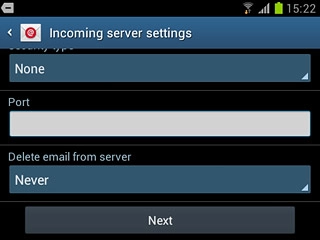

Press Next.

Step 38 of 50

Enter outgoing server

Key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 39 of 50

Turn off encryption of outgoing email messages

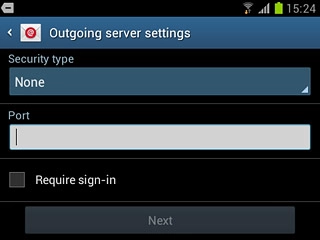

Press the drop down list below Security type.

Step 40 of 50

Turn off encryption of outgoing email messages

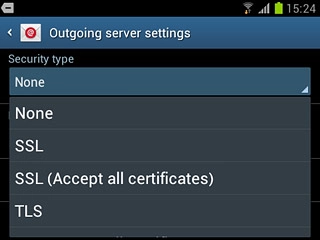

Press None.

Step 41 of 50

Enter outgoing port

Press the field below Port and key in 25

Step 42 of 50

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 43 of 50

Turn SMTP authentication on or off

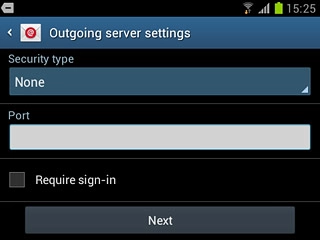

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 44 of 50

Select setting for retrieving new email messages

Press the drop down list below Email check frequency.

Step 45 of 50

Select setting for retrieving new email messages

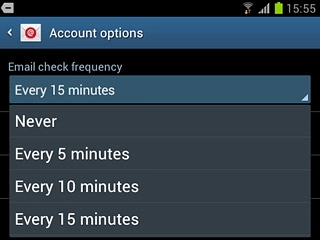

Press Never or the required period.

Step 46 of 50

Select setting for retrieving new email messages

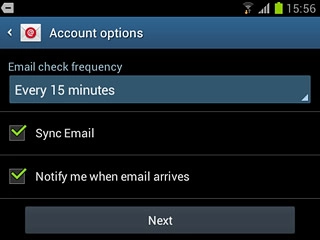

Press Next.

Step 47 of 50

Enter email account name

Key in a name for your email account

Step 48 of 50

Enter sender name

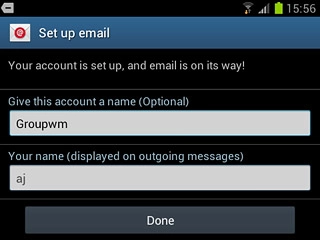

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 49 of 50

Retrieve email messages

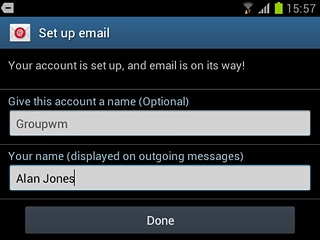

Press Done.
Wait while your phone retrieves new email messages.

Step 50 of 50

Exit

Press the Home key to return to standby mode.
