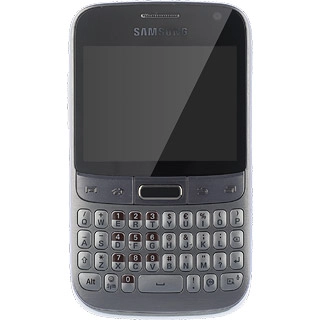

Samsung Galaxy Pro 2

Find "Screen lock"

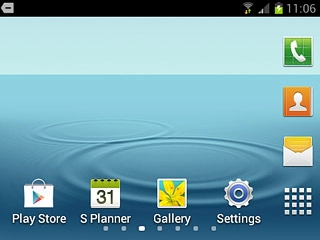

Press the menu icon.

Find "Screen lock"

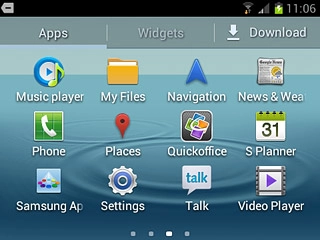

Press Settings.

Find "Screen lock"

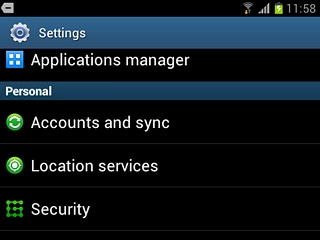

Press Security.

Find "Screen lock"

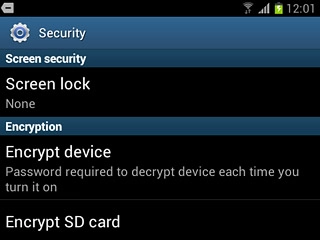

Press Screen lock.

Select option

Select one of the following options:
Create phone lock code using swipe, go to 2a.
Create phone lock code using a pattern, go to 2b.
Create phone lock code using a finger touch, go to 2c.
Create phone lock code using a PIN, go to 2d.
Create phone lock code using a password, go to 2e.
Turn off use phone lock code, go to 2f.

2a - Create phone lock code using swipe

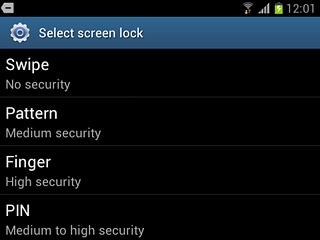

Press Swipe.

2b - Create phone lock code using a pattern

Press Pattern.

2b - Create phone lock code using a pattern

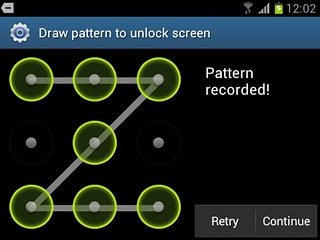

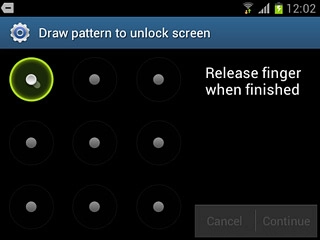

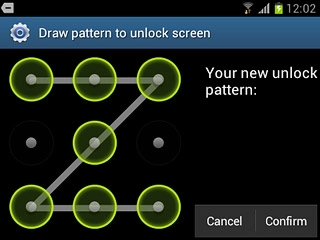

Press and drag a point to connect at least four points.

2b - Create phone lock code using a pattern

Press Continue.
Repeat the selected phone lock code to confirm.

2b - Create phone lock code using a pattern

Press Confirm.

2c - Create phone lock code using finger touch

Press Finger.

2c - Create phone lock code using finger touch

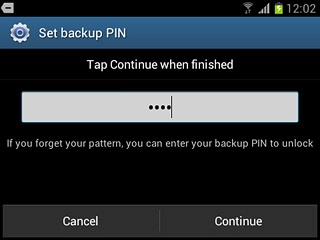

Key in the required backup PIN and press Continue.

2c - Create phone lock code using finger touch

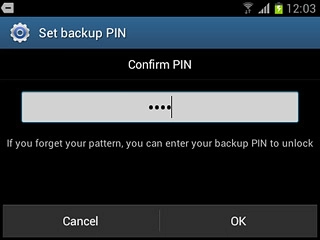

Key in the backup PIN again and press OK.

2c - Create phone lock code using finger touch

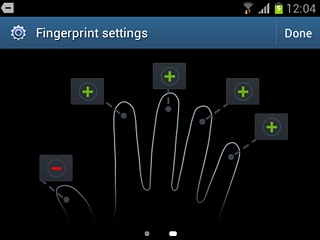

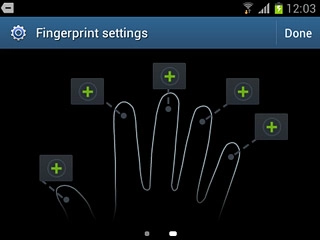

Press + next to the required finger.

2c - Create phone lock code using finger touch

Slide the selected finger over the fingerprint reader the necessary number of times.

2c - Create phone lock code using finger touch

Press Done.

2d - Create phone lock code using a PIN

Press PIN.

2d - Create phone lock code using a PIN

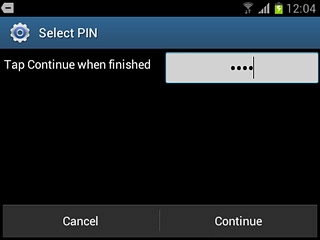

Key in the required phone lock code and press Continue.

2d - Create phone lock code using a PIN

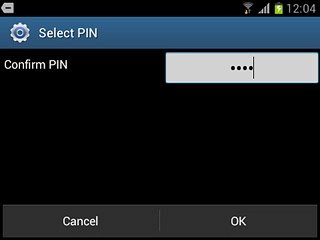

Key in the phone lock code again and press OK.

2e - Create phone lock code using a password

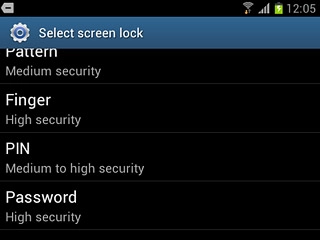

Press Password.

2e - Create phone lock code using a password

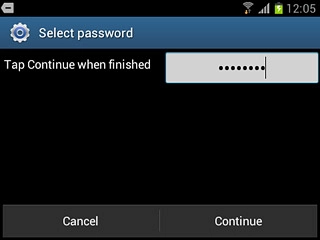

Key in the required phone lock code and press Continue.

2e - Create phone lock code using a password

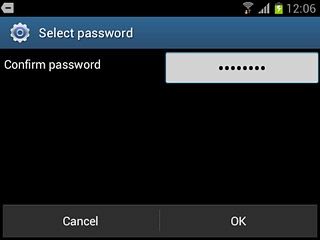

Key in the phone lock code again and press OK.

2f - Turn off phone lock code

Press None.

Exit

Press the Home key to return to standby mode.
