Set up your phone for Exchange email - Samsung Galaxy S II

Read help info

Follow these instructions to set up your phone for Exchange email.

Step 1 of 58

Find "Access Point Names"

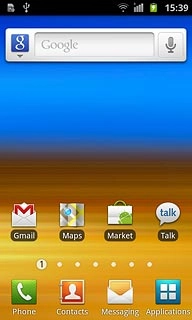

Press Applications.

Step 2 of 58

Find "Access Point Names"

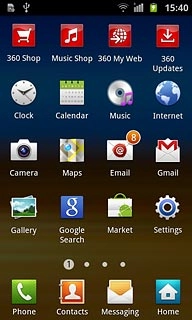

Press Settings.

Step 3 of 58

Find "Access Point Names"

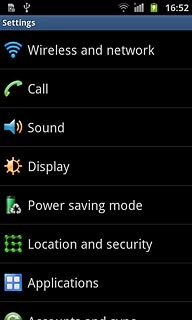

Press Wireless and network.

Step 4 of 58

Find "Access Point Names"

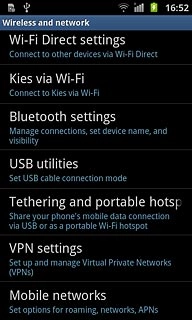

Press Mobile networks.

Step 5 of 58

Find "Access Point Names"

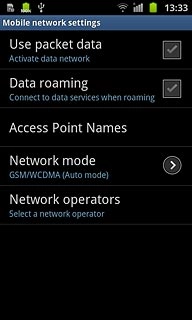

Press Access Point Names.

Step 6 of 58

Create new data connection

Press the Menu key.

Step 7 of 58

Create new data connection

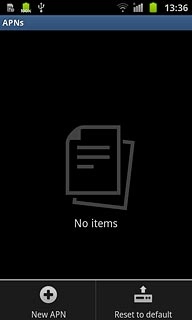

Press New APN.

Step 8 of 58

Enter data connection name

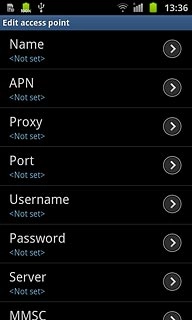

Press Name.

Step 9 of 58

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 58

Enter APN

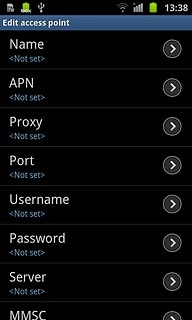

Press APN.
Key in live.vodafone.com

Step 11 of 58

Enter APN

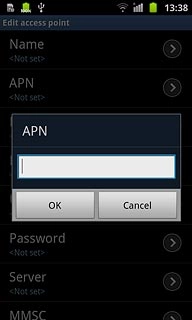

Press OK.

Step 12 of 58

Enter country code

Press MCC.

Step 13 of 58

Enter country code

Key in 505 and press OK.

Step 14 of 58

Enter network code

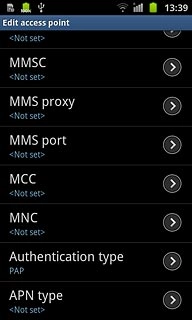

Press MNC.

Step 15 of 58

Enter network code

Key in 03 and press OK.

Step 16 of 58

Select authentication type

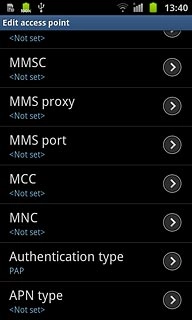

Press Authentication type.

Step 17 of 58

Select authentication type

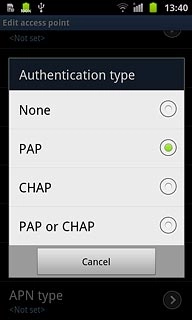

Press PAP.

Step 18 of 58

Select APN type

Press APN type.

Step 19 of 58

Select APN type

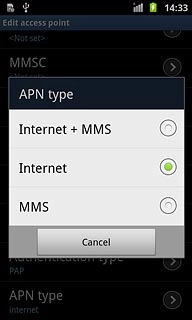

Press Internet.

Step 20 of 58

Save and activate data connection

Press the Menu key.

Step 21 of 58

Save and activate data connection

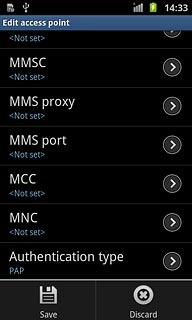

Press Save.

Step 22 of 58

Save and activate data connection

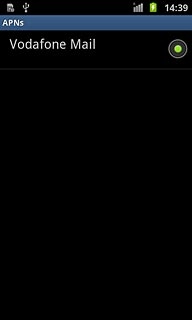

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 58

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 58

Find "Microsoft Exchange ActiveSync"

Press Applications.

Step 25 of 58

Find "Microsoft Exchange ActiveSync"

Press Settings.

Step 26 of 58

Find "Microsoft Exchange ActiveSync"

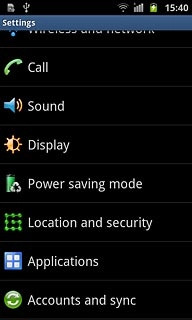

Press Accounts and sync.

Step 27 of 58

Find "Microsoft Exchange ActiveSync"

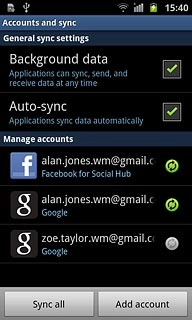

Press Add account.

Step 28 of 58

Find "Microsoft Exchange ActiveSync"

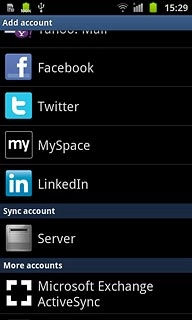

Press Microsoft Exchange ActiveSync.

Step 29 of 58

Enter email address

Press account@example.com and key in your email address.

Step 30 of 58

Enter password

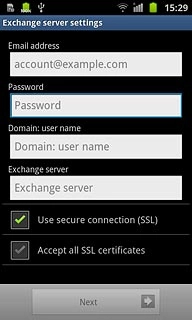

Press Password and key in your password.

Step 31 of 58

Enter domain and username

Press the field below Domain: user name and key in the domain and username separated by a "\".

Step 32 of 58

Enter server address

Press Exchange server and key in the server address.

Step 33 of 58

Turn SSL encryption on or off

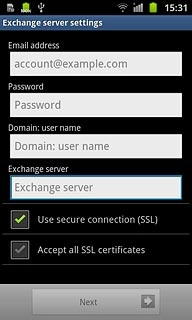

Press Use secure connection (SSL) to turn SSL encryption on or off.

Step 34 of 58

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 35 of 58

Turn SSL encryption on or off

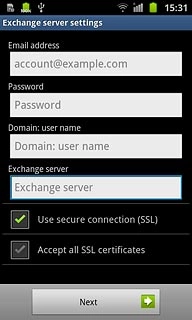

Press Next.

Step 36 of 58

Turn SSL encryption on or off

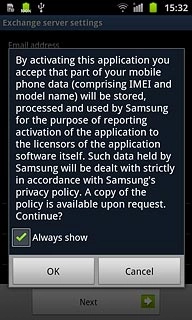

Press OK to confirm.

Step 37 of 58

Select interval for synchronisation

Press the drop down list below Peak schedule.

Step 38 of 58

Select interval for synchronisation

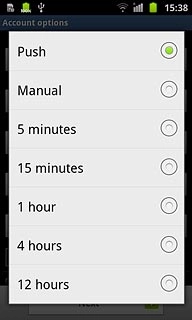

Press Push, Manual or the required frequency.

Step 39 of 58

Select interval for synchronisation

Press the drop down list below Off-peak schedule.

Step 40 of 58

Select interval for synchronisation

Press Push, Manual or the required frequency.
Please note:
Every time your phone connects to the server to synchronise, data charges will apply.

Step 41 of 58

Select settings for synchronisation of email messages

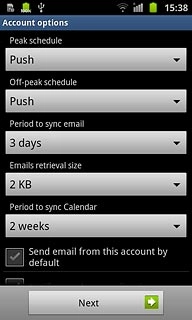

Press Period to sync email.

Step 42 of 58

Select settings for synchronisation of email messages

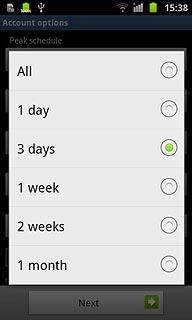

Press the required setting.

Step 43 of 58

Select settings for synchronisation of email messages

Press Emails retrieval size.

Step 44 of 58

Select settings for synchronisation of calendar

Press Period to sync Calendar.

Step 45 of 58

Select settings for synchronisation of calendar

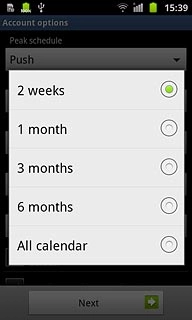

Press the required setting.

Step 46 of 58

Select default email account

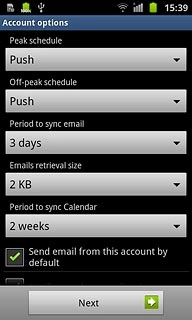

Press Send email from this account by default to turn the function on or off.

Step 47 of 58

Select default email account

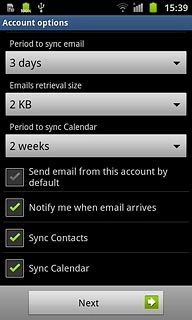

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 58

Turn automatic synchronisation of contacts on or off

Press Sync Contacts to turn the function on or off.

Step 49 of 58

Turn automatic synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 58

Turn automatic synchronisation of calendar on or off

Press Sync Calendar to turn the function on or off.

Step 51 of 58

Turn automatic synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 58

Turn automatic synchronisation of tasks on or off

Press Sync Task to turn the function on or off.

Step 53 of 58

Turn automatic synchronisation of tasks on or off

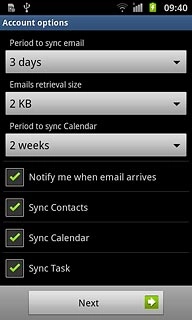

When the box next to the menu item is ticked (V), the function is turned on.

Step 54 of 58

Turn automatic synchronisation of tasks on or off

Press Next.

Step 55 of 58

Enter account name

Press the field below Give this account a name (Optional) and key in the required name.

Step 56 of 58

Finish setup

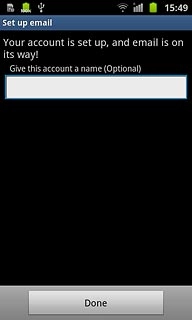

Press Done.

Step 57 of 58

Finish setup

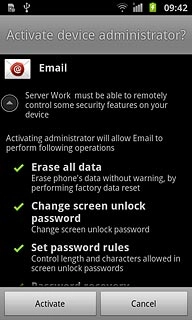

Press Activate.

Step 58 of 58

Exit

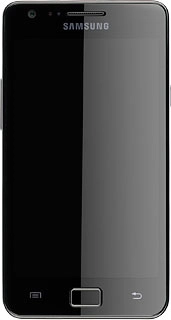

Press the Home key to return to standby mode.
