Guide for the Samsung Galaxy S II - Set up your phone for POP3 email

Step 1 of 53

Find "Access Point Names"

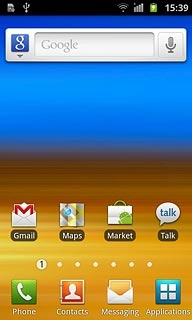

Press Applications.

Step 2 of 53

Find "Access Point Names"

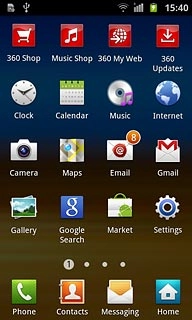

Press Settings.

Step 3 of 53

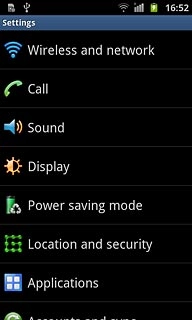

Find "Access Point Names"

Press Wireless and network.

Step 4 of 53

Find "Access Point Names"

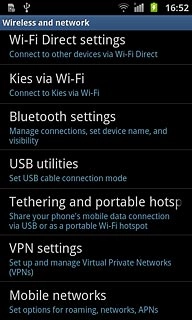

Press Mobile networks.

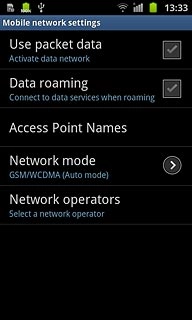

Step 5 of 53

Find "Access Point Names"

Press Access Point Names.

Step 6 of 53

Create new data connection

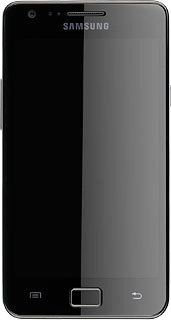

Press the Menu key.

Step 7 of 53

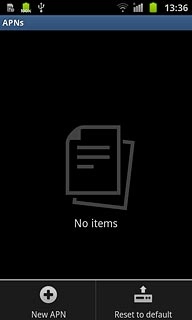

Create new data connection

Press New APN.

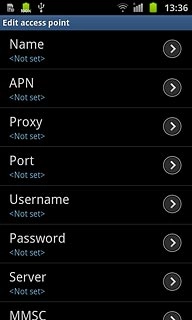

Step 8 of 53

Enter data connection name

Press Name.

Step 9 of 53

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 53

Enter APN

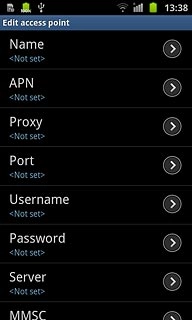

Press APN.
Key in live.vodafone.com

Step 11 of 53

Enter APN

Press OK.

Step 12 of 53

Enter country code

Press MCC.

Step 13 of 53

Enter country code

Key in 505 and press OK.

Step 14 of 53

Enter network code

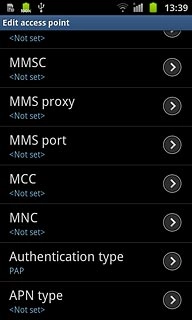

Press MNC.

Step 15 of 53

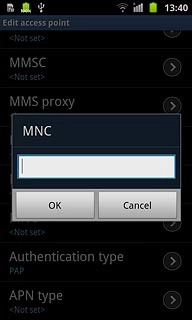

Enter network code

Key in 03 and press OK.

Step 16 of 53

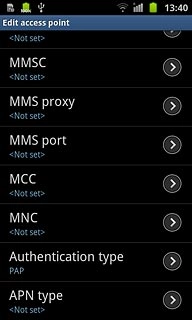

Select authentication type

Press Authentication type.

Step 17 of 53

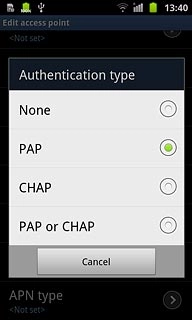

Select authentication type

Press PAP.

Step 18 of 53

Select APN type

Press APN type.

Step 19 of 53

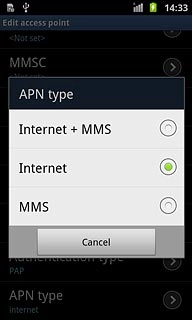

Select APN type

Press Internet.

Step 20 of 53

Save and activate data connection

Press the Menu key.

Step 21 of 53

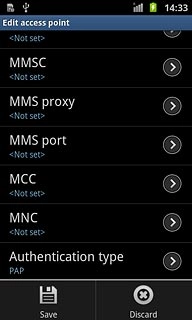

Save and activate data connection

Press Save.

Step 22 of 53

Save and activate data connection

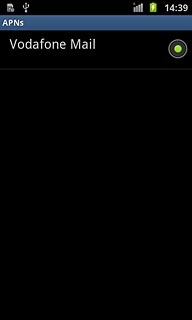

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 53

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 53

Find "Email"

Press Applications.

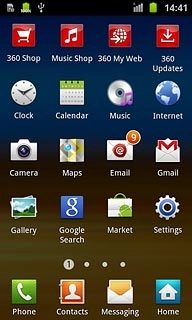

Step 25 of 53

Find "Email"

Press Email.

Step 26 of 53

Create new email account

If email accounts have been created already:

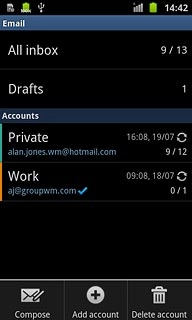

Press the field in the top left corner of the display.

Step 27 of 53

Create new email account

Press the Menu key.

Step 28 of 53

Create new email account

Press Add account.

Step 29 of 53

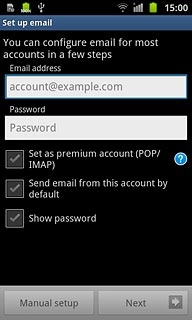

Enter email address

Press account@example.com and key in your email address.

Step 30 of 53

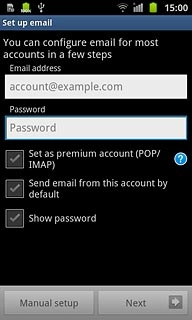

Enter password

Press Password and key in the password for your email account.

Step 31 of 53

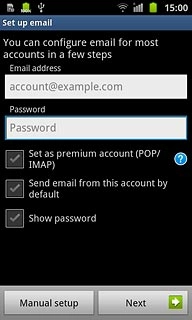

Enter password

Press Next.

Step 32 of 53

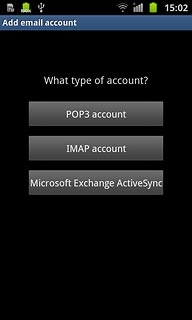

Select server type

Press POP3 account.

Step 33 of 53

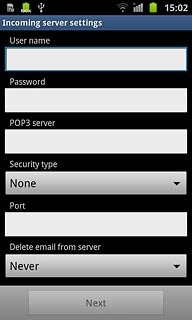

Enter username

Press the field below User name and key in the username for your email account.

Step 34 of 53

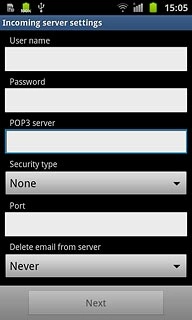

Enter incoming server

Press the field below POP3 server and key in the name or IP address of your email provider's incoming server.

Step 35 of 53

Turn encryption of incoming email messages on or off

Press the drop down list below Security type.

Step 36 of 53

Turn encryption of incoming email messages on or off

Press None.

Step 37 of 53

Enter incoming port

Press the field below Port and key in 110

Step 38 of 53

Turn deletion of email messages on server on or off

Press the drop down list below Delete email from server.

Step 39 of 53

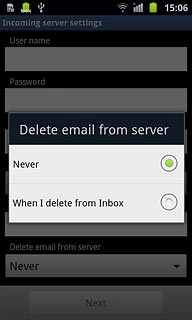

Turn deletion of email messages on server on or off

Press Never or When I delete from Inbox.

Step 40 of 53

Turn deletion of email messages on server on or off

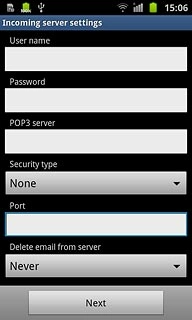

Press Next.

Step 41 of 53

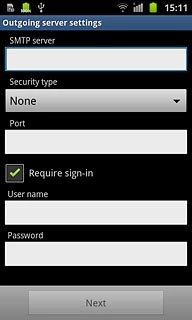

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 42 of 53

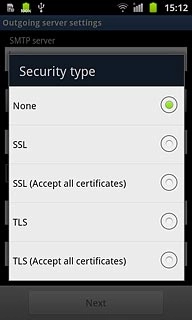

Turn off encryption of outgoing email messages

Press the drop down list below Security type.

Step 43 of 53

Turn off encryption of outgoing email messages

Press None.

Step 44 of 53

Enter outgoing port

Press the field below Port and key in 25

Step 45 of 53

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 46 of 53

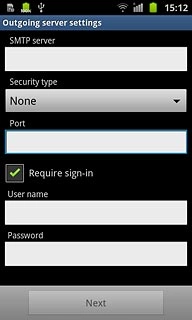

Turn SMTP authentication on or off

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 47 of 53

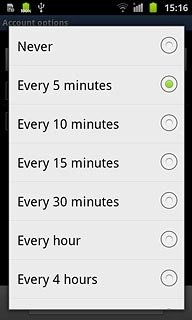

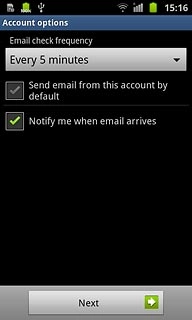

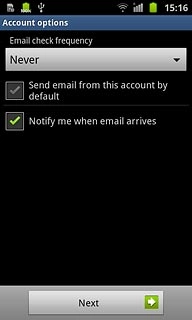

Select setting for retrieving new email messages

Press the drop down list below Email check frequency.

Step 48 of 53

Select setting for retrieving new email messages

Press the required period.

Step 49 of 53

Select setting for retrieving new email messages

Press Next.

Step 50 of 53

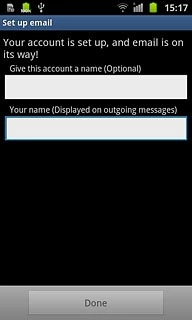

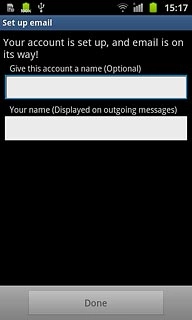

Enter email account name

Press the field below Give this account a name (Optional) and key in a name for your email account (such as Private or Work).

Step 51 of 53

Enter sender name

Press the field below Your name (Displayed on outgoing messages) and key in the required sender name.

Step 52 of 53

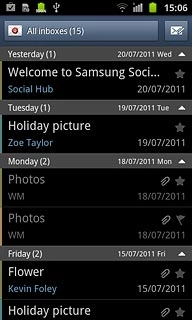

Retrieve email messages

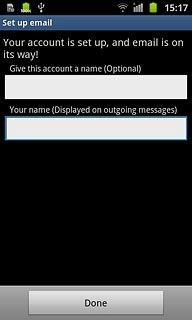

Press Done.
Wait while your phone retrieves new email messages.

Step 53 of 53

Exit

Press the Home key to return to standby mode.
