Set up your phone for picture messaging - Samsung Galaxy S4

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 30

Find "Access Point Names"

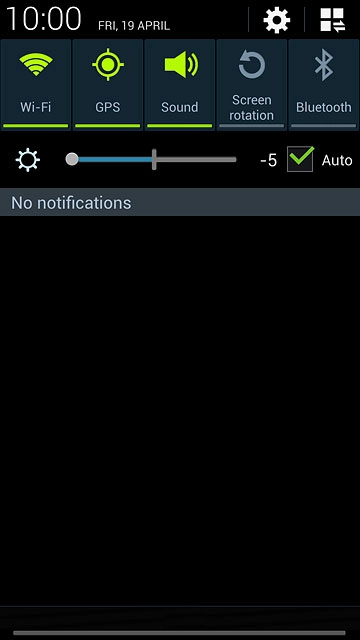

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.

Step 2 of 30

Find "Access Point Names"

Press the Connections tab.

Step 3 of 30

Find "Access Point Names"

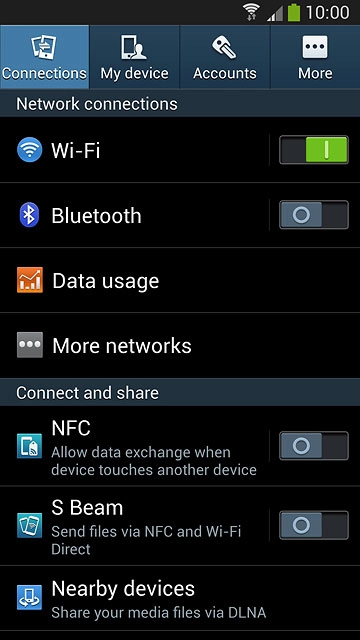

Press More networks.

Step 4 of 30

Find "Access Point Names"

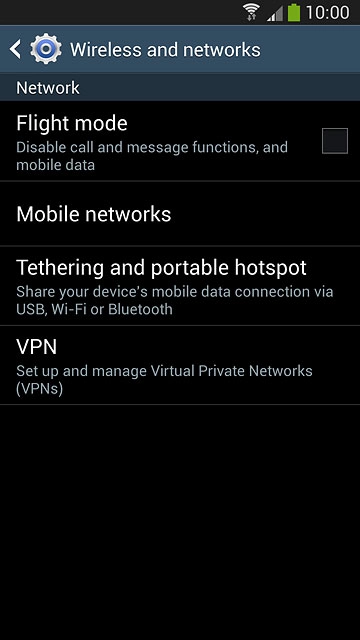

Press Mobile networks.

Step 5 of 30

Find "Access Point Names"

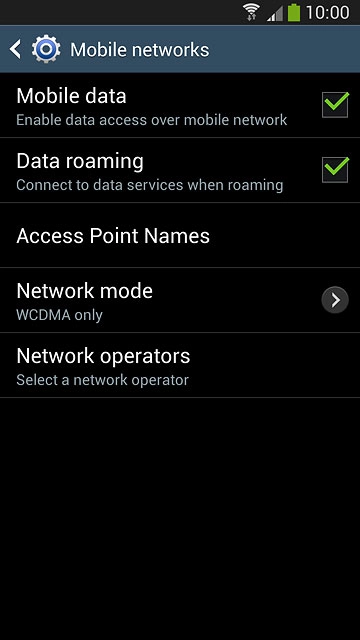

Press Access Point Names.

Step 6 of 30

Create new data connection

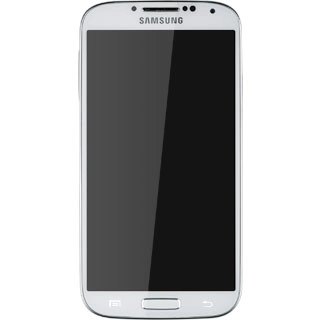

Press the Menu key.

Step 7 of 30

Create new data connection

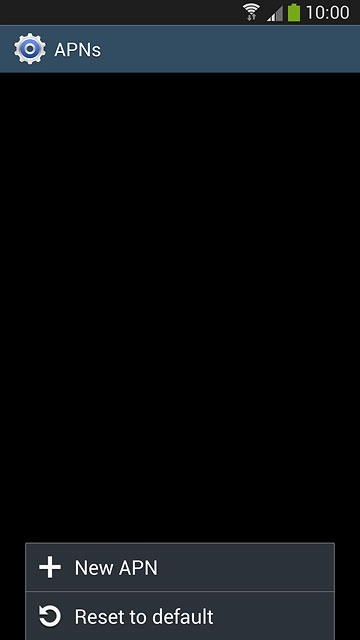

Press New APN.

Step 8 of 30

Enter data connection name

Press Name.

Step 9 of 30

Enter data connection name

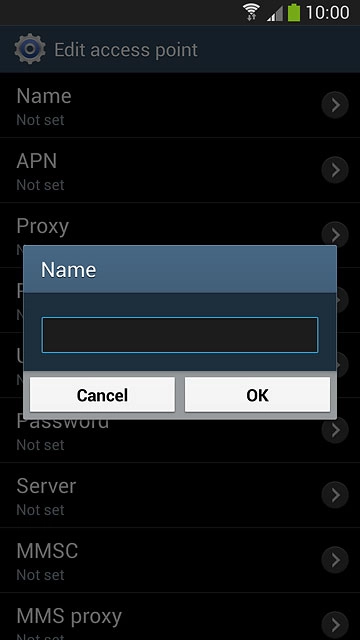

Key in Vodafone MMS and press OK.

Step 10 of 30

Enter APN

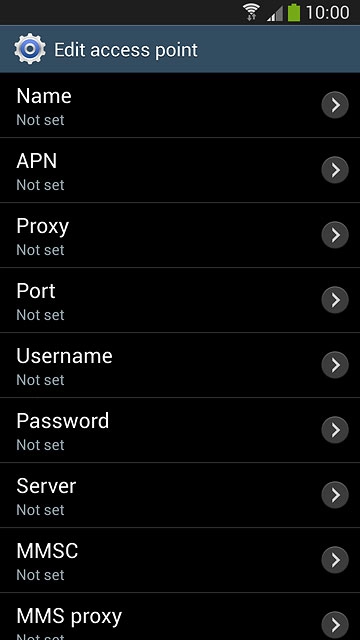

Press APN.

Step 11 of 30

Enter APN

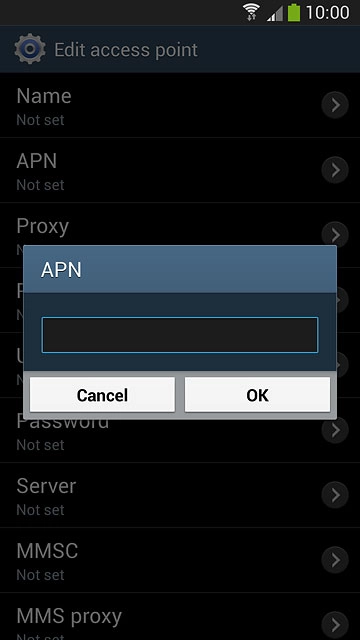

Key in live.vodafone.com and press OK.

Step 12 of 30

Enter picture messaging server

Press MMSC.

Step 13 of 30

Enter picture messaging server

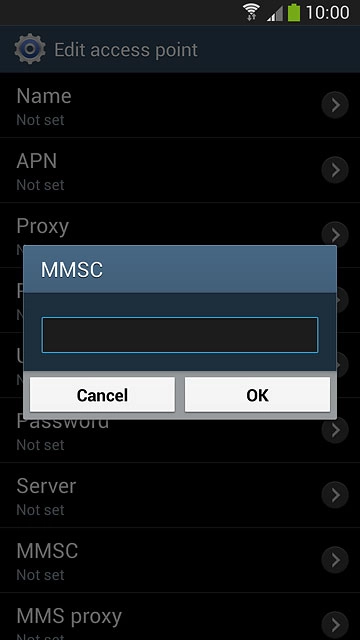

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 30

Enter IP address

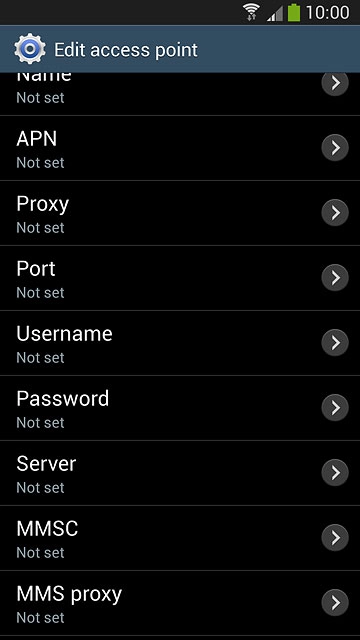

Press MMS proxy.

Step 15 of 30

Enter IP address

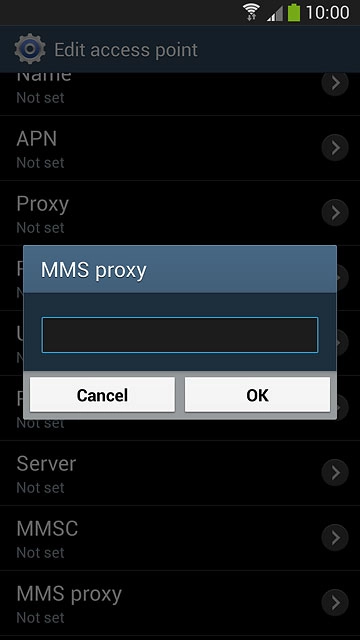

Key in 10.202.2.60 and press OK.

Step 16 of 30

Enter port number

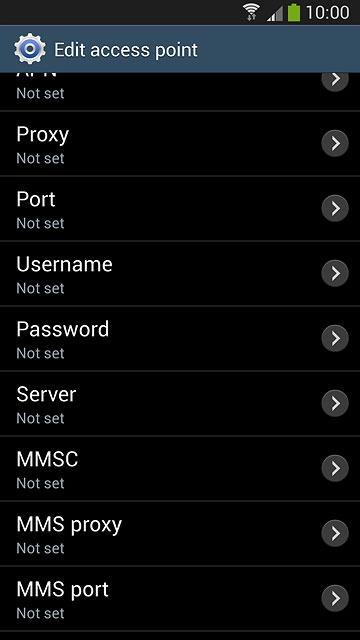

Press MMS port.

Step 17 of 30

Enter port number

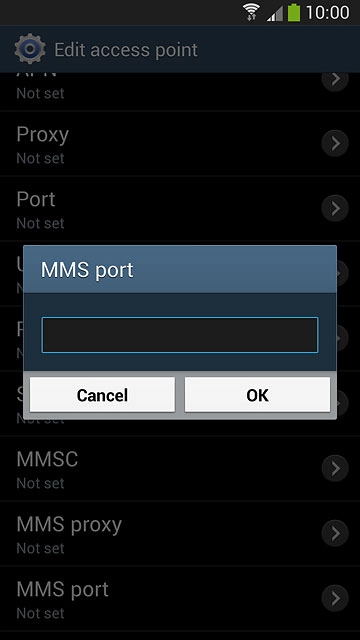

Key in 8080 and press OK.

Step 18 of 30

Enter country code

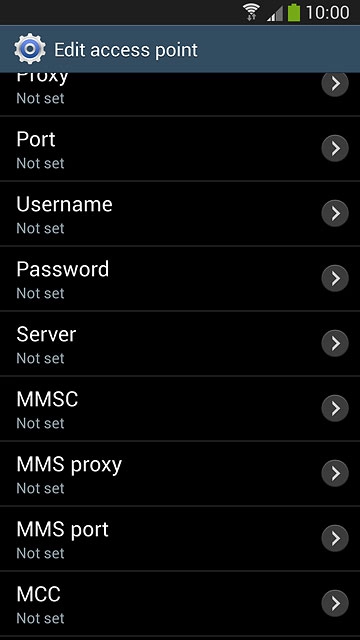

Press MCC.

Step 19 of 30

Enter country code

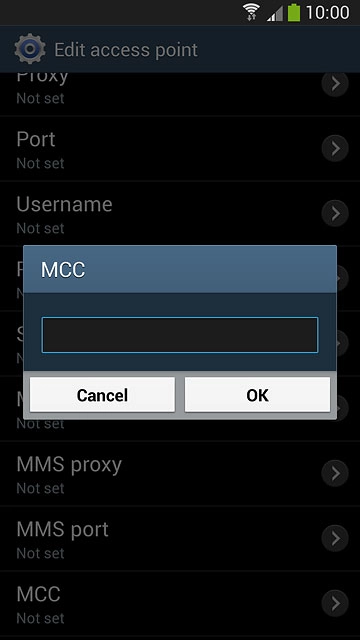

Key in 505 and press OK.

Step 20 of 30

Enter network code

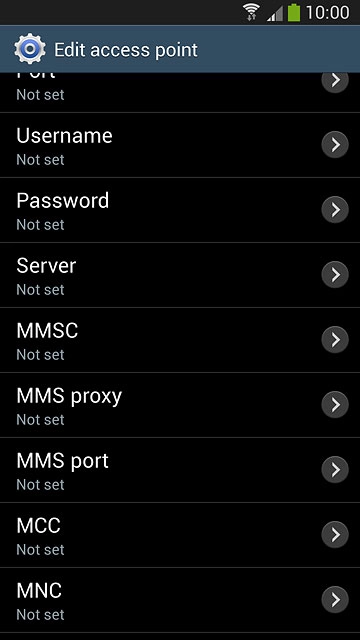

Press MNC.

Step 21 of 30

Enter network code

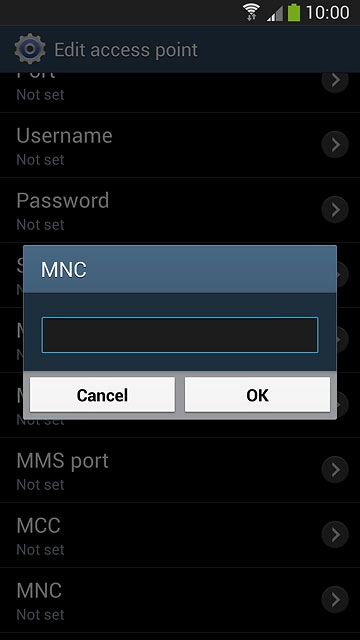

Key in 03 and press OK.

Step 22 of 30

Select authentication type

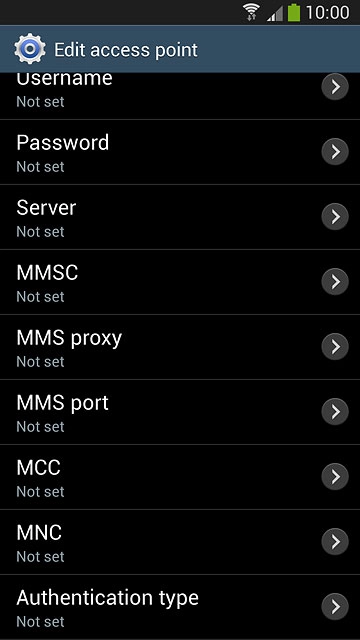

Press Authentication type.

Step 23 of 30

Select authentication type

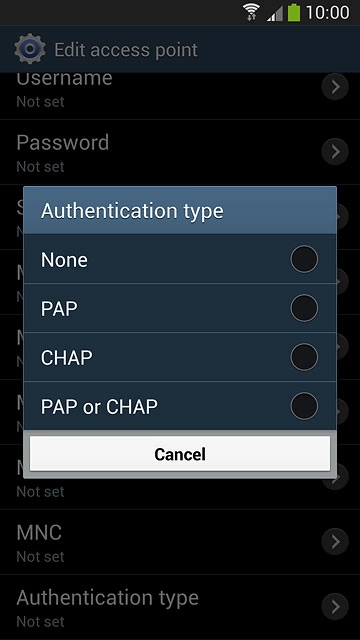

Press PAP.

Step 24 of 30

Select APN type

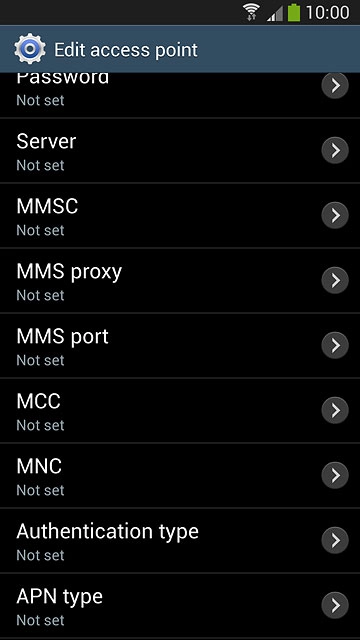

Press APN type.

Step 25 of 30

Select APN type

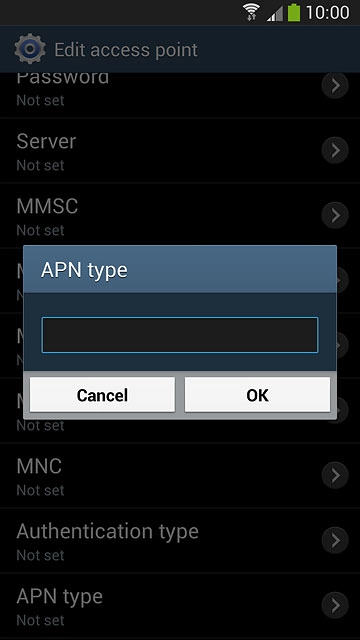

Key in mms and press OK.

Step 26 of 30

Select data bearer

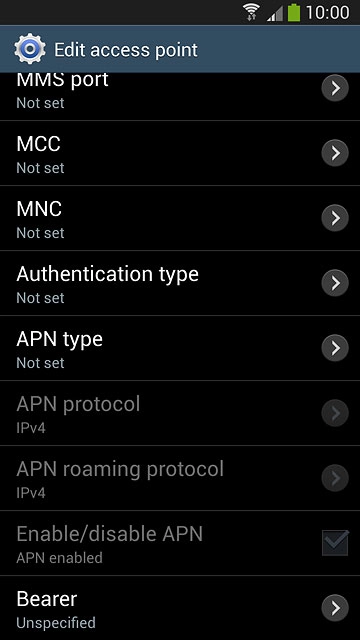

Press Bearer.

Step 27 of 30

Select data bearer

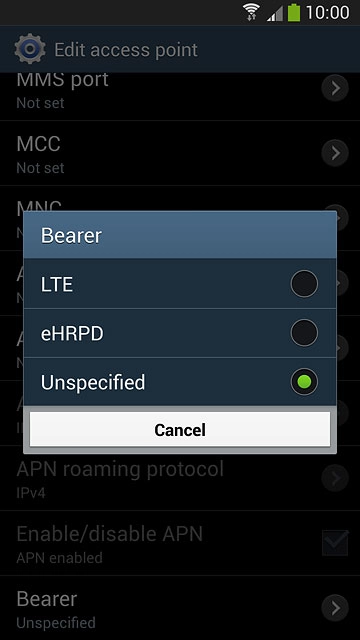

Press Unspecified.

Step 28 of 30

Save data connection

Press the Menu key.

Step 29 of 30

Save data connection

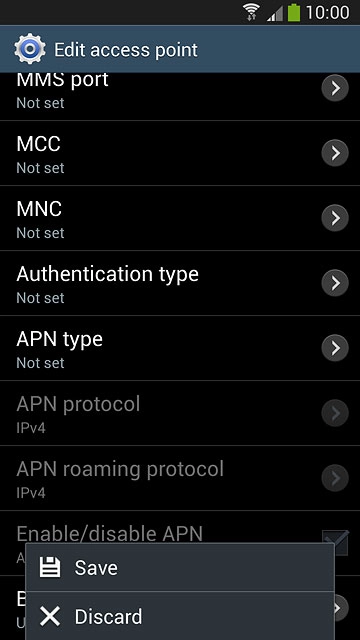

Press Save.

Step 30 of 30

Return to the home screen

Press the Home key to return to the home screen.

Find "Access Point Names"

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.
Press the Connections tab.
Press More networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com and press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.2.60 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in mms and press OK.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the Menu key.
Press Save.

Return to the home screen

Press the Home key to return to the home screen.
