Guide for the Samsung Galaxy S5 - Set up your phone for internet

Step 1 of 23

Find "Access Point Names"

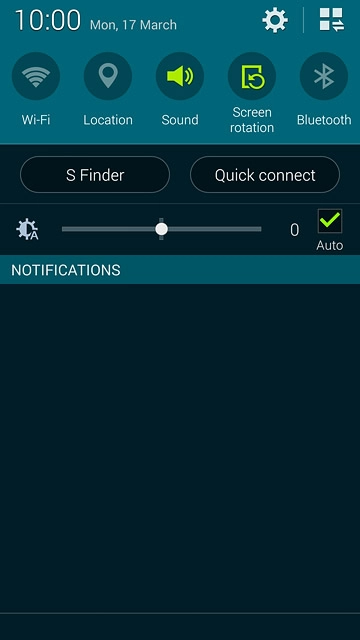

Slide your finger down the display starting from the top edge of your phone.
Press the settings icon.

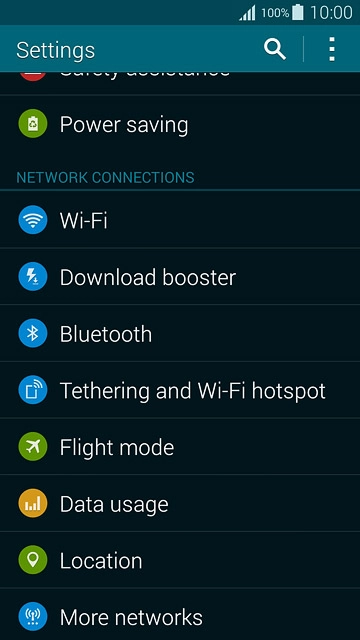

Step 2 of 23

Find "Access Point Names"

Press More networks.

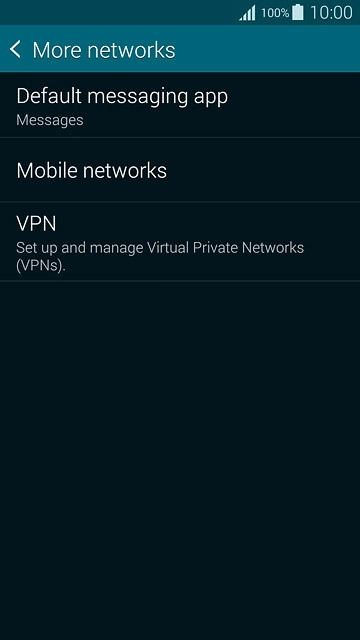

Step 3 of 23

Find "Access Point Names"

Press Mobile networks.

Step 4 of 23

Find "Access Point Names"

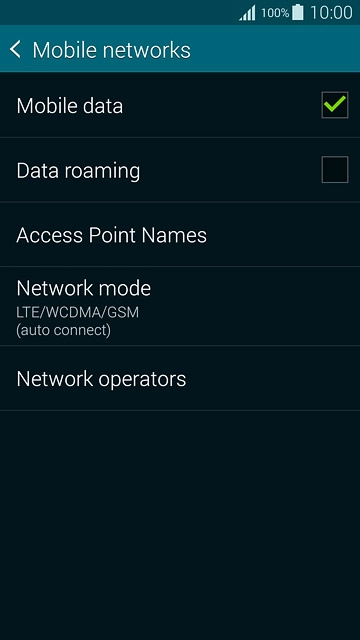

Press Access Point Names.

Step 5 of 23

Create new data connection

Press the new data connection icon.

Step 6 of 23

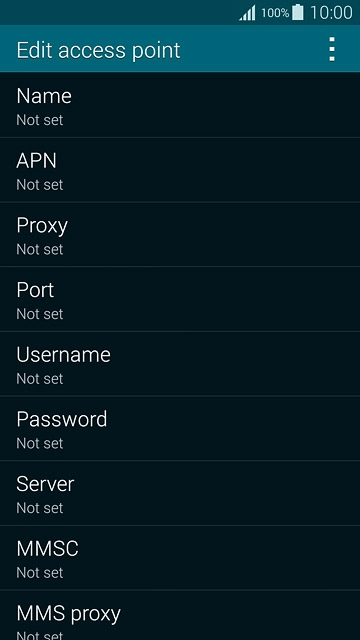

Enter data connection name

Press Name.

Step 7 of 23

Enter data connection name

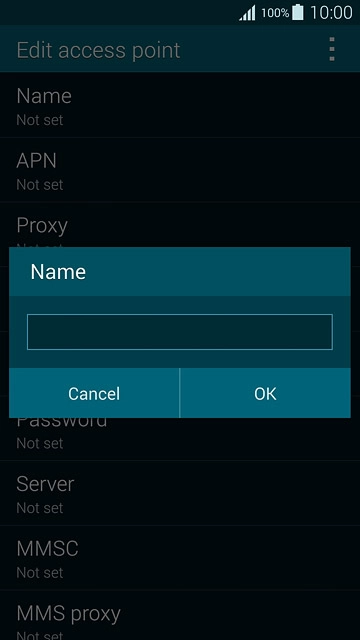

Key in Vodafone Internet and press OK.

Step 8 of 23

Enter APN

Press APN.

Step 9 of 23

Enter APN

Key in live.vodafone.com and press OK.

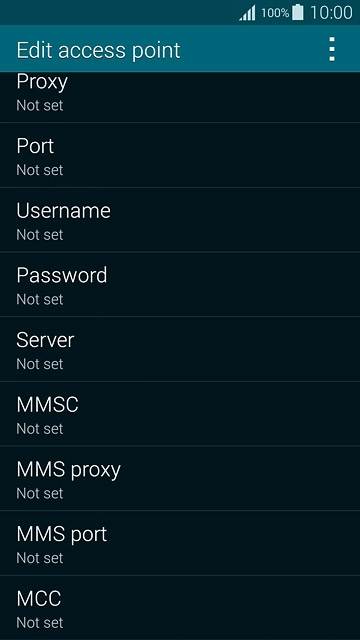

Step 10 of 23

Enter country code

Press MCC.

Step 11 of 23

Enter country code

Key in 505 and press OK.

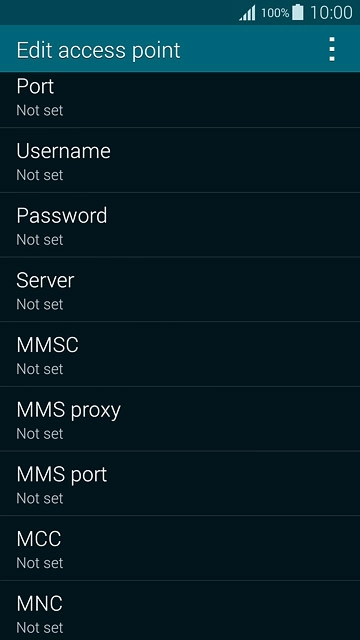

Step 12 of 23

Enter network code

Press MNC.

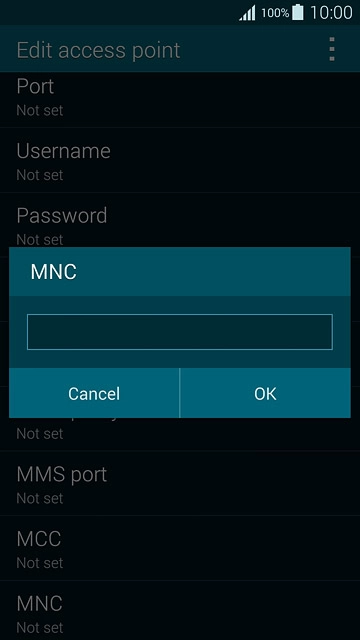

Step 13 of 23

Enter network code

Key in 03 and press OK.

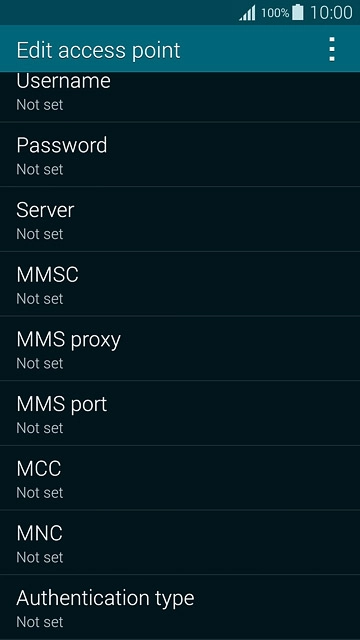

Step 14 of 23

Select authentication type

Press Authentication type.

Step 15 of 23

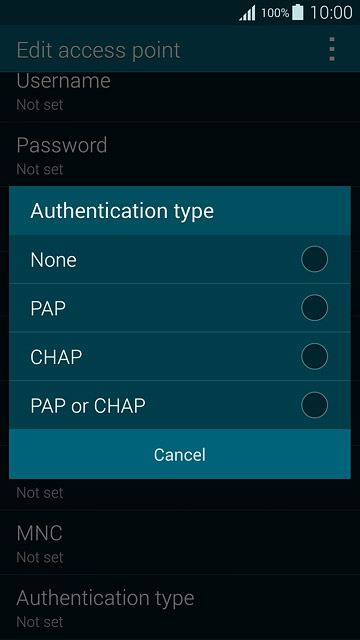

Select authentication type

Press PAP.

Step 16 of 23

Select APN type

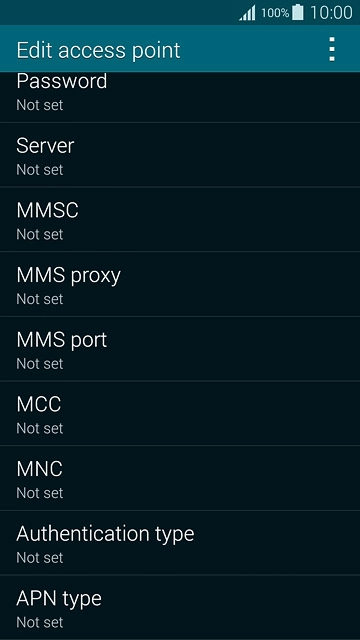

Press APN type.

Step 17 of 23

Select APN type

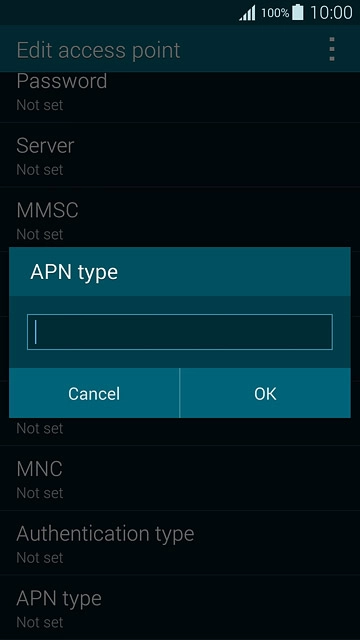

Key in default and press OK.

Step 18 of 23

Select data bearer

Press Bearer.

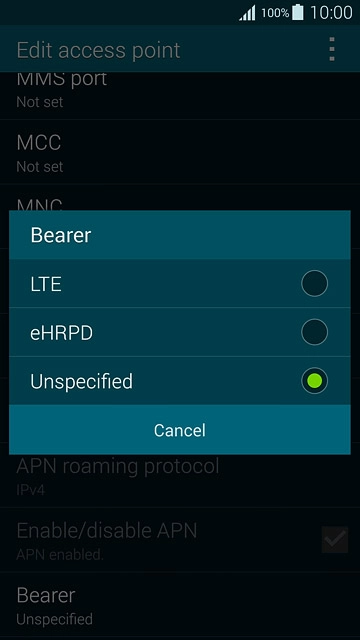

Step 19 of 23

Select data bearer

Press Unspecified.

Step 20 of 23

Save and activate data connection

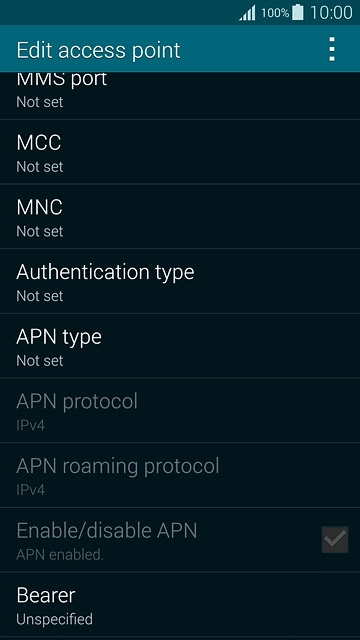

Press the menu icon.

Step 21 of 23

Save and activate data connection

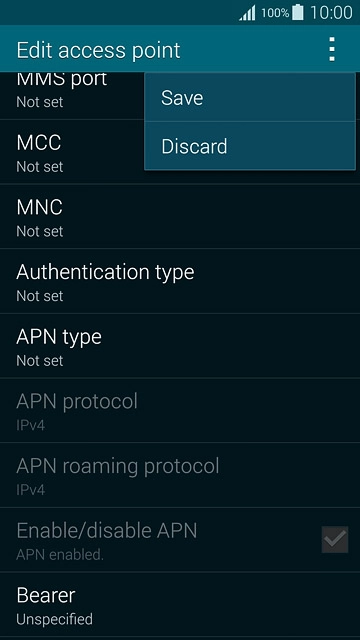

Press Save.

Step 22 of 23

Save and activate data connection

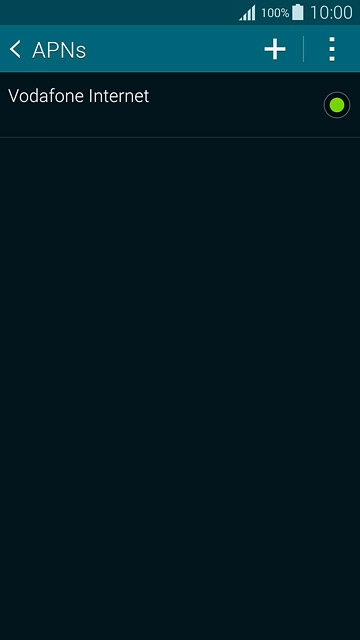

Press the field next to the data connection to fill in the field.

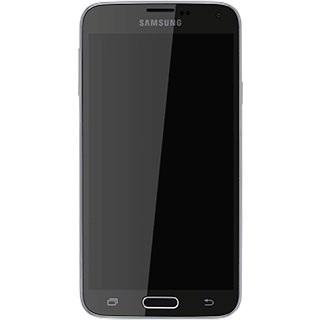

Step 23 of 23

Return to the home screen

Press the Home key to return to the home screen.
