Set up your device for Exchange email - Samsung Galaxy Tab 2 10.1

Read help info

Follow these instructions to set up your device for Exchange email.

Step 1 of 67

Find "Access Point Names"

Press the menu icon.

Step 2 of 67

Find "Access Point Names"

Press Settings.

Step 3 of 67

Find "Access Point Names"

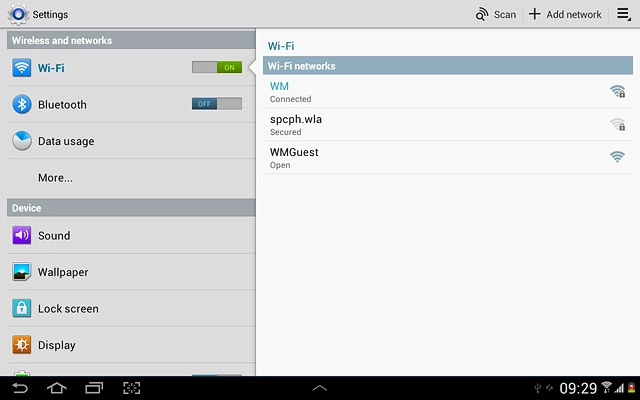

Press More....

Step 4 of 67

Find "Access Point Names"

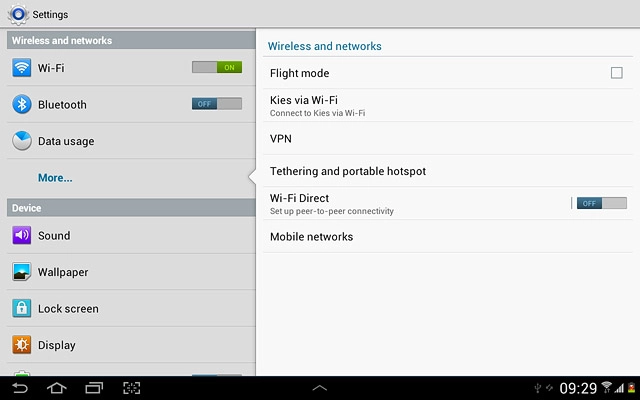

Press Mobile networks.

Step 5 of 67

Find "Access Point Names"

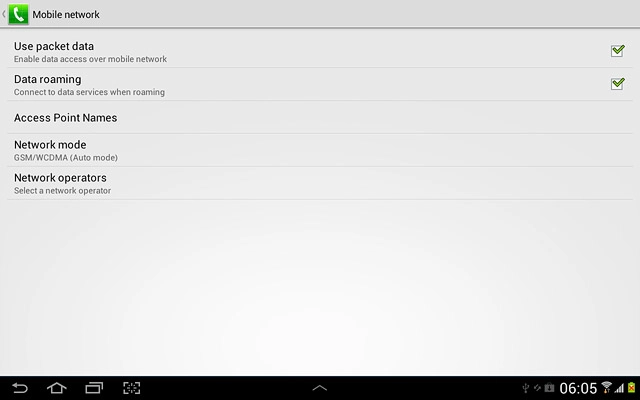

Press Access Point Names.

Step 6 of 67

Create new data connection

Press the settings icon.

Step 7 of 67

Create new data connection

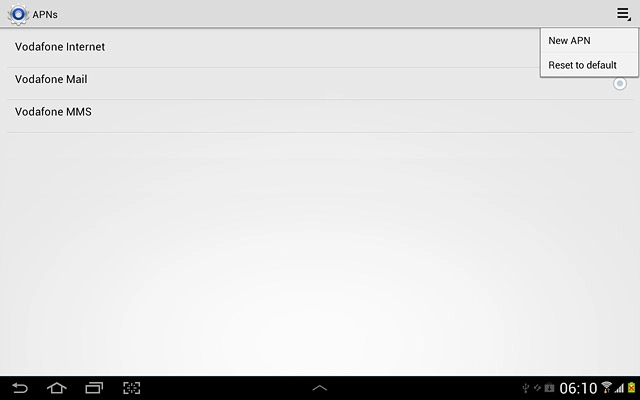

Press New APN.

Step 8 of 67

Enter data connection name

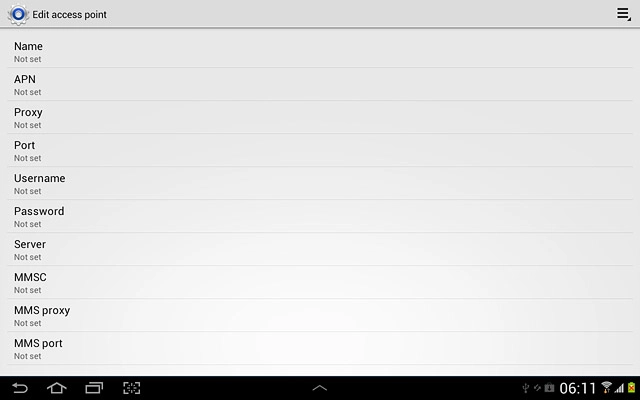

Press Name.

Step 9 of 67

Enter data connection name

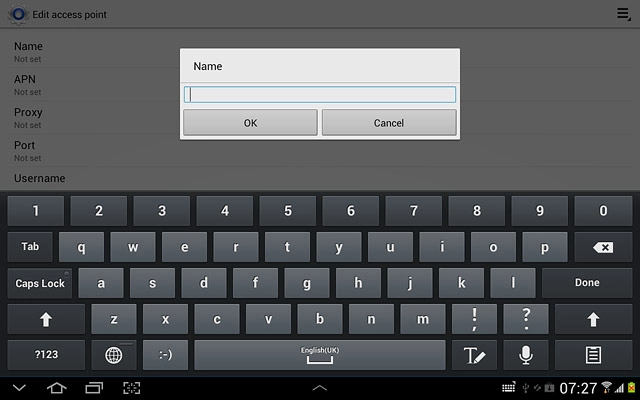

Key in Vodafone Mail and press OK.

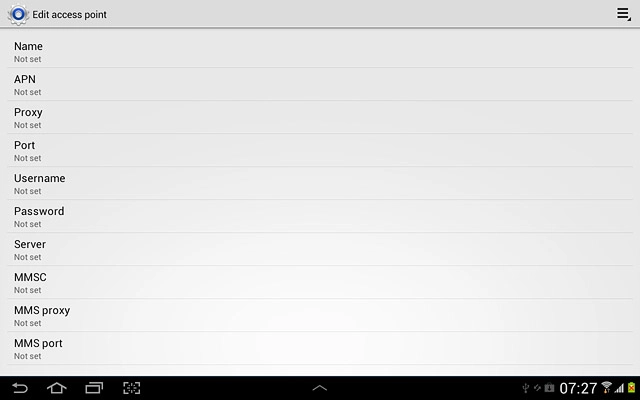

Step 10 of 67

Enter APN

Press APN.

An APN is used to establish a data connection.
Step 11 of 67

Enter APN

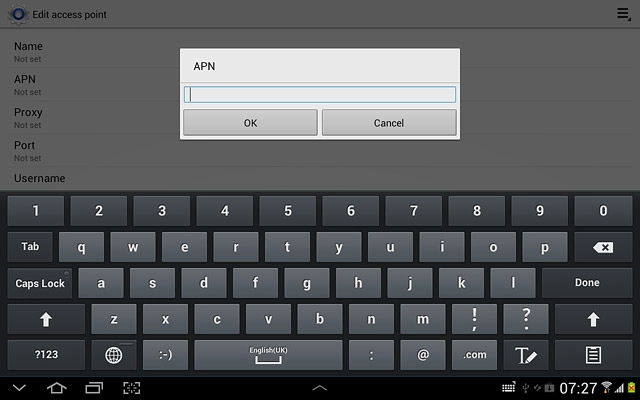

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 67

Enter country code

Press MCC.

Step 13 of 67

Enter country code

Key in 505 and press OK.

Step 14 of 67

Enter network code

Press MNC.

Step 15 of 67

Enter network code

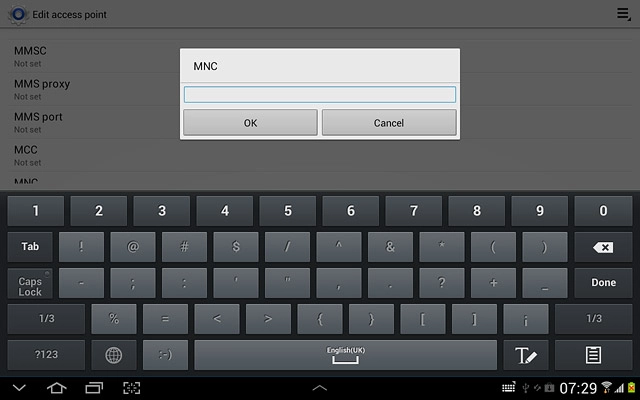

Key in 03 and press OK.

Step 16 of 67

Select authentication type

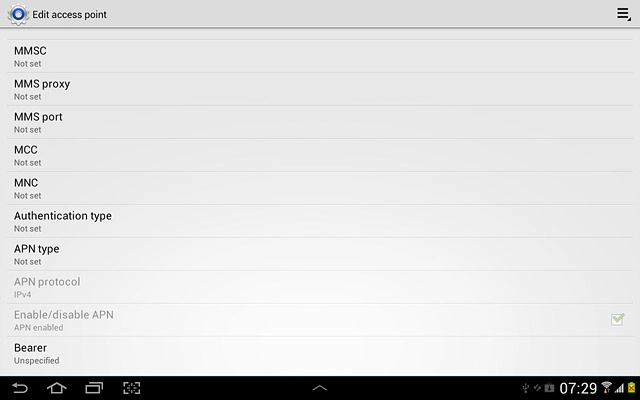

Press Authentication type.

Step 17 of 67

Select authentication type

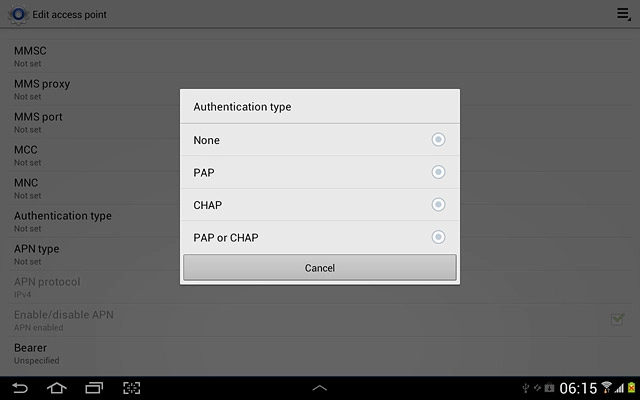

Press PAP.

Step 18 of 67

Select APN type

Press APN type.

Step 19 of 67

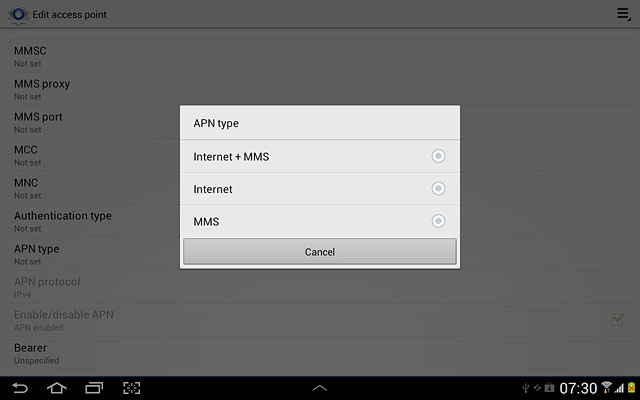

Select APN type

Press Internet.

Step 20 of 67

Save and activate data connection

Press the settings icon.

Step 21 of 67

Save and activate data connection

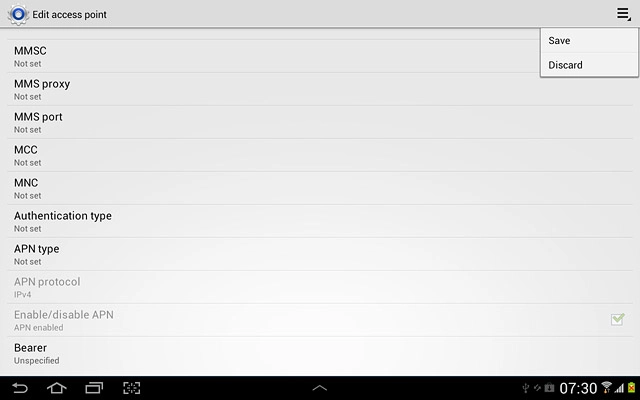

Press Save.

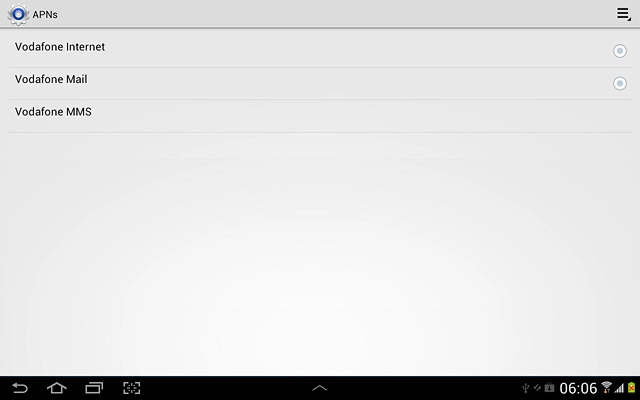

Step 22 of 67

Save and activate data connection

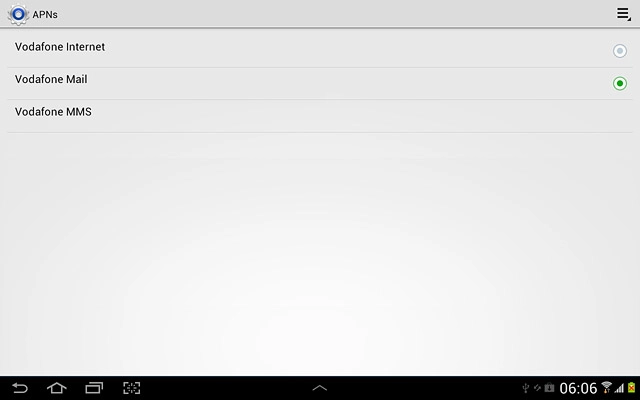

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 67

Save and activate data connection

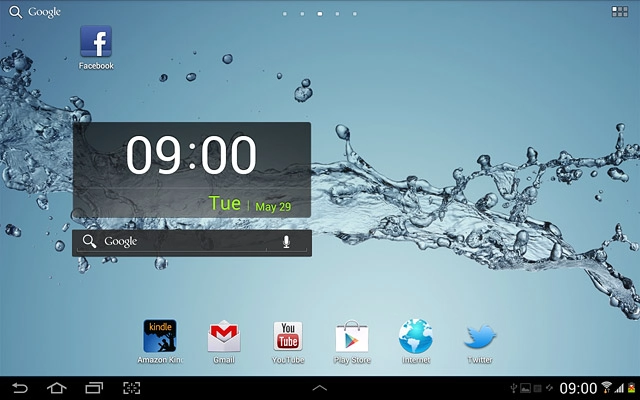

Press the home icon to return to standby mode.

Step 24 of 67

Find "Email"

Press the menu icon.

Step 25 of 67

Find "Email"

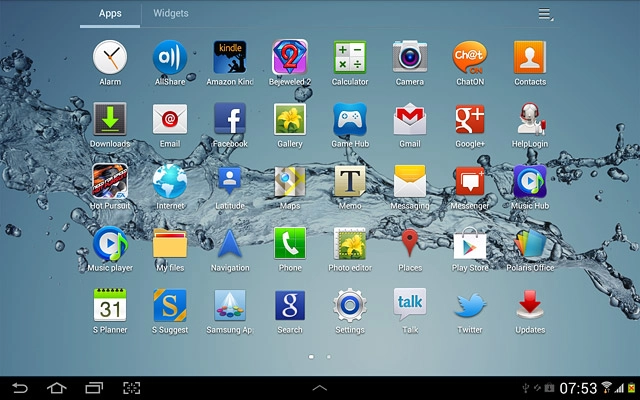

Press Email.

Samsung Galaxy Tab 2 10.1
Step 26 of 67

Enter email address

Key in your email address.

Step 27 of 67

Enter password

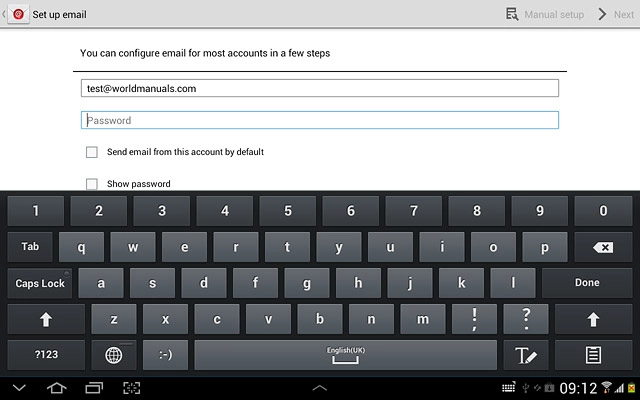

Press Password and key in your password.

Step 28 of 67

Enter password

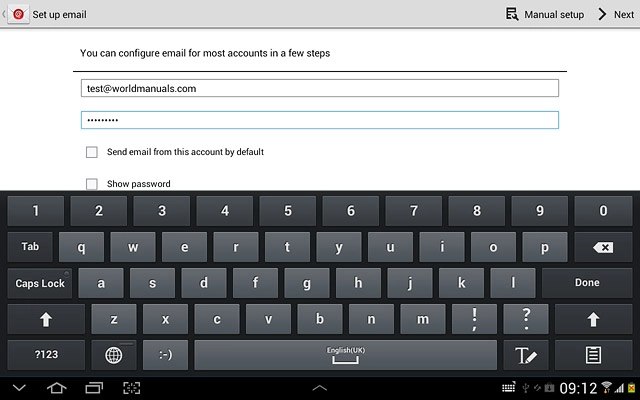

Press Manual setup.

Step 29 of 67

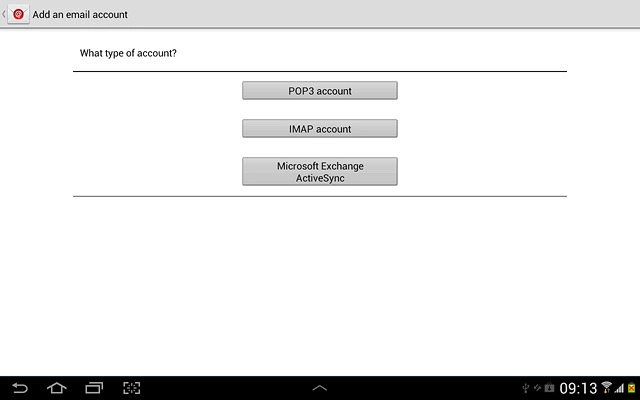

Select server type

Press Microsoft Exchange ActiveSync.

Samsung Galaxy Tab 2 10.1
Step 30 of 67

Enter domain and username

Key in the domain and username separated by a "\".

Step 31 of 67

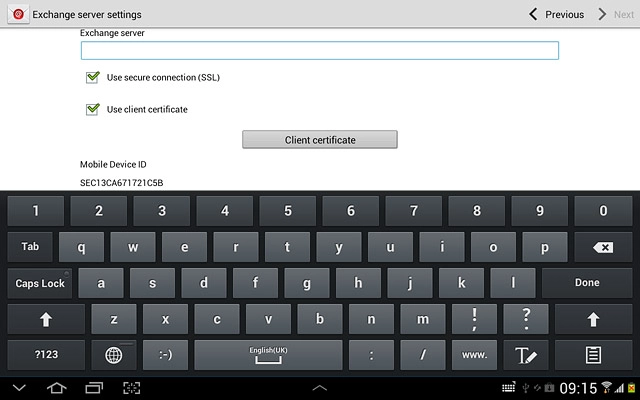

Enter server address

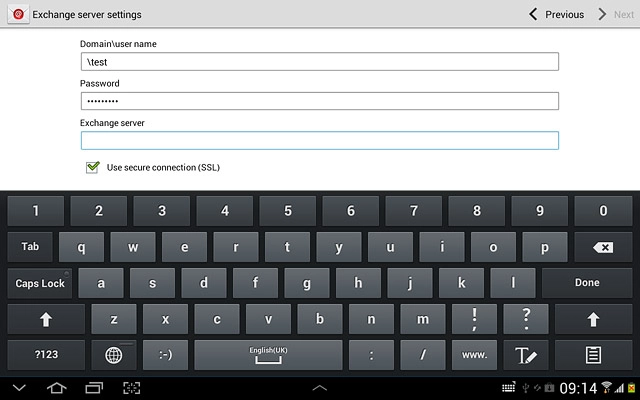

Press the field below Exchange server and key in the server address.

Step 32 of 67

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 33 of 67

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 34 of 67

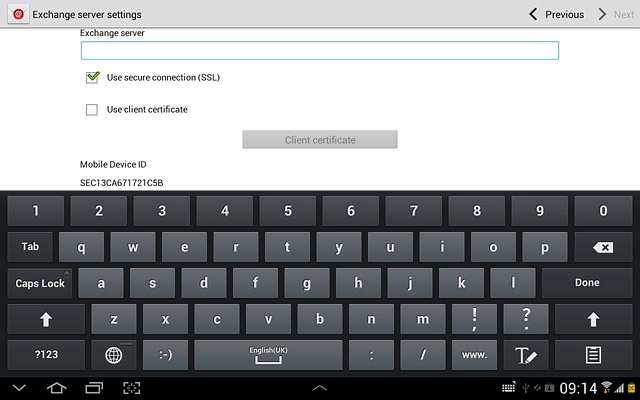

Turn client certificate on or off

Press Use client certificate to turn the function on or off.

The menu item is only available if you turned on SSL encryption in step 17.
Step 35 of 67

Turn client certificate on or off

When the box next to the menu item is ticked (V), the function is turned on.

The menu item is only available if you turned on SSL encryption in step 17.
Step 36 of 67

Turn client certificate on or off

If you turn on the function:
Press Client certificate and follow the instructions on the display to install the required certificate.

The menu item is only available if you turned on SSL encryption in step 17.
Step 37 of 67

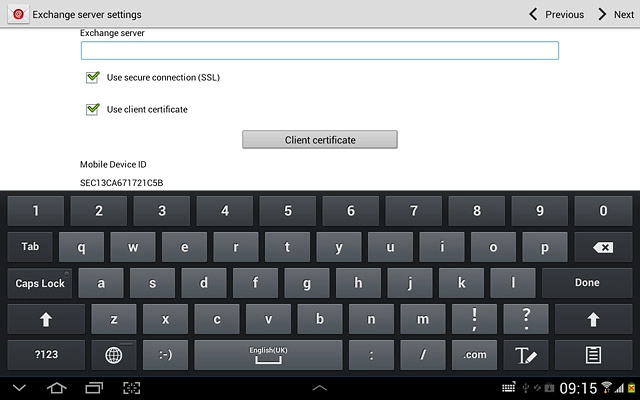

Turn client certificate on or off

Press Next.

The menu item is only available if you turned on SSL encryption in step 17.
Step 38 of 67

Select synchronisation interval

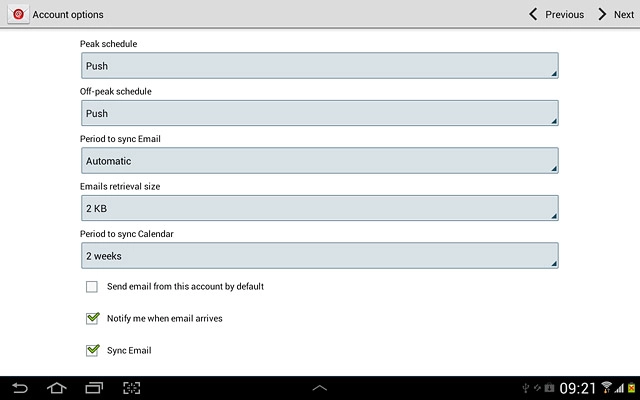

Press the drop down list below Peak schedule.

Step 39 of 67

Select synchronisation interval

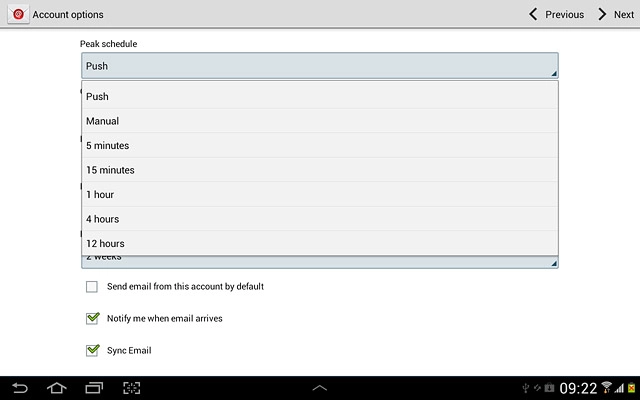

Press Push, Manual or the required frequency.

Step 40 of 67

Select synchronisation interval

Press the drop down list below Off-peak schedule.

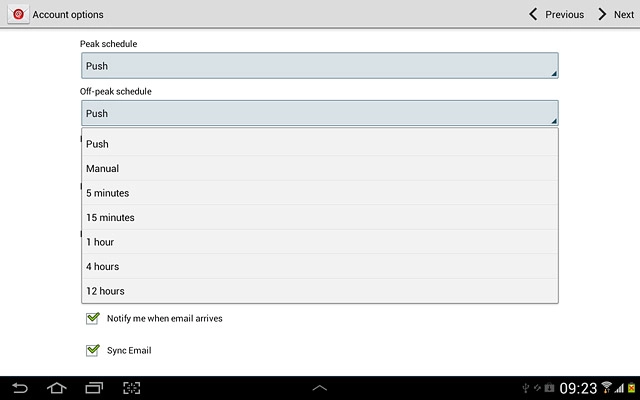

Step 41 of 67

Select synchronisation interval

Press Push, Manual or the required frequency.
Please note:
Each time your device connects to the server to synchronise, data charges will apply.

Step 42 of 67

Select settings for synchronising new email messages

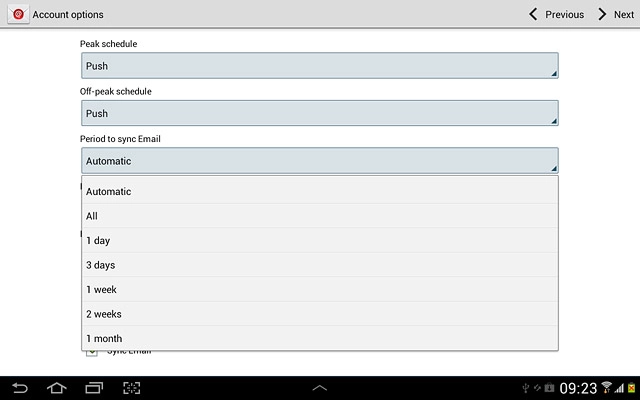

Press the drop down list below Period to sync Email.

Step 43 of 67

Select settings for synchronising new email messages

Press the required setting.

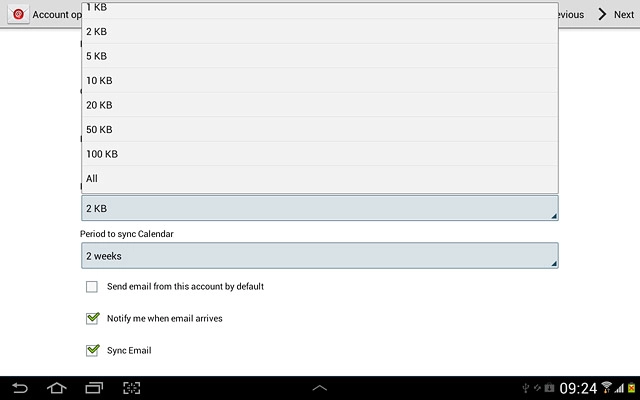

Step 44 of 67

Select settings for synchronising new email messages

Press the drop down list below Emails retrieval size.

Step 45 of 67

Select settings for synchronising new email messages

Press the required setting.

Step 46 of 67

Select settings for synchronisation of calendar

Press the drop down list below Period to sync Calendar.

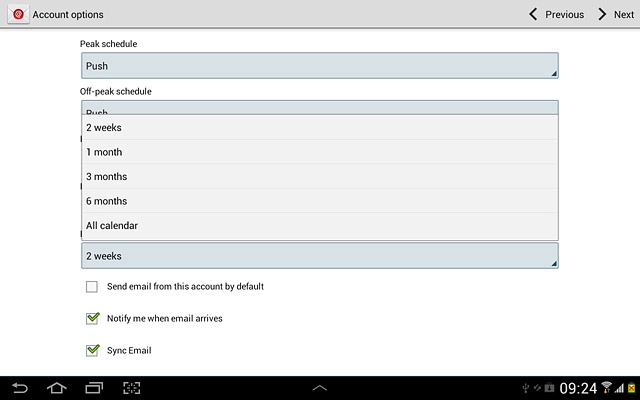

Step 47 of 67

Select settings for synchronisation of calendar

Press the required setting.

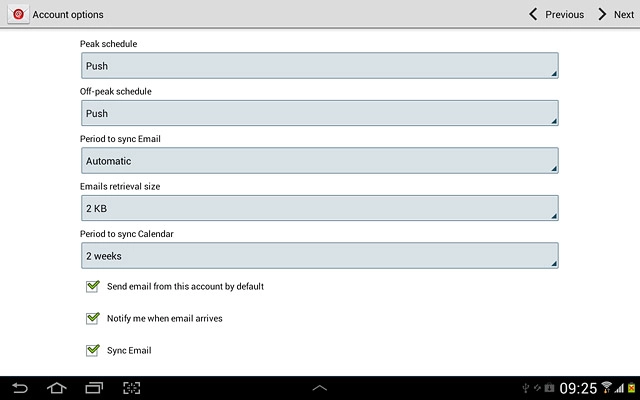

Step 48 of 67

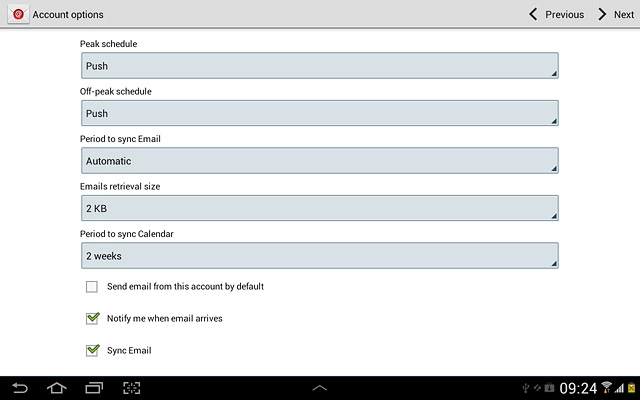

Select default email account

Press Send email from this account by default to select a default email account.

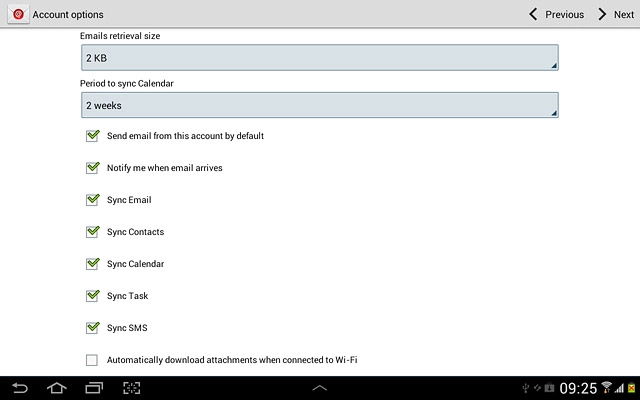

Step 49 of 67

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 67

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 51 of 67

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 67

Turn automatic synchronisation of email messages on or off

Press Sync Email to turn the function on or off.

Step 53 of 67

Turn automatic synchronisation of email messages on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 54 of 67

Turn automatic synchronisation of contacts on or off

Press Sync Contacts to turn the function on or off.

Step 55 of 67

Turn automatic synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 56 of 67

Turn automatic synchronisation of calendar on or off

Press Sync Calendar to turn the function on or off.

Step 57 of 67

Turn automatic synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 58 of 67

Turn automatic synchronisation of tasks on or off

Press Sync Task to turn the function on or off.

Step 59 of 67

Turn automatic synchronisation of tasks on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 60 of 67

Turn automatic synchronisation of text messages on or off

Press Sync SMS to turn the function on or off.

Step 61 of 67

Turn automatic synchronisation of text messages on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 62 of 67

Turn automatic retrieval of attachments when connected to a Wi-Fi network on or off

Press Automatically download attachments when connected to Wi-Fi to turn the function on or off.

Step 63 of 67

Turn automatic retrieval of attachments when connected to a Wi-Fi network on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 64 of 67

Turn automatic retrieval of attachments when connected to a Wi-Fi network on or off

Press Next.

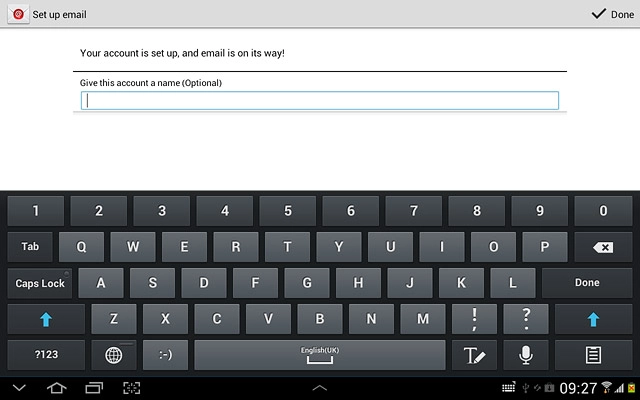

Step 65 of 67

Enter account name

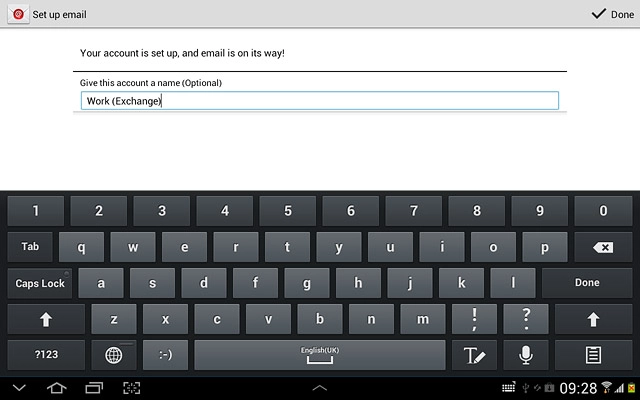

Press the field below Give this account a name (Optional) and key in the required name.

Step 66 of 67

Finish setup

Press Done.

Step 67 of 67

Exit

Press the home icon to return to standby mode.
