Set up your device for POP3 email - Samsung Galaxy Tab 2 10.1

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your device. Follow these instructions to set up your device for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your device for web-based email.

Step 1 of 52

Find "Access Point Names"

Press the menu icon.

Step 2 of 52

Find "Access Point Names"

Press Settings.

Step 3 of 52

Find "Access Point Names"

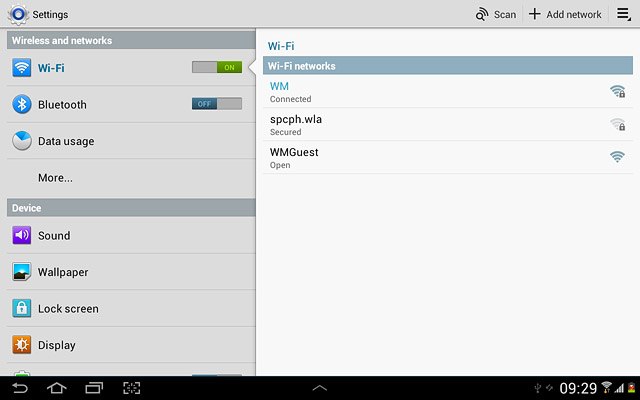

Press More....

Step 4 of 52

Find "Access Point Names"

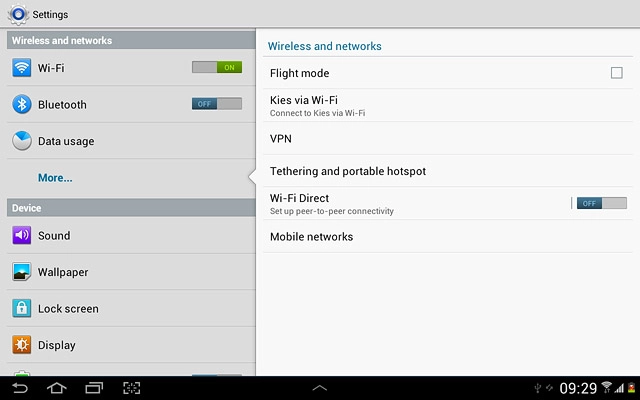

Press Mobile networks.

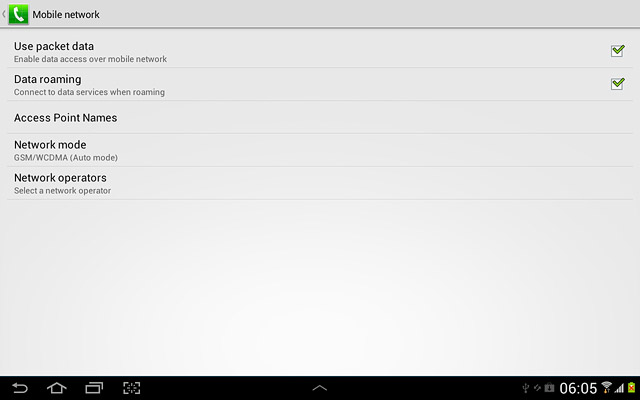

Step 5 of 52

Find "Access Point Names"

Press Access Point Names.

Step 6 of 52

Create new data connection

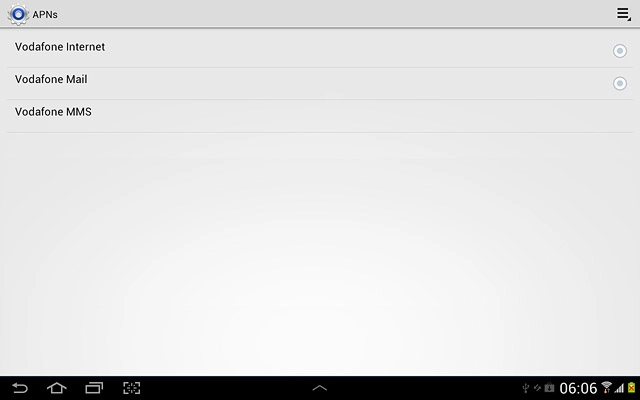

Press the settings icon.

Step 7 of 52

Create new data connection

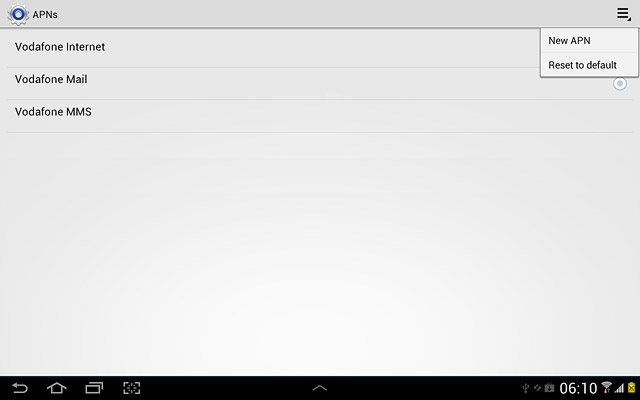

Press New APN.

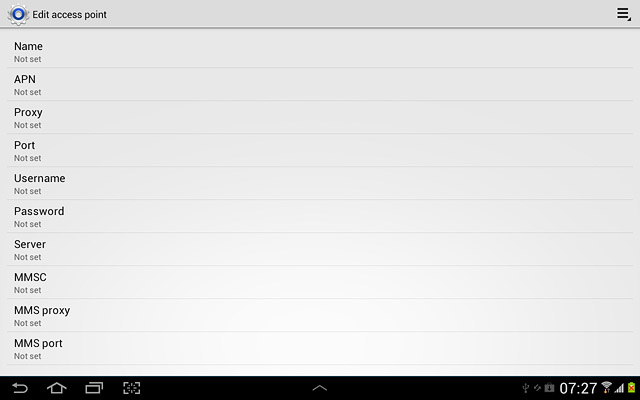

Step 8 of 52

Enter data connection name

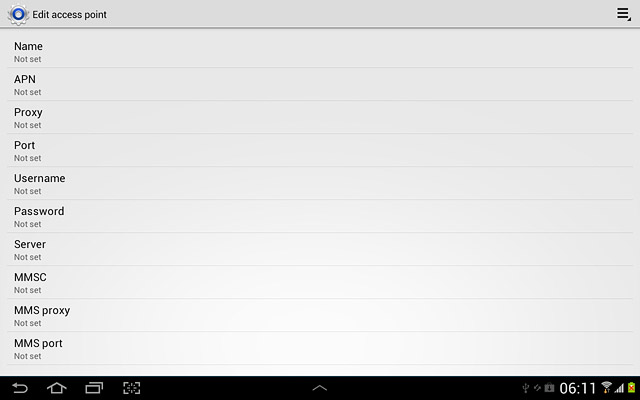

Press Name.

Step 9 of 52

Enter data connection name

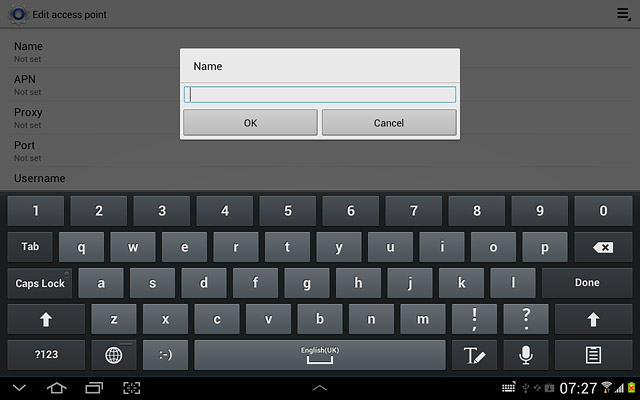

Key in Vodafone Mail and press OK.

Step 10 of 52

Enter APN

Press APN.

An APN is used to establish a data connection.

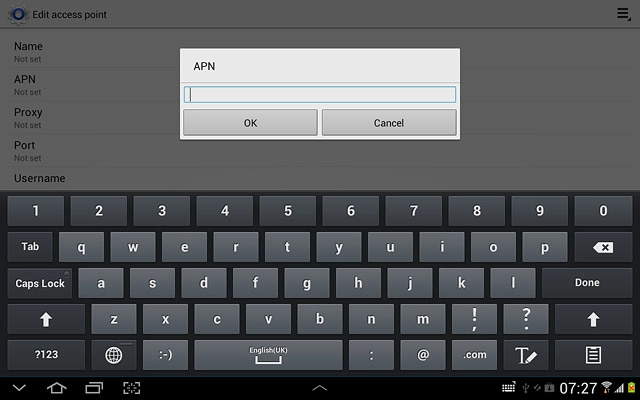

Step 11 of 52

Enter APN

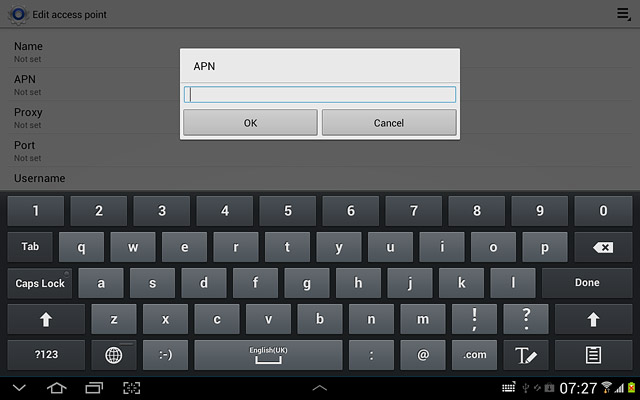

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 52

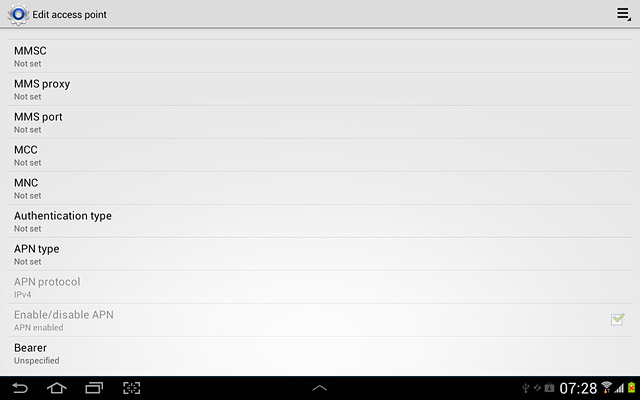

Enter country code

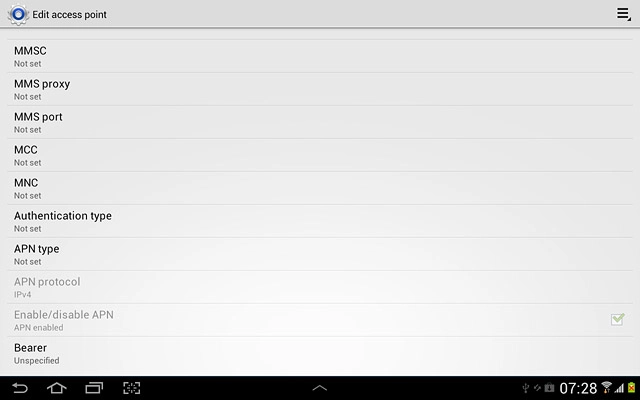

Press MCC.

Step 13 of 52

Enter country code

Key in 505 and press OK.

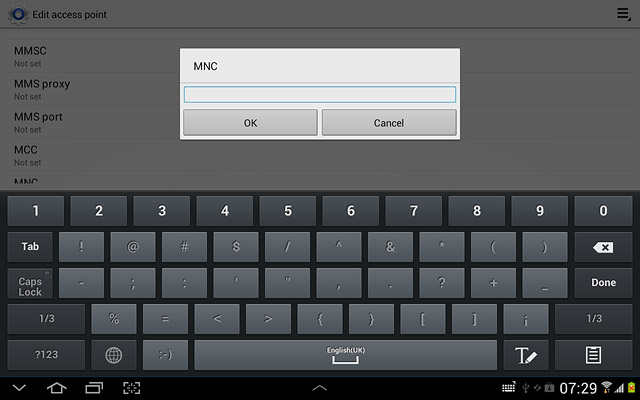

Step 14 of 52

Enter network code

Press MNC.

Step 15 of 52

Enter network code

Key in 03 and press OK.

Step 16 of 52

Select authentication type

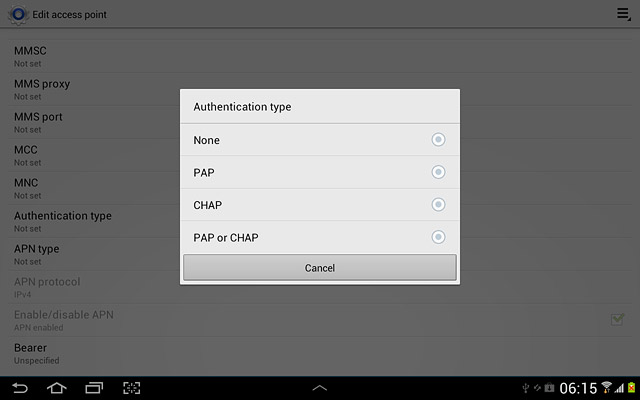

Press Authentication type.

Step 17 of 52

Select authentication type

Press PAP.

Step 18 of 52

Select APN type

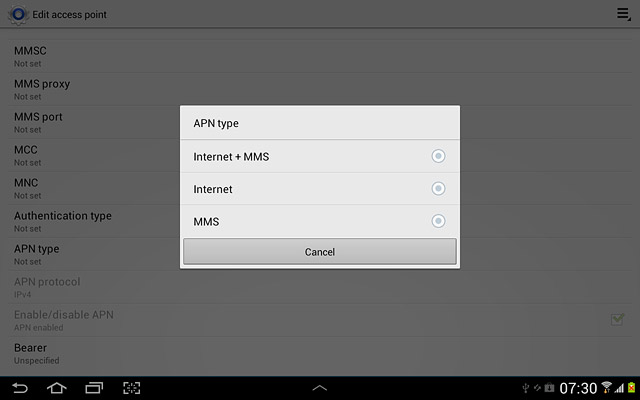

Press APN type.

Step 19 of 52

Select APN type

Press Internet.

Step 20 of 52

Save and activate data connection

Press the settings icon.

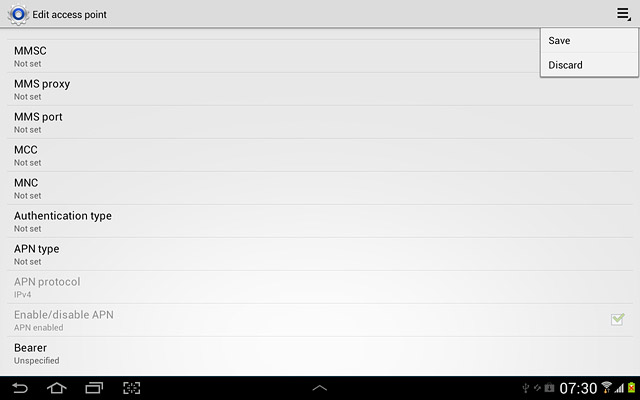

Step 21 of 52

Save and activate data connection

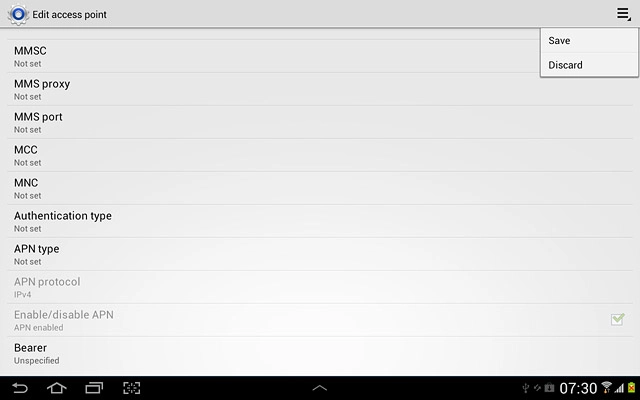

Press Save.

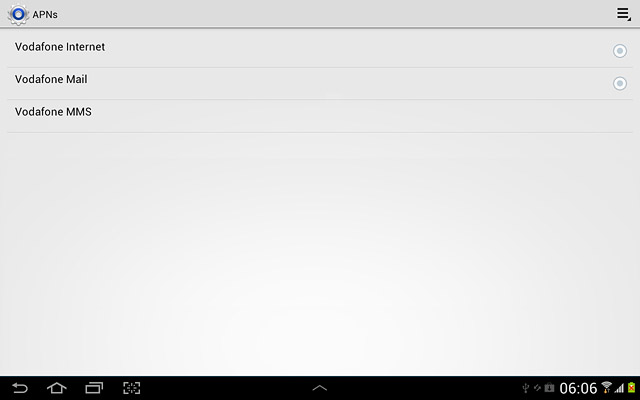

Step 22 of 52

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 52

Save and activate data connection

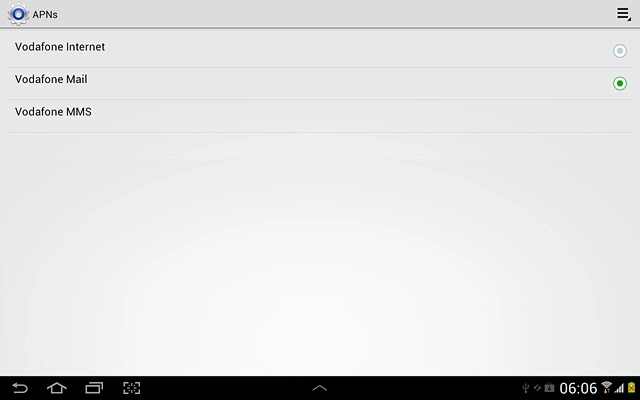

Press the home icon to return to standby mode.

Step 24 of 52

Find "Email"

Press the menu icon.

If email accounts have been created already, press the settings icon. Press Settings. Press Add account.
Step 25 of 52

Find "Email"

Press Email.

If email accounts have been created already, press the settings icon. Press Settings. Press Add account.
Samsung Galaxy Tab 2 10.1
Step 26 of 52

Enter email address

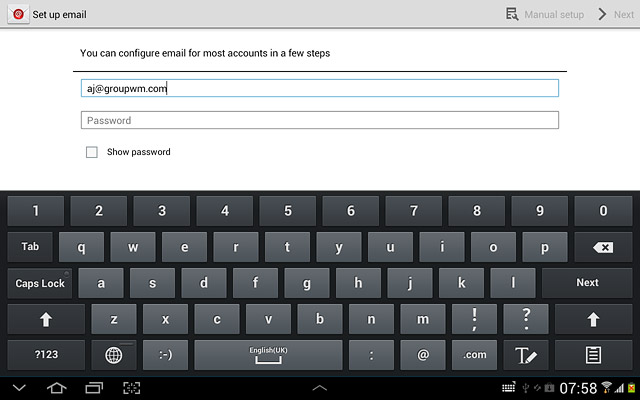

Key in your email address.

Step 27 of 52

Enter password

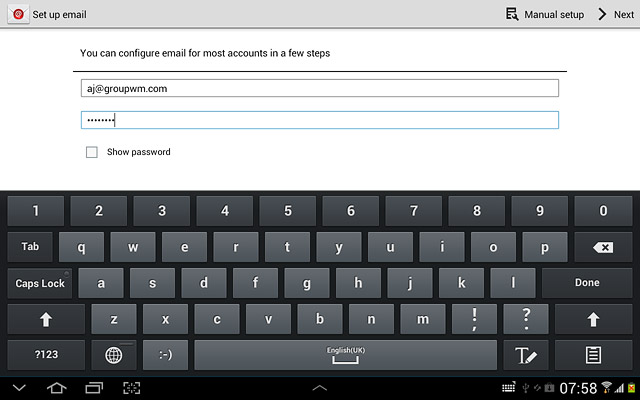

Press Password and key in the password for your email account.

Step 28 of 52

Enter password

Press Next.

Step 29 of 52

Select server type

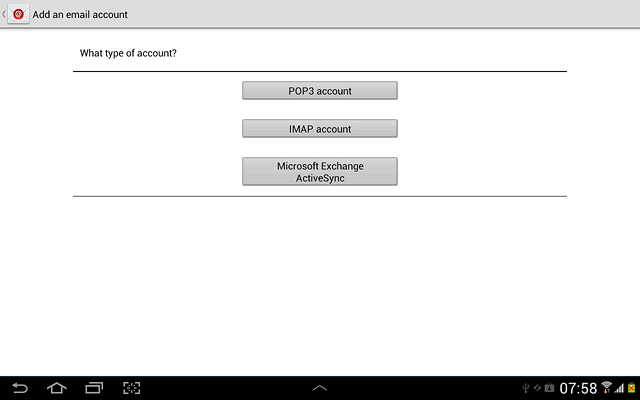

Press POP3 account.

Step 30 of 52

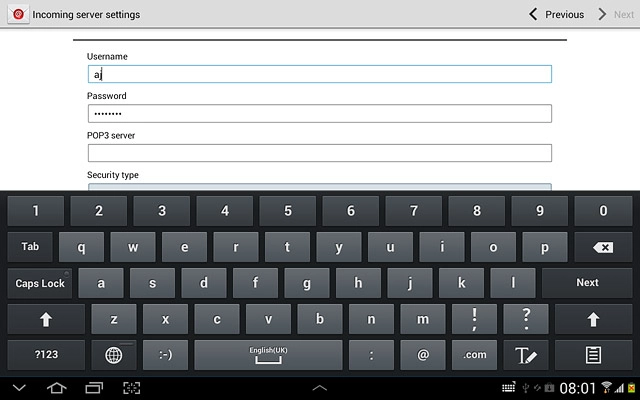

Enter username

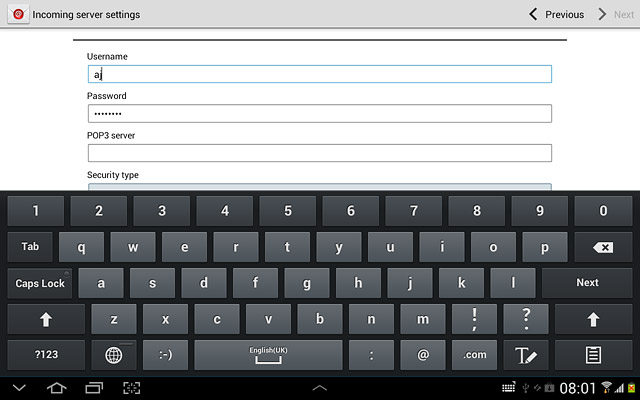

Press the field below Username and key in the username for your email account.

Step 31 of 52

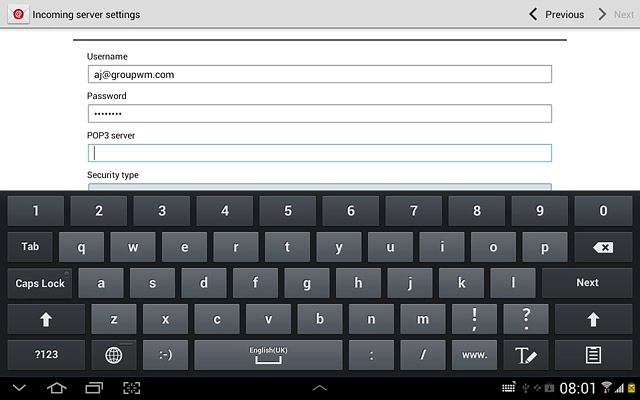

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

Step 32 of 52

Turn encryption of incoming email messages on or off

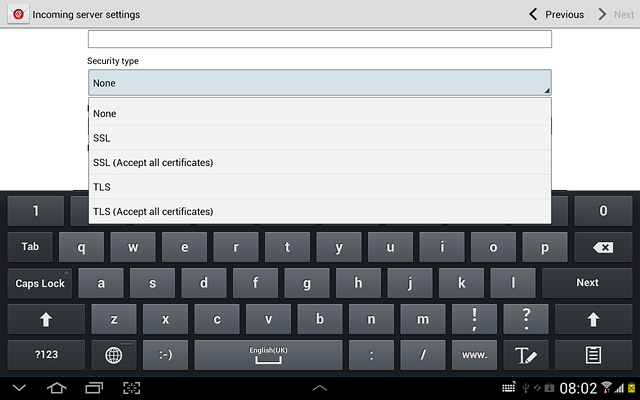

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 33 of 52

Turn encryption of incoming email messages on or off

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

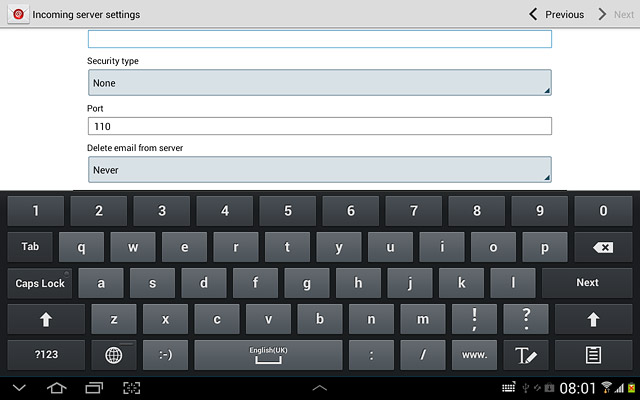

Step 34 of 52

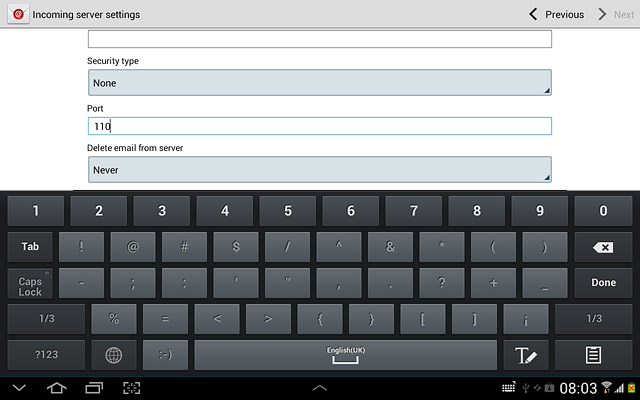

Enter incoming port

Press the field below Port and key in 110

Step 35 of 52

Turn deletion of email messages on server on or off

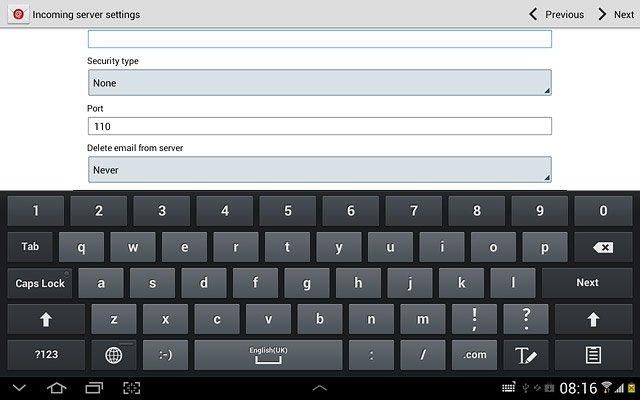

Press the drop down list below Delete email from server.

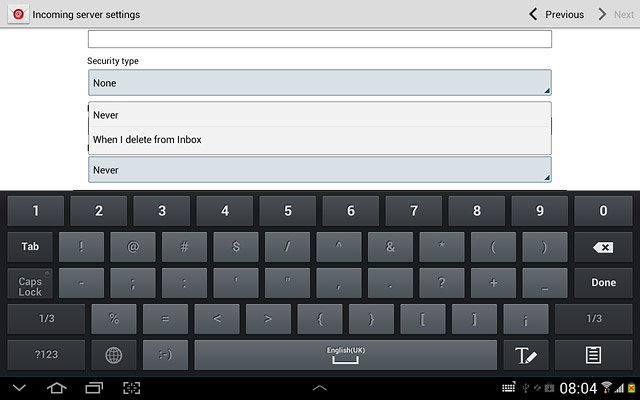

Step 36 of 52

Turn deletion of email messages on server on or off

Press Never or When I delete from Inbox.

Step 37 of 52

Turn deletion of email messages on server on or off

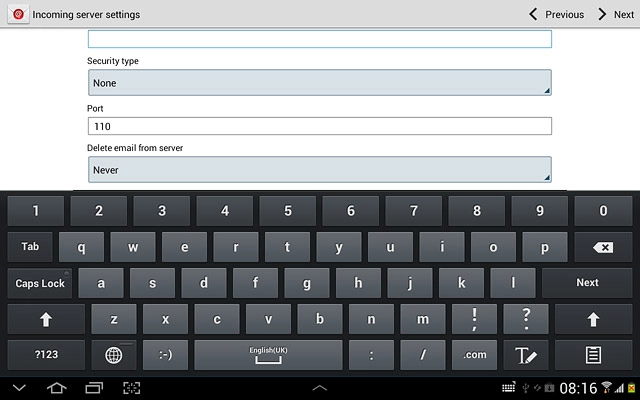

Press Next.

Step 38 of 52

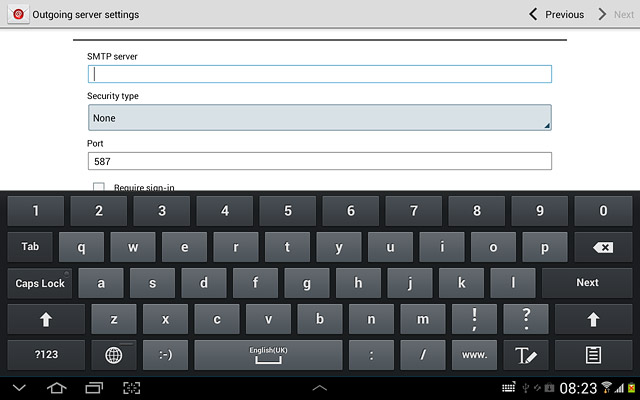

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 39 of 52

Turn off encryption of outgoing email messages

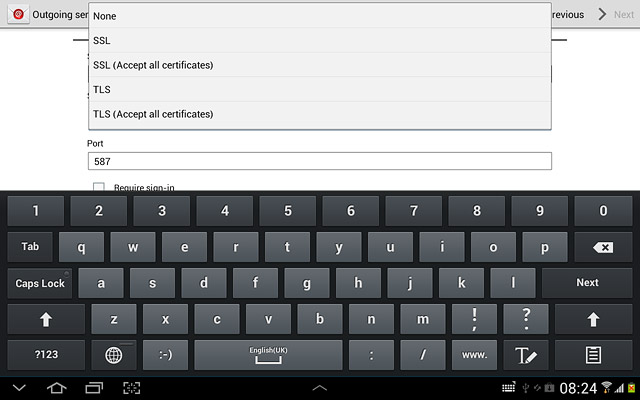

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

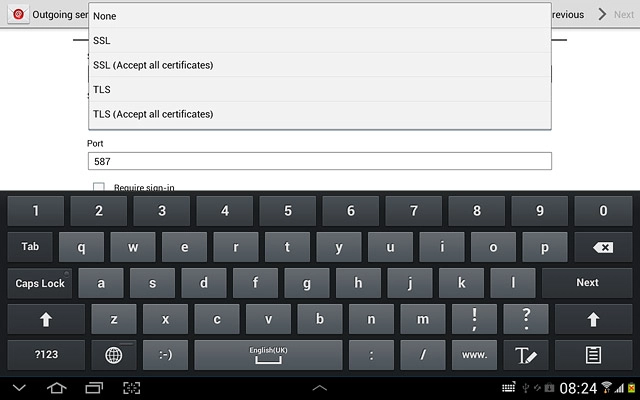

Step 40 of 52

Turn off encryption of outgoing email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 41 of 52

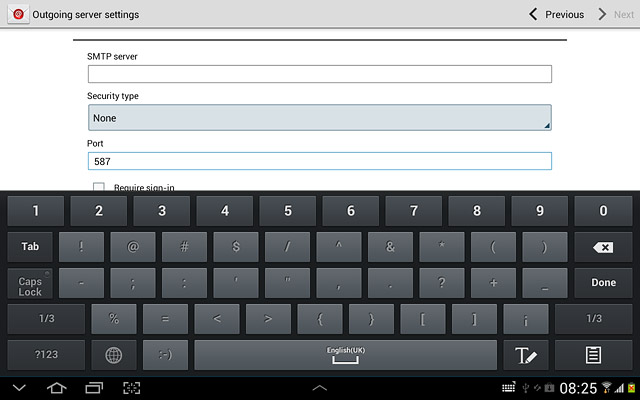

Enter outgoing port

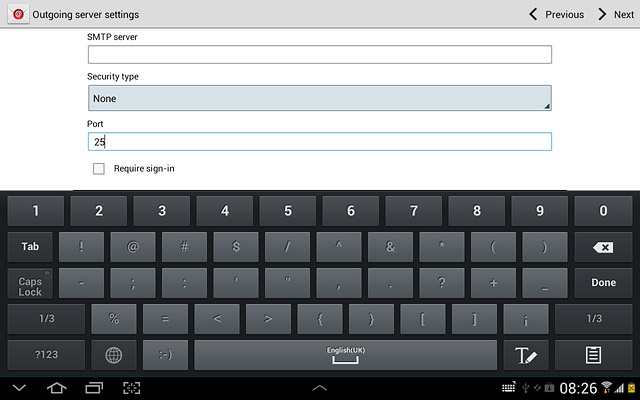

Press the field below Port and key in 25

Step 42 of 52

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 43 of 52

Turn SMTP authentication on or off

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 44 of 52

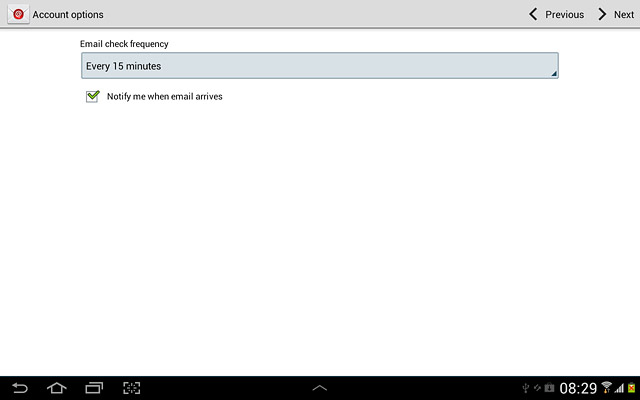

Select setting for retrieving new email messages

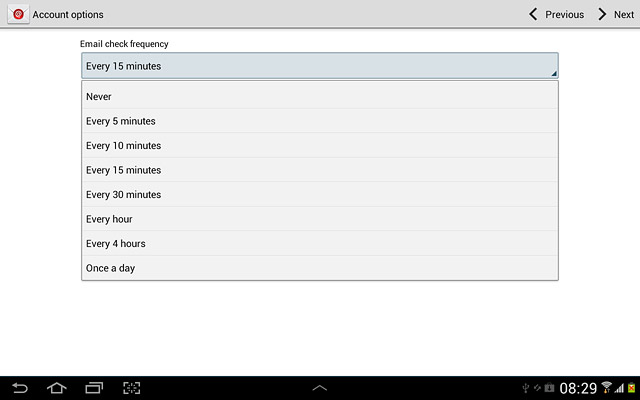

Press the drop down list below Email check frequency.

Step 45 of 52

Select setting for retrieving new email messages

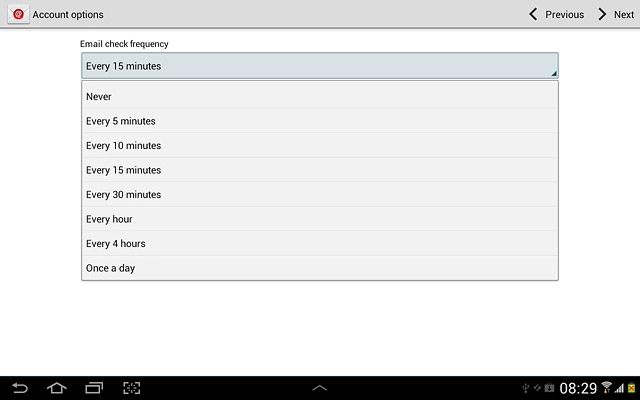

Press Never or the required period.

Step 46 of 52

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 47 of 52

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 48 of 52

Turn email message notification on or off

Press Next.

Step 49 of 52

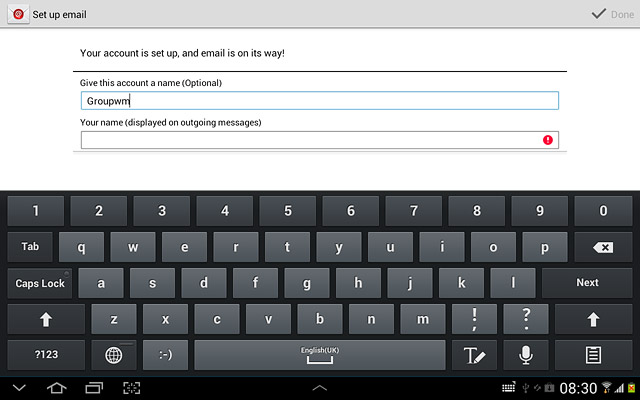

Enter account name

Press the field below Give this account a name (Optional) and key in the required name.

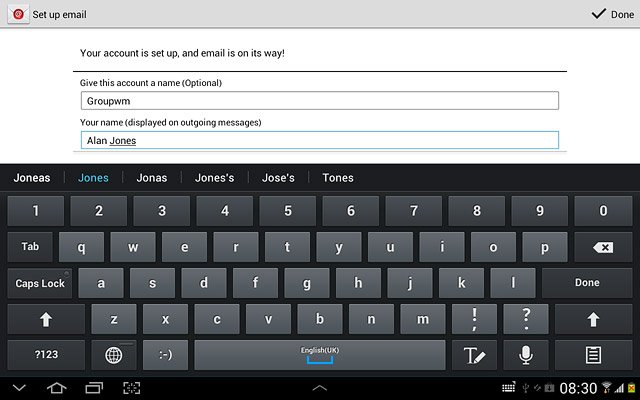

Step 50 of 52

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 51 of 52

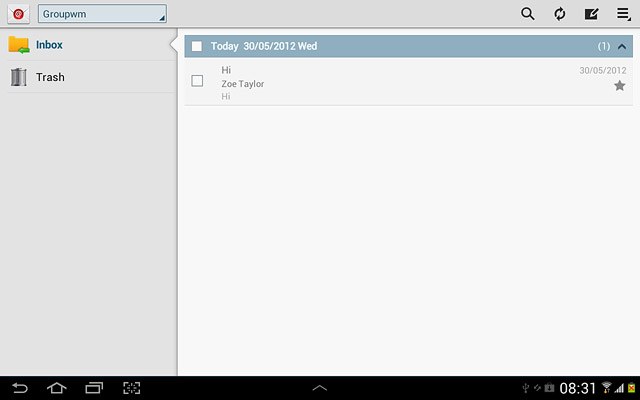

Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

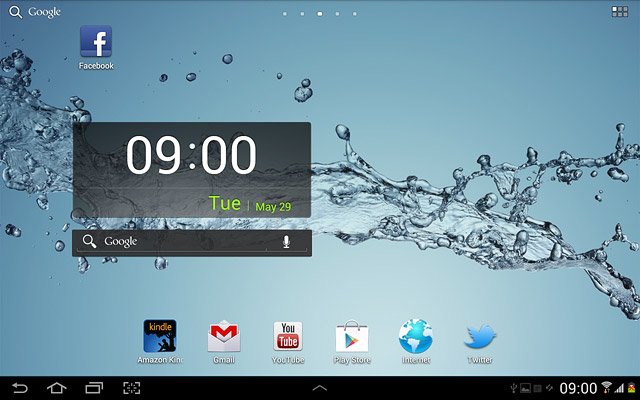

Step 52 of 52

Exit

Press the home icon to return to standby mode.
