Set up your phone for POP3 email - Sony Xperia U

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 55

Find "Access Point Names"

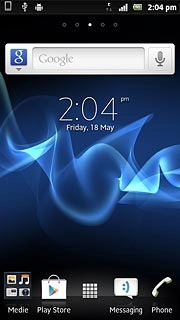

Press the menu icon.

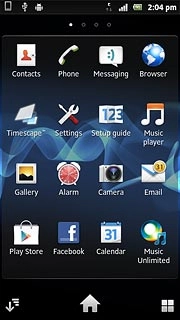

Step 2 of 55

Find "Access Point Names"

Press Settings.

Step 3 of 55

Find "Access Point Names"

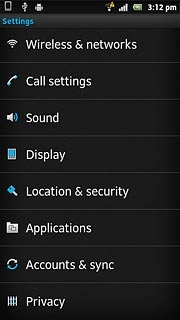

Press Wireless & networks.

Step 4 of 55

Find "Access Point Names"

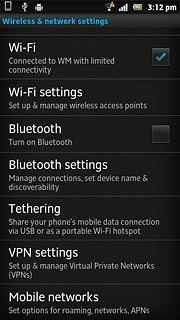

Press Mobile networks.

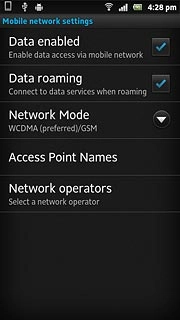

Step 5 of 55

Find "Access Point Names"

Press Access Point Names.

Step 6 of 55

Create new data connection

Press the Menu key.

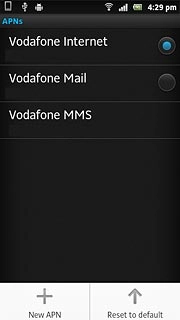

Step 7 of 55

Create new data connection

Press New APN.

Step 8 of 55

Enter data connection name

Press Name.

Step 9 of 55

Enter data connection name

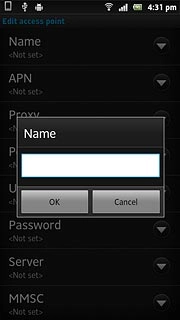

Key in Vodafone Mail and press OK.

Step 10 of 55

Enter APN

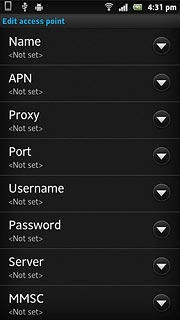

Press APN.

An APN is used to establish a data connection.
Step 11 of 55

Enter APN

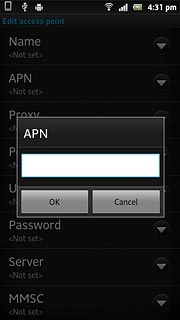

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 55

Enter country code

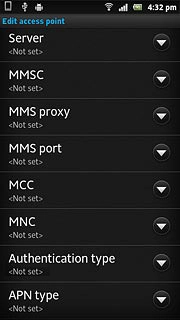

Press MCC.

Step 13 of 55

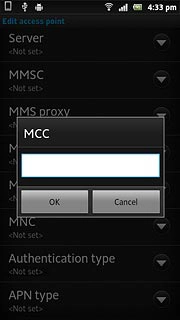

Enter country code

Key in 505 and press OK.

Step 14 of 55

Enter network code

Press MNC.

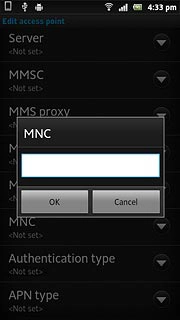

Step 15 of 55

Enter network code

Key in 03 and press OK.

Step 16 of 55

Select authentication type

Press Authentication type.

Step 17 of 55

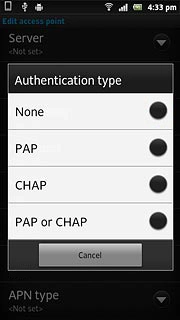

Select authentication type

Press PAP.

Step 18 of 55

Select APN type

Press APN type.

Step 19 of 55

Select APN type

Key in default and press OK.

Step 20 of 55

Save and activate data connection

Press the Menu key.

Step 21 of 55

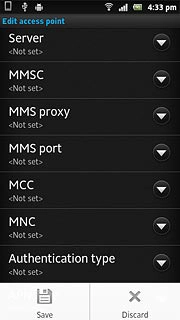

Save and activate data connection

Press Save.

Step 22 of 55

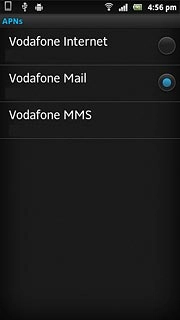

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

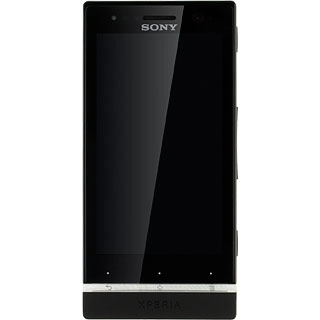

Step 23 of 55

Save and activate data connection

Press the Home key to return to standby mode.

Step 24 of 55

Find "Email"

Press the menu icon.

Step 25 of 55

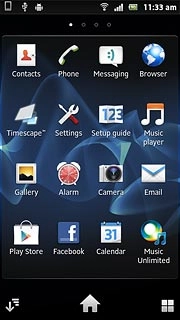

Find "Email"

Press Email.

Step 26 of 55

Create new email account

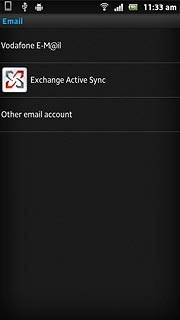

Press Other email account.

Sony Xperia U
Step 27 of 55

Enter email address

Key in your email address.

Step 28 of 55

Enter password

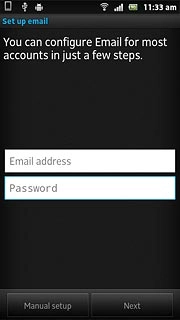

Press Password and key in the password for your email account at your email provider.

Step 29 of 55

Enter password

Press Next.

Step 30 of 55

Select server type

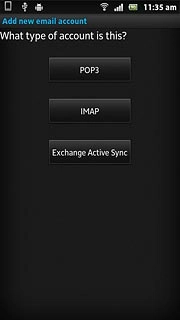

Press POP3.

Sony Xperia U
Step 31 of 55

Enter username

Key in the username for your email account.

Step 32 of 55

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

Step 33 of 55

Enter incoming port

Press the field below Port and key in 110

Step 34 of 55

Turn off SSL encryption of incoming email messages

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

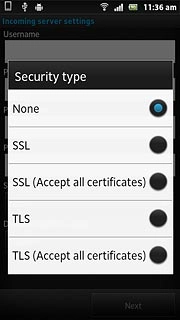

Step 35 of 55

Turn off SSL encryption of incoming email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

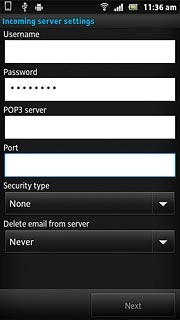

Step 36 of 55

Select setting for deleting email messages from server

Press the drop down list below Delete email from server.

Step 37 of 55

Select setting for deleting email messages from server

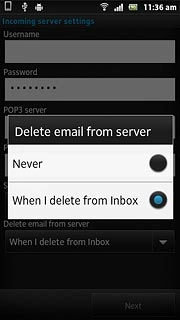

Press the required setting.

Step 38 of 55

Select setting for deleting email messages from server

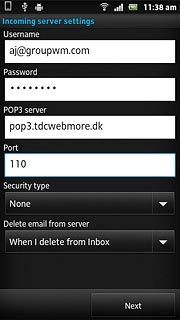

Press Next.

Step 39 of 55

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

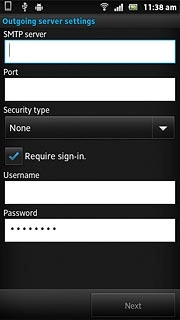

Step 40 of 55

Enter outgoing port

Press the field below Port and key in 25

Step 41 of 55

Turn off encryption of outgoing email messages

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 42 of 55

Turn off encryption of outgoing email messages

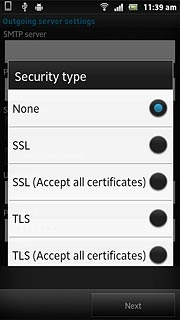

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 43 of 55

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 44 of 55

Turn SMTP authentication on or off

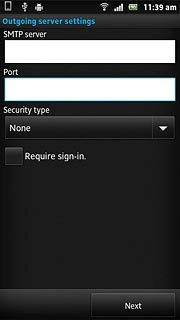

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 45 of 55

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

Step 46 of 55

Select setting for retrieving new email messages

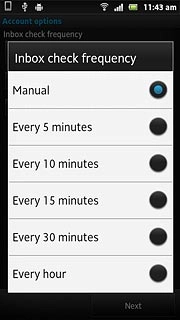

Press Manual or the required period.

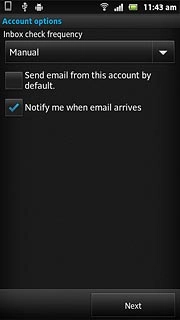

Step 47 of 55

Select default email account

Press Send email from this account by default to select a default email account.

Step 48 of 55

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 49 of 55

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 50 of 55

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 51 of 55

Turn email message notification on or off

Press Next.

Sony Xperia U
Step 52 of 55

Enter email account name

Key in a name for the email account.

Step 53 of 55

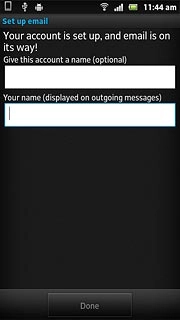

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 54 of 55

Retrieve email messages

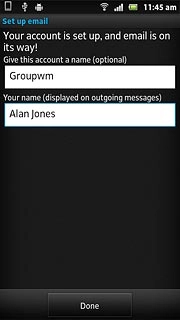

Press Done.
Wait while your phone retrieves new email messages.

Step 55 of 55

Exit

Press the Home key to return to standby mode.
