Sony Xperia X

Sony Xperia X

Android 6.0

Set up your Sony Xperia X Android 6.0 for POP3 email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using POP3, your email messages are retrieved to your phone and at the same time they are deleted from the server. You're then not able to access your email messages from other devices. To set up your phone for POP3 email, you need to set up your phone for internet.

Step 1 of 42

1. Find "Account & sync"

Slide two fingers downwards starting from the top the screen.

Step 2 of 42

1. Find "Account & sync"

Press the settings icon.

Step 3 of 42

1. Find "Account & sync"

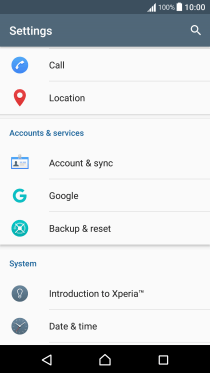

Press Account & sync.

Step 4 of 42

2. Create new email account

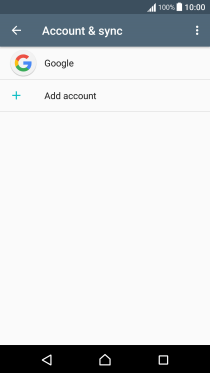

Press Add account.

Step 5 of 42

2. Create new email account

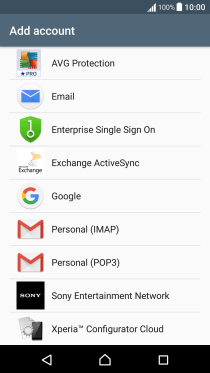

Press Email.

Step 6 of 42

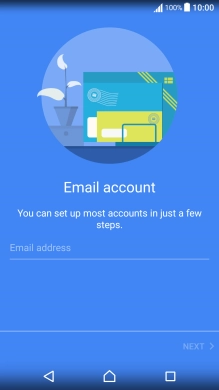

3. Enter email address

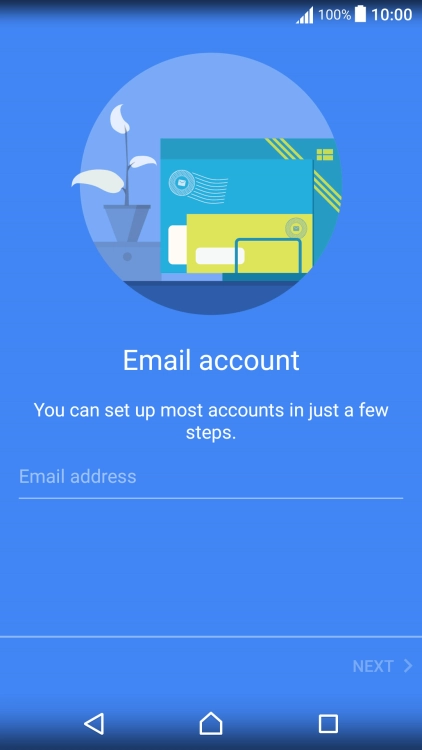

Press Email address and key in your email address.

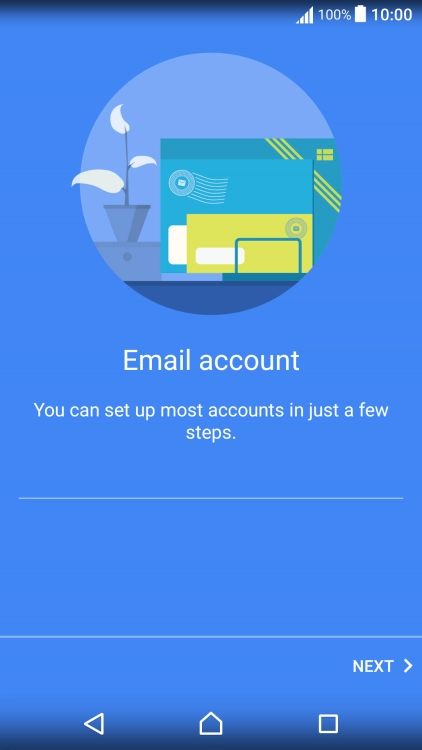

Step 7 of 42

3. Enter email address

Press NEXT.

Step 8 of 42

4. Enter password

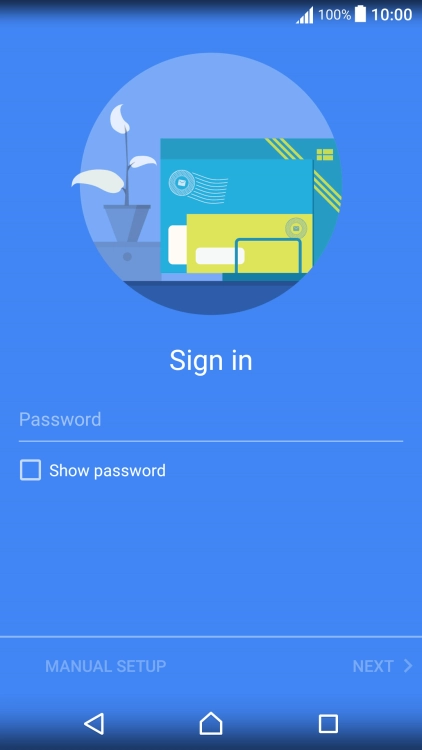

Press Password and key in the password for your email account.

Step 9 of 42

4. Enter password

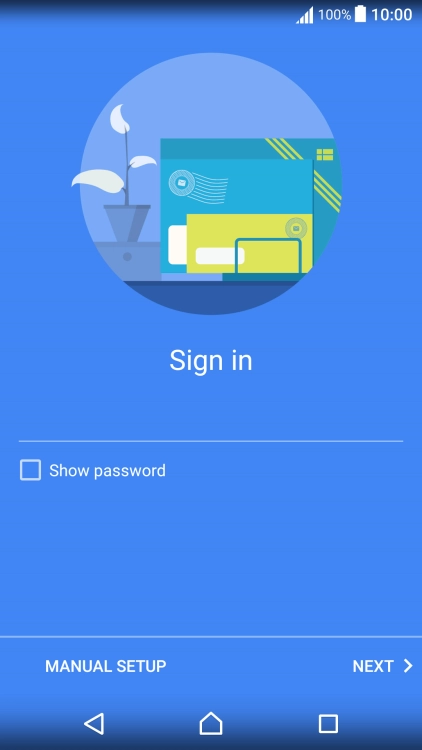

Press NEXT.

Step 10 of 42

4. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 42

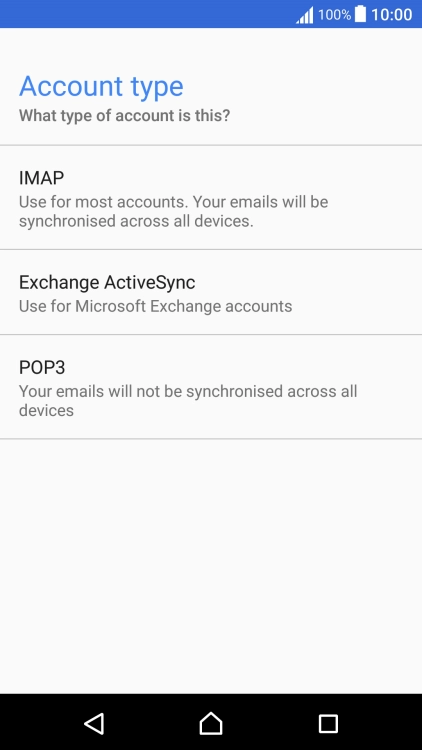

5. Select server type

Press POP3.

Step 12 of 42

6. Enter username

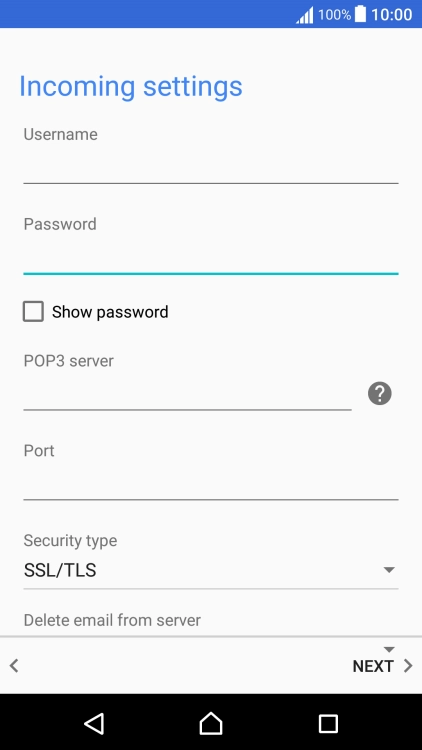

Press the field below "Username" and key in the username for your email account.

Step 13 of 42

7. Enter incoming server

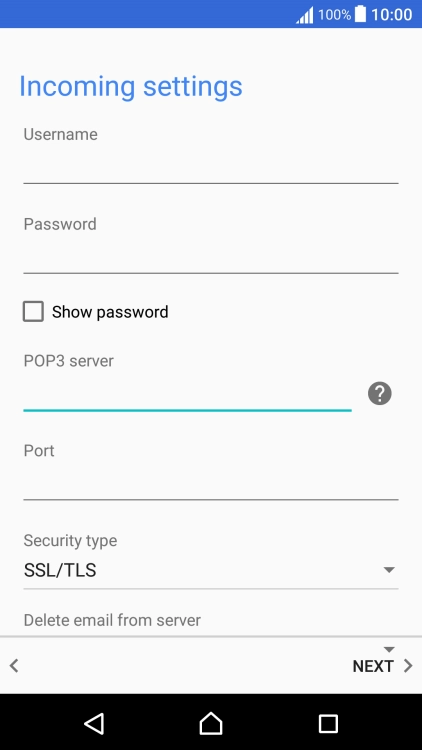

Press the field below "POP3 server" and key in the name of your email provider's incoming server.

110
Step 14 of 42

8. Enter incoming port

Press the field below "Port" and key in 110.

Step 15 of 42

9. Turn off encryption of incoming email messages

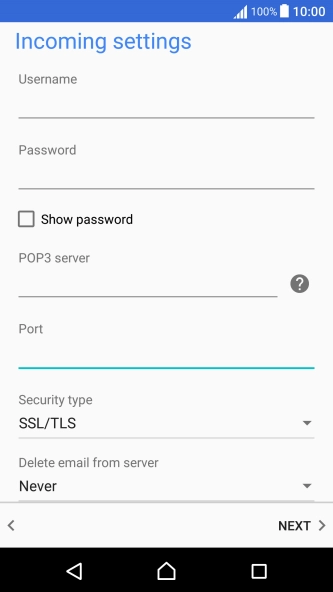

Press the drop down list below "Security type".

Step 16 of 42

9. Turn off encryption of incoming email messages

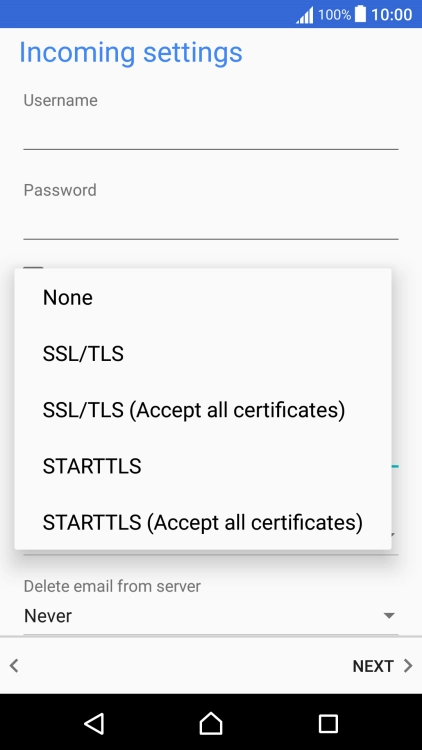

Press None to turn off the function.

Step 17 of 42

10. Turn deletion of email messages on server on or off

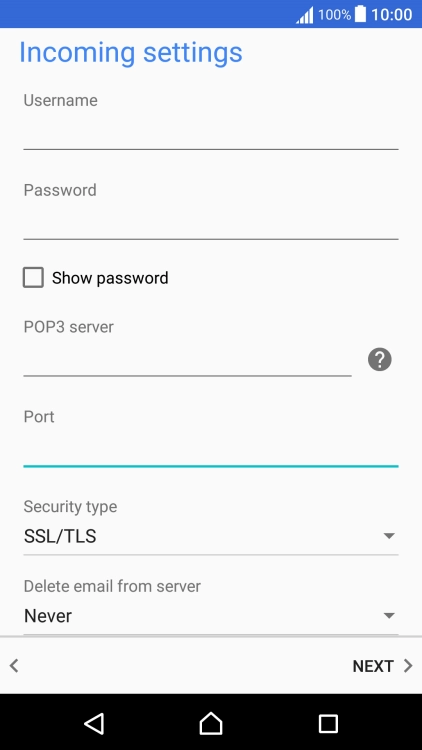

Press the drop down list below "Delete email from server".

Step 18 of 42

10. Turn deletion of email messages on server on or off

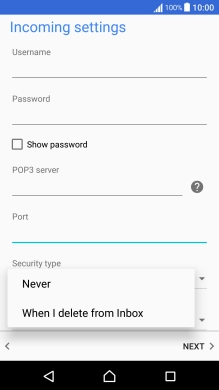

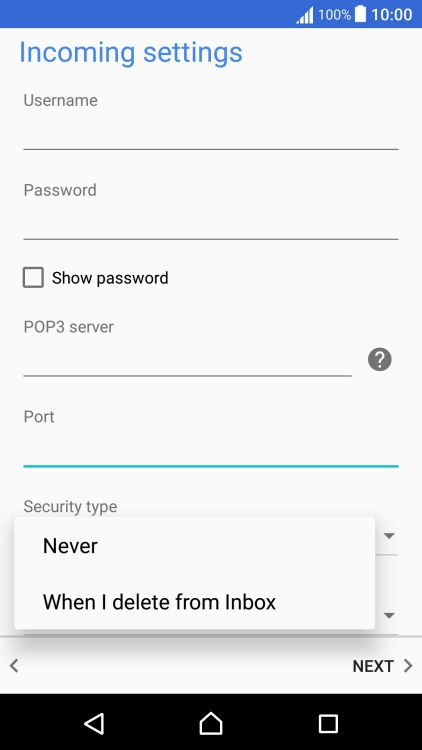

Press Never to keep email messages on the server when you delete them on your phone.

Step 19 of 42

10. Turn deletion of email messages on server on or off

Press When I delete from Inbox to delete email messages on the server when you delete them on your phone.

Step 20 of 42

10. Turn deletion of email messages on server on or off

Press NEXT.

smtp.vodafone.net.au
Step 21 of 42

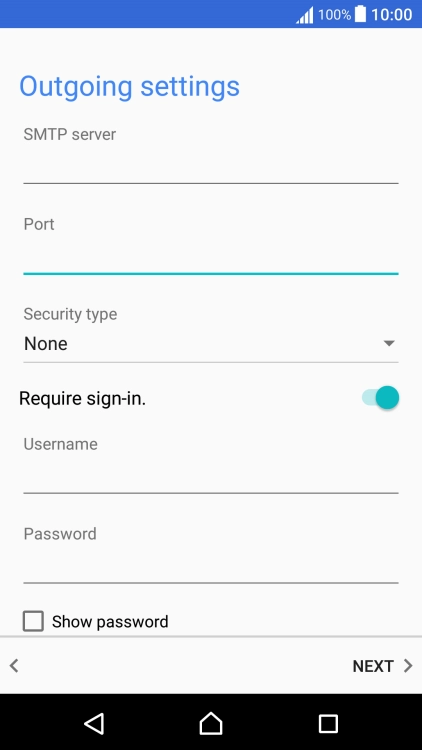

11. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

25
Step 22 of 42

12. Enter outgoing port

Press the field below "Port" and key in 25.

Step 23 of 42

13. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 24 of 42

13. Turn off encryption of outgoing email messages

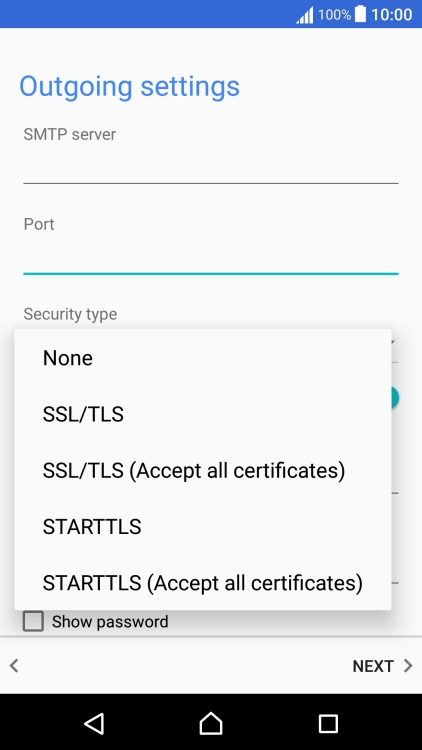

Press None to turn off the function.

Step 25 of 42

14. Turn SMTP authentication on or off

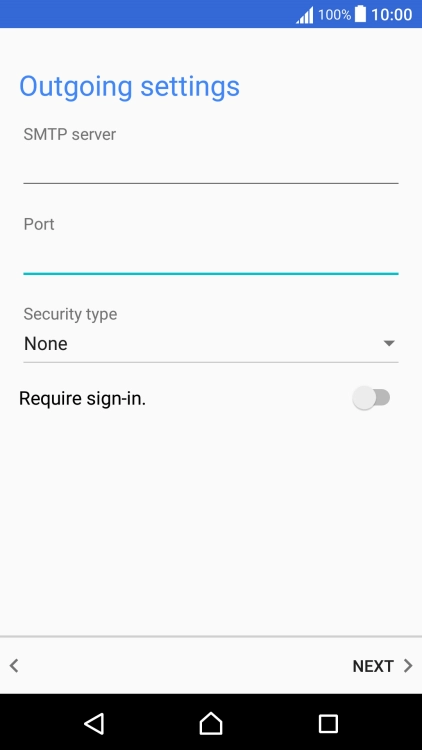

Press Require sign-in. to turn the function on or off.

Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Step 26 of 42

14. Turn SMTP authentication on or off

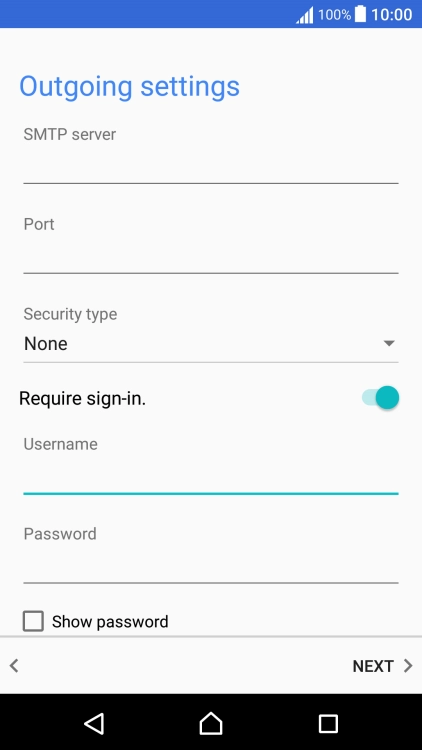

Press the field below "Username" and key in the username for your email account.

Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Step 27 of 42

14. Turn SMTP authentication on or off

Press the field below "Password" and key in the password for your email account.

Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Step 28 of 42

14. Turn SMTP authentication on or off

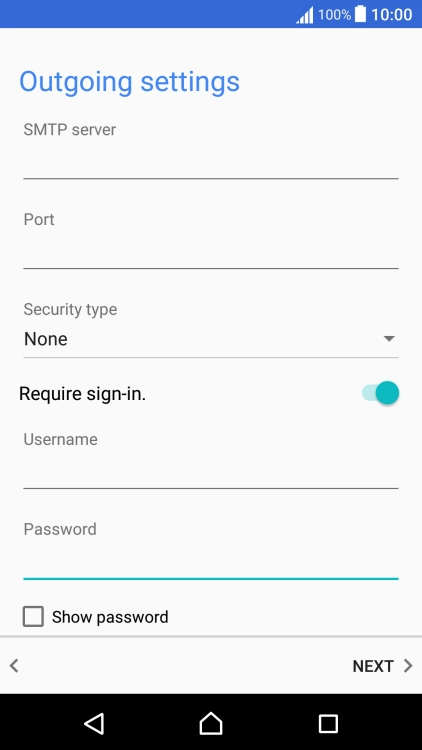

Press NEXT.

Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Step 29 of 42

15. Select setting for retrieval of new email messages

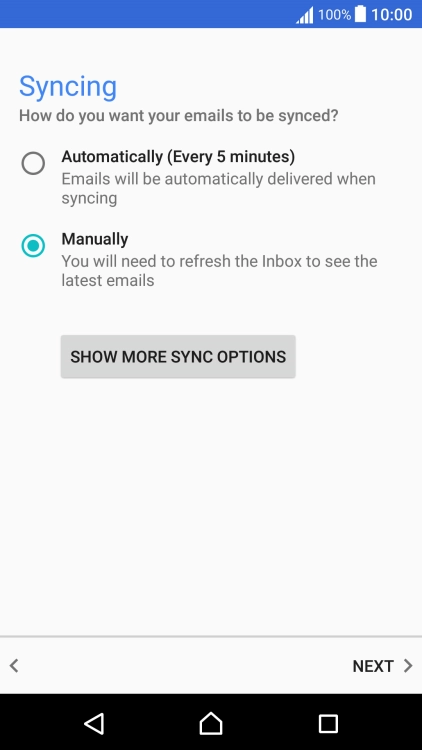

Press SHOW MORE SYNC OPTIONS.

Step 30 of 42

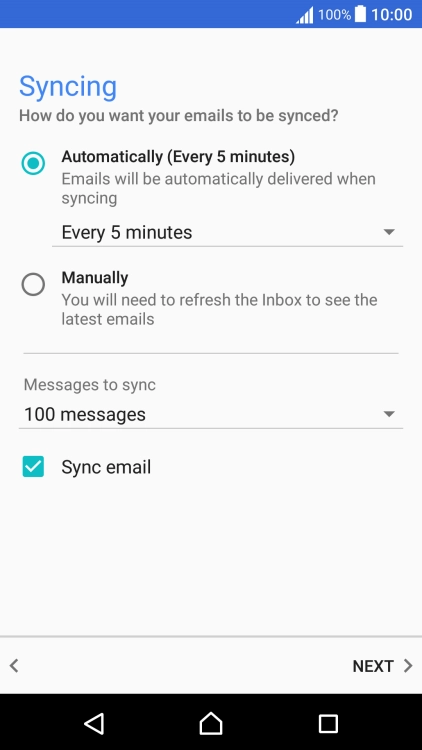

15. Select setting for retrieval of new email messages

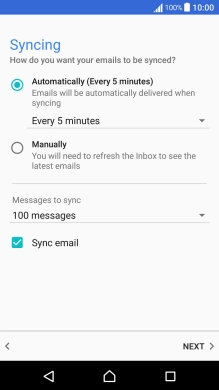

Press the drop down list below "Automatically (Every 5 minutes)".

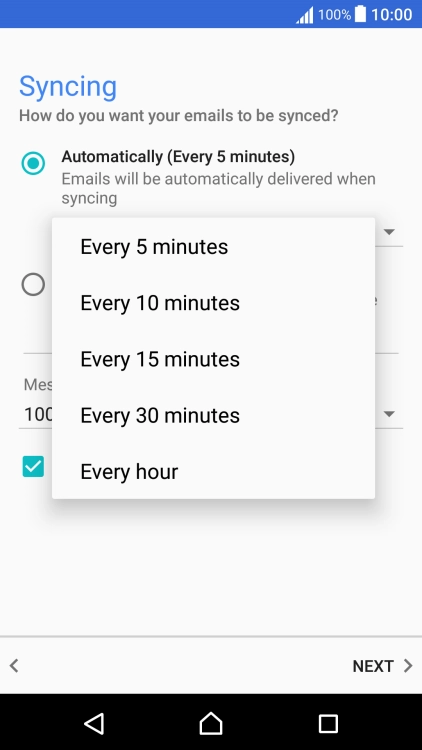

Step 31 of 42

15. Select setting for retrieval of new email messages

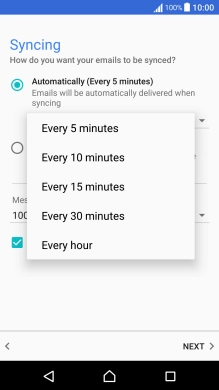

Press the required setting.

Step 32 of 42

15. Select setting for retrieval of new email messages

To turn on manual retrieval of email messages, press Manually.

Step 33 of 42

15. Select setting for retrieval of new email messages

Press the drop down list below "Messages to sync".

Step 34 of 42

15. Select setting for retrieval of new email messages

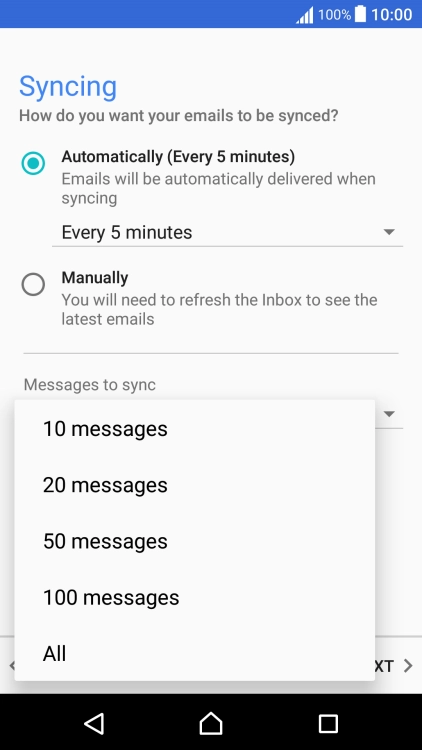

Press the required setting.

Step 35 of 42

16. Turn on email message synchronisation

Press Sync email to turn on the function.

Step 36 of 42

16. Turn on email message synchronisation

Press NEXT.

Step 37 of 42

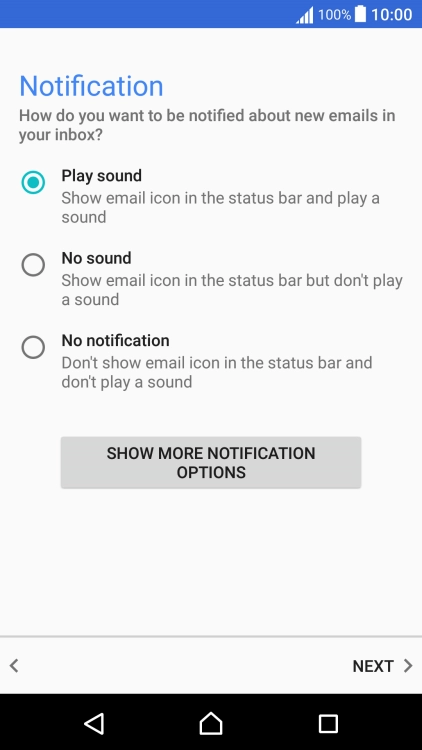

17. Select notification for new email messages

Press the required setting below Notification.

Step 38 of 42

17. Select notification for new email messages

Press NEXT.

Step 39 of 42

18. Enter email account name

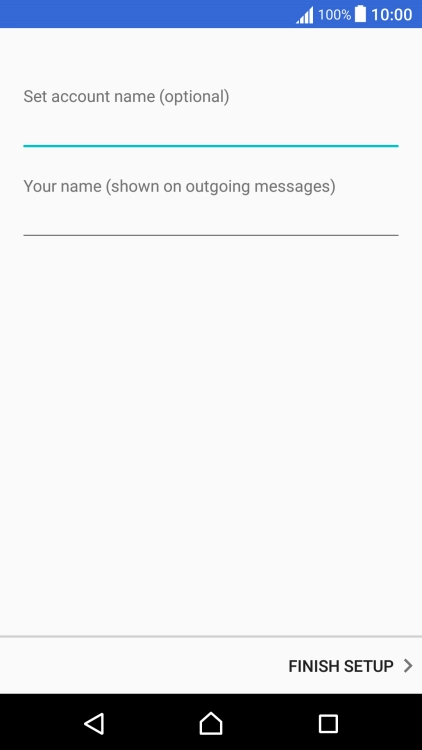

Press the field below "Set account name (optional)" and key in the required name.

Step 40 of 42

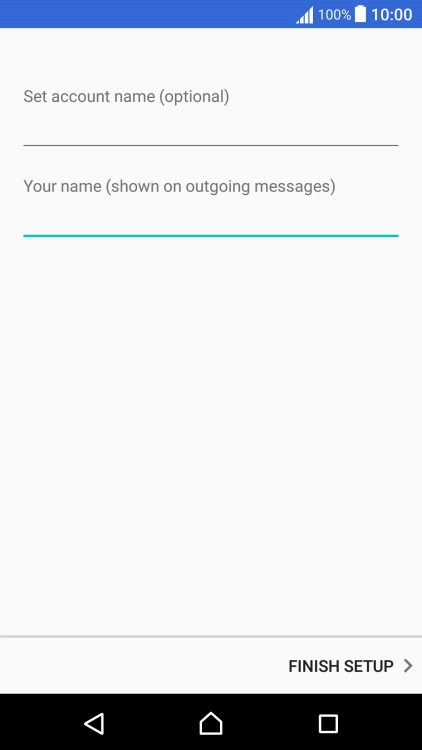

19. Enter sender name

Press the field below "Your name (shown on outgoing messages)" and key in the required sender name.

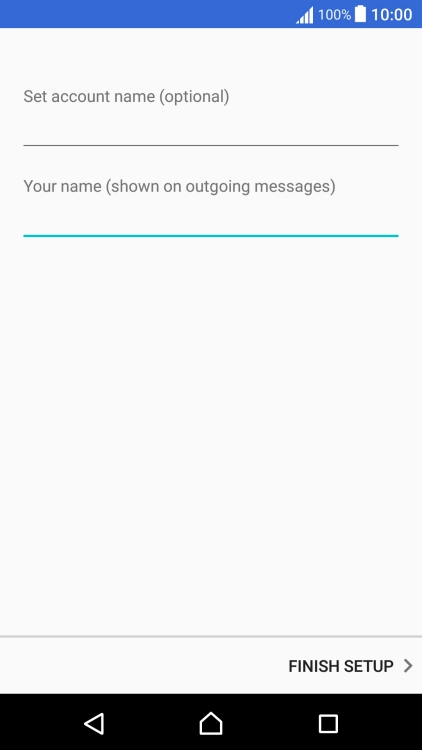

Step 41 of 42

19. Enter sender name

Press FINISH SETUP.

Step 42 of 42

20. Return to the home screen

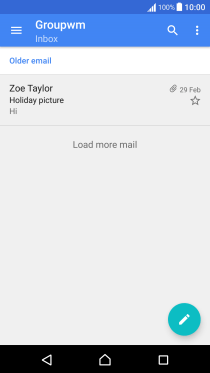

Press the Home key to return to the home screen.

1. Find "Account & sync"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press Account & sync.

2. Create new email account

Press Add account.
Press Email.

3. Enter email address

Press Email address and key in your email address.
Press NEXT.

4. Enter password

Press Password and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. Select server type

Press POP3.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "POP3 server" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "Port" and key in 110.
110

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.

10. Turn deletion of email messages on server on or off

Press the drop down list below "Delete email from server".
Press Never to keep email messages on the server when you delete them on your phone.
Press When I delete from Inbox to delete email messages on the server when you delete them on your phone.
Press NEXT.

11. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
smtp.vodafone.net.au

12. Enter outgoing port

Press the field below "Port" and key in 25.
25

13. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

14. Turn SMTP authentication on or off

Press Require sign-in. to turn the function on or off.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press the field below "Username" and key in the username for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press the field below "Password" and key in the password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press NEXT.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

15. Select setting for retrieval of new email messages

Press SHOW MORE SYNC OPTIONS.
Press the drop down list below "Automatically (Every 5 minutes)".
Press the required setting.
To turn on manual retrieval of email messages, press Manually.
Press the drop down list below "Messages to sync".
Press the required setting.

16. Turn on email message synchronisation

Press Sync email to turn on the function.
Press NEXT.

17. Select notification for new email messages

Press the required setting below Notification.
Press NEXT.

18. Enter email account name

Press the field below "Set account name (optional)" and key in the required name.

19. Enter sender name

Press the field below "Your name (shown on outgoing messages)" and key in the required sender name.
Press FINISH SETUP.

20. Return to the home screen

Press the Home key to return to the home screen.
