1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
1. Find "Access Point Names"
Press the settings icon.
1. Find "Access Point Names"
Press More.
1. Find "Access Point Names"
Press Mobile networks.
1. Find "Access Point Names"
Press Access Point Names.
2. Create new data connection

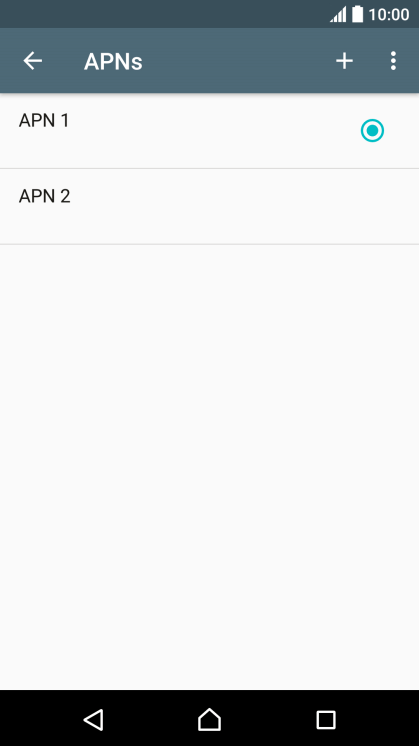

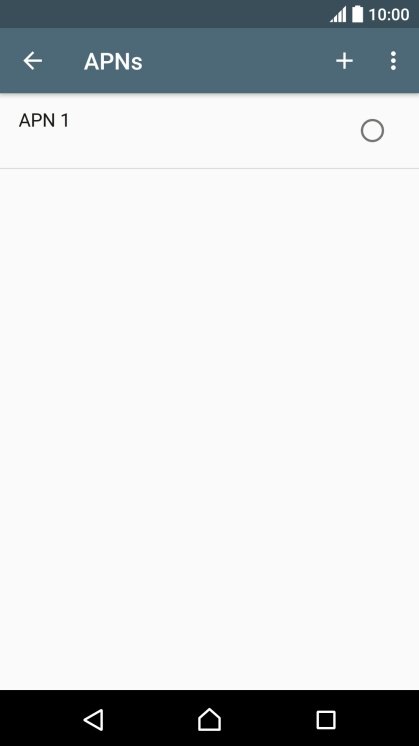

Press the new data connection icon.
2. Create new data connection

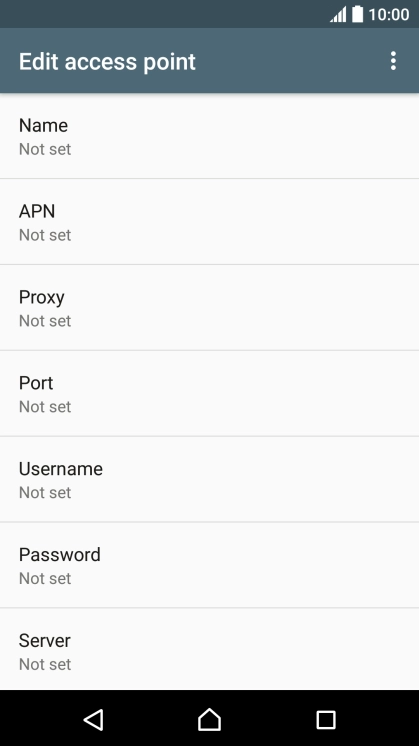

Press Name.
2. Create new data connection

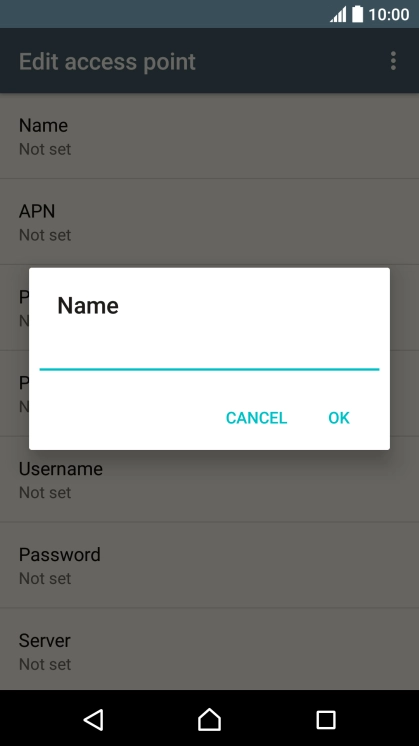

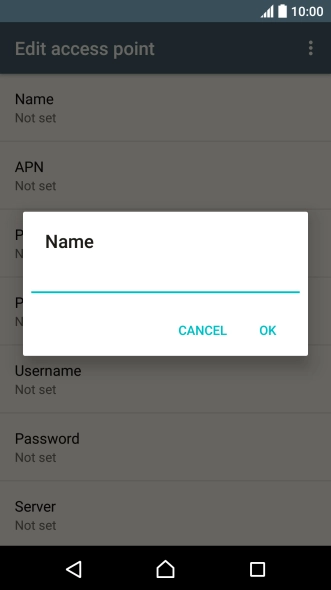

Key in Vodafone MMS and press OK.
3. Enter APN
Press APN.
3. Enter APN
Key in live.vodafone.com and press OK.
4. Enter MMSC

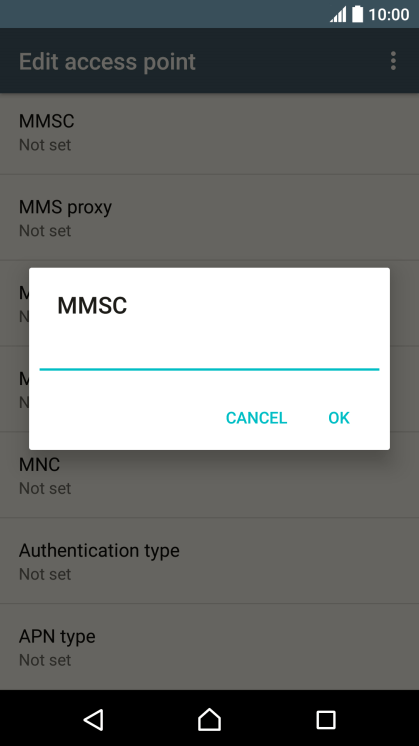

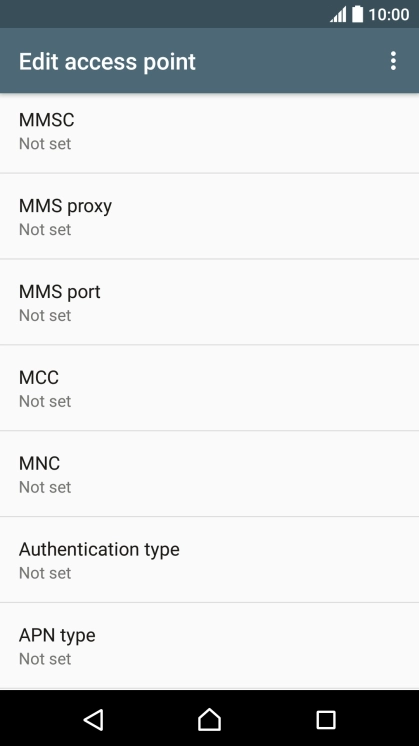

Press MMSC.
4. Enter MMSC

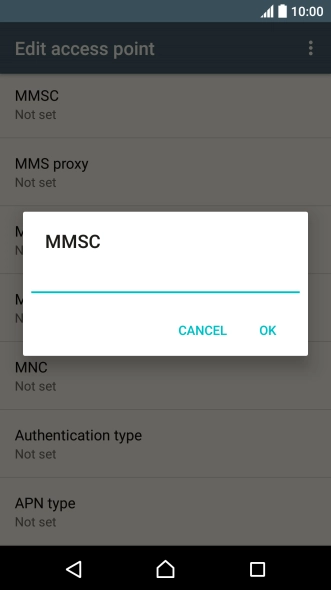

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
5. Enter IP address

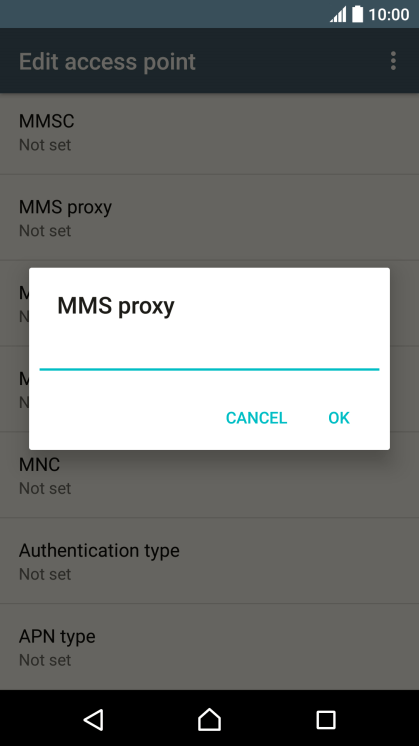

Press MMS proxy.
5. Enter IP address

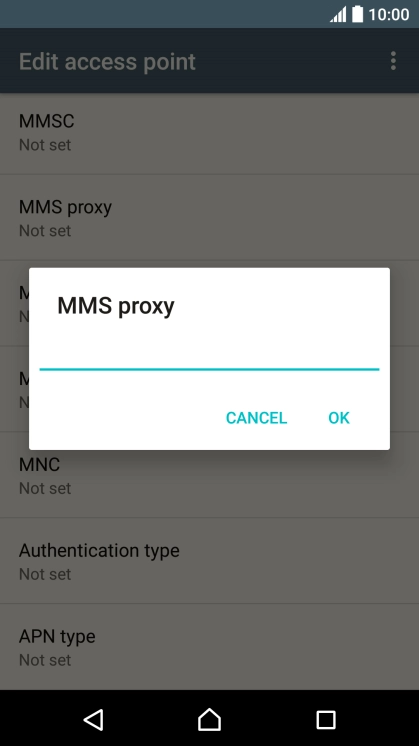

Key in 10.202.002.060 and press OK.
6. Enter port number

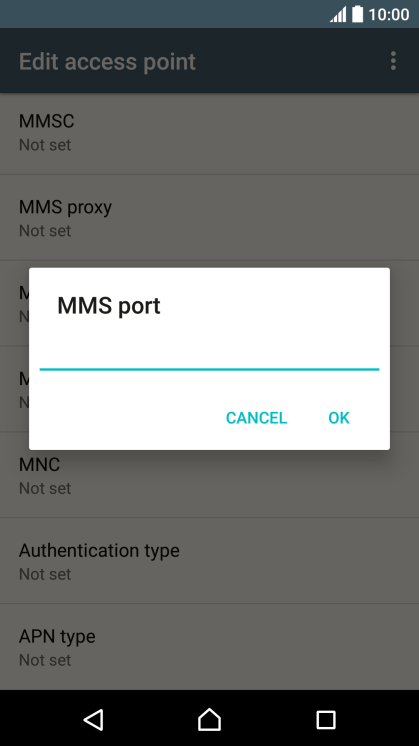

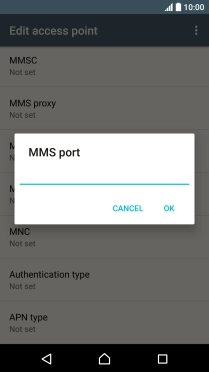

Press MMS port.
6. Enter port number
Key in 8080 and press OK.
7. Enter country code
Press MCC.
7. Enter country code

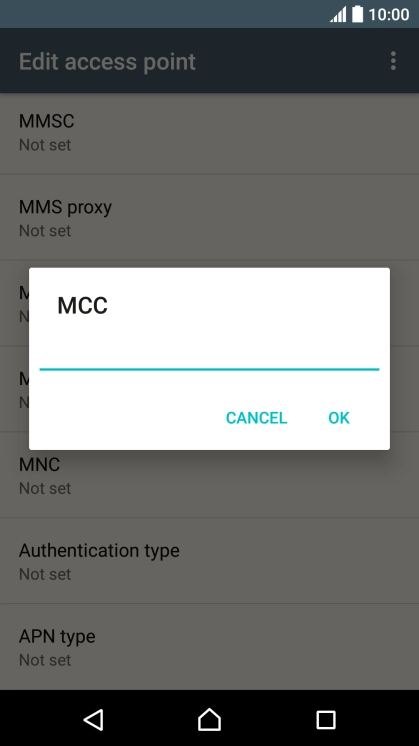

Key in 505 and press OK.
8. Enter network code
Press MNC.
8. Enter network code
Key in 03 and press OK.
9. Select authentication type
Press Authentication type.
9. Select authentication type

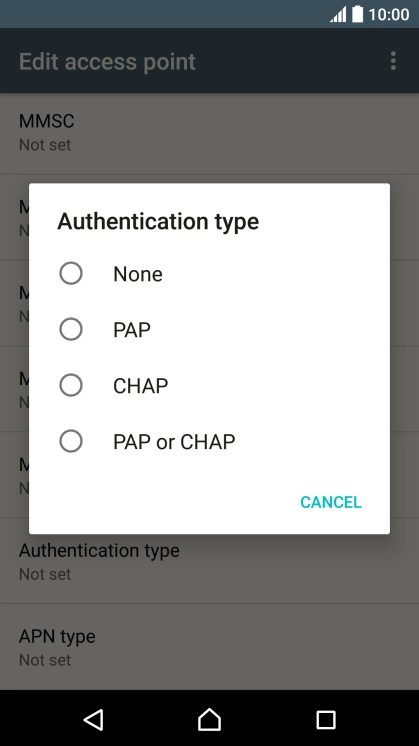

Press PAP.
10. Select APN type
Press APN type.
10. Select APN type

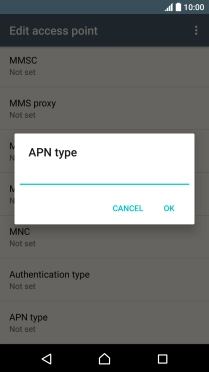

Key in mms and press OK.
11. Save data connection
Press the menu icon.
11. Save data connection

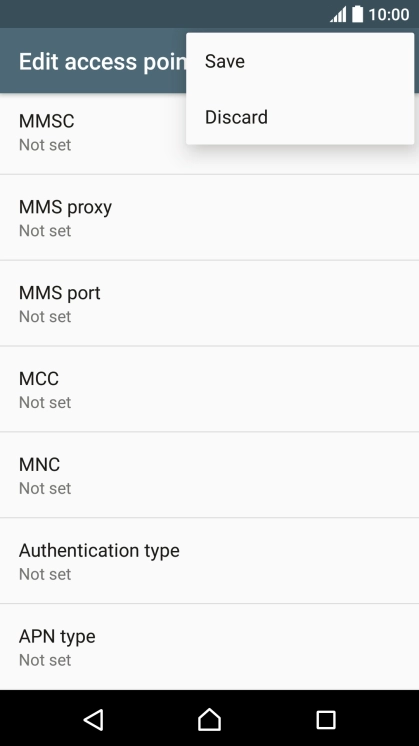

Press Save.
12. Return to the home screen
Press the Home key to return to the home screen.
