Set up your phone for web-based email - Vodafone 353

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Before you can set up your phone for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for information on how to set up your phone for POP3 email.

Step 1 of 47

Find "Data account"

Press the Navigation key.

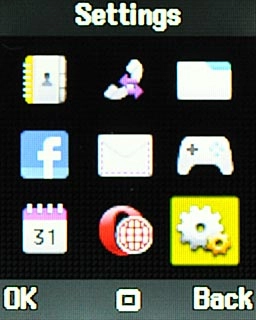

Step 2 of 47

Find "Data account"

Scroll to Settings and press the Navigation key.

Step 3 of 47

Find "Data account"

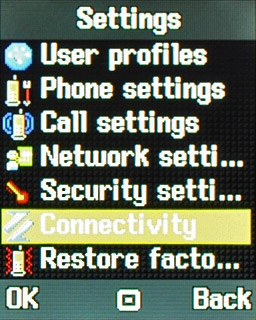

Scroll to Connectivity and press the Navigation key.

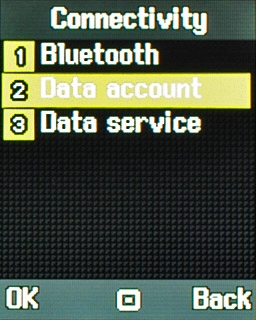

Step 4 of 47

Find "Data account"

Scroll to Data account and press the Navigation key.

Step 5 of 47

Create new data connection

Press Options.

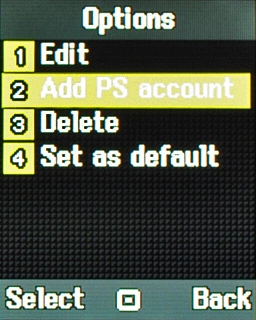

Step 6 of 47

Create new data connection

Scroll to Add PS account and press the Navigation key.

Step 7 of 47

Enter name

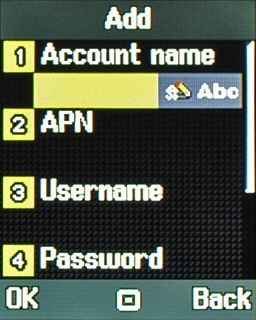

Highlight the field below Account name and key in Vodafone Mail

Step 8 of 47

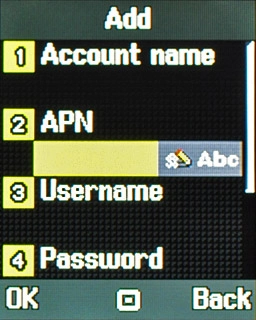

Enter APN

Highlight the field below APN.
Key in live.vodafone.com

An APN is used to establish a data connection.

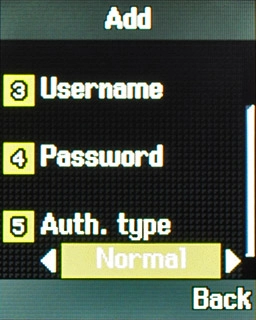

Step 9 of 47

Select authentication type

Highlight the field below Auth. type.

Step 10 of 47

Select authentication type

Press Navigation key right to select Normal.

Step 11 of 47

Save data connection

Press Done.

Step 12 of 47

Save data connection

Press Disconnect to return to standby mode.

Step 13 of 47

Find "Email"

Press the Navigation key.

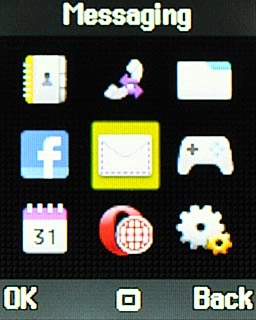

Step 14 of 47

Find "Email"

Scroll to Messaging and press the Navigation key.

Step 15 of 47

Find "Email"

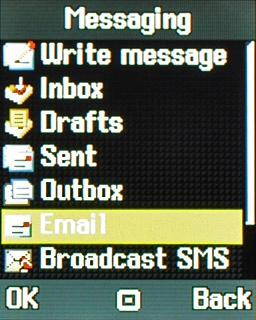

Scroll to Email and press the Navigation key.

Step 16 of 47

Create new email account

Press Options.

If email accounts have been created already, press Options. Scroll to Email accounts and press the Navigation key.
Step 17 of 47

Create new email account

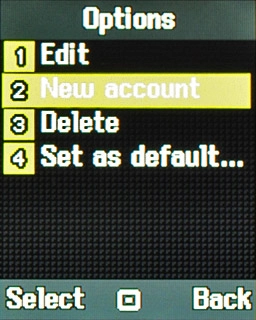

Scroll to New account and press the Navigation key.

If email accounts have been created already, press Options. Scroll to Email accounts and press the Navigation key.

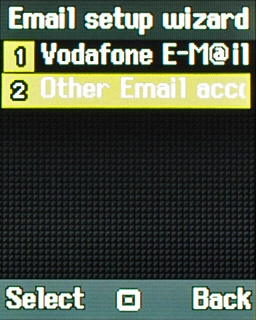

Step 18 of 47

Create new email account

Scroll to Other Email accounts and press the Navigation key.

If email accounts have been created already, press Options. Scroll to Email accounts and press the Navigation key.
Step 19 of 47

Enter email address

Key in your email address and press the Navigation key.

Step 20 of 47

Select account type

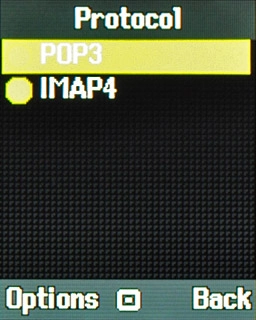

Scroll to POP3 or IMAP4 and press the Navigation key.

Step 21 of 47

Select data connection

Press Options.

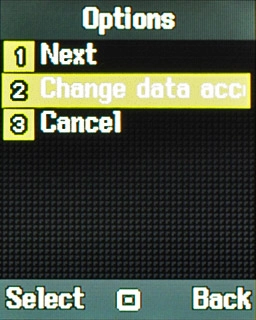

Step 22 of 47

Select data connection

Scroll to Change data account and press the Navigation key.

Step 23 of 47

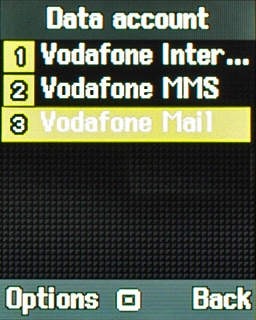

Select data connection

Scroll to Vodafone Mail and press the Navigation key.

Step 24 of 47

Select data connection

Press the Navigation key.

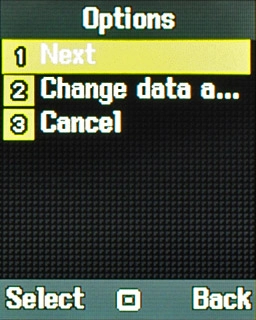

Step 25 of 47

Select data connection

Scroll to Next and press the Navigation key.

Step 26 of 47

Enter incoming server

Key in the name or the IP address of your service provider's incoming server and press the Navigation key.

Step 27 of 47

Enter outgoing server

Key in the name or IP address of your email provider's outgoing server and press the Navigation key.

Step 28 of 47

Enter username

Key in the username for your email account and press the Navigation key.

Step 29 of 47

Enter password

Key in the password for your email account and press the Navigation key.

Step 30 of 47

Enter account name

Key in a name for your email account and press the Navigation key.

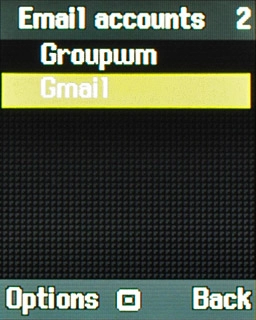

Step 31 of 47

Edit email account settings

Scroll to the account you have just set up and press Options.

Step 32 of 47

Edit email account settings

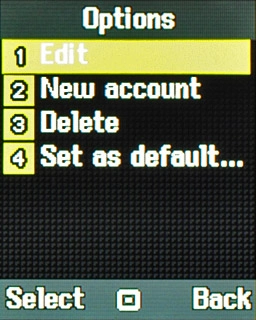

Scroll to Edit and press the Navigation key.

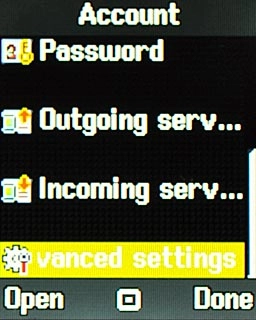

Step 33 of 47

Edit email account settings

Scroll to Advanced settings and press the Navigation key.

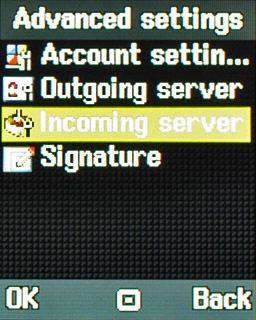

Step 34 of 47

Turn SSL encryption of incoming email messages on or off

Scroll to Incoming Server and press the Navigation key.

Step 35 of 47

Turn SSL encryption of incoming email messages on or off

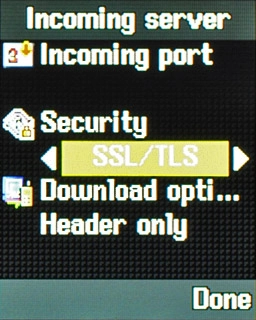

Highlight the field below Security and press Navigation key right to select SSL/TLS, StartTLS or Off.

Step 36 of 47

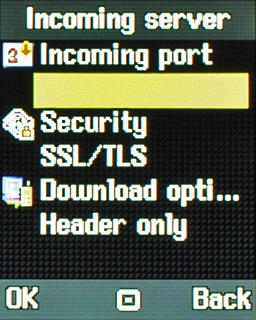

Enter incoming port

Highlight the field below Incoming port and key in the incoming port.

Step 37 of 47

Enter incoming port

Press the Navigation key twice to save.

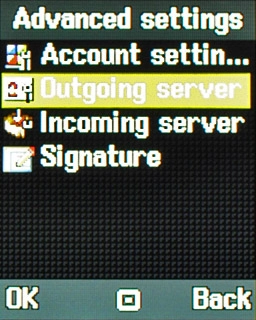

Step 38 of 47

Turn SSL encryption of outgoing email messages on or off

Scroll to Outgoing server and press the Navigation key.

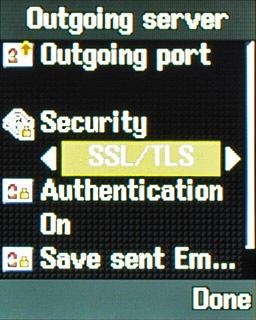

Step 39 of 47

Turn SSL encryption of outgoing email messages on or off

Highlight the field below Security and press Navigation key right to select SSL/TLS, StartTLS or Off.

Step 40 of 47

Enter outgoing port

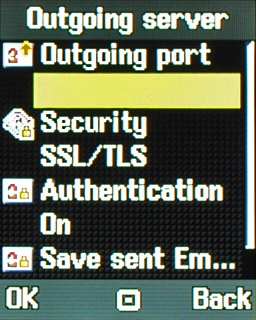

Highlight the field below Outgoing port and key in the outgoing port.

Step 41 of 47

Enter outgoing port

Press the Navigation key twice to save.

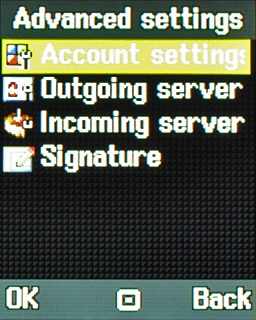

Step 42 of 47

Select setting for automatic retrieval of email messages

Scroll to Account settings and press the Navigation key.

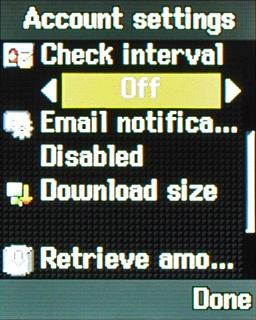

Step 43 of 47

Select setting for automatic retrieval of email messages

Highlight the field below Check interval and press Navigation key right to select Off or the required period.

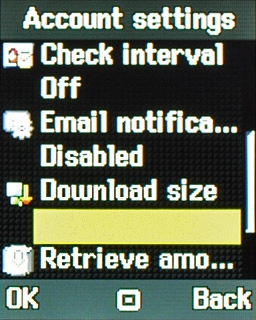

Step 44 of 47

Select email message size

Highlight the field below Download size and key in the required maximum email message size to be retrieved.

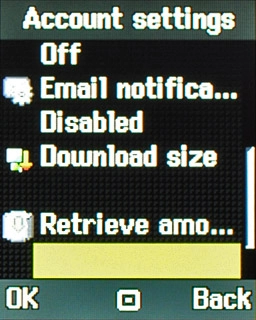

Step 45 of 47

Select number of email messages to be retrieved

Highlight the field below Retrieve amo... and key in the required number of email messages to be retrieved.

Step 46 of 47

Select number of email messages to be retrieved

Press the Navigation key twice to save.

Step 47 of 47

Exit

Press Disconnect to return to standby mode.
