Select setting for automatic connection - Vodafone R216/El Capitan

Read help info

You can select if an internet connection is to be automatically established when you turn on your router. Follow these instructions to select settings for automatic connection.

Step 1 of 18

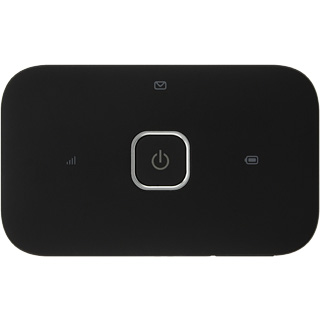

Turn on your router

Press and hold On/Off.

Step 2 of 18

Connect to Wi-Fi hotspot

Do the following in Mac OS X:

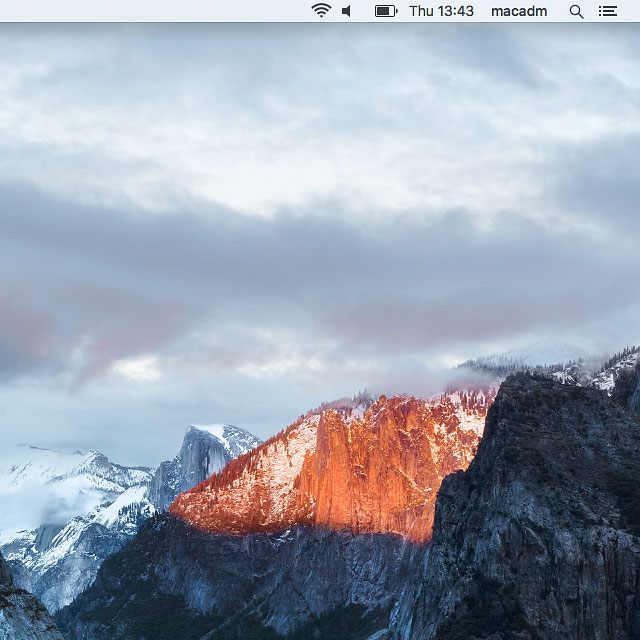

Click the Wi-Fi icon.

Step 3 of 18

Connect to Wi-Fi hotspot

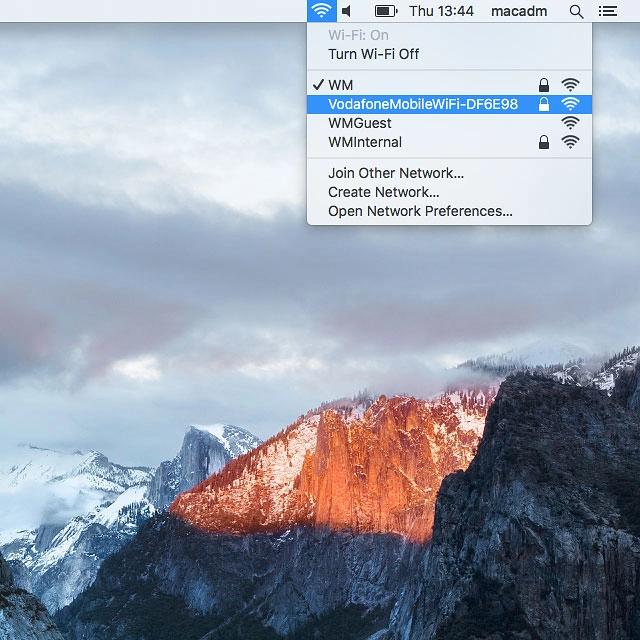

Click the name of your Wi-Fi hotspot.

Step 4 of 18

Connect to Wi-Fi hotspot

You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.

Step 5 of 18

Connect to Wi-Fi hotspot

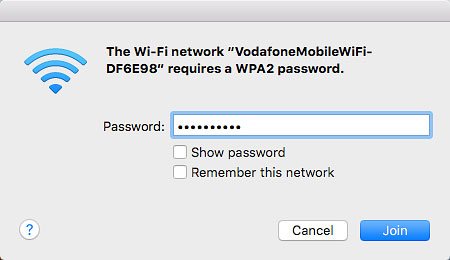

Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Vodafone R216/El Capitan
Step 6 of 18

Establish a connection to your router's web interface

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 7 of 18

Establish a connection to your router's web interface

If you're asked to key in your PIN:

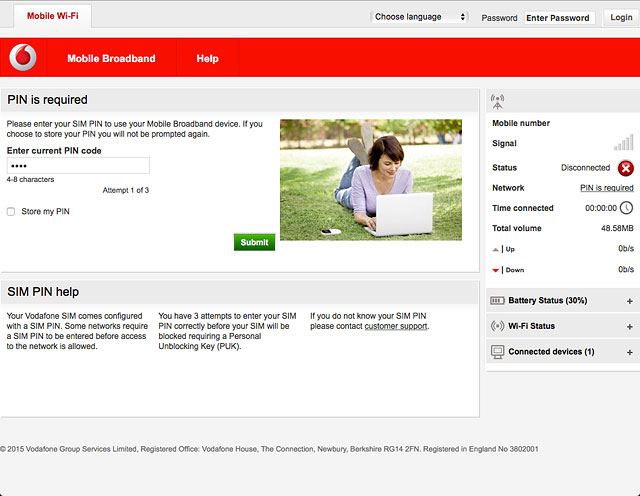

Highlight the field below "Enter current PIN code" and key in your PIN.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 8 of 18

Establish a connection to your router's web interface

Click Submit.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 9 of 18

Establish a connection to your router's web interface

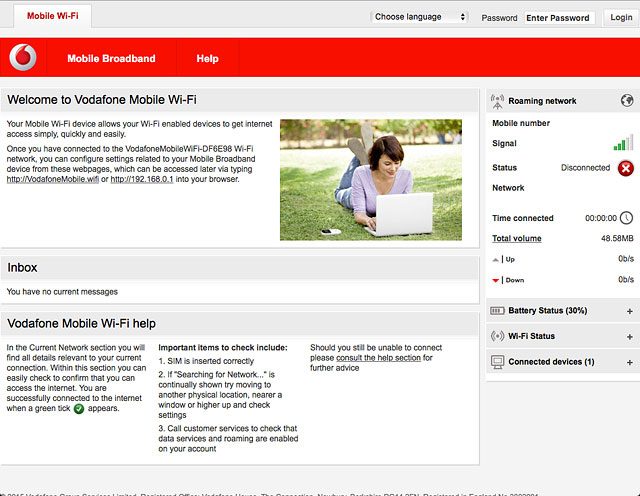

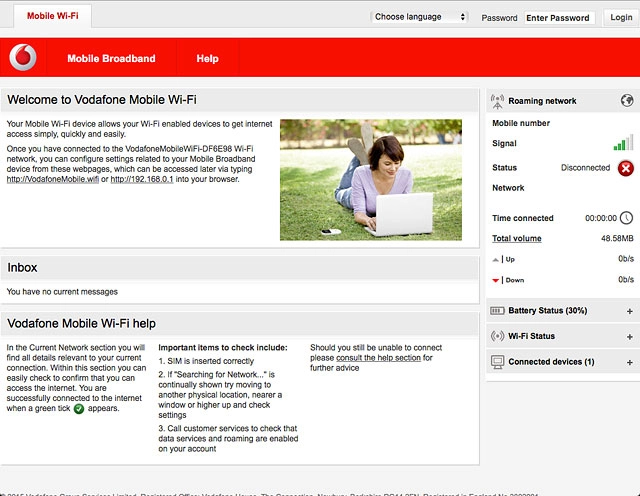

Highlight the field next to "Password" and key in admin

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Step 10 of 18

Establish a connection to your router's web interface

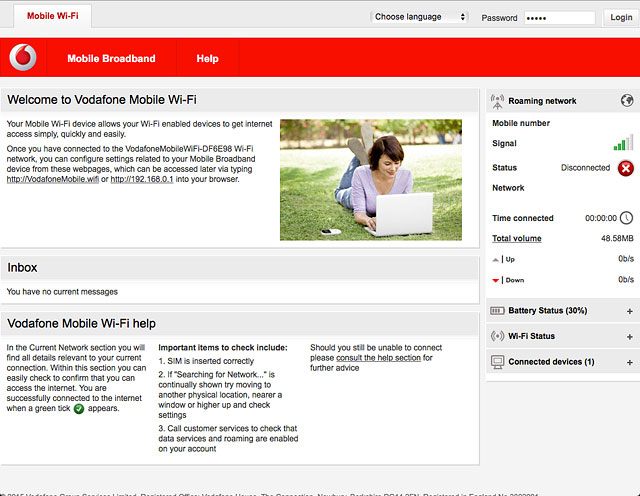

Click Login.

If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

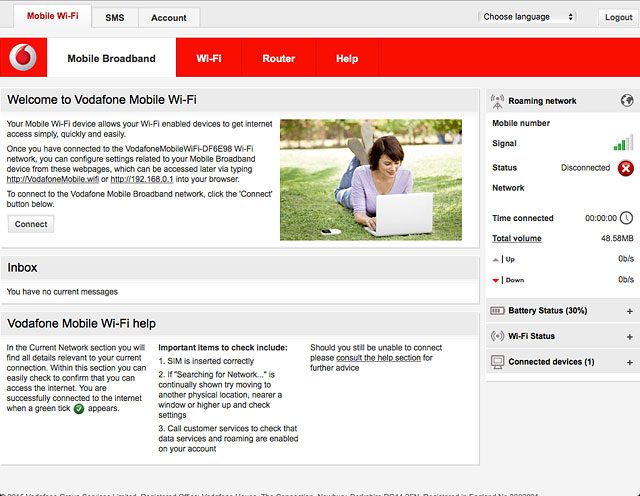

Step 11 of 18

Find "Connection"

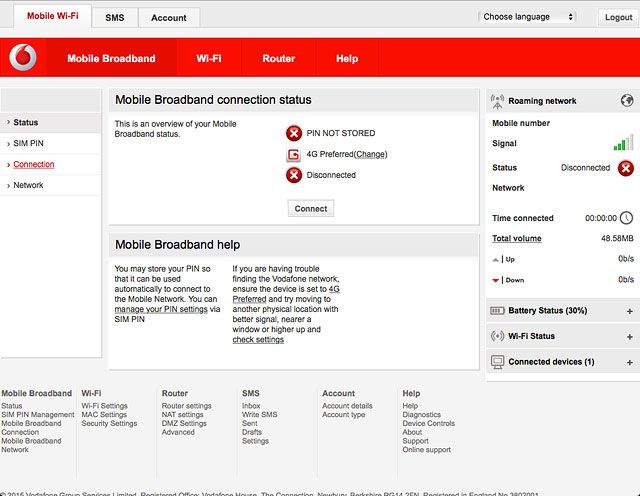

Click Mobile Broadband.

Step 12 of 18

Find "Connection"

Click Connection.

Vodafone R216/El Capitan
Step 13 of 18

Select option

Select one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.

Step 14 of 18

5a - Select setting for automatic connection

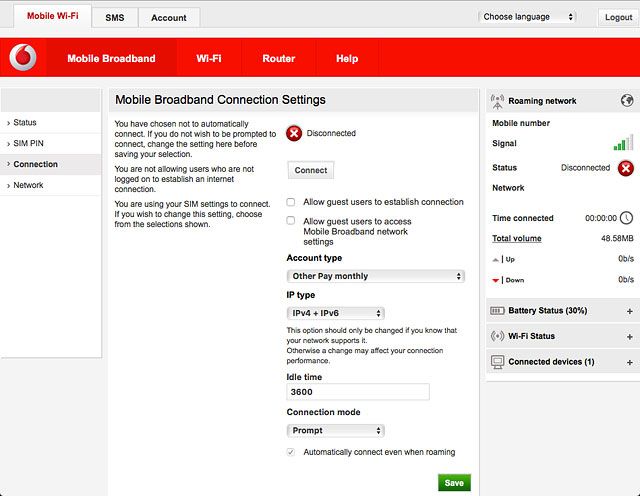

Click the drop down list below "Connection mode".

Step 15 of 18

5a - Select setting for automatic connection

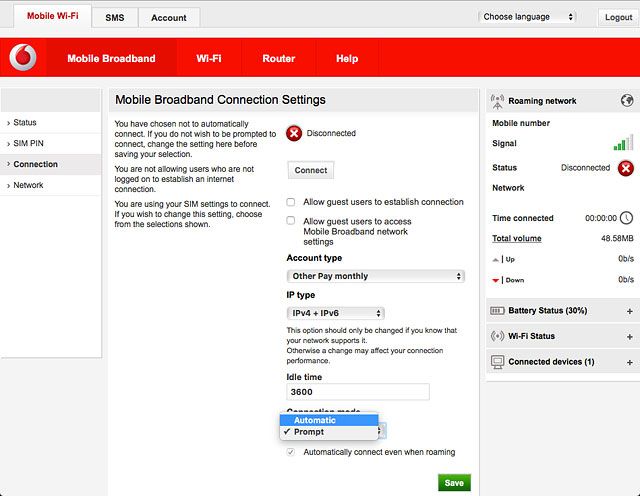

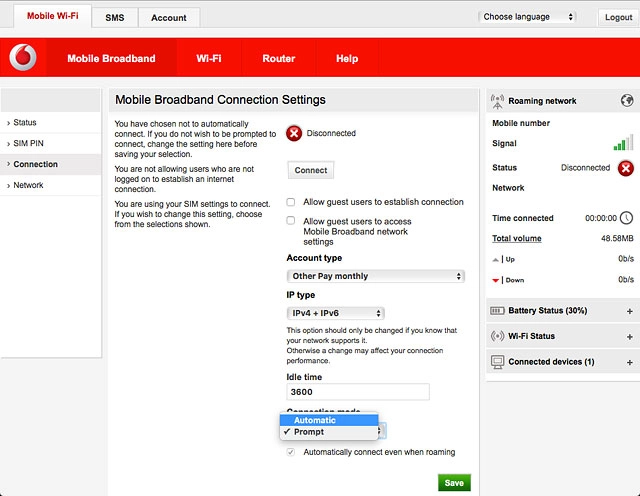

Highlight Automatic or Prompt.

Step 16 of 18

5b - Turn automatic connection when roaming on or off

Click the box next to "Automatically connect even when roaming" to turn the function on or off.

This setting is only available if you turned on automatic connection in step 5a.
Step 17 of 18

Save and exit

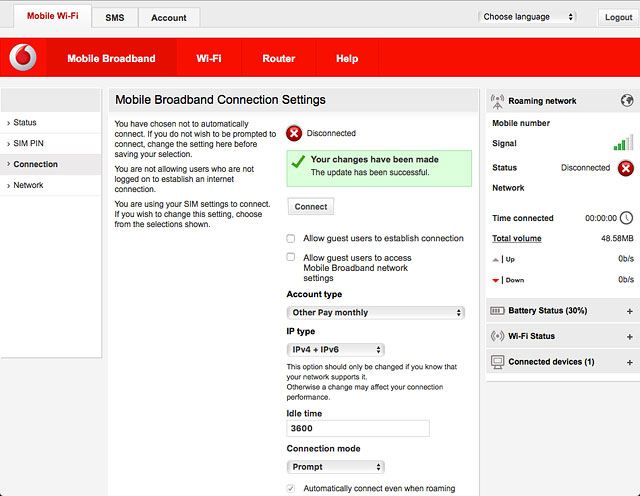

Click Save.

Step 18 of 18

Save and exit

Click Logout.

Turn on your router

Press and hold On/Off.

Connect to Wi-Fi hotspot

Do the following in Mac OS X:
Click the Wi-Fi icon.
Click the name of your Wi-Fi hotspot.
You can find the name and password for your Wi-Fi hotspot on the inside of the back cover.
Key in the password for your Wi-Fi hotspot and click Join.
A connection to your Wi-Fi hotspot is established.

Establish a connection to your router's web interface

Open a browser.
Key in http://vodafonemobile.wifi in the address bar and press Enter.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Vodafone R216/El Capitan
If you're asked to key in your PIN:
Highlight the field below "Enter current PIN code" and key in your PIN.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Submit.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Highlight the field next to "Password" and key in admin
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.
Click Login.
If an incorrect PIN is entered three times in a row, your SIM will be blocked. To unblock your SIM, you'll need to key in your PUK. The PUK can be obtained by contacting customer services.
PLEASE NOTE:
If the wrong PUK is entered ten times, your SIM will be blocked permanently. In this case, you need a new SIM from Vodafone.

Find "Connection"

Click Mobile Broadband.
Click Connection.

Select option

Select one of the following options:
Select setting for automatic connection, go to 5a.
Turn automatic connection when roaming on or off, go to 5b.
Vodafone R216/El Capitan

5a - Select setting for automatic connection

Click the drop down list below "Connection mode".
Highlight Automatic or Prompt.

5b - Turn automatic connection when roaming on or off

Click the box next to "Automatically connect even when roaming" to turn the function on or off.
This setting is only available if you turned on automatic connection in step 5a.

Save and exit

Click Save.
Click Logout.
