Vodafone Smart First

Find "Access Point Names"

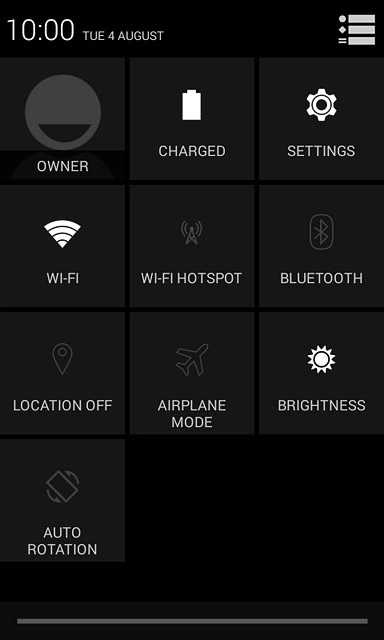

Slide two fingers down the display starting from the top edge of your phone.
Press SETTINGS.

Find "Access Point Names"

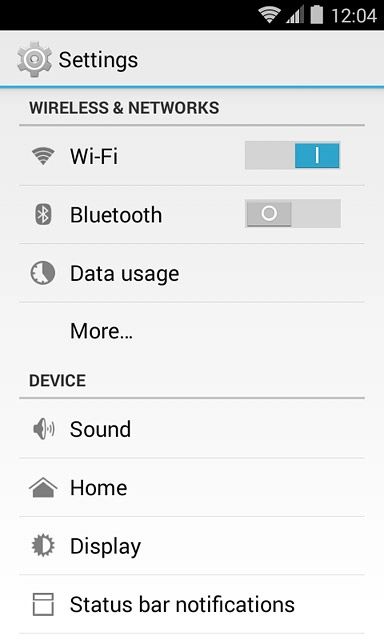

Press More....

Find "Access Point Names"

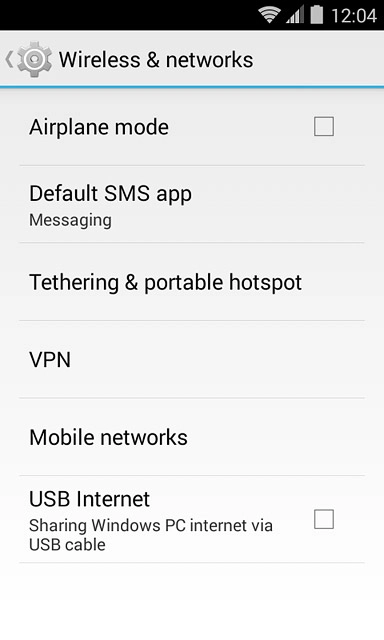

Press Mobile networks.

Find "Access Point Names"

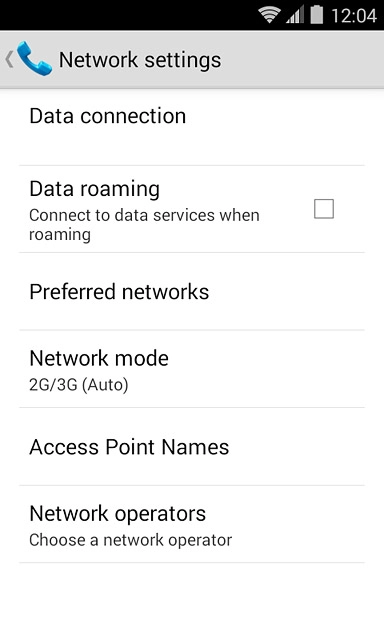

Press Access Point Names.

Create new data connection

Press the Menu key.

Create new data connection

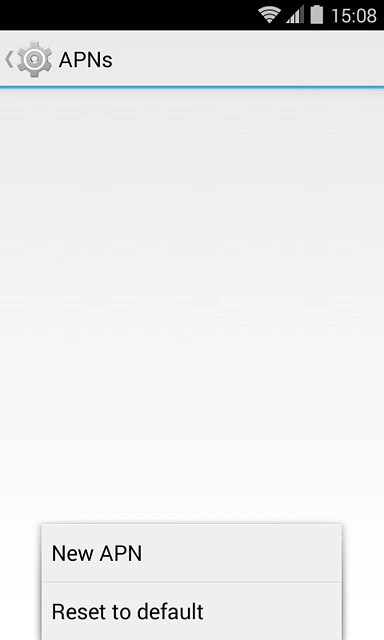

Press New APN.

Enter data connection name

Press Name.

Enter data connection name

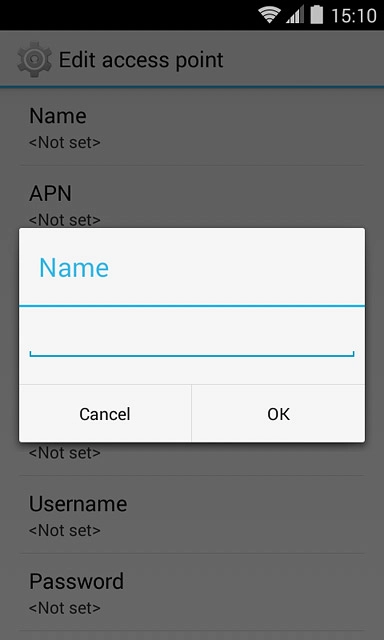

Key in Vodafone MMS and press OK.

Enter APN

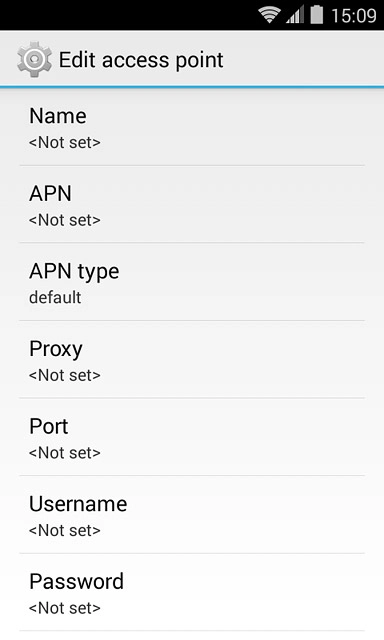

Press APN.

Enter APN

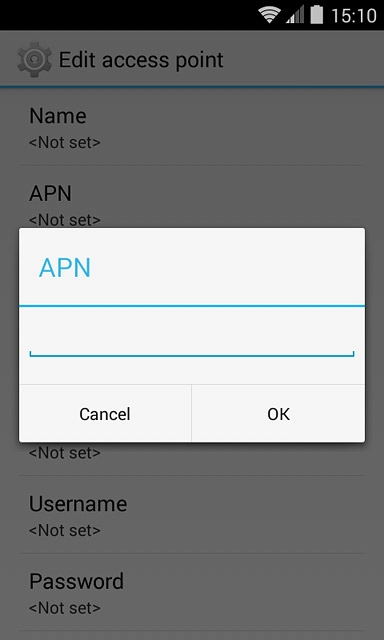

Key in live.vodafone.com and press OK.

Select APN type

Press APN type.

Select APN type

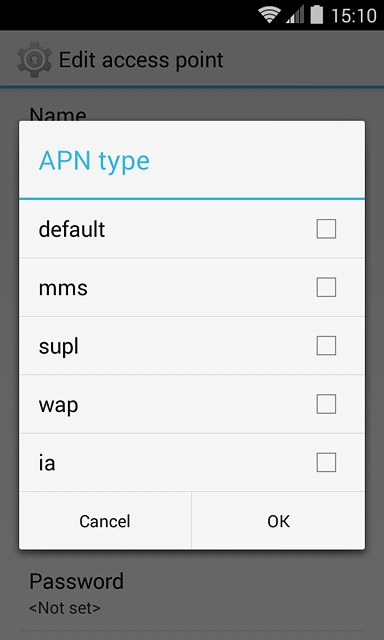

Press default until the function is turned off.

Select APN type

Press mms until the function is turned on.

Select APN type

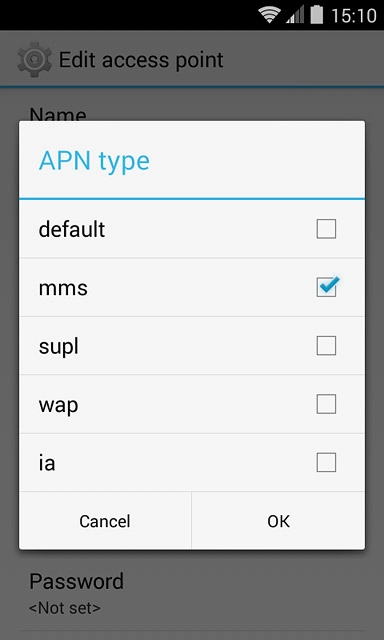

Press OK.

Enter picture messaging server

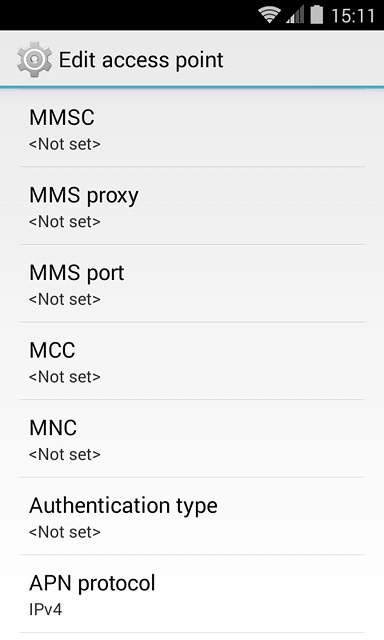

Press MMSC.

Enter picture messaging server

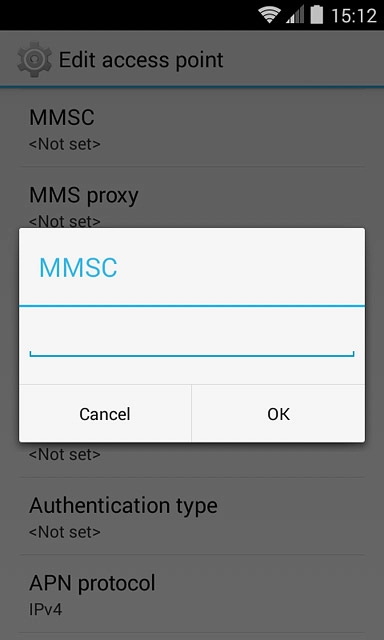

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.

Enter IP address

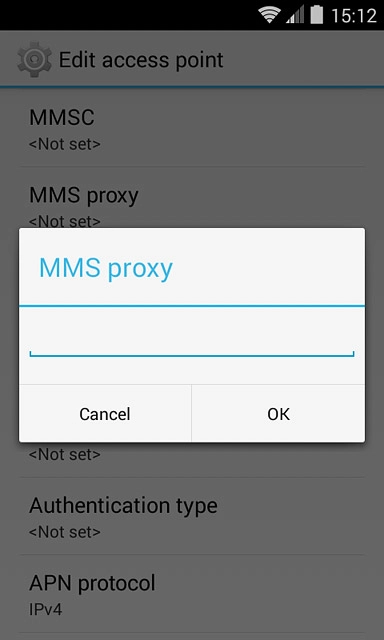

Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.

Enter port number

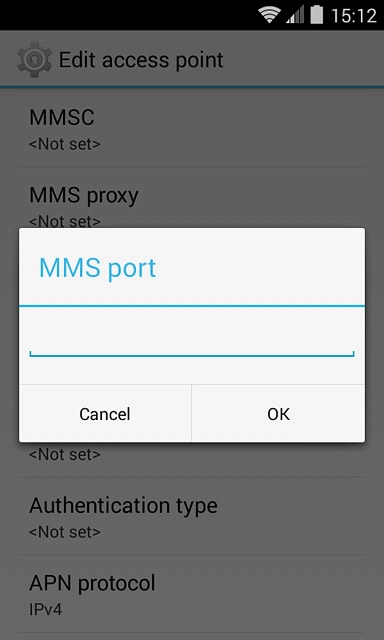

Key in 8080 and press OK.

Enter country code

Press MCC.

Enter country code

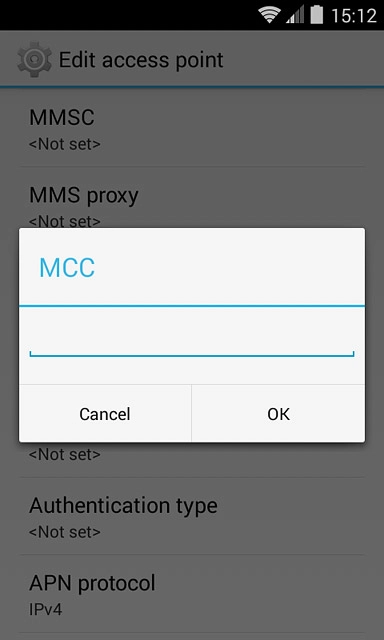

Key in 505 and press OK.

Enter network code

Press MNC.

Enter network code

Key in 03 and press OK.

Select authentication type

Press Authentication type.

Select authentication type

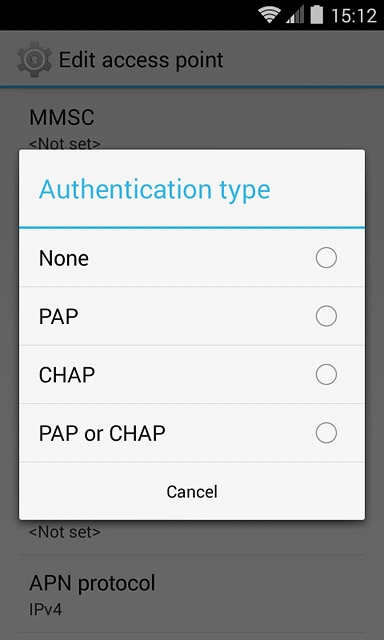

Press PAP.

Select data bearer

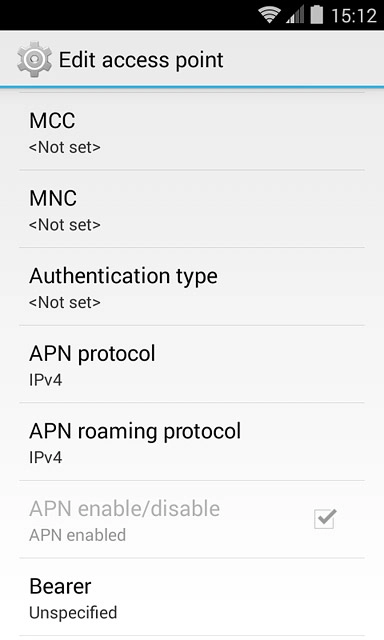

Press Bearer.

Select data bearer

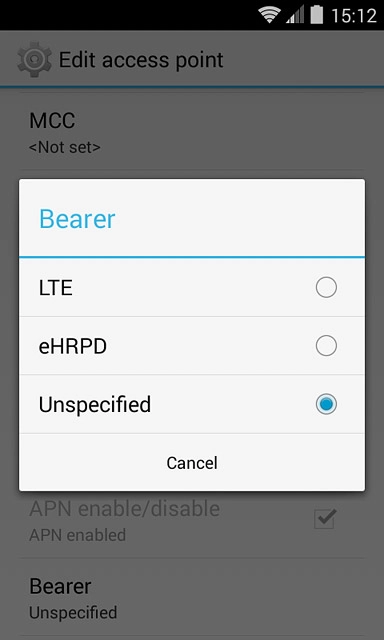

Press Unspecified.

Save data connection

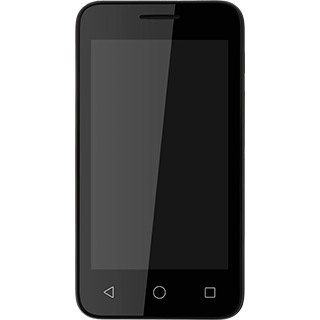

Press the Menu key.

Save data connection

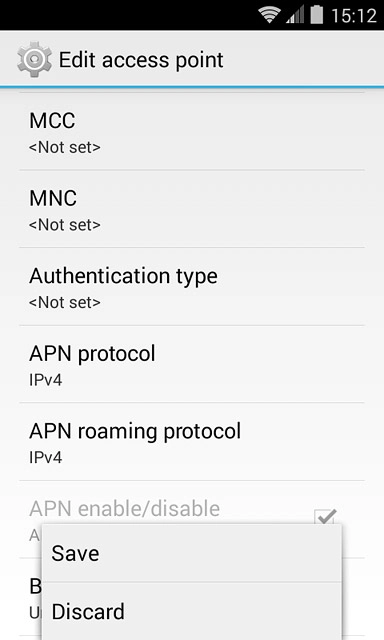

Press Save.

Return to the home screen

Press the Home key to return to the home screen.
