Vodafone Smart mini 7

Vodafone Smart mini 7

Android 6.0

Set up your Vodafone Smart mini 7 Android 6.0 for POP3 email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using POP3, your email messages are retrieved to your phone and at the same time they are deleted from the server. You're then not able to access your email messages from other devices. To set up your phone for POP3 email, you need to set up your phone for internet.

Step 1 of 37

1. Find "Accounts"

Slide two fingers downwards starting from the top the screen.

Step 2 of 37

1. Find "Accounts"

Press the settings icon.

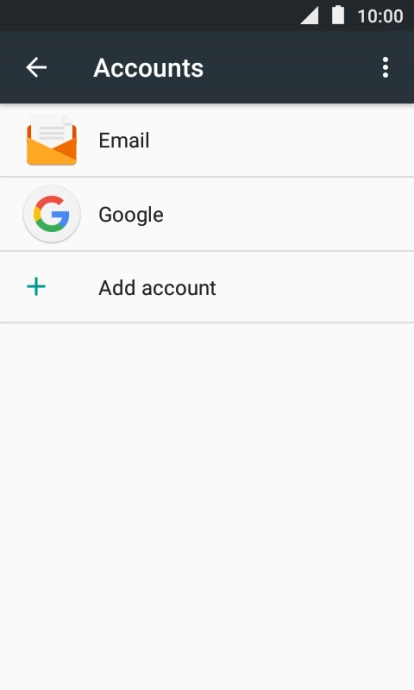

Step 3 of 37

1. Find "Accounts"

Press Accounts.

Step 4 of 37

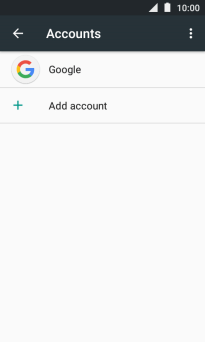

2. Create new email account

Press Add account.

Step 5 of 37

2. Create new email account

Press Email.

Step 6 of 37

3. Enter email address

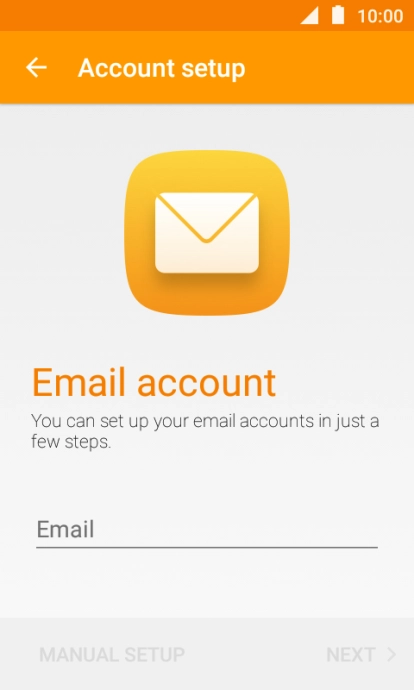

Press the text input field and key in your email address.

Step 7 of 37

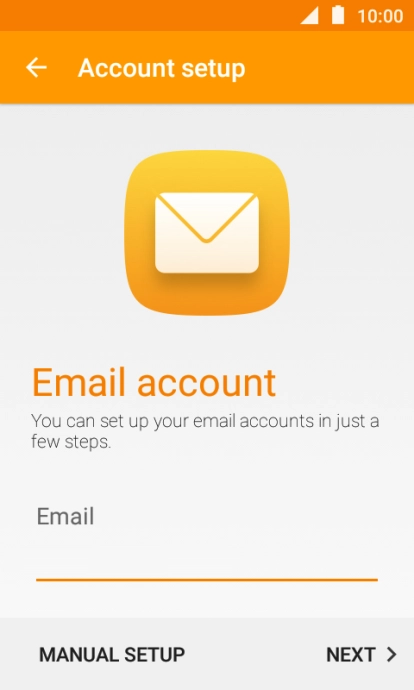

3. Enter email address

Press NEXT.

Step 8 of 37

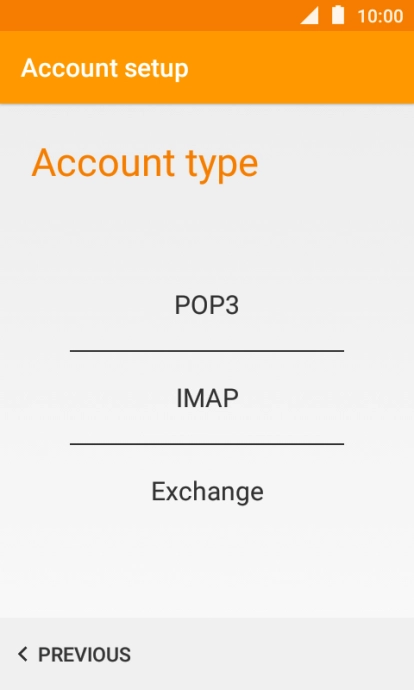

4. Select server type

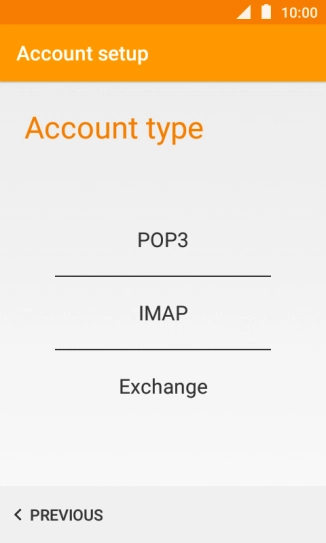

Press POP3.

Step 9 of 37

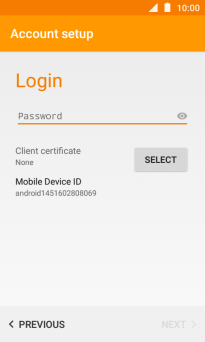

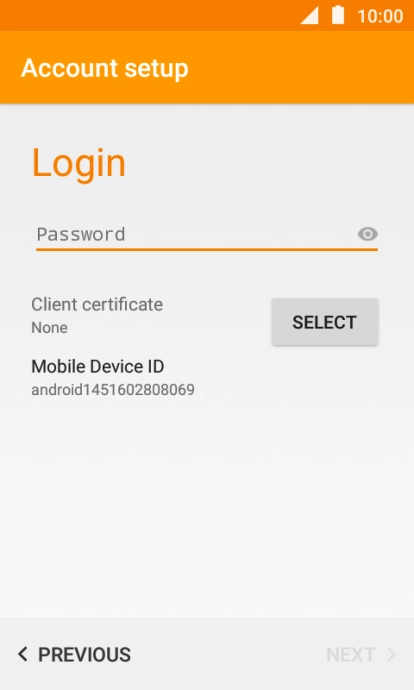

5. Enter password

Press the text input field and key in the password for your email account.

Step 10 of 37

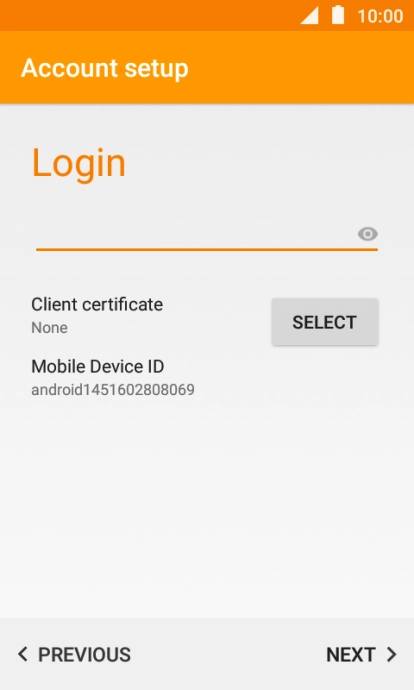

5. Enter password

Press NEXT.

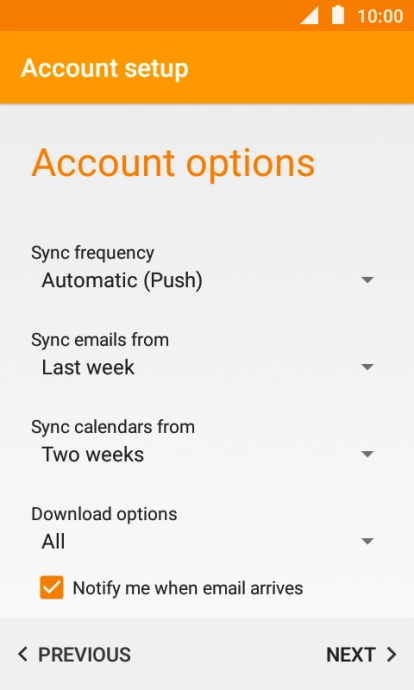

Step 11 of 37

5. Enter password

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 12 of 37

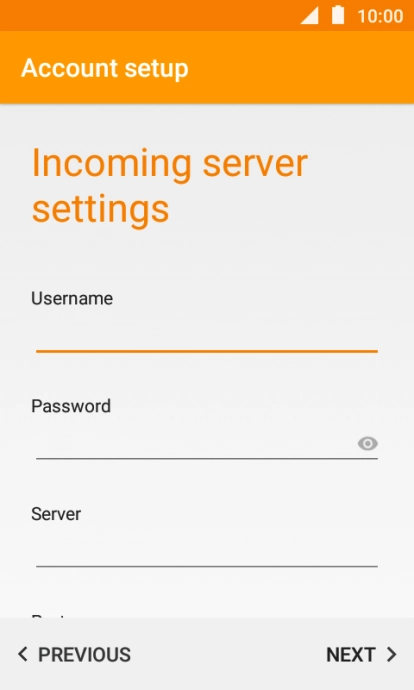

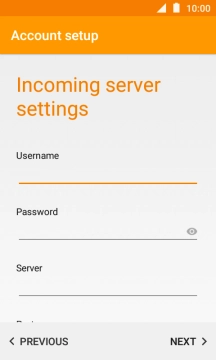

6. Enter username

Press the field below "Username" and key in the username for your email account.

Step 13 of 37

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

110
Step 14 of 37

8. Enter incoming port

Press the field below "Port" and key in 110.

Step 15 of 37

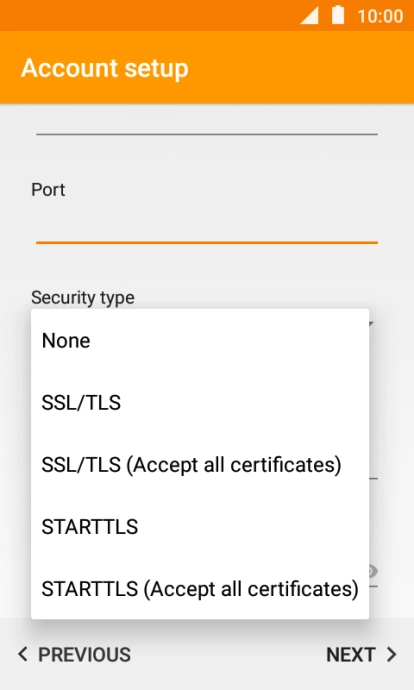

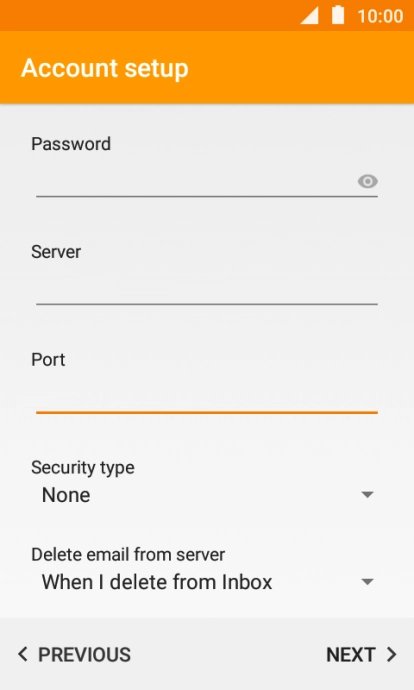

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".

Step 16 of 37

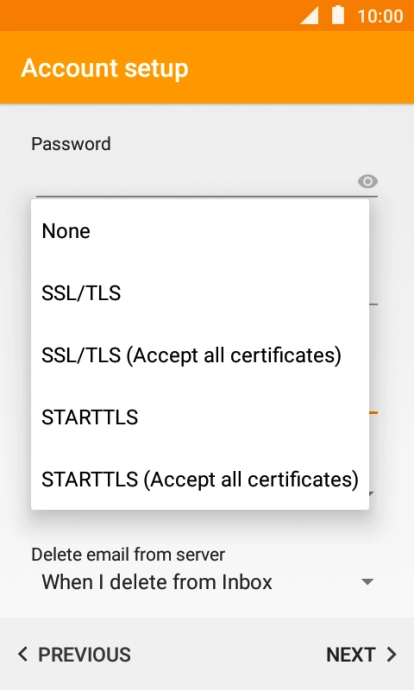

9. Turn off encryption of incoming email messages

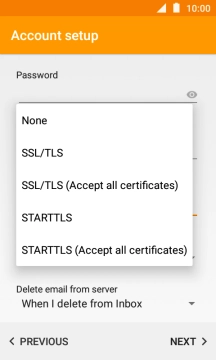

Press None to turn off the function.

Step 17 of 37

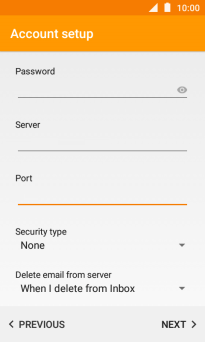

10. Turn deletion of email messages on server on or off

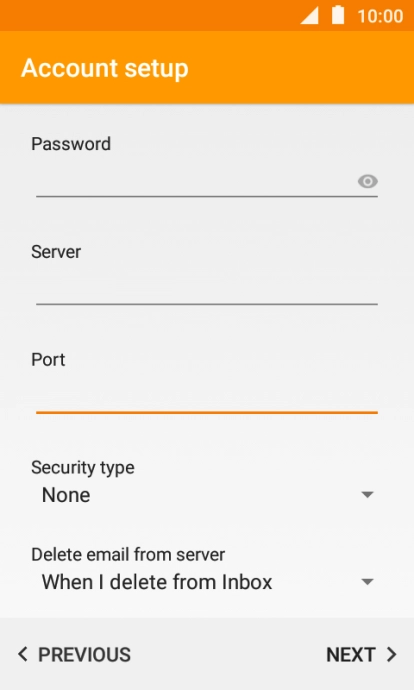

Press the drop down list below "Delete email from server".

Step 18 of 37

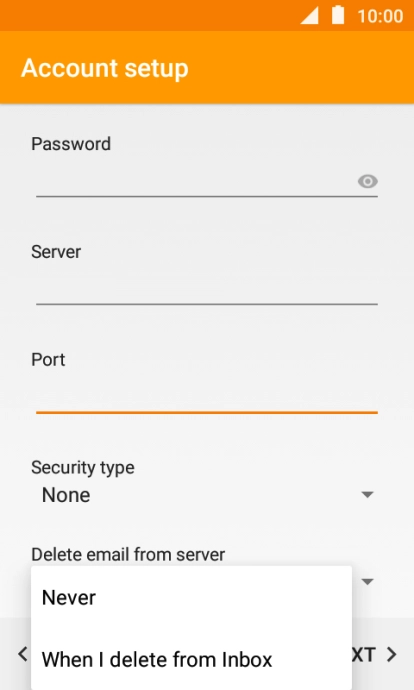

10. Turn deletion of email messages on server on or off

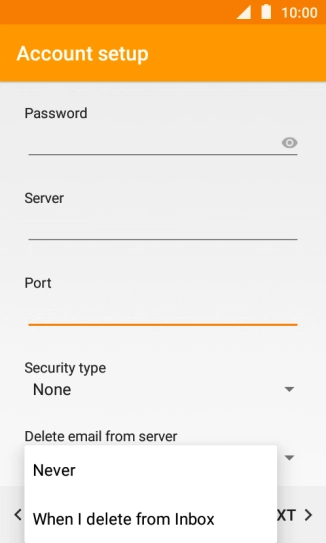

Press Never to keep email messages on the server when you delete them on your phone.

Step 19 of 37

10. Turn deletion of email messages on server on or off

Press When I delete from Inbox to delete email messages on the server when you delete them on your phone.

Step 20 of 37

10. Turn deletion of email messages on server on or off

Press NEXT.

smtp.vodafone.net.au
Step 21 of 37

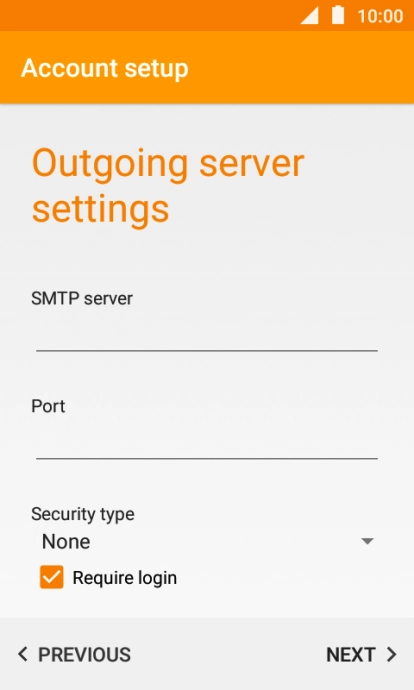

11. Enter outgoing server

Press the field below "SMTP server" and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

25
Step 22 of 37

12. Enter outgoing port

Press the field below "Port" and key in 25.

Step 23 of 37

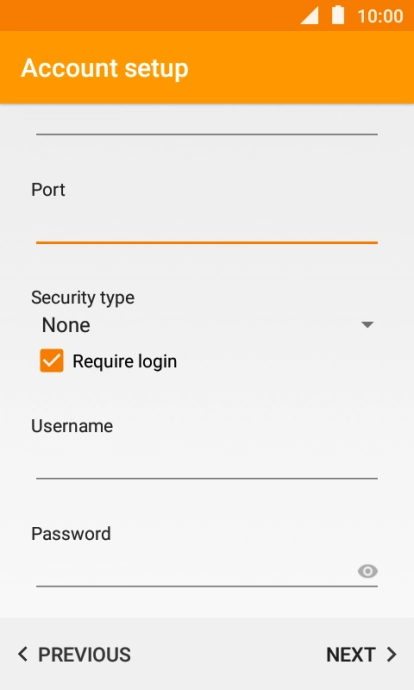

13. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".

Step 24 of 37

13. Turn off encryption of outgoing email messages

Press None to turn off the function.

Step 25 of 37

14. Turn SMTP authentication on or off

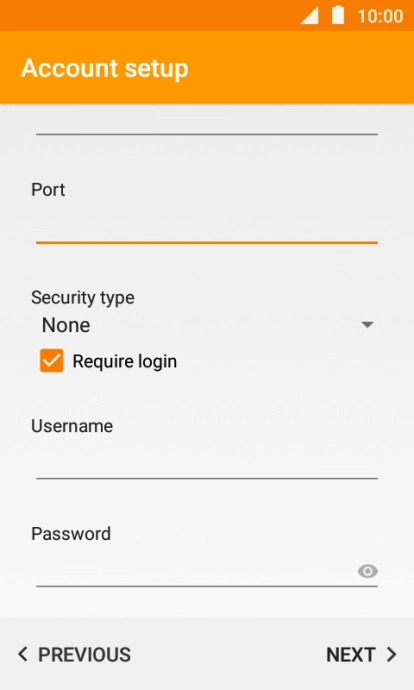

Press Require login to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.

Step 26 of 37

14. Turn SMTP authentication on or off

Press the field below "Username" and key in the username for your email account.

Step 27 of 37

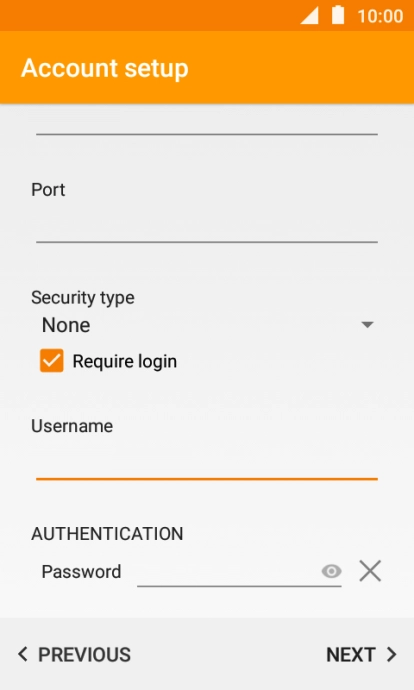

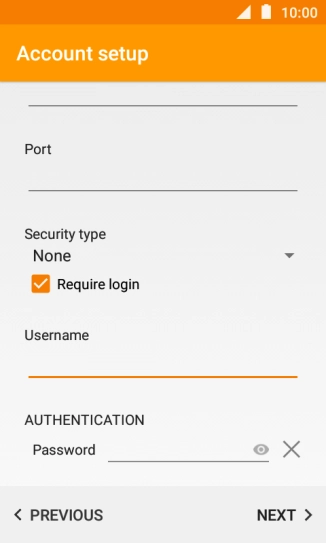

14. Turn SMTP authentication on or off

Press the field next to "Password" and key in the password for your email account.

Step 28 of 37

14. Turn SMTP authentication on or off

Press NEXT.

Step 29 of 37

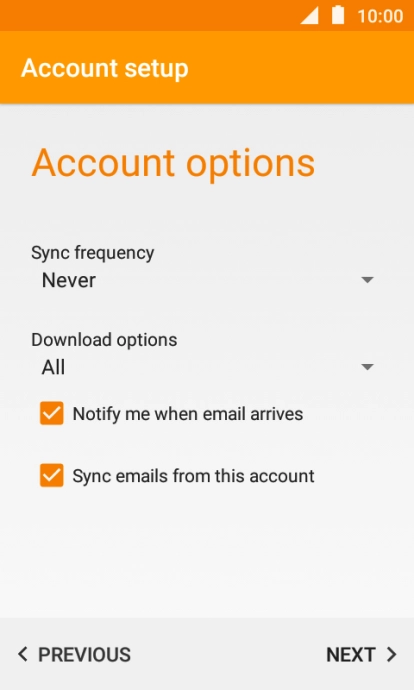

15. Select setting for retrieval of new email messages

Press the drop down list next to "Sync frequency".

Step 30 of 37

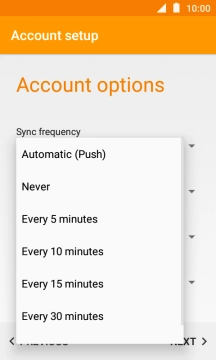

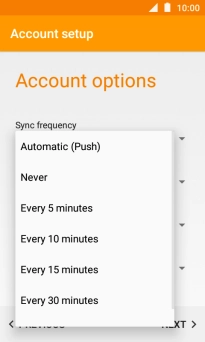

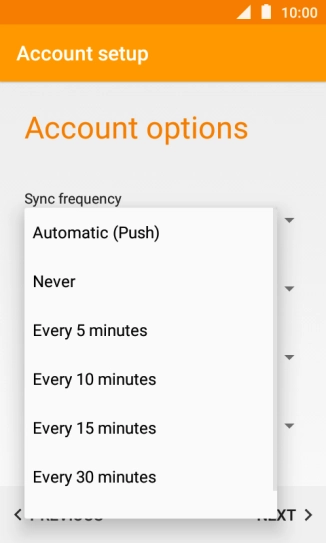

15. Select setting for retrieval of new email messages

Press the required setting.

Step 31 of 37

16. Select notification for new email messages

Press Notify me when email arrives to turn the function on or off.

Step 32 of 37

17. Turn on email message synchronisation

Press Sync emails from this account to turn on the function.

Step 33 of 37

17. Turn on email message synchronisation

Press NEXT.

Step 34 of 37

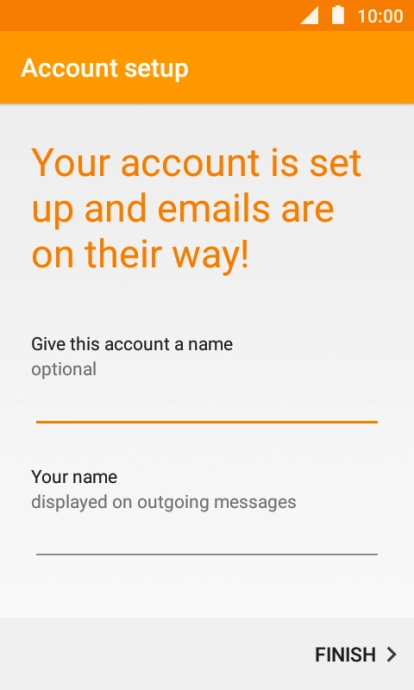

18. Enter email account name

Press the field below "Give this account a name" and key in the required name.

Step 35 of 37

19. Enter sender name

Press the field below "Your name displayed on outgoing messages" and key in the required sender name.

Step 36 of 37

19. Enter sender name

Press FINISH.

Step 37 of 37

20. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press Accounts.

2. Create new email account

Press Add account.
Press Email.

3. Enter email address

Press the text input field and key in your email address.
Press NEXT.

4. Select server type

Press POP3.

5. Enter password

Press the text input field and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

6. Enter username

Press the field below "Username" and key in the username for your email account.

7. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

8. Enter incoming port

Press the field below "Port" and key in 110.
110

9. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.

10. Turn deletion of email messages on server on or off

Press the drop down list below "Delete email from server".
Press Never to keep email messages on the server when you delete them on your phone.
Press When I delete from Inbox to delete email messages on the server when you delete them on your phone.
Press NEXT.

11. Enter outgoing server

Press the field below "SMTP server" and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
smtp.vodafone.net.au

12. Enter outgoing port

Press the field below "Port" and key in 25.
25

13. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.

14. Turn SMTP authentication on or off

Press Require login to turn the function on or off. Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press the field below "Username" and key in the username for your email account.
Press the field next to "Password" and key in the password for your email account.
Press NEXT.

15. Select setting for retrieval of new email messages

Press the drop down list next to "Sync frequency".
Press the required setting.

16. Select notification for new email messages

Press Notify me when email arrives to turn the function on or off.

17. Turn on email message synchronisation

Press Sync emails from this account to turn on the function.
Press NEXT.

18. Enter email account name

Press the field below "Give this account a name" and key in the required name.

19. Enter sender name

Press the field below "Your name displayed on outgoing messages" and key in the required sender name.
Press FINISH.

20. Return to the home screen

Press the Home key to return to the home screen.
