Set up your tablet for picture messaging - Vodafone Smart Tab 4 8.0

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other tablets, mobile phones and email addresses. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for picture messaging manually.

Step 1 of 30

Find "Access Point Names"

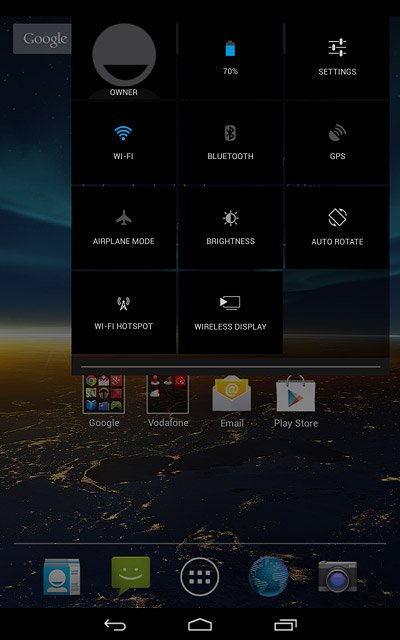

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.

Step 2 of 30

Find "Access Point Names"

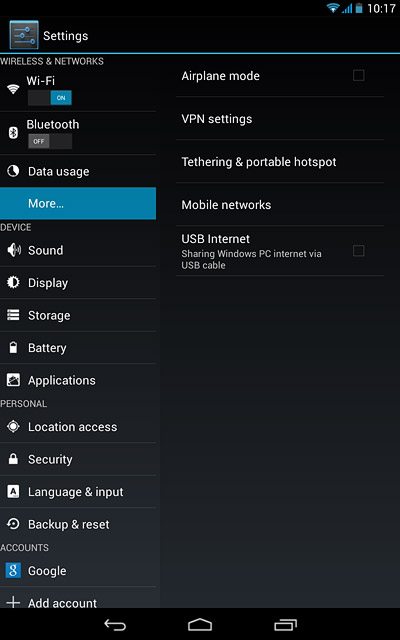

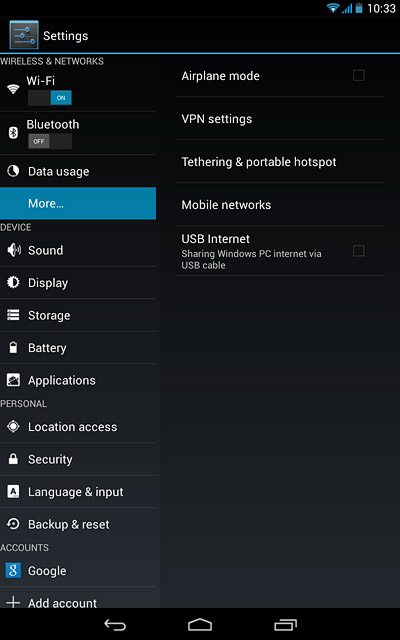

Press More....

Step 3 of 30

Find "Access Point Names"

Press Mobile networks.

Step 4 of 30

Find "Access Point Names"

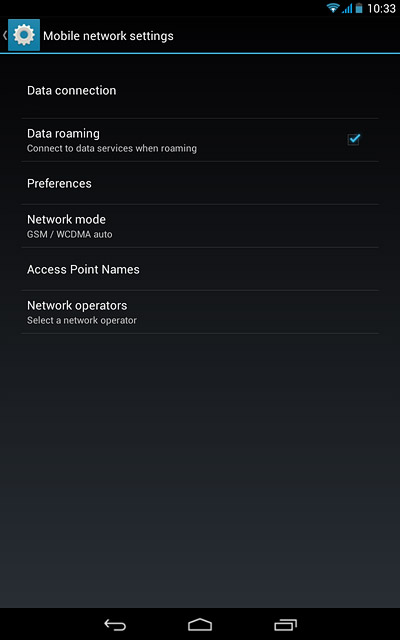

Press Access Point Names.

Step 5 of 30

Create new data connection

Press the menu icon.

Step 6 of 30

Create new data connection

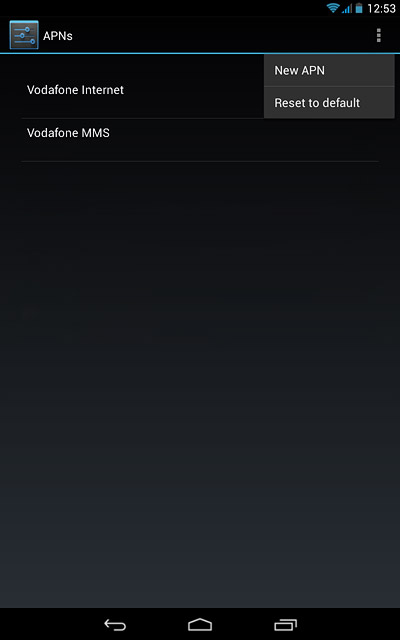

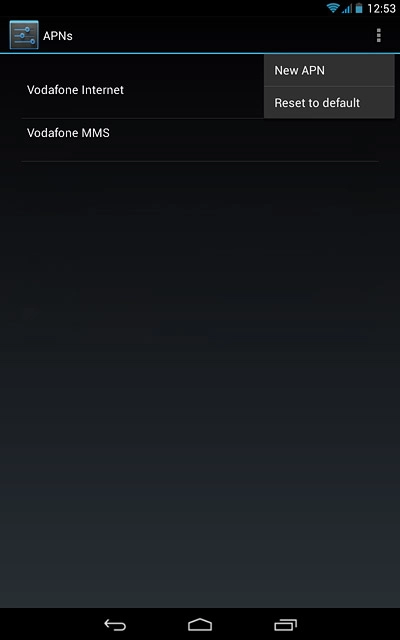

Press New APN.

Step 7 of 30

Enter data connection name

Press Name.

Step 8 of 30

Enter data connection name

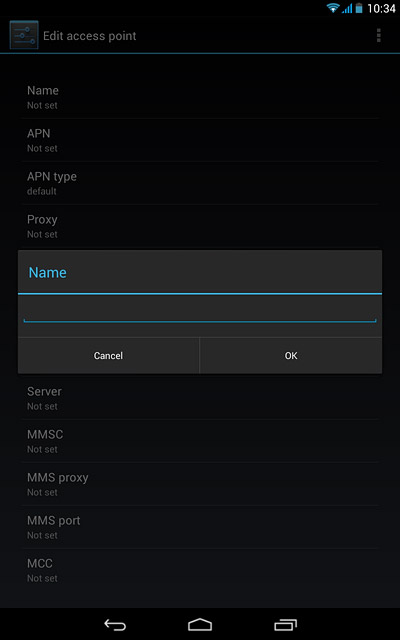

Key in Vodafone MMS and press OK.

Step 9 of 30

Enter APN

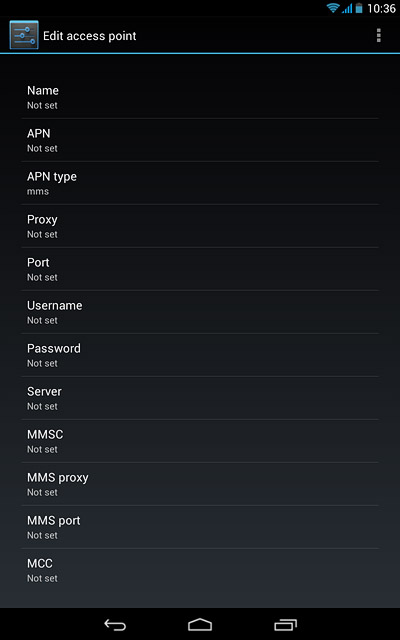

Press APN.
Key in live.vodafone.com

Step 10 of 30

Enter APN

Press OK.

Step 11 of 30

Select APN type

Press APN type.

Step 12 of 30

Select APN type

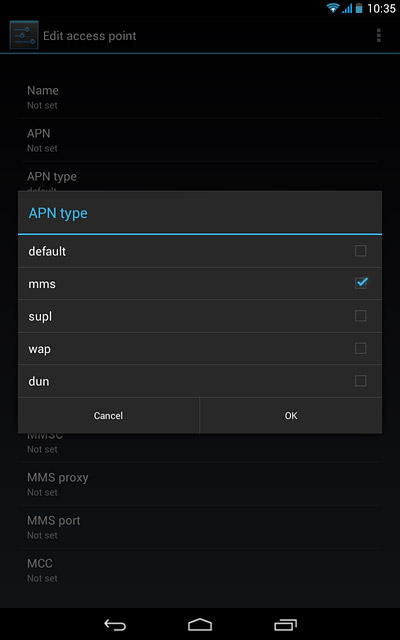

Press mms until the APN type has been selected.

Step 13 of 30

Select APN type

Press OK.

Step 14 of 30

Enter picture messaging server

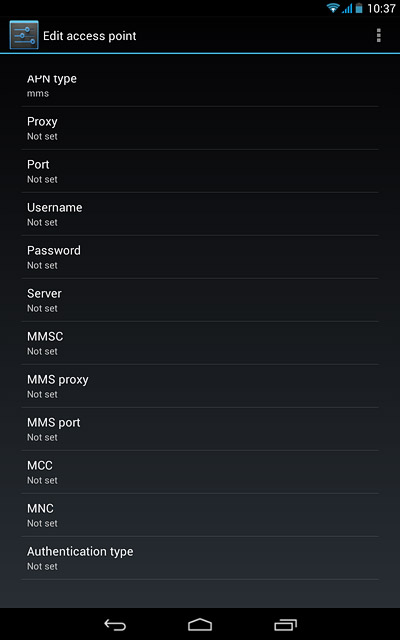

Press MMSC.

Step 15 of 30

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 16 of 30

Enter IP address

Press MMS proxy.

Step 17 of 30

Enter IP address

Key in 10.202.002.060 and press OK.

Step 18 of 30

Enter port number

Press MMS port.

Step 19 of 30

Enter port number

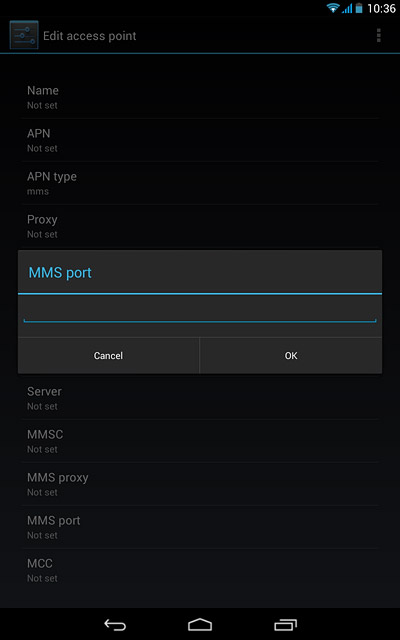

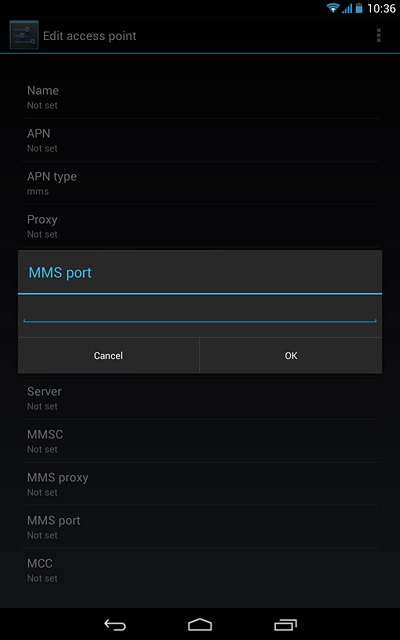

Key in 8080 and press OK.

Step 20 of 30

Enter country code

Press MCC.

Step 21 of 30

Enter country code

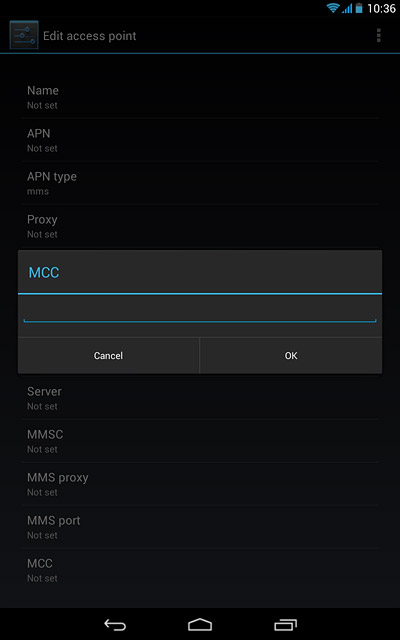

Key in 505 and press OK.

Step 22 of 30

Enter network code

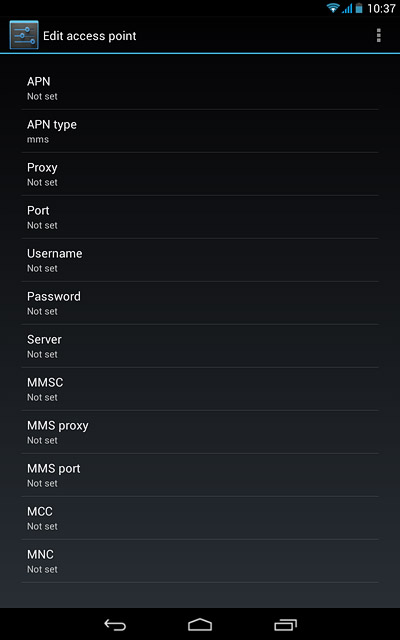

Press MNC.

Step 23 of 30

Enter network code

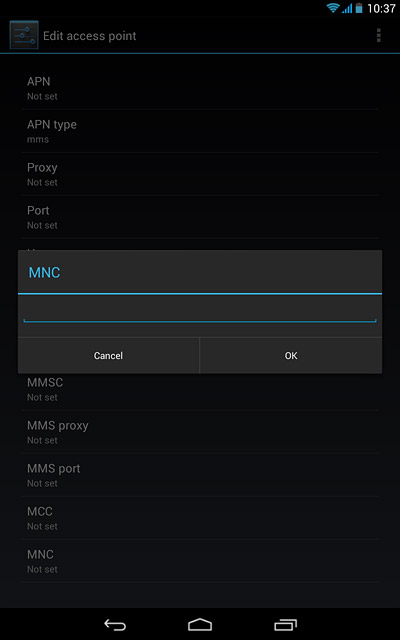

Key in 03 and press OK.

Step 24 of 30

Select authentication type

Press Authentication type.

Step 25 of 30

Select authentication type

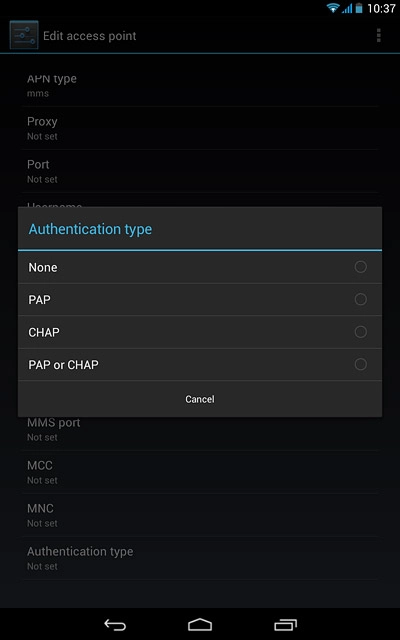

Press PAP.

Step 26 of 30

Select data bearer

Press Bearer.

Step 27 of 30

Select data bearer

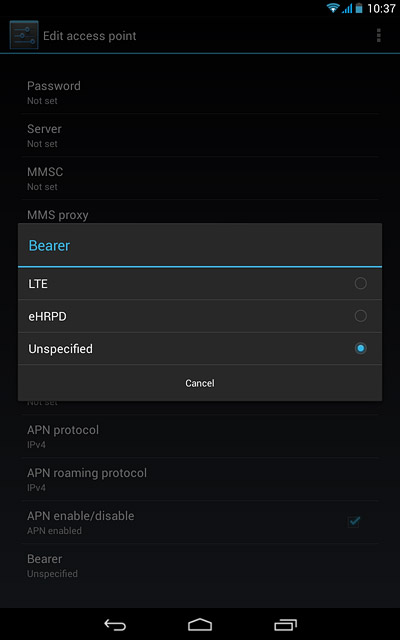

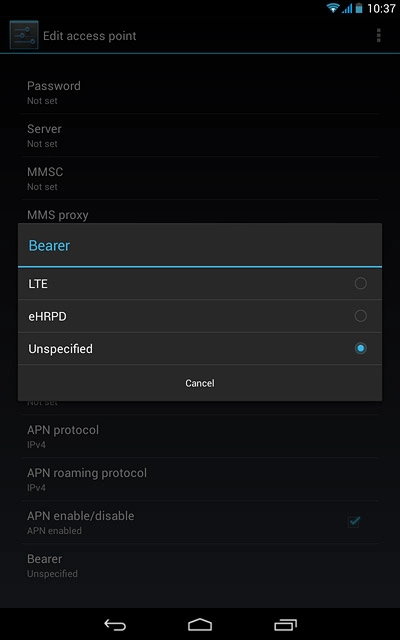

Press Unspecified.

Step 28 of 30

Save data connection

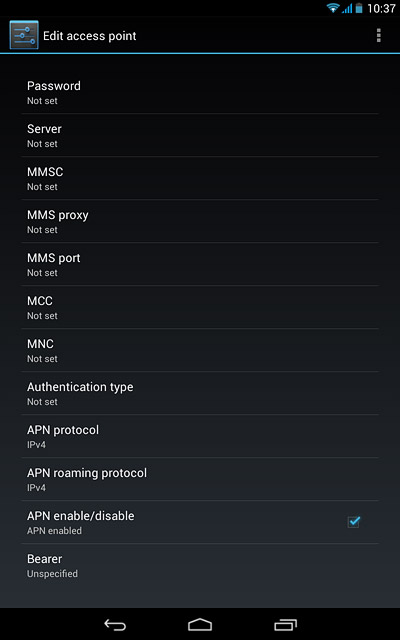

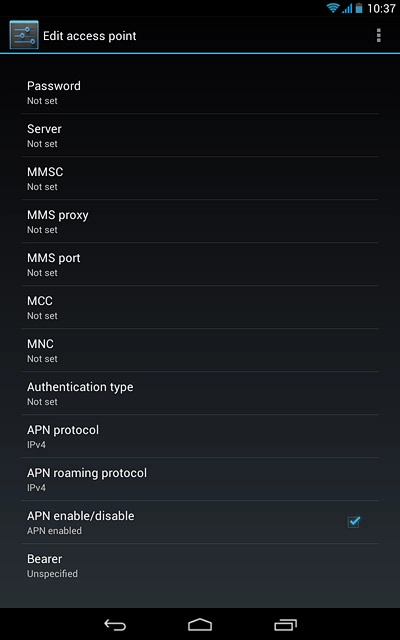

Press the menu icon.

Step 29 of 30

Save data connection

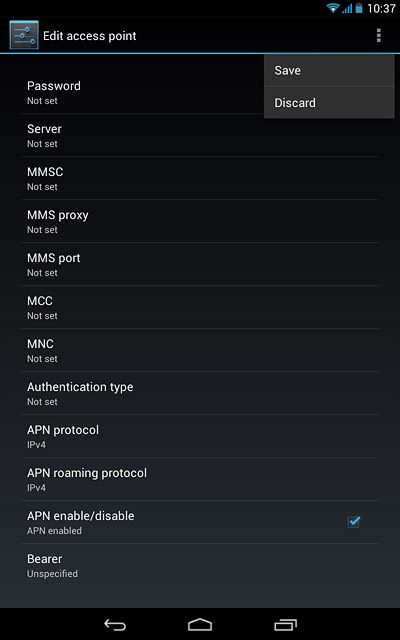

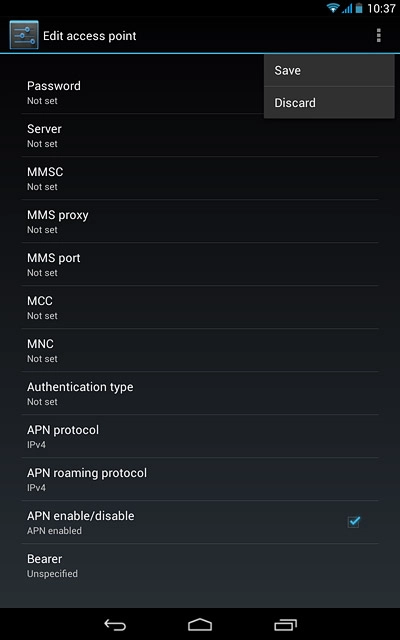

Press Save.

Step 30 of 30

Return to the home screen

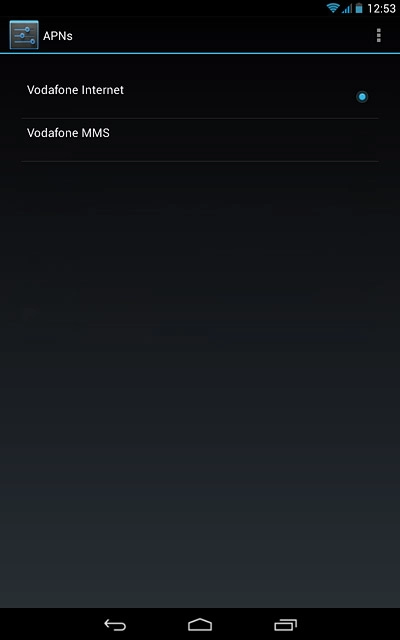

Press the home icon to return to the home screen.

Find "Access Point Names"

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.
Press More....
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Select APN type

Press APN type.
Press mms until the APN type has been selected.
Press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select data bearer

Press Bearer.
Press Unspecified.

Save data connection

Press the menu icon.
Press Save.

Return to the home screen

Press the home icon to return to the home screen.
